Part Number: NodeMCU-32S
Korisne informacije:
www.waveshare.com/wiki/NodeMCU-32S NodeMCU-32S ESP32 Development Board, WiFi / Bluetooth / UART / Keys / Extension Headers

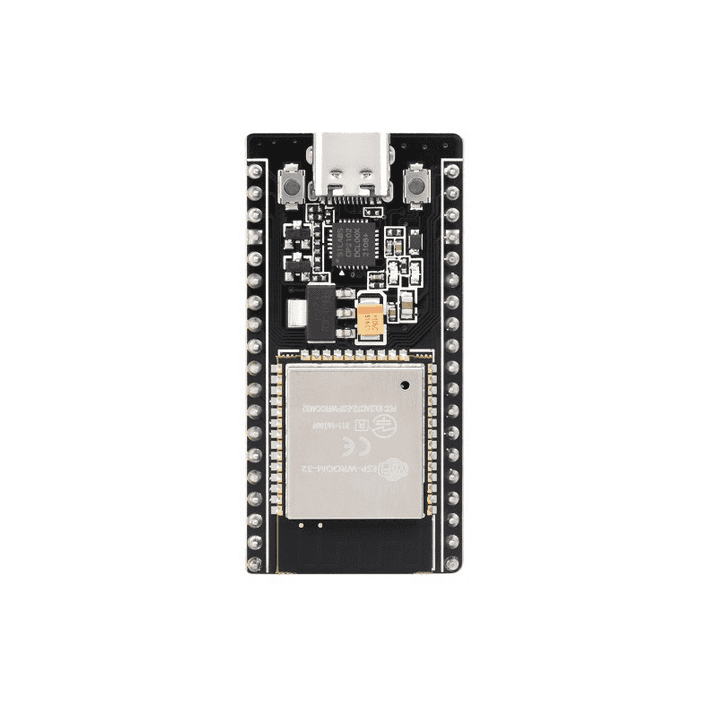

Overview
This is the NodeMCU development board based on ESP32, features WiFi+Bluetooth connectivity, onboard CP2102 and keys. What's more, all the I/O pins of ESP32 module are accessible via the extension headers.
Thanks to the rich open-source resources, it supports development in various ways such as Lua/AT commands/MicroPython/Arduino/IOT source code, etc. helps you to fast prototype IoT applications.
Features
- Onboard ESP32 module
- Onboard CP2102, USB to UART converter
- USB port for power input, firmware programming, or UART debugging
- 2x19pin extension headers, breakout all the I/O pins of the module
- 2x keys, used as reset or user-defined
Version Comparison
Specifications
- WIFI module: ESP32
- Built-in Flash: 32Mbit
- Antenna: Onboard PCB antenna
- Peripheral interface: UART/GPIO/ADC/DAC/SDIO/PWM/I2C/I2S
- WiFi protocol: IEEE 802.11 b/g
- Bluetooth: Bluetooth 4.2
- Frequency range: 2.4G ~ 2.5G (2400M ~ 2483.5M)
- WIFI mode: Station / SoftAP / SoftAP+Station
- Power supply: 5V
- Logic level: 3.3V
- Dimensions: 51.4mm x 25.4mm
Applications
The NodeMCU-32S suit for IOT applications such as:
- Smart home
- Intelligent building
- Industrial automation
- Wearable devices
- IP camera
- Intelligent agriculture

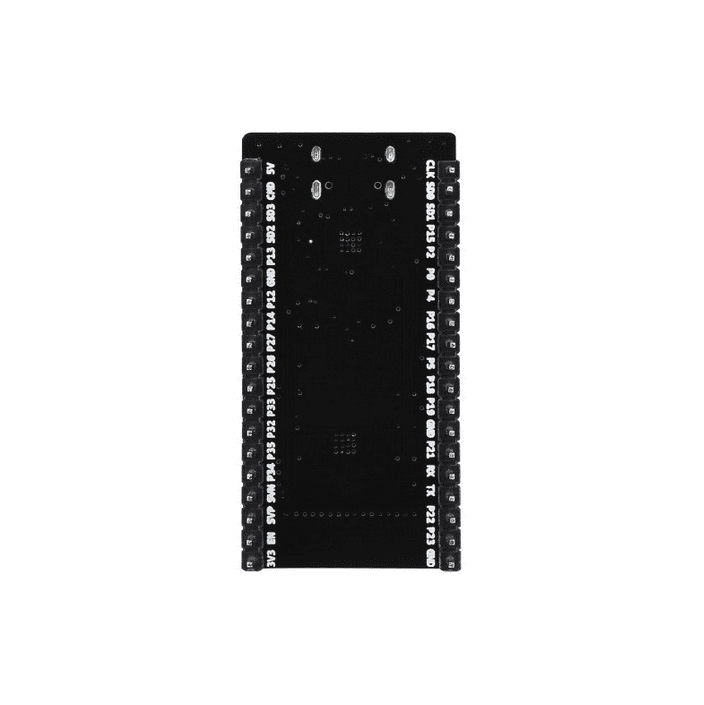

Pinouts
- PACKAGE CONTENT
Weight: 0.01 kg
- NodeMCU-32S x1
