CM4-NANO-C

Šifra: w23451

3.690,00 RSD

Cena sa PDV

Lista želja ?

Unesi količinu Samo 1 na stanju

Dodaj u korpu

Kategorija: mini PC
Težina po komadu: 0.029 Kg

SKU: 23451
Part Number: CM4-NANO-C
Brand: Waveshare

Korisne informacije: www.waveshare.com/wiki/CM4-NANO-C

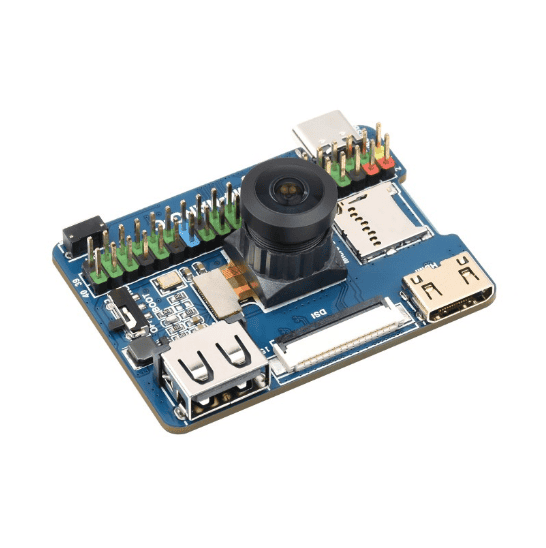

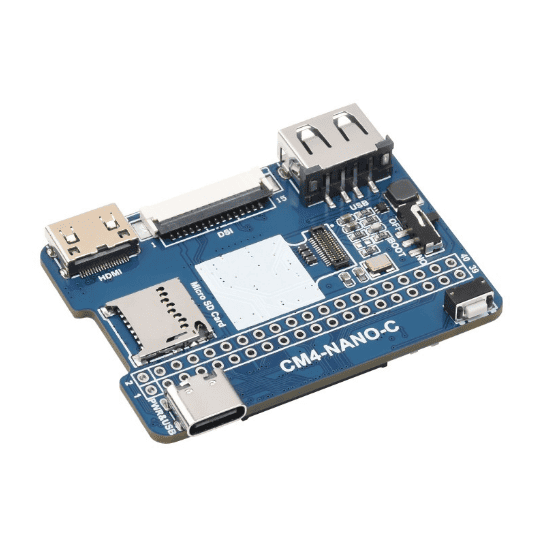

Nano Base Board (C) For Raspberry Pi Compute Module 4, Same Size As The CM4, Onboard 8MP Camera

Nano Base Board (C) For CM4

Suitable For Evaluating The Raspberry Pi CM4 Or Being Integrated Into End Products

Base Board for Compute Module 4 Lite/eMMC

Multiple Interfaces, Onboard 8MP Camera

Same Size As The CM4, Standard CM4 Socket, With Multiple Peripheral Interfaces
Onboard 8MP Camera Module With 160°FOV To Meet Your Needs In The Application

for reference only, the CM4 is NOT included.

Specifications

CM4 SOCKET	suitable for all variants of Compute Module 4
CONNECTOR	Raspberry Pi 40PIN GPIO header × 1
USB	USB 2.0 Type A port × 1
DISPLAY	MIPI DSI port × 1 (15pin 1.0mm FPC connector)
CAMERA	IMX219-D160 (8MP, 160°FOV)
VIDEO	Mini HDMI port × 1, supports 4K 30fps output
STORAGE	TF card socket for Compute Module 4 Lite (without eMMC) variants
POWER INPUT	5V
DIMENSIONS	55.0 × 40.0mm

Application Example

for reference only, please refer to the part list for detailed package content.

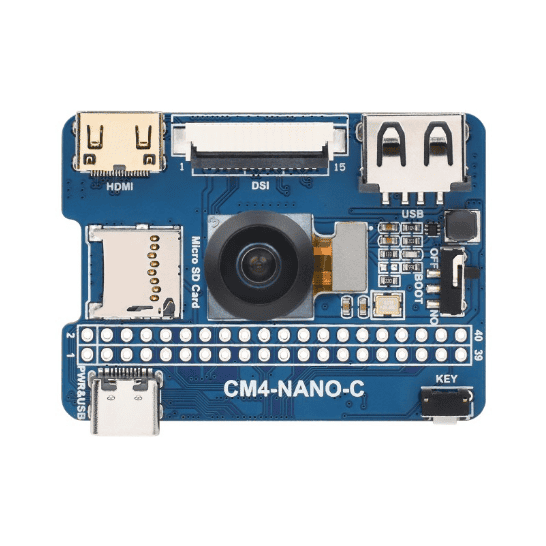

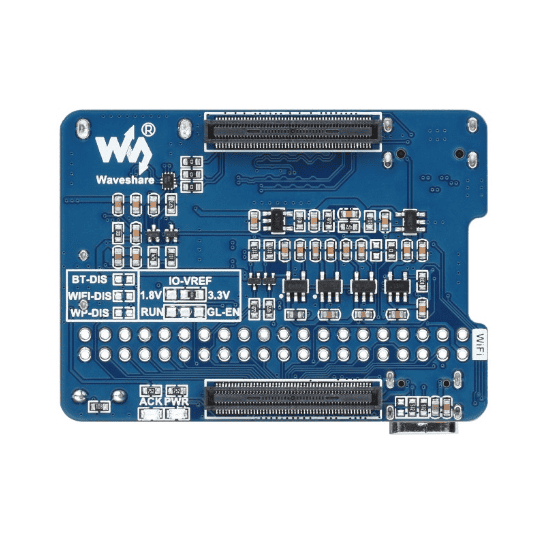

What's On Board

CM4 socket
suitable for all variants of Compute Module 4

Mini HDMI port
supports 4K 30fps output

DSI port
MIPI DSI display interface

USB2.0 port
for connecting sorts of USB devices

TF card slot
for connecting a TF card with pre-burnt image (Lite variant ONLY)

Power supply / Programming
5V power supply, or used for eMMC burning

40PIN GPIO header
for connecting sorts of HATs

IMX219-D160 Camera
8MP, 160° FOV

User button
Connect to GPIO21

BOOT switch
ON: Switch USB to Type C interface, will enter download mode when powered on (configured as a large-capacity disk through RPI boot)
OFF: Switch USB to Type A interface, will not enter download mode when powered on (booted from eMMC or TF card)
