SKU: 24108
Part Name: 21.5inch FHD Monitor (EU)
Brand: Waveshare
Wiki: http://www.waveshare.com/wiki/21.5inch_FHD_Monitor 21.5 inch FHD Monitor
21.5 inch FHD Monitor, With Case And Toughened Glass Cover, 1080×1920, HDMI, IPS, Various Devices & Systems Support

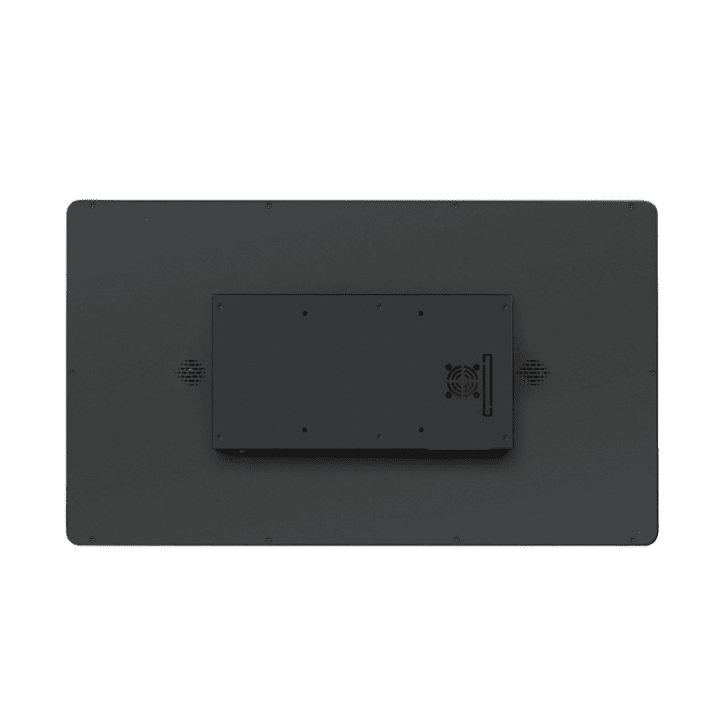

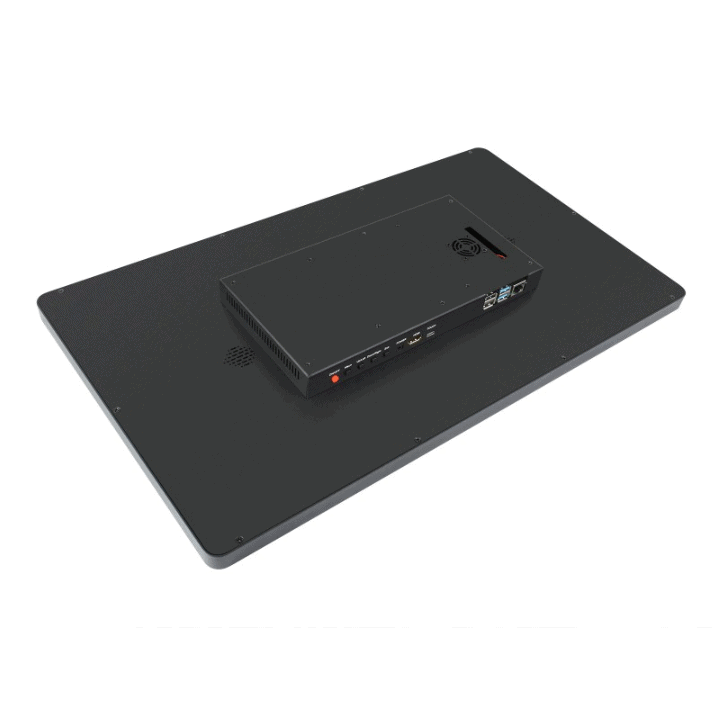

U zavisnosti od verzije na kućištu iza postoji prostor za montažu Raspberry Pi 4 ili Raspberry CM4 ploče sa svim konektorima.
Posetite
Wiki zbog pomoći oko načina povezivanja, instalacije, primera i drugih korisnih informacija pre kupovine. Možete nas i konsultovati na email
office@malina314.com
█ Version
Size |
Resolution |
Display Port |
Display Colour |
Viewing Angle |
 |
 |
 |
 |
 |
21.5" |
1080×1920 |
HDMI |
16.7M |
170° |
Touch Type |
Touch Points |
Touch Port |
Touch Panel |
OSD Menu |
 |
 |
 |
 |
 |
Capacitive |
10-Points |
USB-C |
Toughened Glass |
Brightness Contrast |
Sound |
VESA Wall Mount |
Enclosure |
Touch Panel Tech |
Temperature Range |
 |
 |
 |
 |
 |
Hi-Fi Speaker |
100 x 100 mm |
Aluminum Alloy |
Optical Binding |
-5 ~ 60 ℃ |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
█ Device & System Support
Raspberry Pi
- Supports Raspberry Pi OS, 10-point touch, driver free
- Supports Ubuntu / Kali, single point touch, driver free
Jetson Nano
- Supports Ubuntu, single point touch, driver free
PC
- Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free
█ Connection Examples
Working With Raspberry Pi 4B
21.5inch FHD Monitor (B) | Built-In Pi4B-2GB
Working With Raspberry Pi Compute Module 4
21.5inch FHD Monitor (C) | Built-In CMPI4102008
Working With Jetson Nano
Working With Mini PC

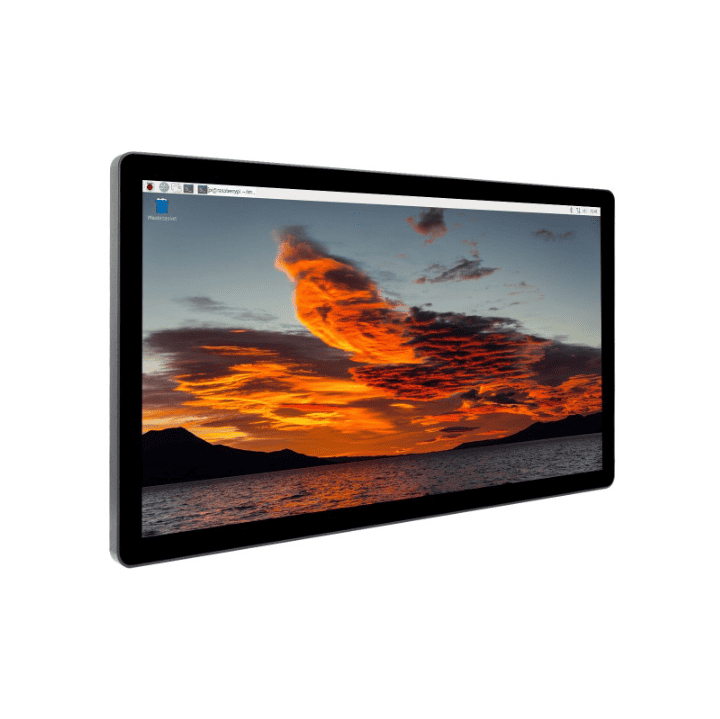

█ Display
Configurable Display Orientation The Display Orientation Is Portrait By Default, 1080×1920 Resolution (H×V).
Change The Software Config For Landscape Display
Wide Viewing Angle IPS Display Panel
Excellent Display & Color Performance
Wide Viewing Angle Up To 170°, Color Gamut Up To 72% NTSC
FHD High Resolution
1080×1920 Pixels, Clearer Display
- up to 10-point touch, depending on the operating system
- up to 6H hardness toughened glass panel
- Optical Bonding, display well and dustproof
Audio Feature
Built-In Ferrite Hi-Fi Speaker, Dual-Track Support

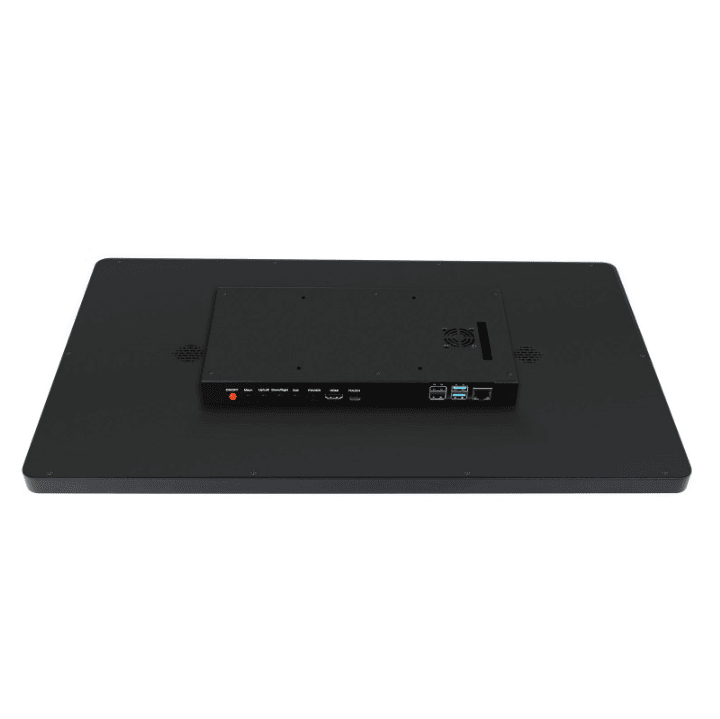

█ Interface Introduction
for reference only, the monitor arm is not included.
█ Application Scenarios
Suitable For Industrial, Commercial, Medical And Other Applications
█ Dimensions (mm)
-

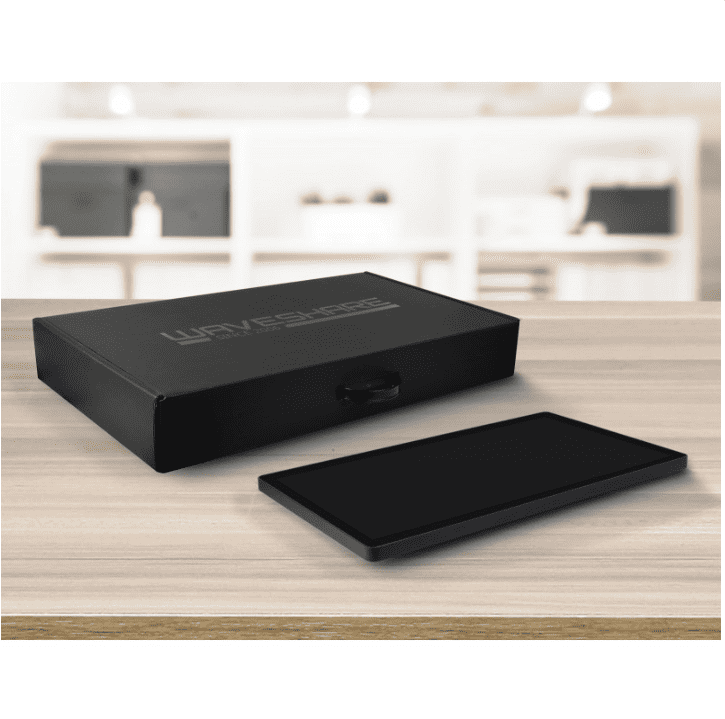

█ Package Content
- 21.5inch FHD Monitor ×1
- USB-A to USB-C cable ~1m ×1
- HDMI flat cable ~1m ×1
- OPTIONS 12V 3A Power supply ×1
- Packaging box ×1
Weight: 4.038 kg
