SKU: 16645
Part Name: 15.6inch HDMI LCD (H) (with case) (for EU)
Brand: Waveshare
Wiki: http://www.waveshare.com/wiki/15.6inch_HDMI_LCD_(H)_(with_case) 15.6" HDMI Touch Display
15.6 inch, IPS, 1920x1080, Capacitive Touch Screen LCD with Toughened Glass Cover, Supports Multi mini-PCs, Multi Systems
Posetite
Wiki zbog pomoći oko načina povezivanja, instalacije, primera i drugih korisnih informacija pre kupovine. Možete nas i konsultovati na email
office@malina314.com
Features
- 15.6inch IPS screen,1920x1080 hardware resolution
- Toughened glass capacitive touch panel, 6H hardness
- Supports popular mini PCs such as Raspberry Pi, Jetson Nano, BB Black, as well as general desktop computers
- When works with Raspberry Pi, supports Raspbian/Ubuntu/Kali/Retropie/WIN10 IOT, driver free
- When work as a computer monitor, supports Windows 10/8.1/8/7, ten-points touch, and driver free
- Supports popular game consoles like Microsoft XBOX360, Sony PS4, and Nintendo Switch
- Multi languages OSD menu, for power management, brightness/contrast adjustment, etc.
- 3.5mm audio jack, supports HDMI audio output
- Embedded ferrite Hi-Fi speaker
- Also supports VGA input (specific cable is required and should be purchased separately)
- 100x100mm spacing mounting holes (M4 screw hole) for general wall mount

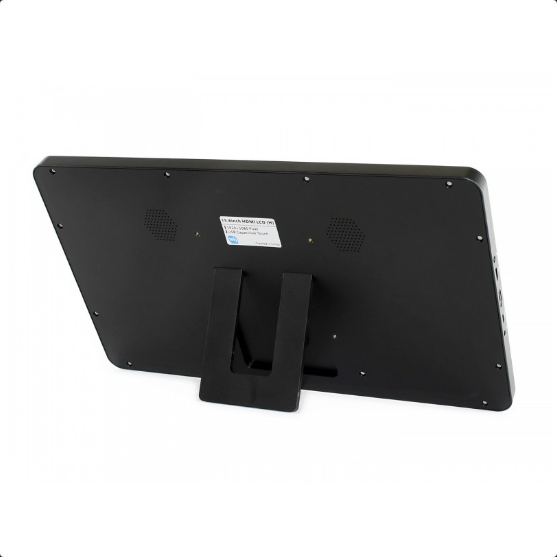

- Comes with 55° tilt angle stand
15.6" HDMI Touch Display
Device & System Support
Raspberry Pi
Supports Raspberry Pi OS, 10-point touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free
Supports all versions of Raspberry Pi
Jetson Nano
Supports Ubuntu, single point touch, driver free
PC
Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free
Game Console
Xbox360, PS4, Switch...
Connection Examples

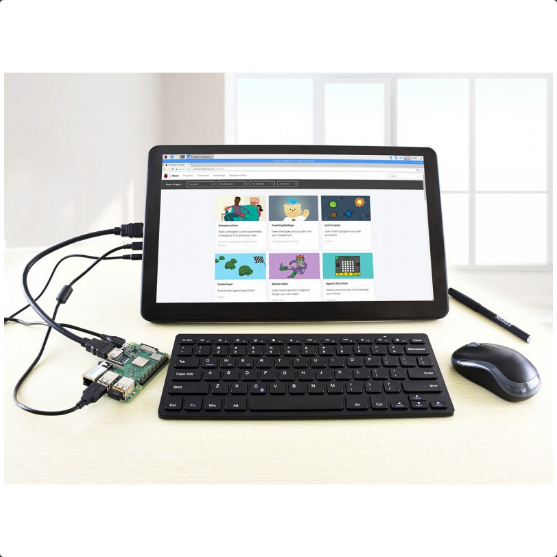

Working With Raspberry Pi 4
Working With Raspberry Pi Zero W
Working With AI Computer Jetson Nano

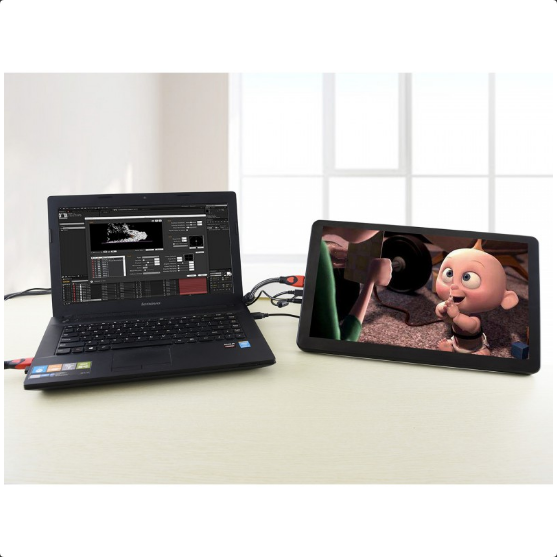

Working With Mini PC

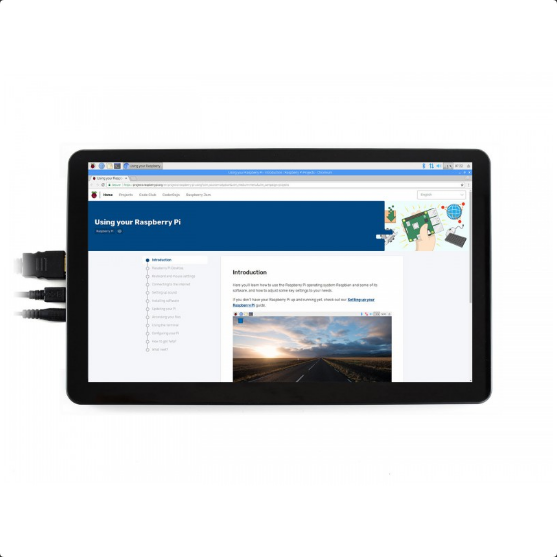

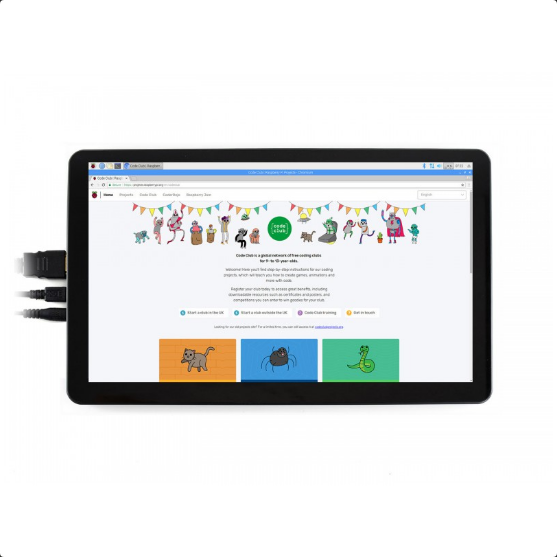

Display
IPS Panel
Touch Control
1) up to 10-point touch, depending on the operating system. 2) up to 6H hardness toughened glass panel.
Audio Feature

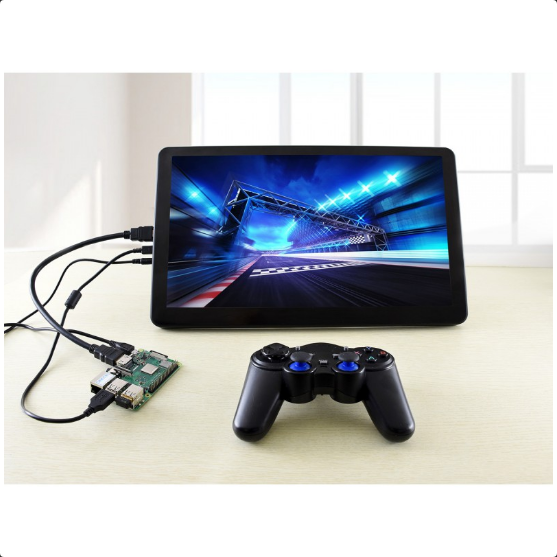

Enjoy Gaming

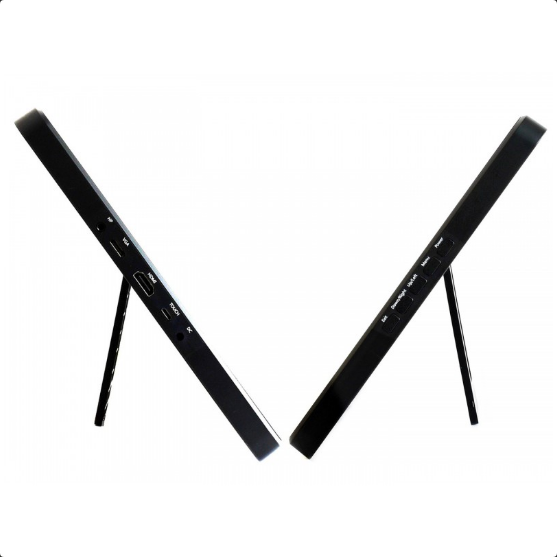

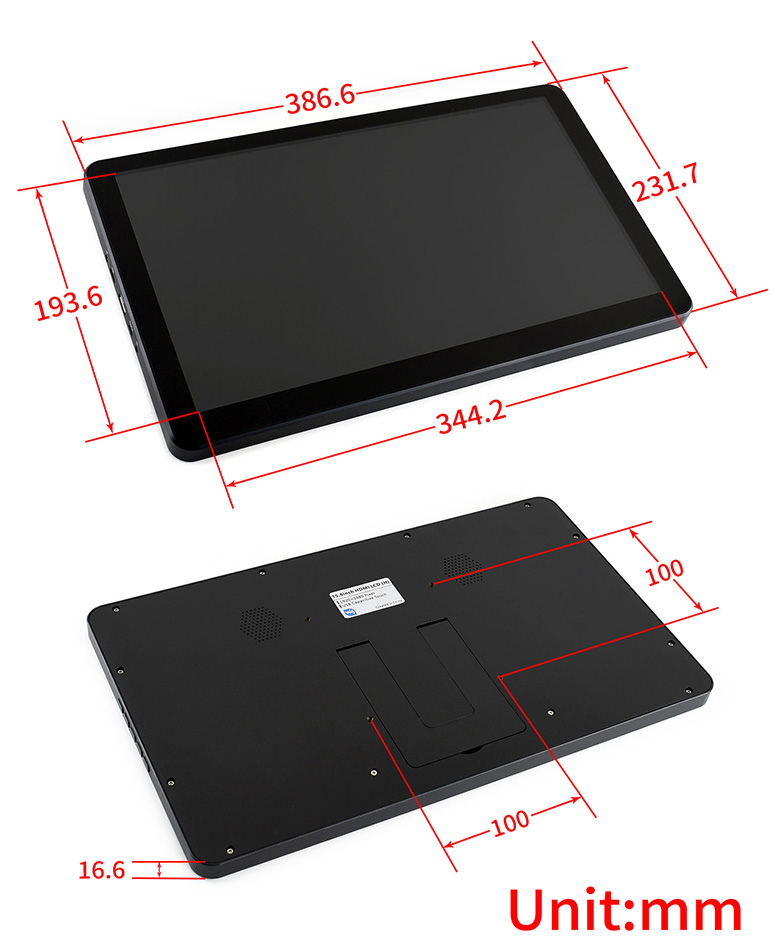

Appearance And Dimensions
█ Package Content
- 15.6inch HDMI LCD (H) (with case) x1
- Power adapter EU plug 12V x1
- HDMI cable x1
- HDMI to Micro HDMI Adapter x 1
- USB type A plug to micro B plug cable x1
Weight: 2.898 kg
Net Weight: 1.898 kg
