SKU: 24824
Part Name: 13.3inch QHD AMOLED (EU)
Brand: Waveshare
Korisne informacije: http://www.waveshare.com/wiki/13.3inch_QHD_AMOLED 13.3″ 2K AMOLED Touch Display
13.3inch Capacitive Touch Screen LCD V2, With Case And Toughened Glass Cover, 1920×1080, HDMI, IPS, Various Devices & Systems Support
Posetite
Wiki zbog pomoći oko načina povezivanja, instalacije, primera i drugih korisnih informacija pre kupovine. Možete nas i konsultovati na email
office@malina314.com
High Resolution | Multi-Point Touch | Full Color
Size |
Resolution |
Display Port |
Display Panel |
Viewing Angle |
 |
 |
 |
 |
 |
13.3" |
2560×1440 |
HDMI /
Type-C |
AMOLED |
178° |
Touch Type |
Touch Points |
Touch Port |
Touch Panel |
OSD Menu |
 |
 |
 |
 |
 |
Capacitive |
10-Points |
USB-C |
Toughened Glass |
Brightness Contrast |
Sound |
Audio Output |
Enclosure |
Brightness |
Touch Panel Tech |
 |
 |
 |
 |
 |
Hi-Fi Speaker |
3.5 mm Jack |
CNC Process Alloy |
DCC/CI Control |
Optical Bouding |
Smartphone |
VESA Wall Mount |
|
|
|
 |
 |
|
|
|
Huawei/ Samsung/ OPPO... |
75 x 75 mm |
|
|
|
█ Device & System Support
Raspberry Pi
- Supports Raspberry Pi OS, 10-point touch, driver free
- Supports Ubuntu / Kali / WIN10 IoT, single point touch
Jetson Nano
- Supports Ubuntu, single point touch, driver free
PC
- Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free
Smartphone
- Huawei, Samsung, OPPO...(wired projection)
- For the moment, only the Raspberry Pi 4B and CM4 have adequate CPU performance to drive this 2K display completely.
- Supports more powerful future versions as long as its GPU performance is equivalent to or better than the Pi 4B.
█ Connection Examples

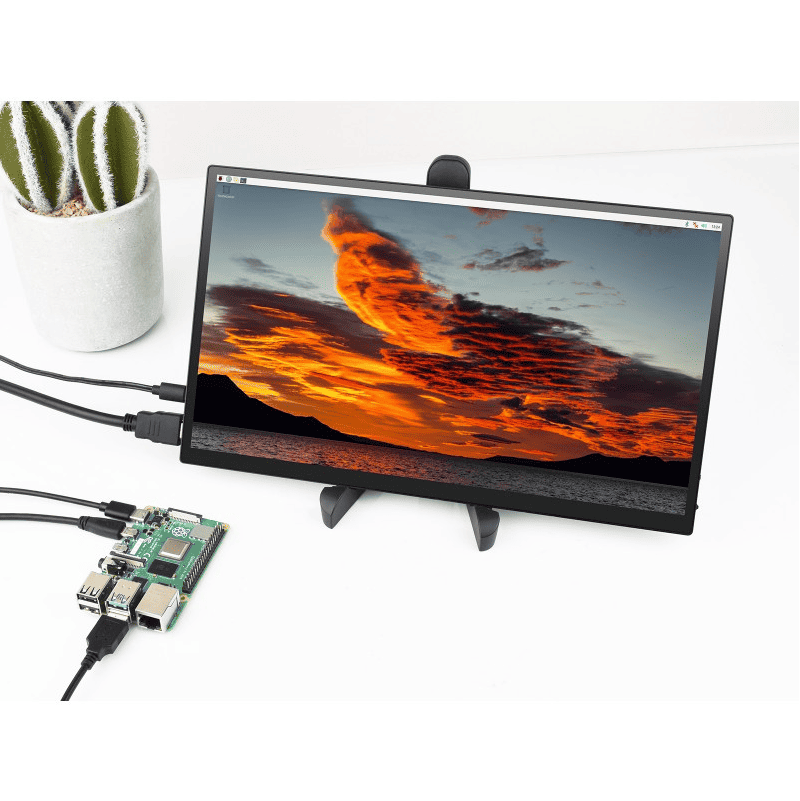

Working With Raspberry Pi 4B
Working With Jetson Nano
Working With PC *
Working With Smartphone *
- Please make sure that the smartphone or PC itself features a full-featured Type-C interface
- For reference only, the above controller boards or hosts are NOT included
█ Display
AMOLED Display Panel
Excellent Display Performance With 178° Wide Viewing Angle
2K High Resolution
2560×1440 High Resolution, Clearer Picture & More Details
Wider Color Gamut Display
With 100% SRGB, 100% DCI-P3 Color Gamut Coverage Makes The Color More Vivid, More Delicate
AMOLED Active Light-Emitting Screen
With 3.68M Active Light-Emitting Pixels, The AMOLED Screen Features Precise Light-Control Capability, Representing More Vivid Colors And Image
One-Hundred-Thousand Grade Contrast Radio
Features Striking One-Hundred-Thousand Grade Contrast Radio, Which Means Hundredfold Light/Dark Performance, Displaying Gradations And Details Of The Deep Starry Sky Before Your Eyes.
Brighter Highlight, Darker Shadow
Unlike Regular LCD, The AMOLED Features Active Emissive Technology, Each Pixel On The AMOLED Will Light Up By Itself, To Create Brighter Highlight Or True Black Shadow, Making It Virtually Close To 0nit True Black.
Capacitive 10-Point Touch
- up to 10-point touch, depending on the operating system
- up to 6H hardness toughened glass panel
- Optical Bonding, display well and dustproof
Supports DDC/CI Brightness Adjustment
Full-Featured Type-C Interface
Audio And Video Transmission In One Connection, Plug And Play,
Instantly Zoom In The Smartphone Screen
(For Supported Mobile Phone Models, Please Contact Customer Service)
Computer Dual Screen For Collaborative Processing
One Screen For Work, One Screen For Entertainment, Without Interfering With Each Other
Dual-Track Speaker
Ferrite Hi-Fi Speaker, Larger Volume, Wider Sound Range, Better Sound Quality
Comes With Triangular Stand
VESA Mounting Support
Interface Introduction
█ Product Show
for reference only, the Rasbpberry Pi 4B is NOT included
█ Dimensions (mm)
-
█ Package Content
- 13.3inch QHD AMOLED ×1
- HDMI flat cable ~1m ×1
- USB-A to USB-C cable ~1m ×1
- USB-C to USB-C cable ×1
- HDMI to Micro HDMI cable ~1m ×1
- OPTIONS 5V 3A power adapter ×1
- Triangular stand ×1
Weight: 1.306 kg
