Obavesti me kada proizvod bude dostupan!Compact size CH Isolated CAN Interface Stable & Reliable
| PRODUCT TYPE | MiniPCIe interface to CAN card | |
|---|---|---|
| MINIPCIE INTERFACE | Operating voltage | 3.3V |
| Communication method | USB2.0 pin of the MiniPCIe interface | |
| CAN INTERFACE | CAN channel | Dual-channel: CAN1 and CAN2 (independent and isolated) |
| Connector | CAN bus screw terminal (standard 1.25mm pitch) | |

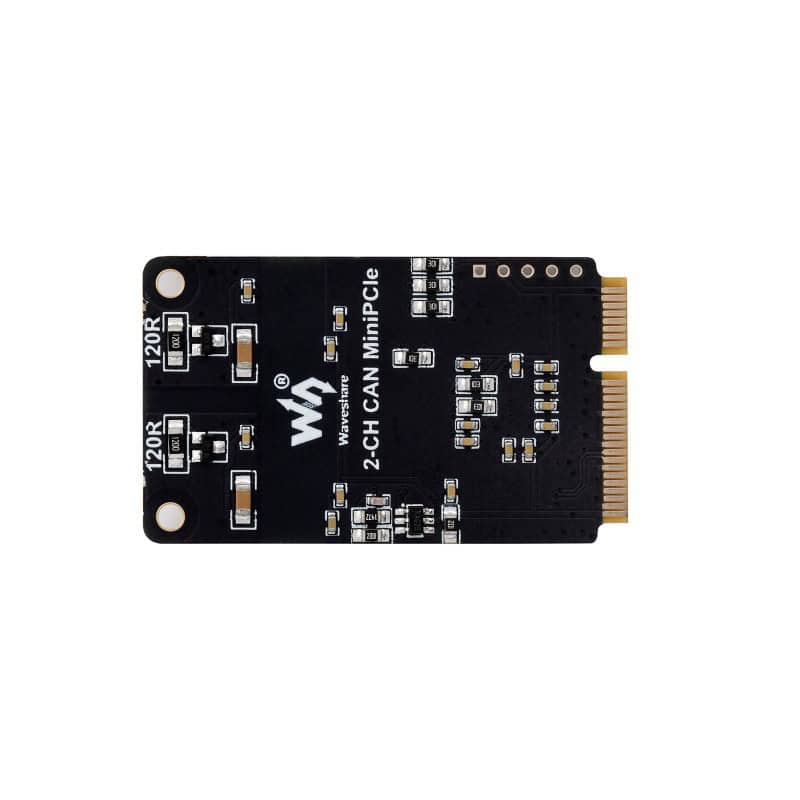

| Terminal resistor | Each CAN channel has a 120Ω terminal resistor | |
| Baud Rate | 10Kbps~1Mbps (Configurable via software) | |
| Protocol Support | CAN2.0A and CAN2.0B protocols, complies with ISO/DIS11898-1/2 standards | |
| Hardware Support | High-speed CAN | |
| Transfer speed | The receiving and sending of each CAN channel can reach: 8500 frames/s | |
| Transmit buffer | 2000 frames receiving buffer and 1000 frames sending buffer per channel (automatically retransmit when transmission fails) | |

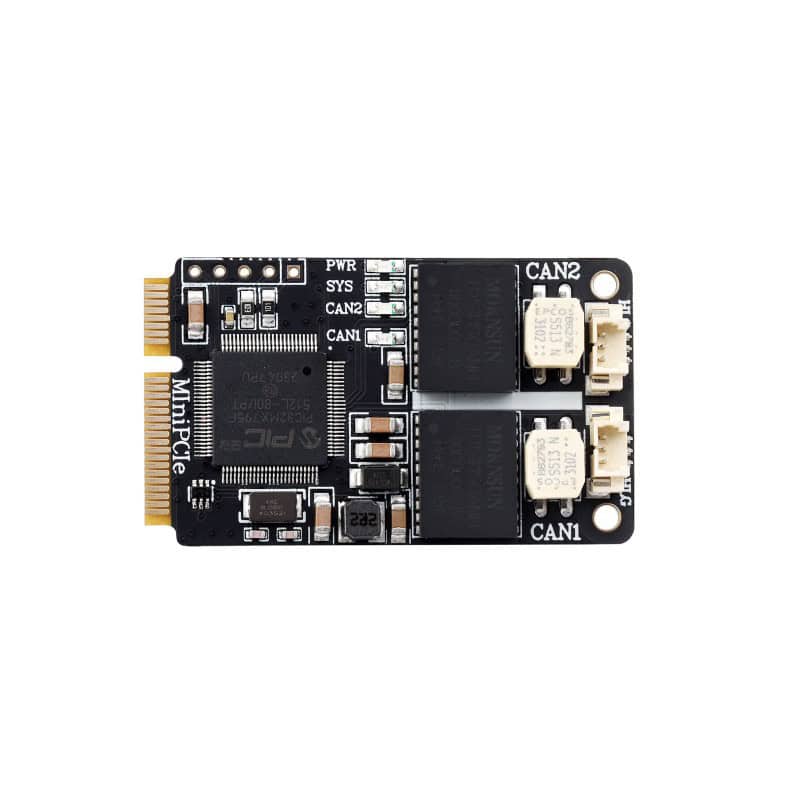

| INDICATORS | PWR | Power indicator |
| SYS | System status indicator, normally off; keeps on when there is a bus error | |
| CAN1 | CAN1 channel indicator (blinking when sending and receiving data) | |
| CAN2 | CAN2 channel indicator (blinking when sending and receiving data) | |
| SYSTEM SUPPORT | Windows | Windows XP/7/8/10/11 (32/64 bits) |
| Linux | Raspberry Pi OS, Ubuntu (Jetson Nano), VMware virtual PC and so on. | |
| OPERATING TEMPERATURE | -40~85℃ | |
| INSTALLATION SUPPORT | Standard MiniPCIe card slot | |
| DIMENSIONS | 51×30 mm | |
Adopts Standard MiniPCIe Interface With Dual CAN Bus Interfaces, Supports Bi-Directional Transmission, Can Work Independently Without Affecting Each Other
CAN Baud Rate Is Configurable In The Range Of 10Kbps-1Mbps. Supports Baud Rate Calculation, Auto-Detection, And Setting Via The Configuration Tool
Adopts Mature USB-CAN Card Technology, With Outstanding Communication Performance And Stable Operation. Suitable For Embedded Industrial Control Boards And Fanless Industrial Computers, Etc. To Extend CAN Interface
The CAN Protocol Complies With CAN2.0B Specification And Is Compatible With CAN2.0A, Complies With ISO11898-1/2 Standards
Provides examples for secondary development projects on various mainstream development platforms: C++Builder, C#, VC, VB, VB.NET, Delphi, LabVIEW, LabWindows/CVI, Qt, Matlab, Python/Python-can, Qt samples under Linux
Supports Windows XP/7/8/10/11 and Linux systems such as Raspberry Pi OS and Ubuntu, more convenient for secondary development
Adopts Original Controller And 32-Bit MIPS M4K® Core, Up To 80MHz Frequency, High Performance, Stable And Reliable
Adopts High-Speed Signal Isolator, DC-DC Dual Power Isolation, MiniPCIe, CAN1 And CAN2 Three-Terminal Full Isolation, Higher Communication Security And Stability

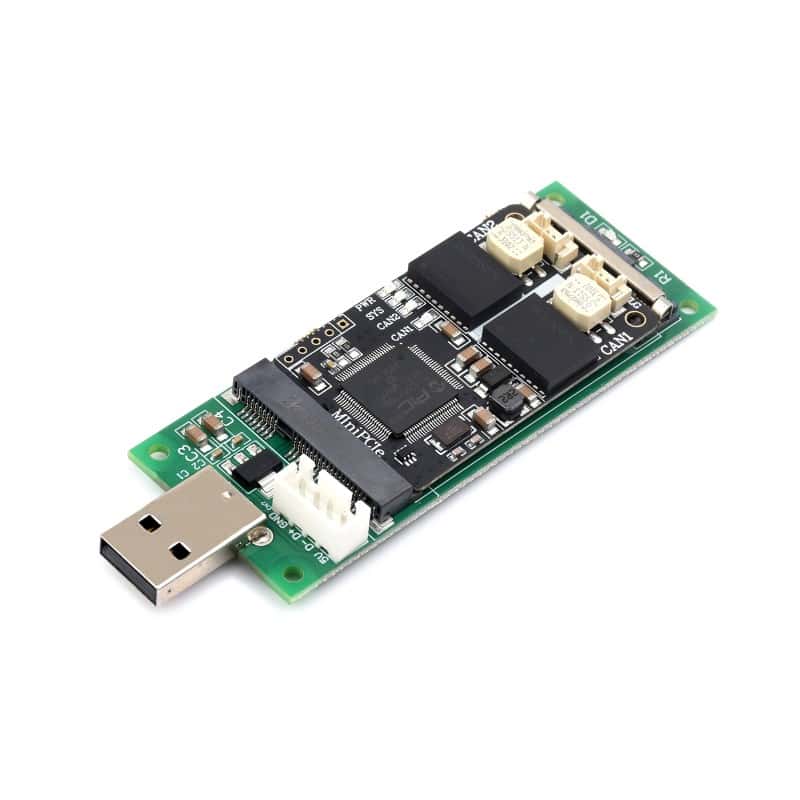

Can Be Connected To The Boards With MiniPCIe Slot, Also Can Be Plugged Into The USB Port Of The Hosts Such As Computer, Raspberry Pi, Jetson Nano, Etc. Via USB To MiniPCIe Adapter Board
Connecting directly to the MiniPCIe slot of the CM4 baseboard
Connecting to the laptop via USB to MiniPCIe adapter board
Connecting to the Raspberry Pi via USB to MiniPCIe adapter board * for reference only, CM4 and CM4-IO-WIRELESS-BASE baseboard are NOT included.
