Koristi baterije 10440
SKU: 24760
Part Number: UPS Module Mini
Brand: Waveshare
Korisne informacije:
www.waveshare.com/wiki/UPS_Module_Mini Mini Uninterruptible Power Supply Module
Supports Charging And Power Output At The Same Time, Stable 5V Output
Features At A Glance
- Mini UPS expansion board for easy soldering or integration into mobile robots and industrial control equipments
- I2C bus communication, monitoring the batteries voltage, current, power, and remaining capacity in real time
- Onboard multiple function pins, provides two charging and discharging methods via pads and pin headers
- Multiple battery protection circuits: over charge/discharge protection, over current protection, short circuit protection, and reverse protection, along with the equalizing charge feature, more safe and stable
- Onboard 5V regulator, up to 2.5A continuous output current
- Onboard warning indicators, easy to check if the battery is connected correctly and charging status
- Comes with online development resources and manual
Specifications
OUTPUT VOLTAGE |
5V 2.5A |
CHARGER |
Support 5V 3A |
CONTROL BUS |
I2C |
BATTERY SUPPORT |
10440 Lithium battery × 3 (in parallel, NOT included) |
DIMENSIONS |
61 × 38mm |
Uninterruptible Power
It is able to charge the batteries and provide power output at the same time from external power supply
Automatically switch over to batteries output if external power supply is unavailable, keeps the system running without any trouble

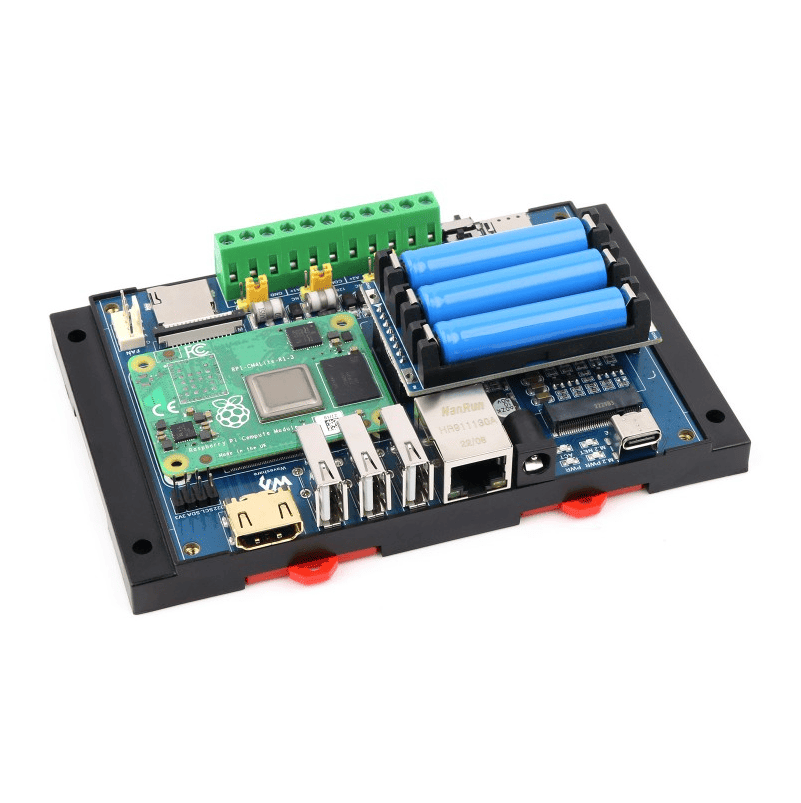

* for reference only, the CM4, CM4 base board, TF card and 10440 batteries are NOT included Real Time Monitoring
Monitoring The Batteries Voltage, Current, Power, And Remaining Capacity Via I2C Interface
for reference only, please refer to the part list for detailed package content
Safe And Stable Circuit Design
Protection Circuits For Over Charge/Discharge, Over Current, Short Circuit, And Reverse
Along With The Equalizing Charge Feature, More Safe And Stable

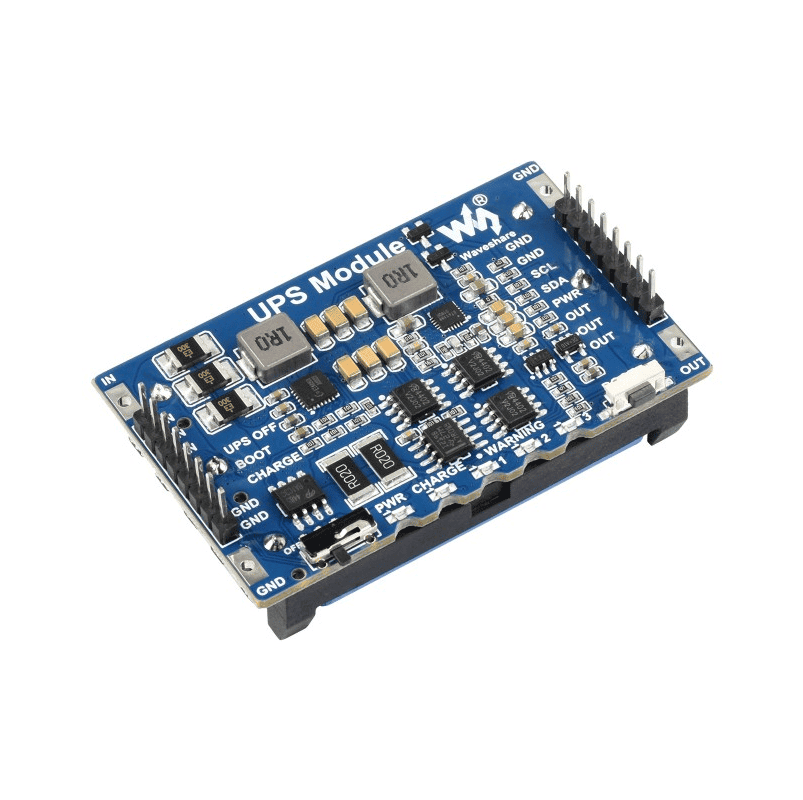

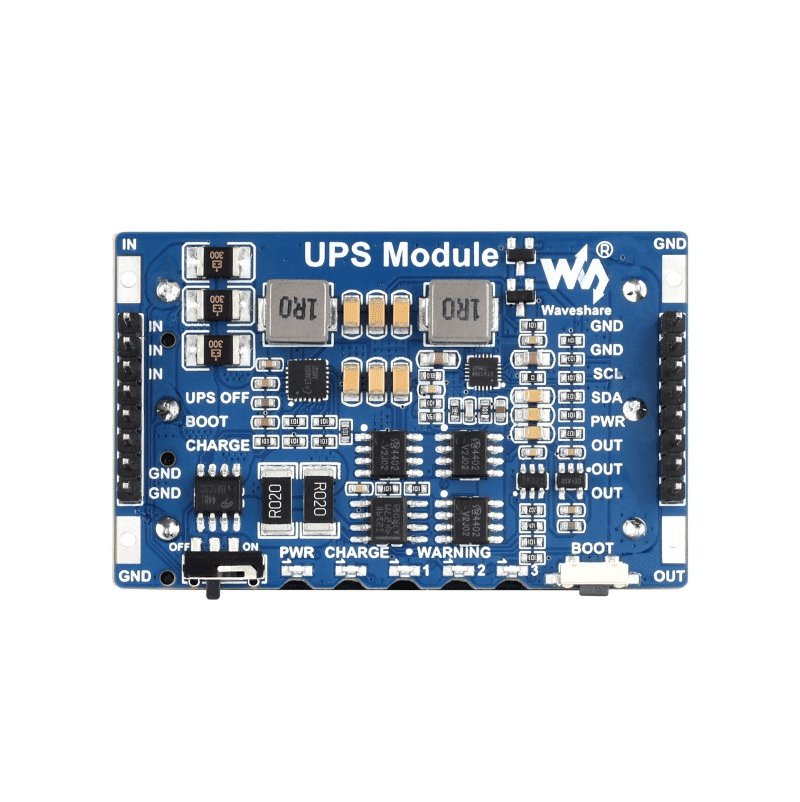

What's On Board
- ETA1188
5V voltage regulator
- ETA6953
Battery charge/discharge chip
- INA219
Voltage/current monitoring chip
- S8261
Battery protection chip
- RT9193
3.3V voltage regulator
- AO4402
Battery protection MOS tube
- UPS ON/OFF switch
Control UPS output
- Boot button
Batteries activation
- Power indicator
Lights up when the UPS switch is turned on
- Charge indicator
Light up: when batteries are charging
Blinking: when batteries are abnormal or no battery connected
Light off: when charging completed or not charging
- Reverse warning indicators
will light up if the related battery is reversely connected
- Charging pad
5V 3A
- UPS output pad
5V 2.5A
- Multi-functional pin headers
Pinout Definition
IN |
Power input (5V 3A) |
OUT |
UPS output (5V 2.5A) |
GND |
ground |
UPS OFF |
turn off UPS power output when connected to PWR pin |
BOOT |
Batteries activation (pull low for 500ms and then pull high) |
CHARGE |
Charge indication (low level indicates charging) |
SCL |
I2C clock |
SDA |
I2C data |
PWR |
UPS ON/OFF (turn off UPS power output when connected to UPS OFF pin) |
Note: When using pin headers for charging and discharging, it is recommended to connect all input and output pins for 2.5A output current to reduce pin stress

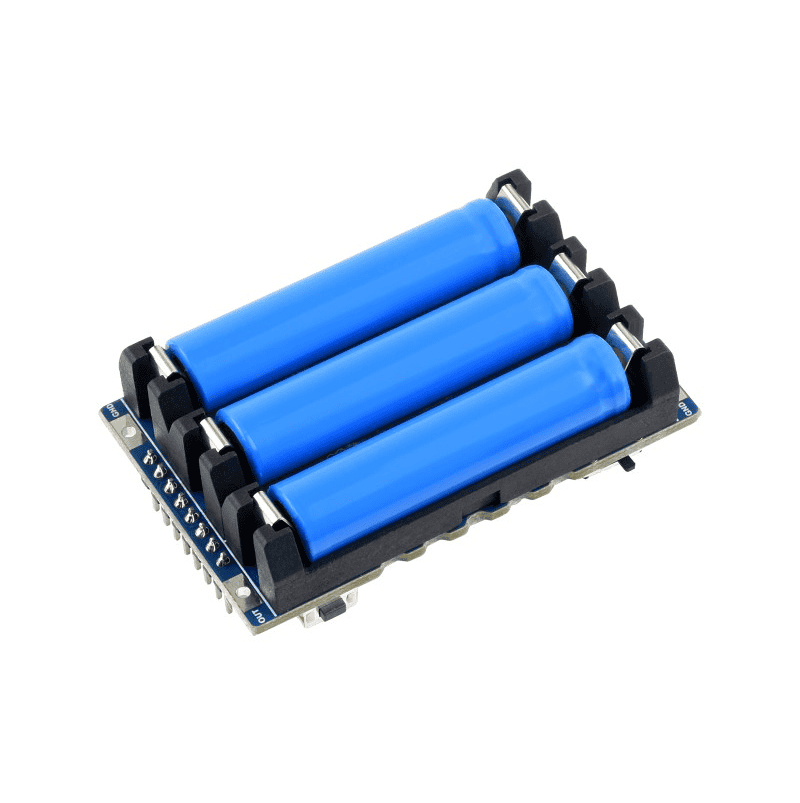

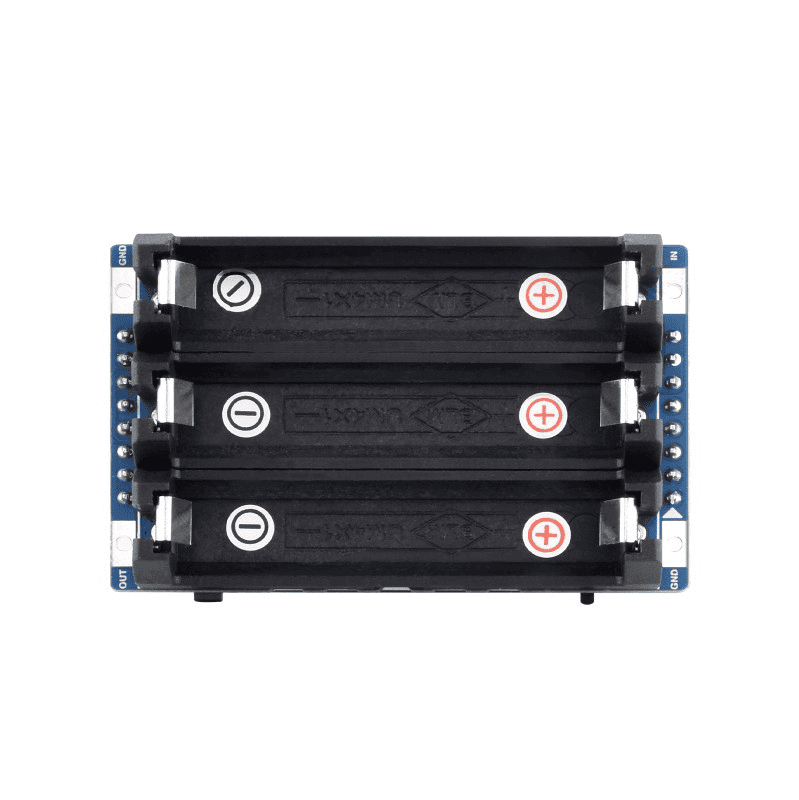

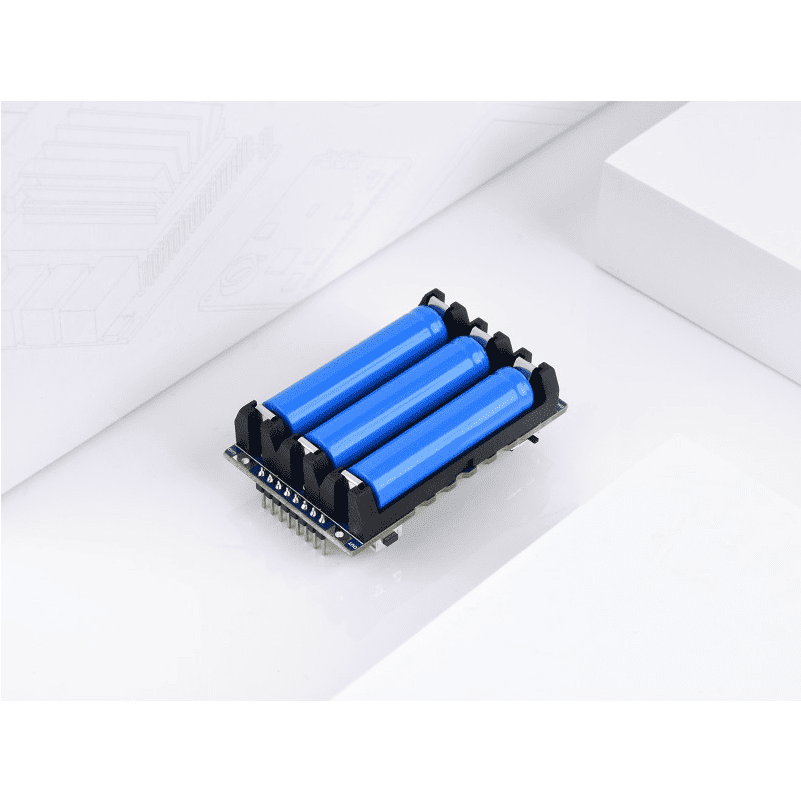

Product Show
Outline Dimensions
- PACKAGE CONTENT
Weight: 0.023 kg
UPS Module Mini x1
