SKU: 23228
Part Number: CM4-IO-BASE-C
Brand: Waveshare
Korisne informacije:
www.waveshare.com/wiki/CM4-IO-BASE-C Mini Base Board (C) Designed For Raspberry Pi Compute Module 4
Mini Base Board For Compute Module 4 (Advanced Version) Suitable For Evaluating The Raspberry Pi CM4 Or Being Integrated Into End Products
Dedicated 40PIN LCD Connector, Powerful Functions In Mini Body
Dedicated 40PIN LCD Connector One Connection For Display And Touch, Support 70H-1024600-IPS-A Series Display
Easier And Faster To Be Integrated Into Applications
Specifications
CM4 SOCKET |
suitable for all variants of Compute Module 4 |
NETWORKING |
Gigabit Ethernet RJ45 connector |
CONNECTOR |
M.2 M KEY, supports communication modules or NVME Solid State Drives |
Raspberry Pi 40PIN GPIO header |
USB |
USB 2.0 Type A × 2 |
DISPLAY |
LCD port (40pin 0.5mm FPC connector) |
CAMERA |
MIPI CSI-2 camera port × 2 (15pin 1.0mm FPC connector) |
VIDEO |
HDMI port, supports 4K 30fps output |
RTC |
Real-time clock with battery socket and ability to wake Compute Module 4 |
STORAGE |
TF card socket for Compute Module 4 Lite (without eMMC) variants |
FAN HEADER |
allows speed adjustment, 5V |
POWER INPUT |
5V |
DIMENSIONS |
85 × 56mm |

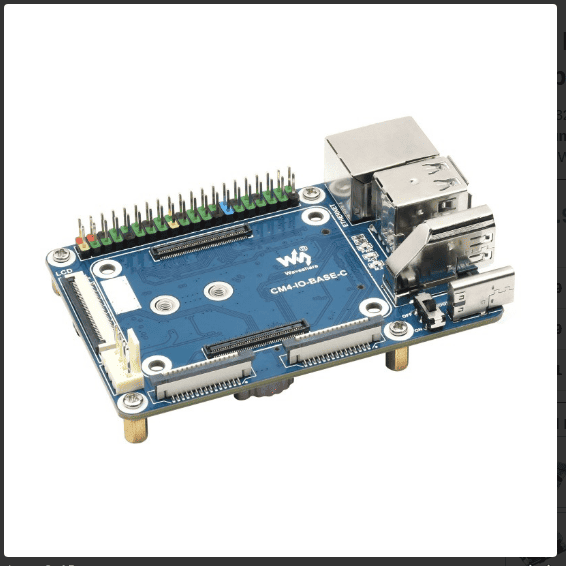

Connecting With Compute Module 4 Standard CM4 Socket And Color-Coded Raspberry Pi 40PIN GPIO Header
Suitable For Compute Module 4 Lite/EMMC Series Module
Compact, Yet Complete
Application Example Working With An HDMI Display
Working With An Additional Solid State Drives

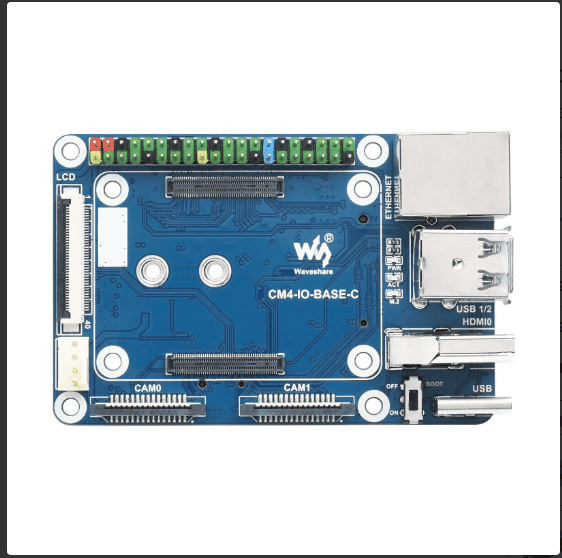

for reference only, CM4, display, and Solid State Drives are NOT included. What's On Board
- CM4 socket
suitable for all variants of Compute Module 4
- Power input/Programming
5V/2.5A power supply, or used for eMMC burning
- LCD Port
40PIN LCD display port, for direct connection to 70H-1024600 series display
- FAN
for connecting cooling fan, allows speed adjustment via IO ports
- CAM
2x MIPI CSI camera ports
- HDMI0 connector
HDMI0 port, supports 4K 30fps output
- USB 2.0 ports
2x USB 2.0 ports, for connecting sorts of USB devices
- Gigabit Ethernet connector
Gigabit Ethernet RJ45 connector, with 10 / 100 / 1000M network support
- M.2 indicator
indicating the operating status of M.2 interface
- PWR indicator
indicating the status of Raspberry Pi power supply
- ACT indicator
indicating the operating status of Raspberry Pi
- Boot switch
ON: CM4 would be booted from USB-C interface
OFF:CM4 would be booted from eMMC or TF card
- 40PIN GPIO header
for connecting sorts of HAT
- TF card slot
for connecting a TF card with pre-burnt image (Lite variant ONLY)
- FE1.1S
USB HUB chip, support expanding USB port

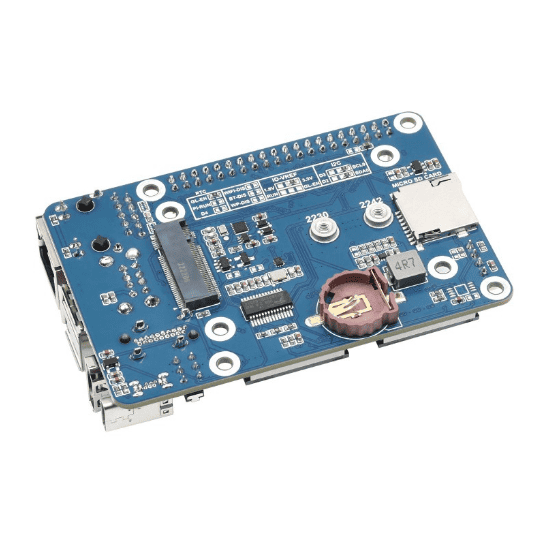

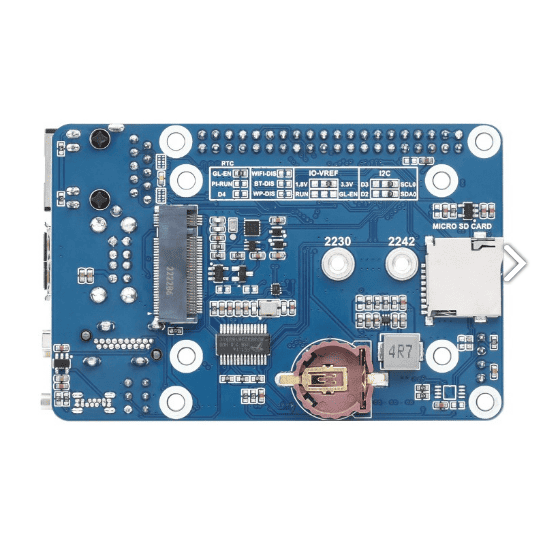

- M.2 slot
supports sorts of NVME Solid State Drives, or communication modules with PCIE M.2 KEY-M interface
- RTC chip
allows RTC-related functions like wakeup, shutdown, reboot, and more
- RTC interrupt selection
GN-EN: CM4 shutdown(by default) on RTC interruption
PI-RUN: CM4 reboot on RTC interruption
D4: D4 pin is triggered on RTC interruption
- RTC battery holder
supports CR1220 button cell
Outline Dimensions
- PACKAGE CONTENT
Weight: 0.051 kg
- CM4-IO-BASE-C x1
- Solid State Drives mounting screw x1
