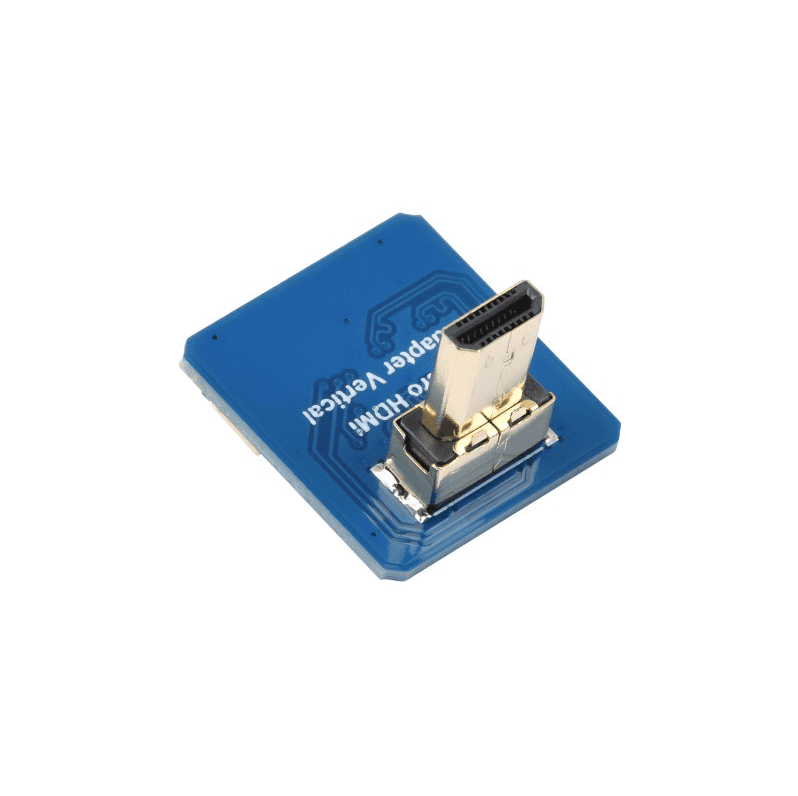

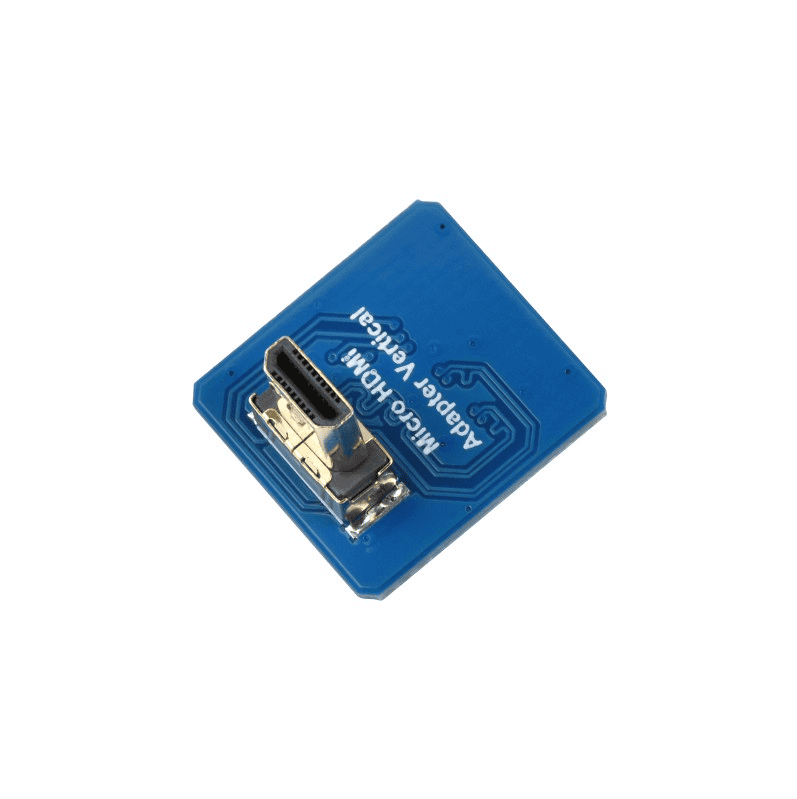

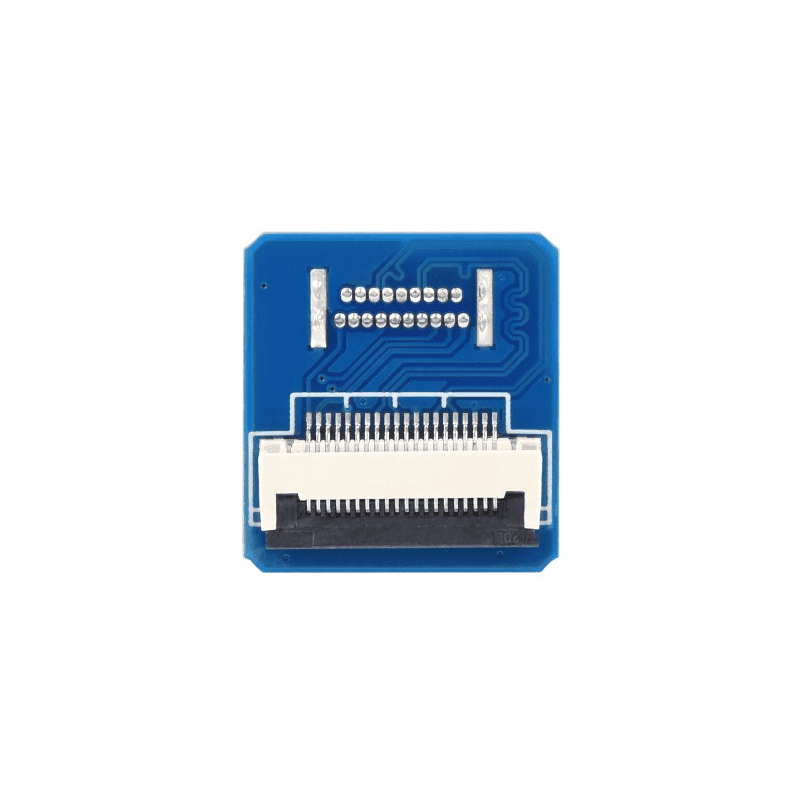

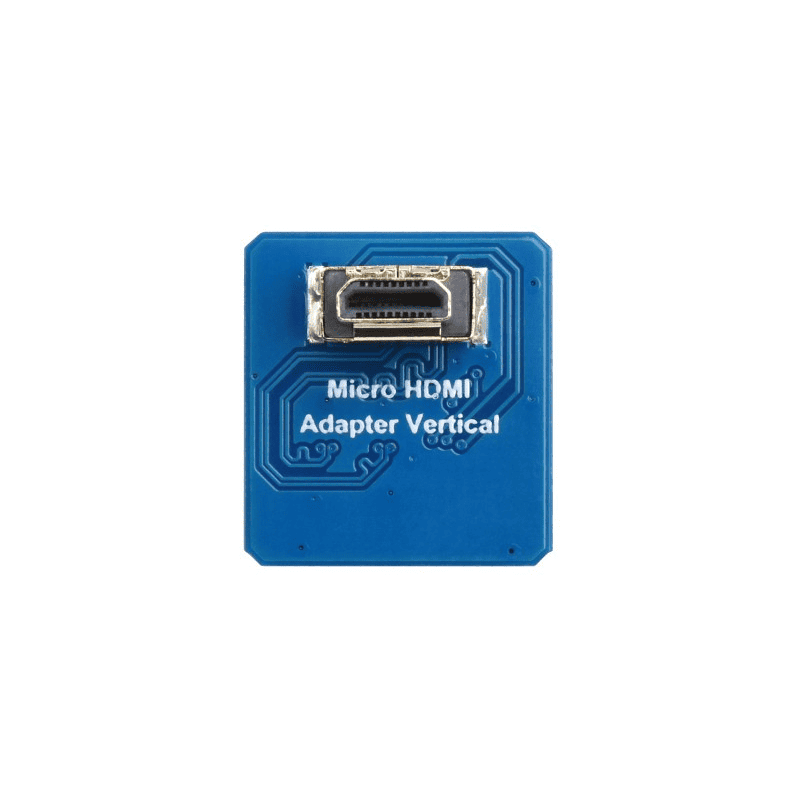

Micro HDMI Adapter Vertical

Šifra: w23134

290,00 RSD

Cena sa PDV

Lista želja ?

Unesi količinu Odmah dostupno više od 5

Dodaj u korpu

Kategorija: kabl
Težina po komadu: 0.003 Kg

PAŽNJA PAŽNJA !!!

micro hdmi oko 5 mm

mini hdmi oko 10 mm

hdmi oko 20 mm

SKU: 23134
Part Number: Micro HDMI Adapter Vertical
Brand: Waveshare
Multi-Type HDMI Adapters, For DIY HDMI Cable

HDMI Adapter

For DIY HDMI Cable

Multi-Type Adapters Are Available For Different Applications

Parameters Comparison

MODEL	VERSION	INTERFACE	DIMENSIONS(MM)
HDMI Adapter Vertical	HDMI Vertical	HDMI Male Plug To Female Connector	18.0 × 16.5 × 16.5
HDMI Adapter Horizontal	HDMI Horizontal	HDMI Male Plug To Female Connector	29.5 × 18.0 × 4.5
HDMI Adapter Horizontal (B)	HDMI Horizontal B	HDMI Female To Female Connector	20.5 × 17.0
MINI HDMI Adapter Vertical	Mini HDMI Vertical	Mini HDMI Male Plug To Female Connector	17.5 × 16.0 × 12.0
Mini HDMI Adapter Horizontal	Mini HDMI Horizontal	Mini HDMI Male Plug To Female Connector	26.4 × 18.0 × 4.5
Mini HDMI Adapter Horizontal (B)	Mini HDMI Horizontal B	Mini HDMI Female To Female Connector	17.5 × 16.0
Micro HDMI Adapter Vertical	Micro HDMI Vertical	Micro HDMI Male Plug To Female Connector	17.5 × 16.0
Micro HDMI Adapter Horizontal	Micro HDMI Horizontal	Micro HDMI Male Plug To Female Connector	27.6 × 18.0 × 4.5
Micro HDMI Adapter Horizontal (B)	Micro HDMI Horizontal B	Micro HDMI Female To Female Connector	17.5 × 16.0

Usage Example

- To DIY an HDMI cable, 2 adapters and 1 FFC are required, there are different options for each part
- Adapter: HDMI Vertical /HDMI Horizontal / HDMI Horizontal (B) / Mini HDMI Vertical / Mini HDMI Horizontal / Mini HDMI Horizontal (B) / Micro HDMI Vertical / Micro HDMI Horizontal / Micro HDMI Horizontal (B)
- FFC: 0.2m / 0.5m / 1m
