SKU: 26984

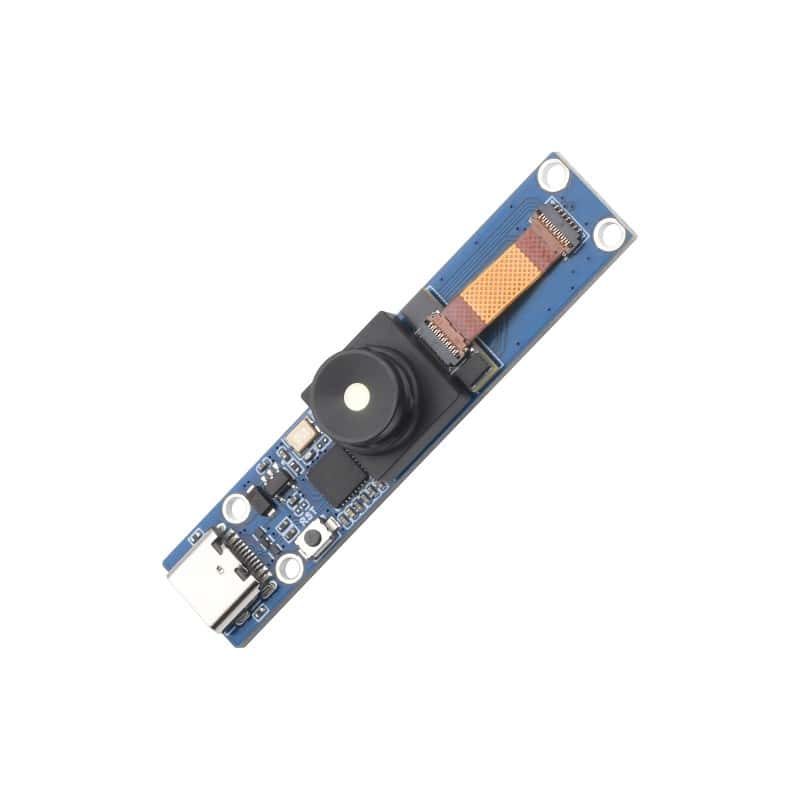

Part Number: Thermal-90 USB Camera
Brand: Waveshare
Korisne informacije:
www.waveshare.com/wiki/Thermal_Camera_HAT Features
- Adopts the hybrid technology of microbolometer and thermopile, 80x62 array pixels.
- Continuous operation and thermal imaging video stream due to shutterless design.
- Noise Equivalent Temperature Difference (NETD) 150mK RMS@1Hz refresh rate, with good noise performance.
- Up to 25FPS (Max) thermal imaging video stream output.
- Comes with online resources and manuals. (Python demo for Raspberry Pi, Android/Windows host computer and user manual, etc.)
Long-Wave IR Thermal Imaging Camera Module, Raspberry Pi IR Camera, 80×62 Pixels, Options For FOV And Connector
Long-Wave IR Thermal Imaging
Camera Module
80×62 Pixels IR Array
Small Size | Non-contact | Motion Detection
Features At A Glance
This is a long-wave IR thermal imaging camera that adopts the hybrid technology of microbolometer and thermopile pixel, features 80x62 array pixels. It will detect the IR distribution of objects in the field of view, turn the data into surface temperature of the objects by calculation, and then generate thermal images, for easy integration into miscellaneous industrial or intelligent control applications.
Four versions are available: options for HAT version with Raspberry Pi 40PIN GPIO header and USB version with Type-C port. Also provides basic version and wide angle version with 45° / 90° FOV.
Key features include:
- Adopts the hybrid technology of microbolometer and thermopile, 80x62 array pixels
- Continuous operation and thermal imaging video stream due to shutterless design
- Noise Equivalent Temperature Difference (NETD) 150mK RMS@1Hz refresh rate
- Up to 25FPS (Max) thermal imaging video stream output
- Comes with online resources and manuals (Python demo for Raspberry Pi, Android/Windows host computer and user manual, etc.)
Main applications:
- High precision long-term non-contact temperature online monitoring
- IR thermal imaging devices, IR thermometers
- Smart home, intelligent building, intelligent lighting
- Industrial temperature control, security & safety, intrude/motion detection
- Small Target Thermal Analysis, Heat Trend Analysis and Solutions

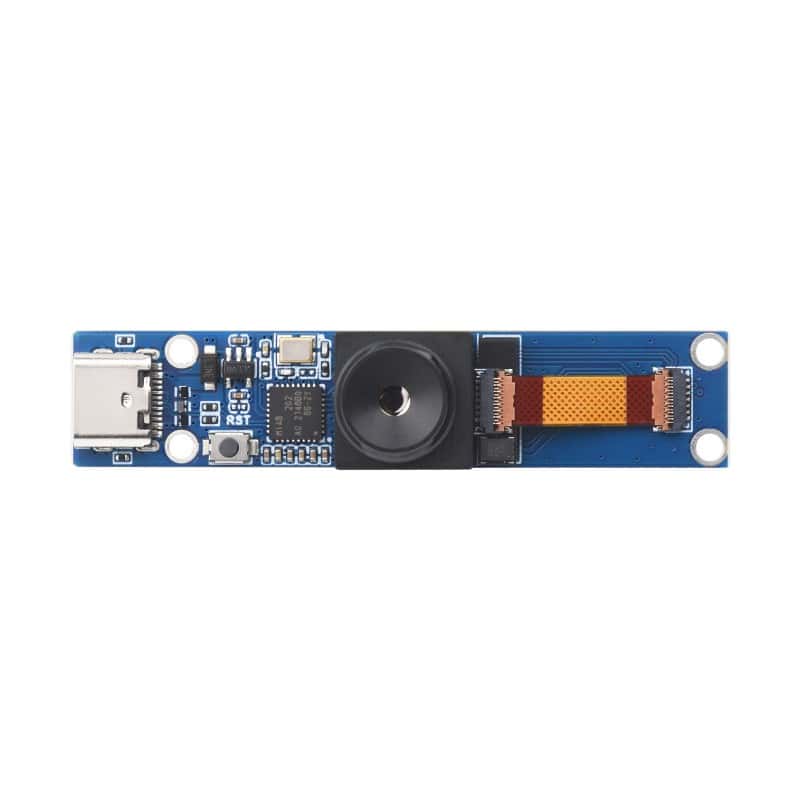

Onboard Type-C connector
Thermal-90 USB Camera Specifications
POWER SUPPLY |
5V |
OPERATING CURRENT |
61mA@5V |
WAVELENGTH RANGE |
8~14μm |
OPERATING TEMPERATURE |
-20~85℃ |
TARGET TEMPERATURE |
-20~400℃ |
REFRESH RATE |
25 FPS (Max) |
FOV |
|
Wide angle version: 90°(H)×68°(V) |
NOISE EQUIVALENT
TEMPERATURE DIFFERENCE |
150mK |
MEASURING ACCTRACY |
±2℃ (ambient temp. 10~70℃) |
DIMENSIONS |
|
Thermal USB Camera / Thermal-90 USB Camera: 62.0×13.0mm |
Thermal USB Camera
With Onboard Type-C Connector
Compatible With Windows PC, Android Phone, Etc
Connect to PC
Connect to Android phone * for reference only, the Raspberry Pi boards and hosts above are NOT included
Application Scenarios
Outline Dimensions
Sadržaj pakovnja:
Weight: 0.033 kg
Thermal Camera HAT
- Thermal Camera HAT x1
- 40PIN female header x1
- FPC 15 PIN cable 0.3mm pitch ~100mm x1
- Screws pack x1
