LCD1602 RGB Module

Šifra: w19537
Waveshare
Naši proizvodi ne prate standardne veličine - pre poručivanja obavezno proverite tabelu veličina.
1.590,00 RSD
Cena sa PDV
u korpu
etite Wiki zbog pomoći oko načina povezivanja, instalacije, primera i drugih korisnih informacija pre kupovine. Možete nas i konsultovati na email office@malina314.com
























































Characters Interface Display Panel RGB Backlight LCD Controller
16 x 2 I2C Char LCD 16M Colors AiP31068
RGB Driver

PCA9633






Features At A Glance




  • Incorporates character LCD panel LCD1602

  • Adjustable RGB backlight color, up to 16M (2563) backlight colors in theory

  • I2C control interface, only two signal pins are required, saving the IO resource

  • Compatible with 3.3V/5V operating voltage

  • Comes with development resources and manual (Raspberry Pi/Jetson Nano/Arduino examples)






Specifications




































OPERATING VOLTAGE 3.3 ~ 5V LCD CONTROLLER AiP31068
COMMUNICATION INTERFACE I2C RGB DRIVER PCA9633
DISPLAY PANEL character LCD DISPLAY SIZE 64.5 × 16.0mm
CHARACTERS 16 × 2 DIMENSIONS 87.0 × 32.0 × 13.0mm
BACKLIGHT COLORS 16M OPERATING VOLTAGE -20 ~ +70℃

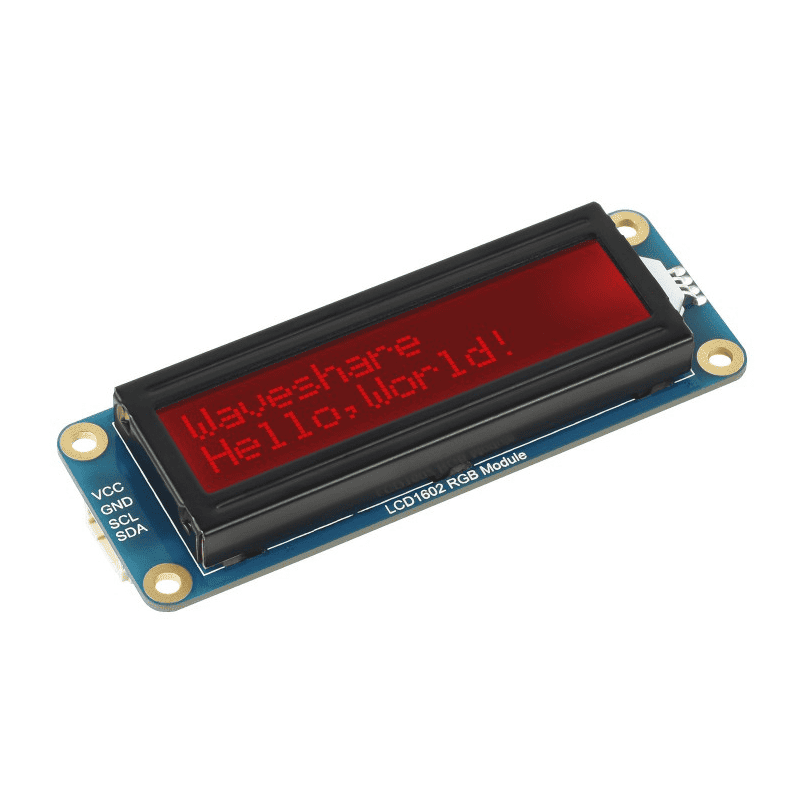

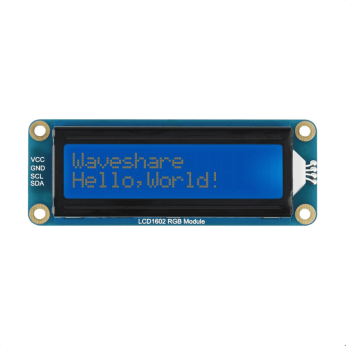

Adjustable RGB Backlight Color



Up To 16M Colors Available







I2C Control Interface



For Connecting With Host Boards Like Raspberry Pi / Arduino...

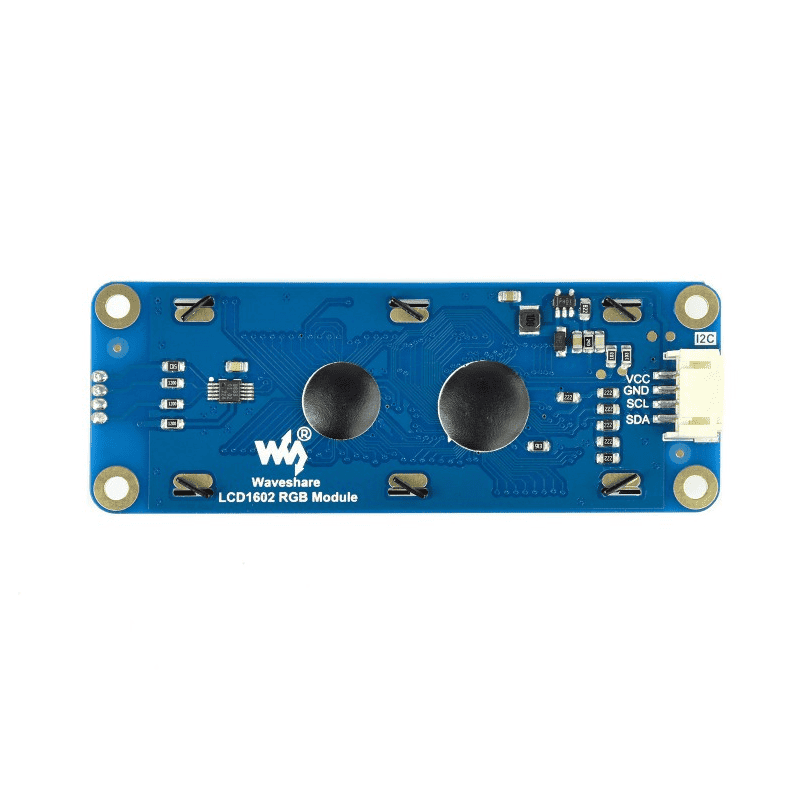

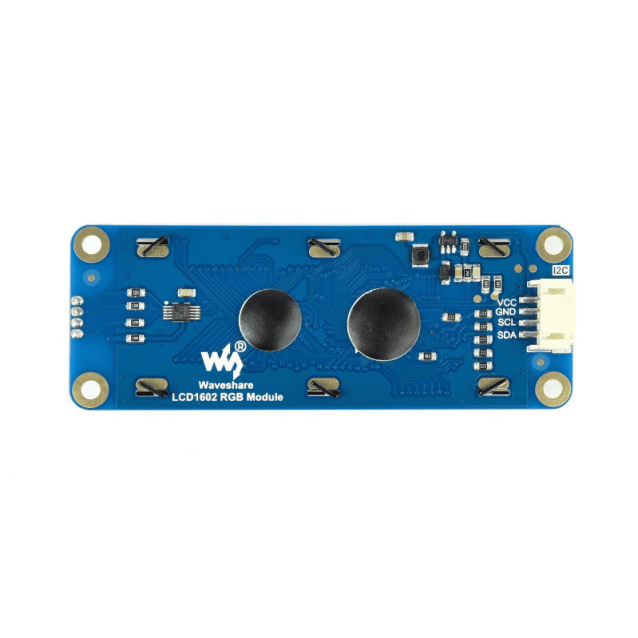

VCC 3.3V ~ 5V power input
GND GND
SCL I2C clock pin
SDA I2C data pin





Hardware Connection



Connecting With Raspberry Pi Pico

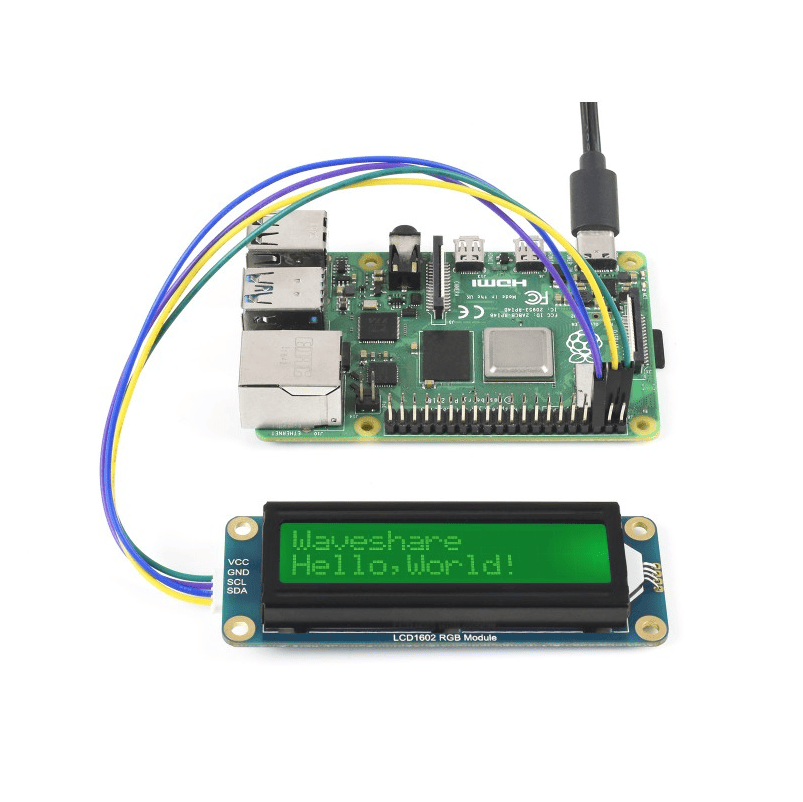

Connecting With Raspberry Pi



Connecting With Arduino Board



Connecting With Jetson Nano Developer Kit







Demonstration








Dimensions











Package Content
















1. 2.




  1. LCD1602 RGB Module x1

  2. PH2.0 4PIN wire x1



Weight: 0.038 kg
