SKU: 23991
Part Number: LCD1602 I2C Module
Brand: Waveshare
Wiki: http://www.waveshare.com/wiki/LCD1602_I2C_Module LCD1602 I2C Module

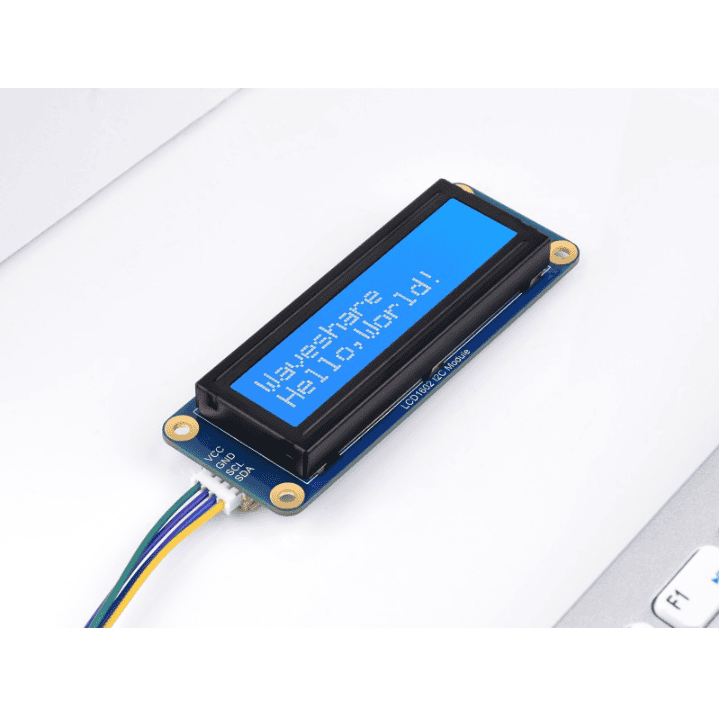

LCD1602 I2C Module, White Color With Blue Background, 16x2 Characters LCD, 3.3V/5V
Supports Raspberry Pi, Raspberry Pi Pico, Jetson Nano, ESP32 and Arduino...
Posetite
Wiki zbog pomoći oko načina povezivanja, instalacije, primera i drugih korisnih informacija pre kupovine. Možete nas i konsultovati na email
office@malina314.com
Characters |
Interface |
Display Panel |
Display Effect |
LCD Controller |
 |
 |
 |
 |
 |
16 x 2 |
I2C |
Char LCD |
White on Blue |
AiP31068 |
█ Features At A Glance
- Incorporates character LCD panel LCD1602
- I2C control interface, only two signal pins are required, saving the IO resource
- Compatible with 3.3V/5V operating voltage
- Comes with online development resources and manual (Raspberry Pi/Jetson Nano/ESP32/Arduino examples)
█ Specifications
COMMUNICATION INTERFACE |
I2C |
LCD CONTROLLER |
AiP31068 |
OPERATING VOLTAGE |
3.3 ~ 5V |
OPERATING TEMPERATURE |
-20 ~ +70℃ |
DISPLAY PANEL |
character LCD |
DISPLAY SIZE |
64.5 × 16.0mm |
CHARACTERS |
16 × 2 |
DIMENSIONS |
87.0 × 32.0 × 13.0mm |
█ Compatible With Multiple Platforms
Provides Raspberry Pi/Raspberry Pi Pico/Jetson Nano/ESP32/Arduino/STM32 Demos
And User Manuals, Easier To Develop And Integrate, And Better Expansibility

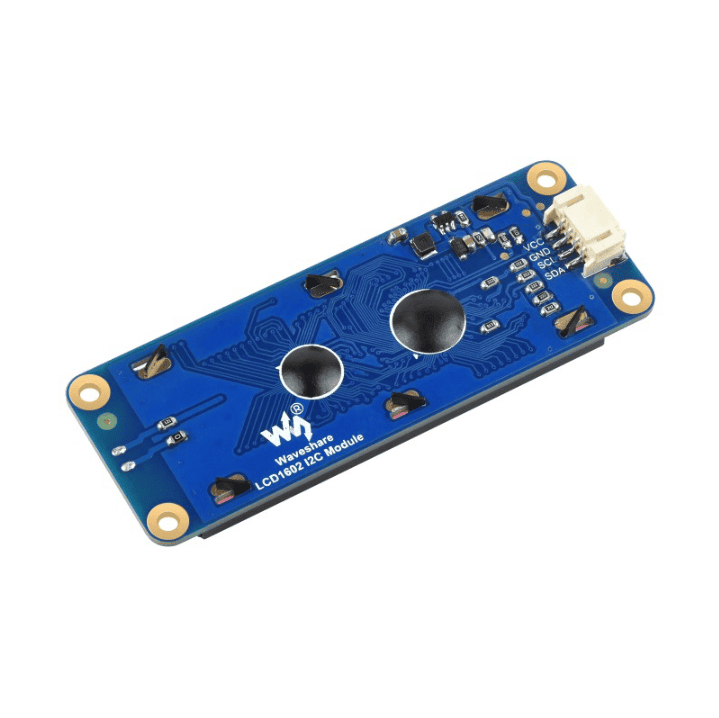

█ I2C Control Interface
Only Two Signal Pins Are Required, Saving The IO Resource
VCC |
3.3V ~ 5V power input |
GND |
GND |
SCL |
I2C clock pin |
SDA |
I2C data pin |

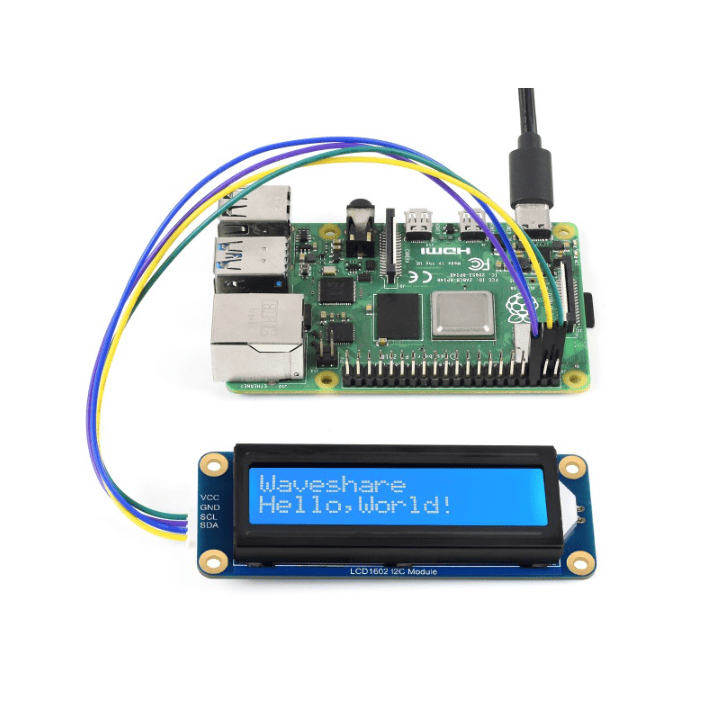

█ Demonstration
for reference only, Raspberry Pi Pico is NOT included.
█ Product Show
█ Outline Dimensions
-
█ Package Content
1. |
 |
2. |
 |
|
|
|
|
- LCD1602 RGB Module x1
- PH2.0 4PIN wire x1
Weight: 0.038 kg
