SKU: 22224
Part Number: 1.47inch LCD Module
Brand: Waveshare
Wiki: http://www.waveshare.com/wiki/1.47inch_LCD_Module 1.47inch LCD Display Module

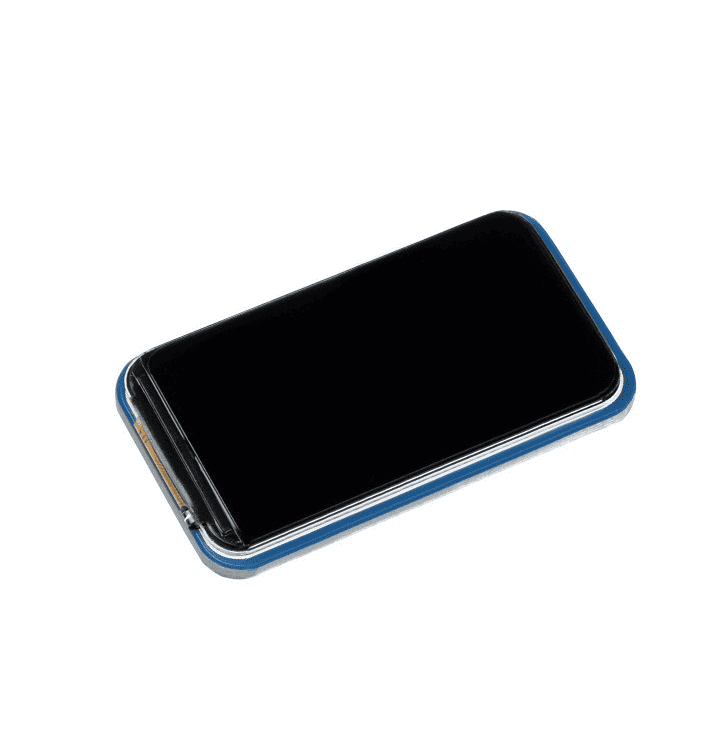

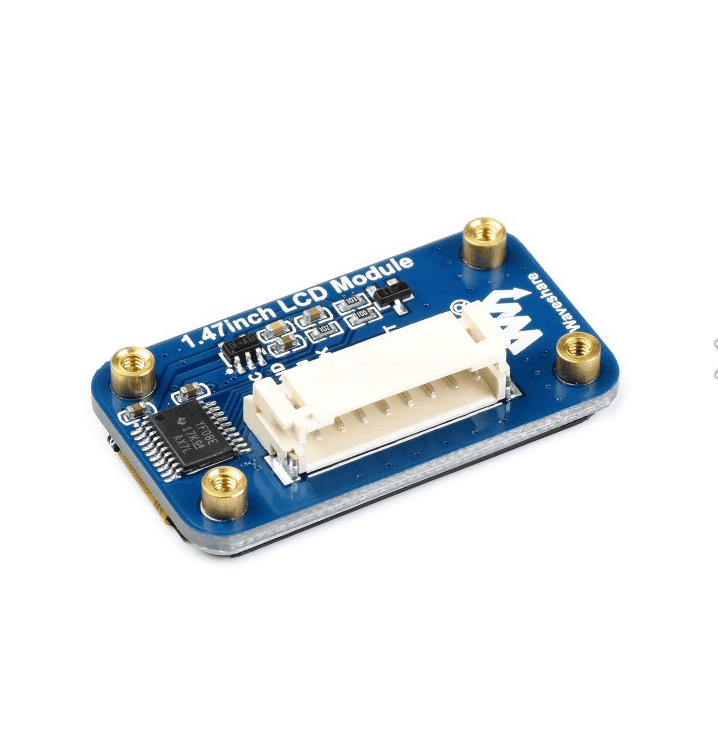

1.47inch LCD Display Module, Rounded Corners, 172×320 Resolution, SPI Interface, Embedded ST7789V3 Driver, Using SPI Bus
Posetite
Wiki zbog pomoći oko načina povezivanja, instalacije, primera i drugih korisnih informacija pre kupovine. Možete nas i konsultovati na email
office@malina314.com
Size |
Resolution |
Display Interface |
Display Colour |
Driver |
 |
 |
 |
 |
 |
1.47″ |
172×320 |
SPI |
262K RGB |
ST7789 V3 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
█ Overview
- 172×320 resolution, 262K RGB colors, clear and colorful displaying effect
- SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32
- Comes with development resources (examples for Raspberry Pi/Arduino/STM32)
█ Specifications
OPERATING VOLTAGE |
3.3V / 5V |
RESOLUTION |
172 × 320 pixels |
COMMUNICATION INTERFACE |
4-wire SPI |
DISPLAY SIZE |
17.39 × 32.35mm |
DISPLAY PANEL |
IPS |
PIXEL PITCH |
0.0337 × 0.1011mm |
DRIVER |
ST7789V3 |
DIMENSIONS |
22.0 × 38.5mm |
Controlled Via SPI Bus
Supports Controller Boards Like Raspberry Pi/Arduino/STM32

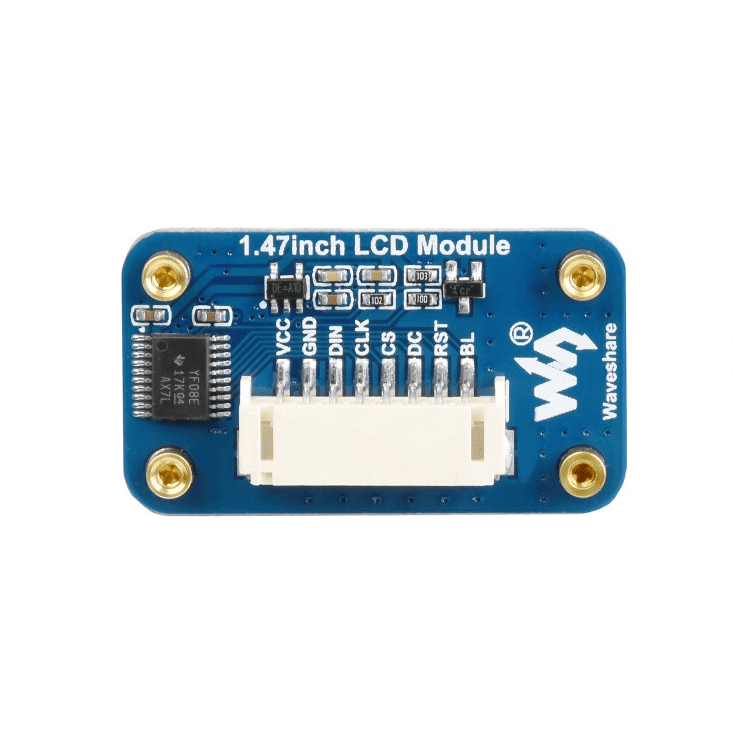

█ Hardware Connection
Connecting With Raspberry Pi
Connecting With Arduino Board

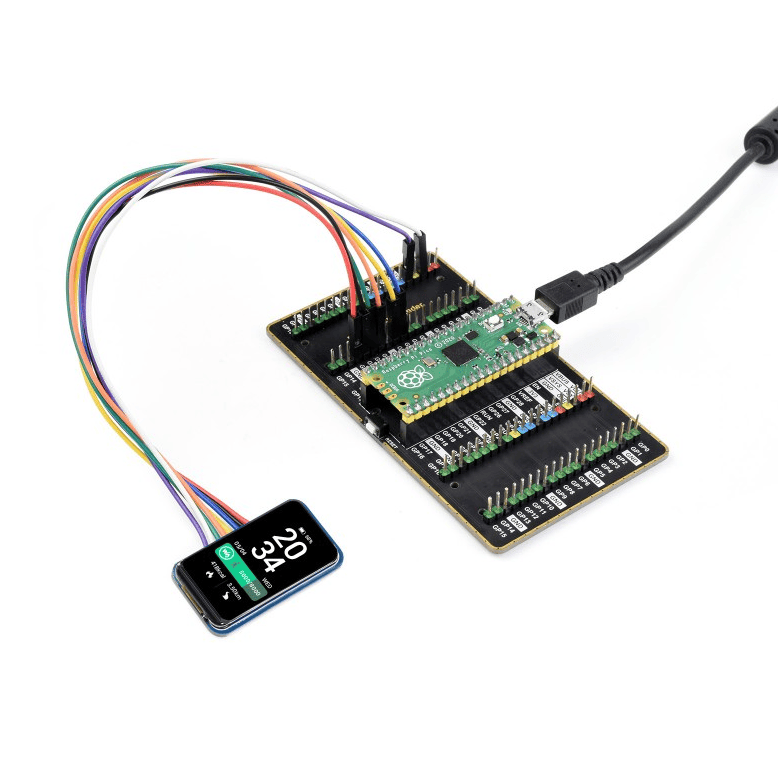

█ Usage Example
█ Dimensions (mm)
-
█ Package Content
-
1. |
 |
2. |
 |
|
|
|
|
- 1.47inch LCD Module x1
- PH2.0 8PIN cable x1
Weight: 0.012 kg
