Part Number: LC76G GNSS Module
Brand: Waveshare
Korisne informacije:
www.waveshare.com/wiki/LC76G_GNSS_Module LC76G Multi-GNSS Module, Supports GPS, BDS, GLONASS, Galileo, QZSS
LC76G GNSS Positioning Module
Supports GPS, Beidou(BDS), Glonass, Galileo, QZSS
I2C/UART Communication, Provides Multi-Platform Resources And Tutorials For Secondary Development And Integration
Features At A Glance
The
LC76G GPS Module is a Multi-GNSS (Global Navigation Satellite System) module, supports GPS, BeiDou (BDS), GLONASS, Galileo and QZSS systems, allows multi-system combined or single-system independent positioning. Supports EPO™ (Extended Predictive Orbit) and EASY™ (Embedded Assist System) function, provides a good positioning experience of fast, accurate, high-performance.
- Supports Multi-GNSS systems: GPS, BeiDou (BDS), GLONASS, Galileo, and QZSS
- Supports UART and I2C communication
- Built-in Low-Noise Amplifier (LNA) for improved reception sensitivity
- Supports EPO™ (Extended Predictive Orbit) and EASY™ (Embedded Assist System) function
- Supports 1PPS
- UART communication baudrate: 9600~921600bps (115200bps by default)
- Onboard rechargeable Li battery MS621FE, for preserving ephemeris information and hot starts
- 2x LEDs for indicating the module working status
- Comes with online development resources and manual (examples for Raspberry Pi/Raspberry Pi Pico/Jetson Nano/Arduino/ESP32)
Compatible With Multiple Platforms

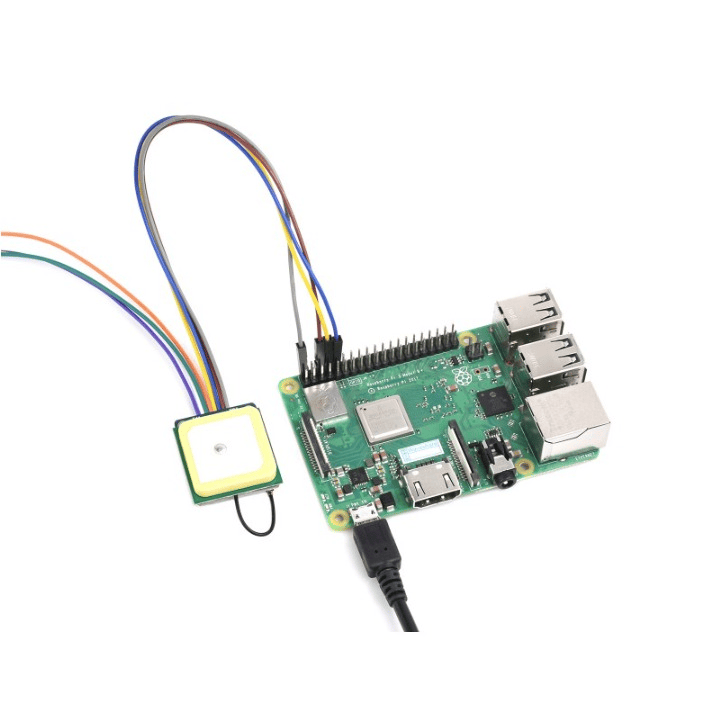

Provides Raspberry Pi/Raspberry Pi Pico/Jetson Nano/ESP32/Arduino Demos And User Manuals, Easier To Develop And Integrate, And Better Expansibility
Multi-GNSS Positioning Support
Supports GPS, Beidou(BDS), Glonass, Galileo, QZSS

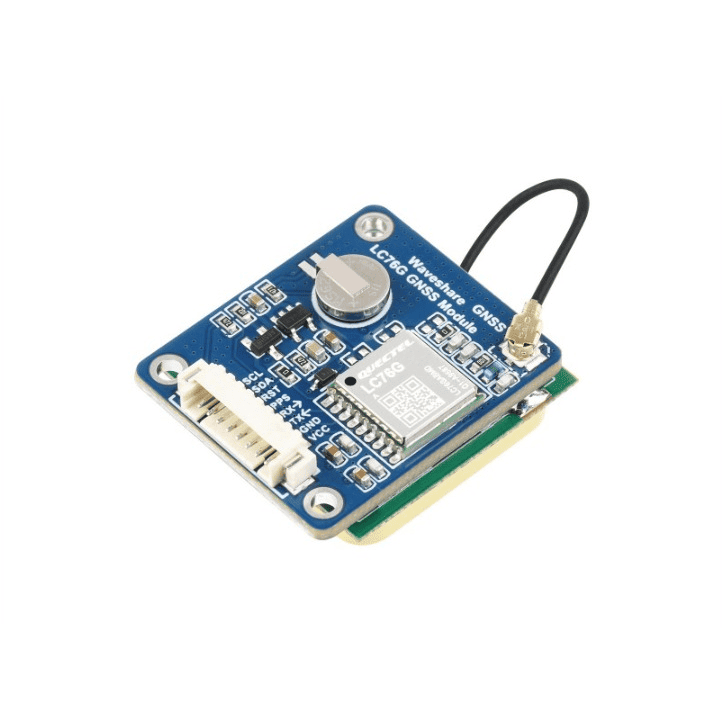

What's On Board

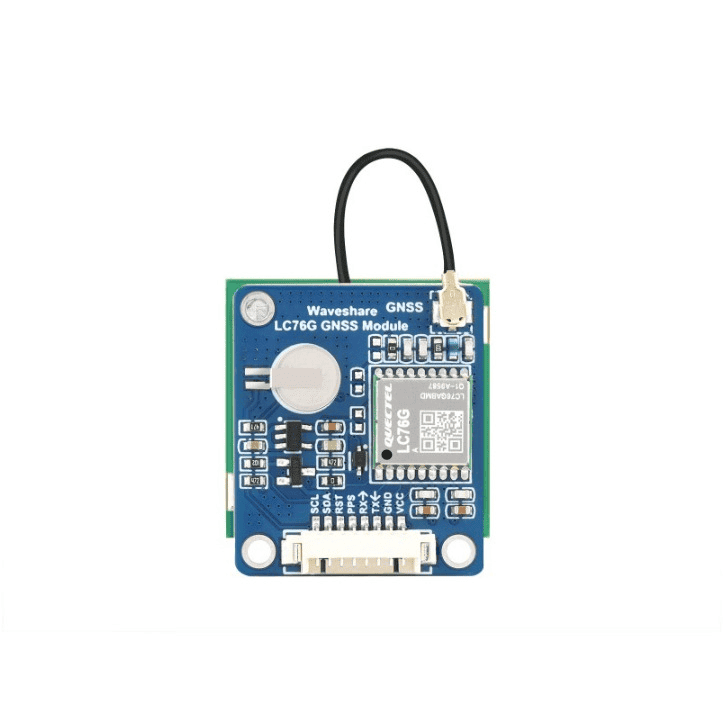

PINOUT DEFINITION |
VCC |
Power supply (3.3V/5V) |
GND |
Gound |
TX |
Connect to MCU.RX (Signal direction: TX >> MCU.RX) |
RX |
Connect to MCU.TX (Signal direction: MCU.TX >> RX) |
PPS |
GPS status indicator |
RST |
Reset Pin |
SDA |
I2C data pin |
SCL |
I2C clock pin |
Product Show
Outline Dimensions
- PACKAGE CONTENT
Weight: 0.022 kg

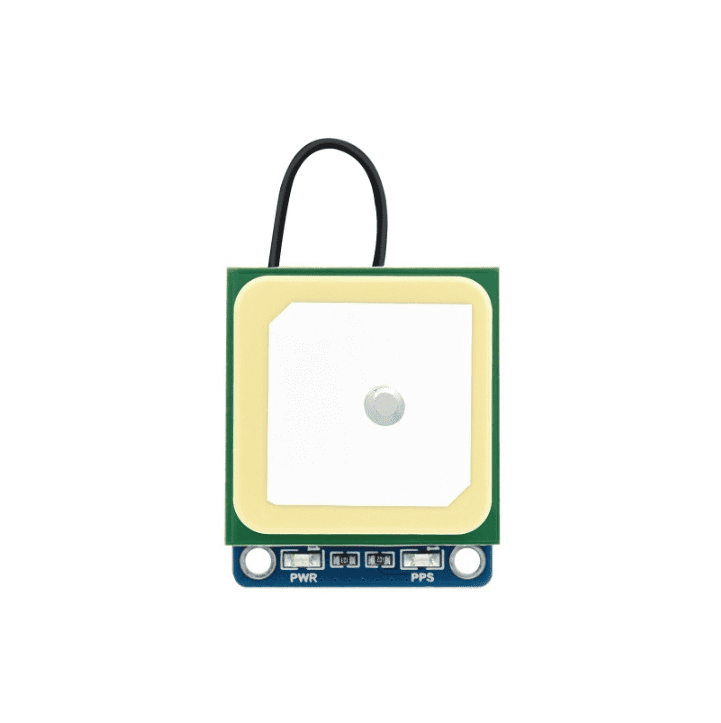

This product is suitable for outdoor positioning (comes with active GPS ceramic antenna by default), if you need to position indoor, it is recommended to purchase: GPS external antenna (with IPX to SMA Adapter) (antenna is placed to the window area, the module is within 3.5m from the antenna).
- LC76G GNSS Module x1
- GH1.25 8PIN cable x1
