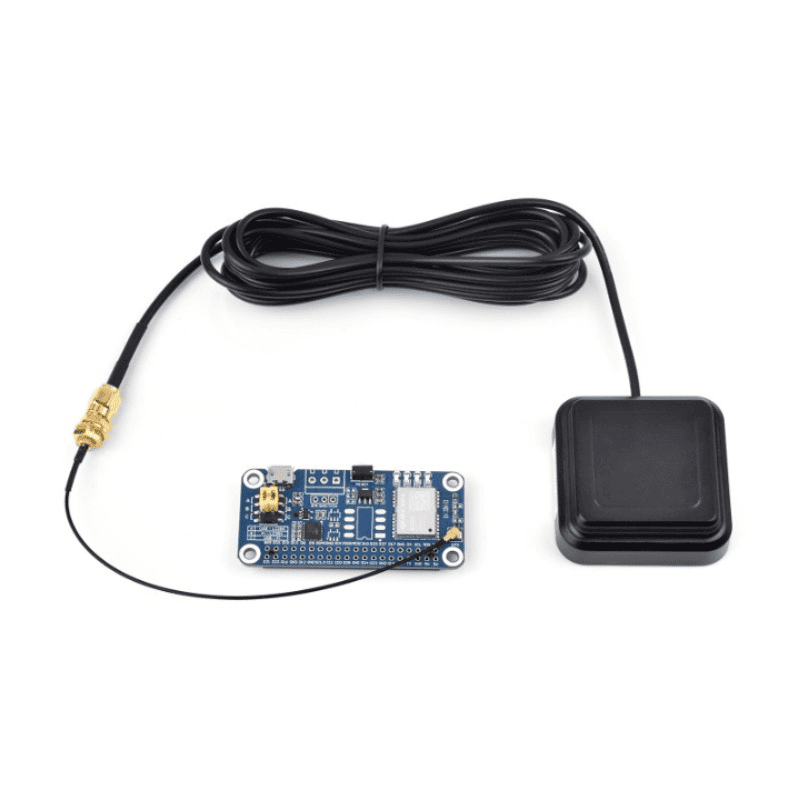

LC29H(AA) GPS HAT Expansion Board

Šifra: w25278

5.390,00 RSD

Cena sa PDV

Lista želja ?

Unesi količinu Samo 1 na stanju

Dodaj u korpu

Kategorija: mini PC
Težina po komadu: 0.173 Kg

upports multi-frequency active interference cancellation, effectively suppressing or eliminating narrowband signal (WiFi/2/3/4/5G) interference to ensure navigation accuracy

A-GNSS (Assisted GNSS) support, reducing the time to first fix (TTFF) with cold start when powered on to 5 seconds

Support QGNSS software, easy to set various module functions

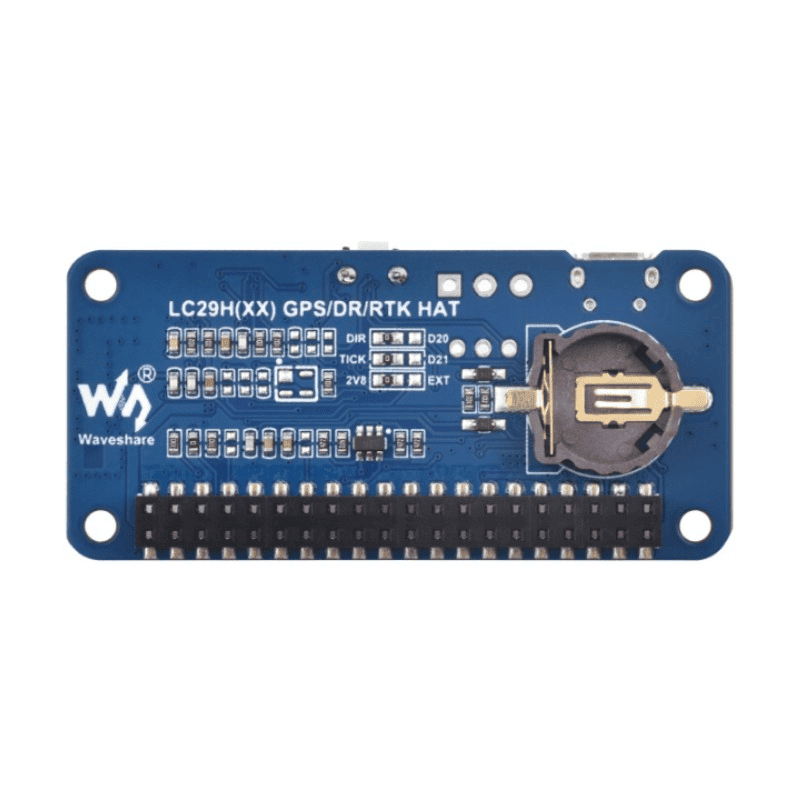

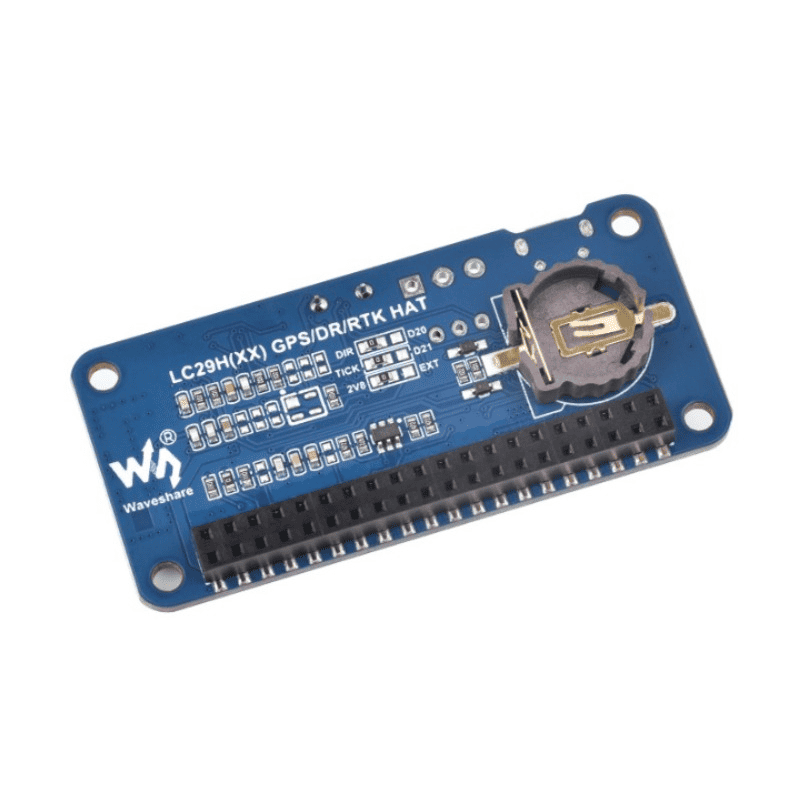

Onboard battery holder, supports ML1220 rechargeable cell, for preserving ephemeris information and hot starts

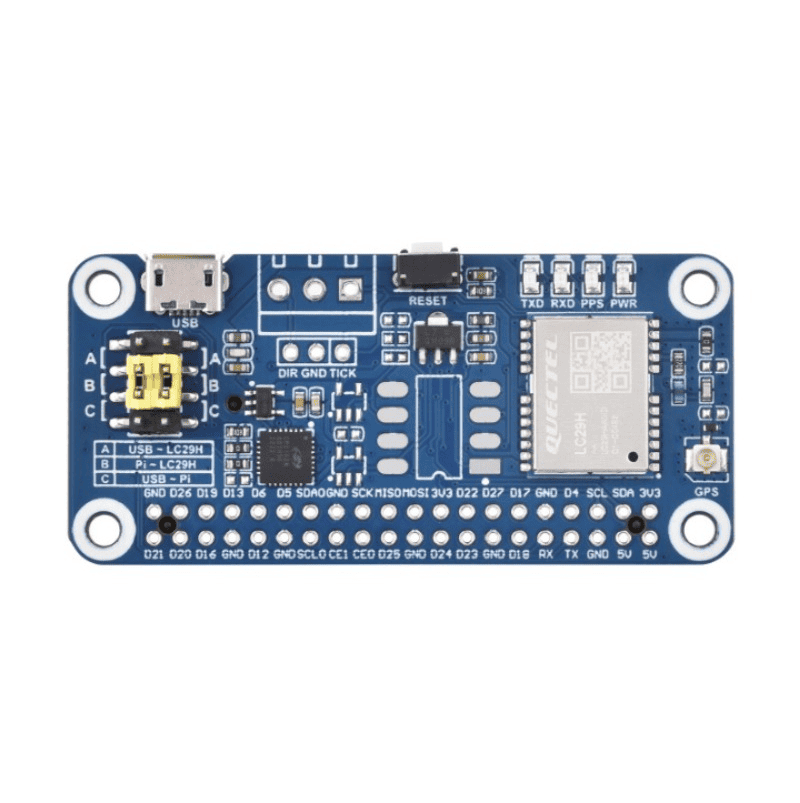

Onboard 4 LED indicators for module operating status

Comes with online development resources and manual (Python examples for Raspberry Pi/Jetson Nano)

Version Options

LC29H(AA) GPS HAT
Supports positioning augmentation system and EASY technology

Specifications

Product		LC29H(AA) GPS HAT
Frequency band		GPS/QZSS: L1C/A, L5 BDS: B1I, B2a Galileo: E1, E5a GLONASS: L1
NUMBER OF CONCURRENT GNSS		GPS/QZSS+BDS+Galileo+GLONASS
SBAS (WAAS, EGNOS, MSAS, GAGAN)		support
RTK Function		-
Positioning Accuracy	PVT	1m CEP
Positioning Accuracy	RTK	-
Navigation Update Rate	PVT	1~10Hz
	RTK	-
	RAW	1Hz
RTK Convergence Time		-
Time to first fix (AGNSS Off)	Cold starts	26s
	Hot starts	1s
	Aided starts	16s
Time to first fix (EASY on)		2s
Time to first fix (AGNSS On)	Cold starts	5s
	Hot starts	5s
	Aided starts	5s
Sensitivity	Tracking and navigating	-165dBm
	Re-acquisition	-159dBm
	Cold starts	-147dBm
Velocity accuracy		0.2m/s
PPS accuracy		20ns
Dynamic performance		Acceleration (Max): 4g
		Altitude (Max)：10000m
		Velocity (Max): 500m/s
Communication interface		UART(9600~3000000bps, 115200bps by default), I2C(Max 400KHz)
Protocol		NMEA 0183 V4.10, RTCM 3.x
Power supply		5V
Overall Current		<40mA@5V (Continue mode)
Operating temperature		-40~85℃
Dimensions		65×30.5mm

Standard Raspberry Pi 40PIN GPIO

Compatible With Raspberry Pi Series Boards

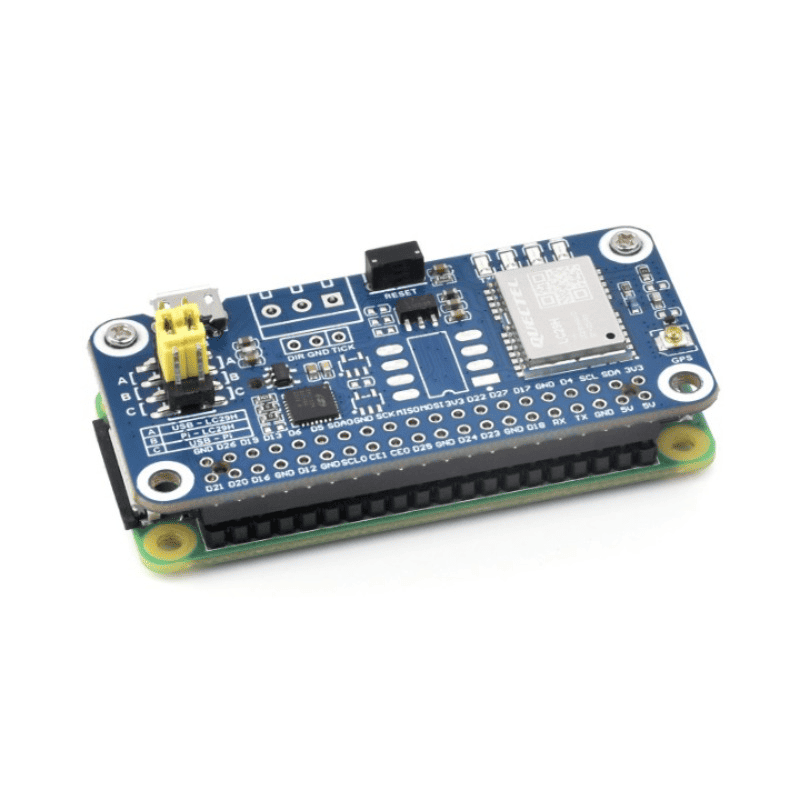

Working With Raspberry Pi Zero

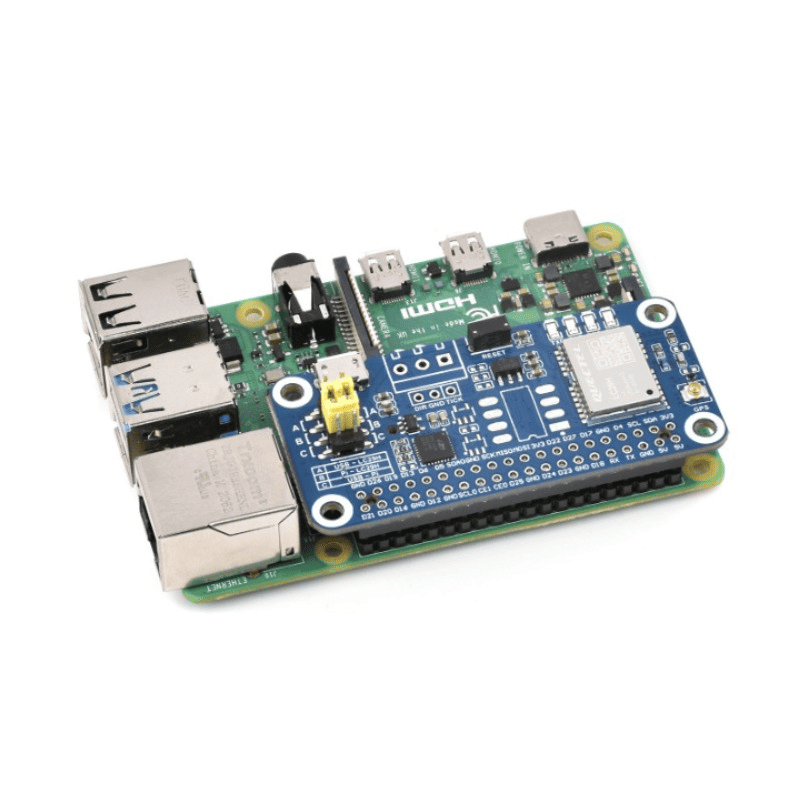

Working with Raspberry Pi 4B

* for reference only, the Raspberry Pi boards are NOT included.

Dual-Band L1+L5 Positioning Technology

Supports Simultaneous Tracking Of L1+L5 Dual-Band Satellite Signals
Reducing Multipath Effects In Urban Canyons And Improving Positioning Accuracy

Concurrent Reception Of Multi-GNSS Systems

Supports GPS, BDS, GLONASS, Galileo, QZSS
And Still Retains Low Power Consumption

Supports Multi-Frequency Active Interference Cancellation

Effectively Suppressing Or Eliminating Narrowband Signal (WiFi/2/3/4/5G) Interference To Ensure Navigation Accuracy

Assisted GNSS Support

Reducing The Time To First Fix (TTFF) With Cold Start When Powered On To 5 Seconds

Applications

Ideal For Real-Time Tracking Systems And Sharing Economy Applications, Helping To Develop Applications Such As Drones, Smart Farm Machinery, Shared Two-Wheelers, Etc.
