L76K GPS Module

Šifra: w23721

1.690,00 RSD

Cena sa PDV

Trenutno nedostupno za online naručivanje

Obavesti me kada proizvod bude dostupan!

Kategorija: mini PC
Težina po komadu: 0.022 Kg

SKU: 23721
Part Number: L76K GPS Module
Brand: Waveshare

Korisne informacije: www.waveshare.com/wiki/L76K_GPS_Module
L76K Multi-GNSS Module, Supports GPS, BDS, QZSS

L76K GNSS Positioning Module

Supports GPS, Beidou(BDS), Glonass, QZSS

UART Communication, Provides Multi-Platform Resources And Tutorials For Secondary Development And Integration

Features At A Glance

The L76K GPS Module is a Multi-GNSS (Global Navigation Satellite System) module, supports GPS, BeiDou (BDS), GLONASS and QZSS systems, allows multi-system combined or single-system independent positioning. Supports AGNSS function, built-in low-noise amplifier and sound surface filter, provides a good positioning experience of fast, accurate, high-performance.

Supports Multi-GNSS systems: GPS, BeiDou (BDS), GLONASS and QZSS

Built-in Low-Noise Amplifier (LNA) for improved reception sensitivity

Built-in SAW Filter for enhanced noise reduction performance

Support AGNSS

Support 1PPS

UART communication baudrate: 4800~115200bps (9600bps by default)

Onboard rechargeable Li battery MS621FE, for preserving ephemeris information and hot starts

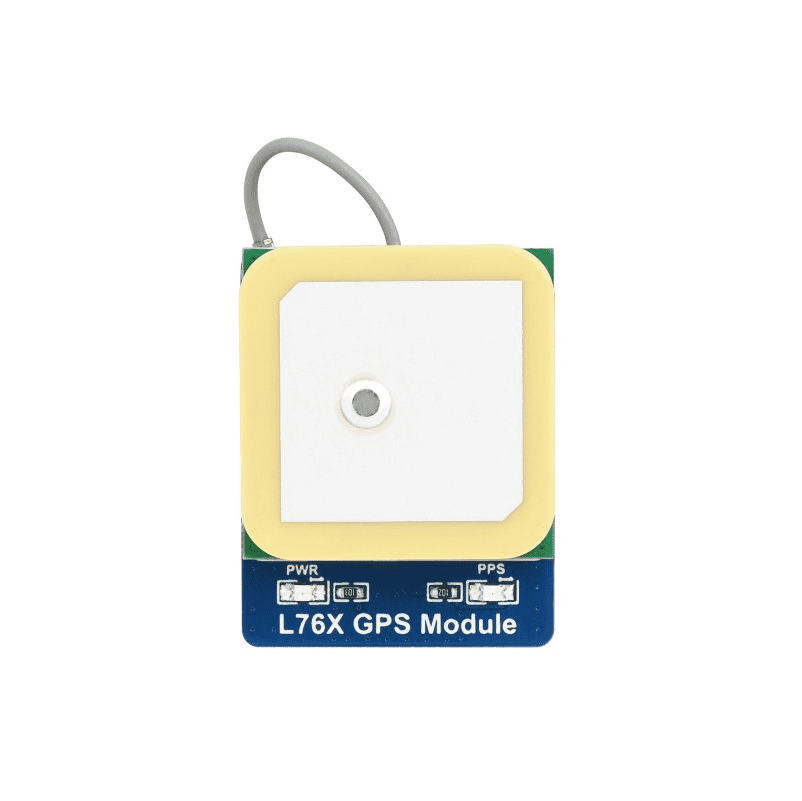

2x LEDs for indicating the module working status

Comes with online development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

Parameters

PRODUCT		L76K
GNSS		GPS/GLONASS/BDS/QZSS
CHIP PLATFORM		AT6558R
L1 BAND RECEIVER	CHANNELS	32 tracking ch/ 72 acquisition ch
L1 BAND RECEIVER	SBAS	N/A
A-GNSS		Support
SENSITIVITY	ACQUISITION	-148dBm
	RE-ACQUISITION	-160dBm
	TRACKING	-162dBm
TTFF (TIME TO FIRST FIX)	COLD STARTS	30s, Autonomous 5.5s, With AGNSS
	WARM STARTS	-
	HOT STARTS	2s
POSITION ACCURACY		2.0m CEP
SPEED ACCURACY		0.1m/s
ACCELERATION ACCURACY(MAX)		0.1m/s²
TIMING ACCURACY		30ns
UPDATE RATE (MAX)		5Hz
DEFAULT BAUDRATE		9600bps

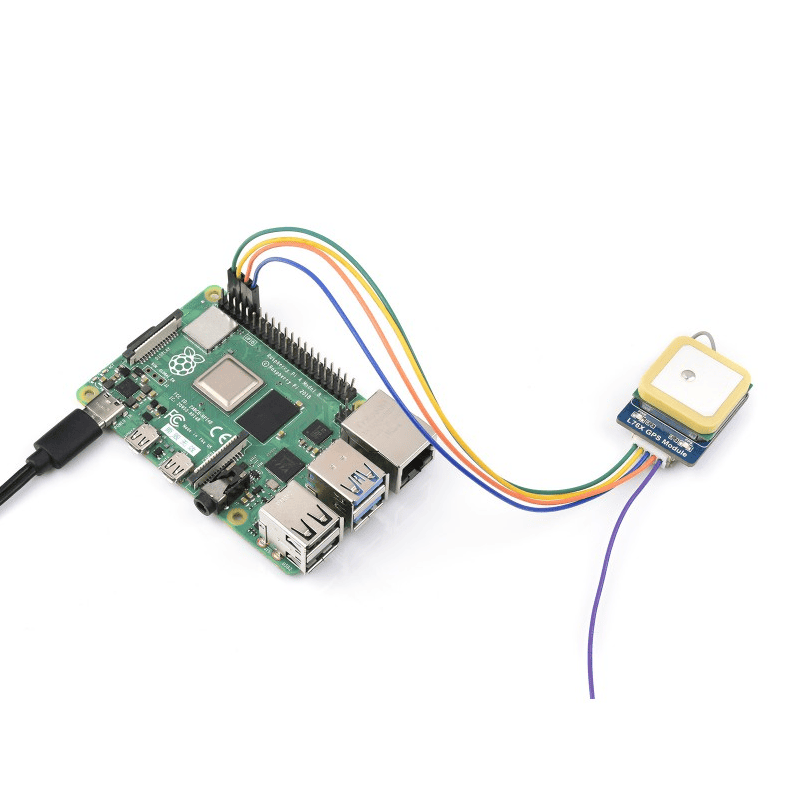

Compatible With Multiple Platforms

Provides Raspberry Pi/Raspberry Pi Pico/Jetson Nano/ESP32/Arduino/STM32 Demos
And User Manuals, Easier To Develop And Integrate, And Better Expansibility

Multi-GNSS Positioning Support

Supports GPS, Beidou(BDS), Glonass, QZSS

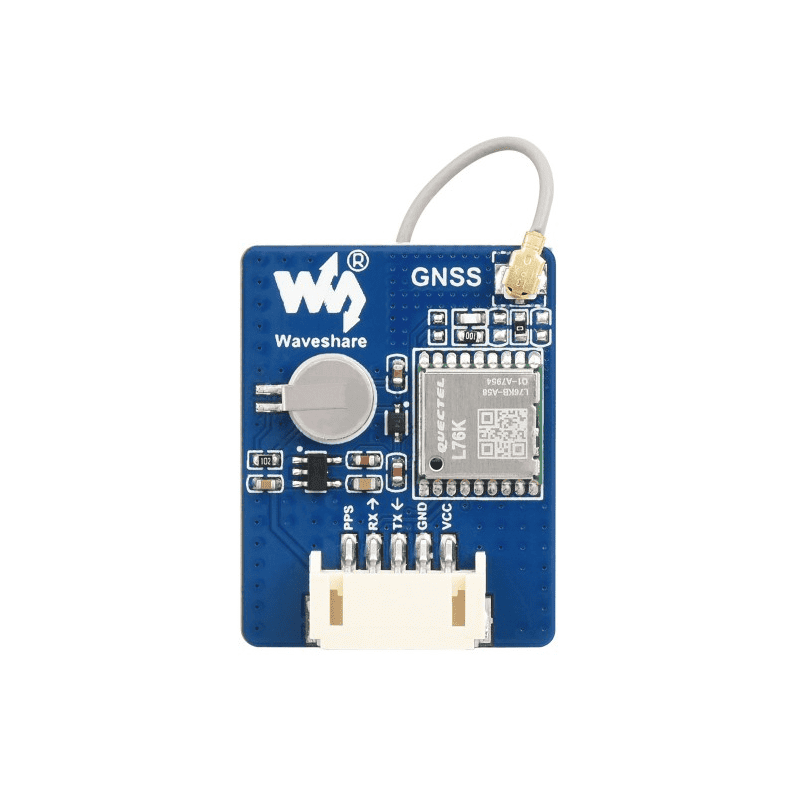

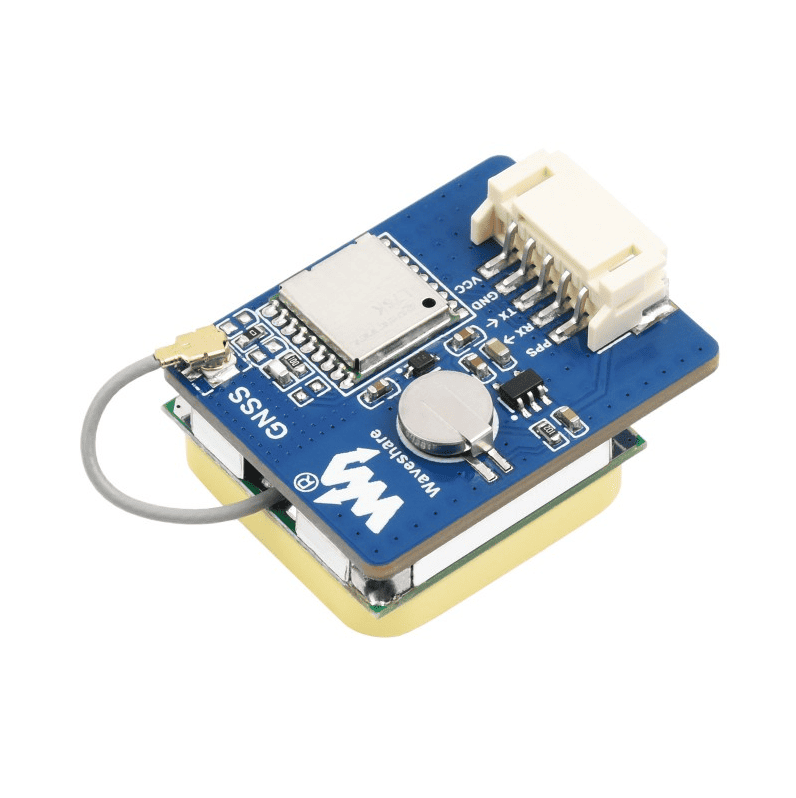

What's On Board

PINOUT DEFINITION
VCC	Power supply (3.3V/5V)
TX	Connect to MCU.RX (Signal direction: TX >> MCU.RX)
RX	Connect to MCU.TX (Signal direction: MCU.TX >> RX)
PPS	GPS status indicator
