SKU: 21230
Part Number: 8inch DSI LCD (with cam)
Brand: Waveshare
Korisne informacije: http://www.waveshare.com/wiki/8inch_DSI_LCD_(with_cam) 8″ Touch Display With 5MP Front Camera

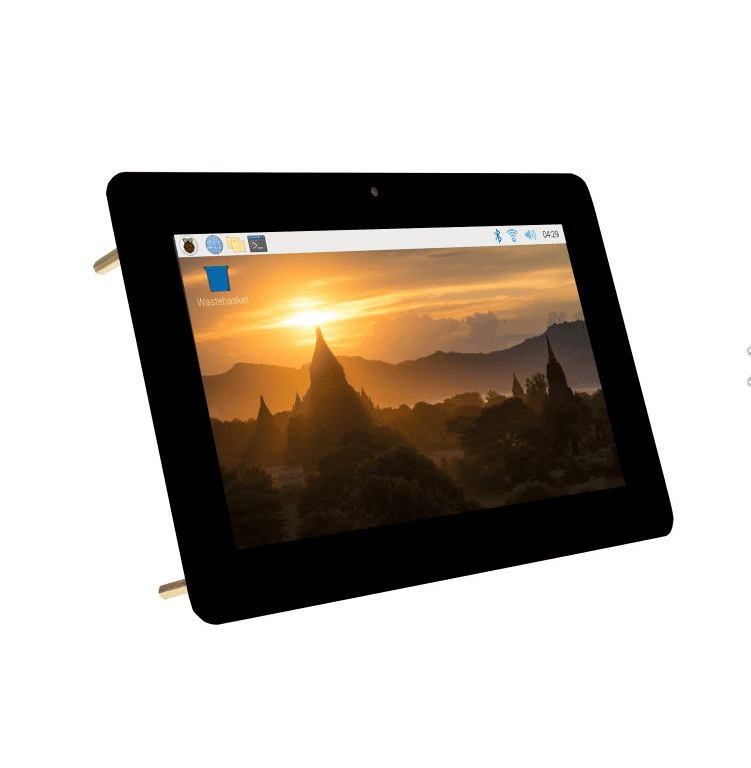

8inch Capacitive Touch Display For Raspberry Pi, With 5MP Front Camera, 800×480, DSI Interface
Posetite
Wiki zbog pomoći oko načina povezivanja, instalacije, primera i drugih korisnih informacija pre kupovine. Možete nas i konsultovati na email
office@malina314.com
Size |
Resolution |
Display Port |
Front Camera |
Camera Port |
 |
 |
 |
 |
 |
8" |
800×480 |
DSI |
5 MP |
CSI° |
Touch Type |
Touch Points |
Touch Port |
Touch Panel |
Power Consumption |
 |
 |
 |
 |
 |
Capacitive |
5-Points |
I2C |
Toughened Glass |
Low Power |
█ Device & System Support
Raspberry Pi
Supports Raspberry Pi OS, 5-points touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie / RoPieee, driver free
Supports Pi 5/4B/3B+/3A+/3B/2B/B+/A+, CM3/3+/4*
* some CM3/3+/4 base boards require extra adapter cable VisionFive2
Supports Debian, single point touch, driver free
Core3566
Supports Debian / Ubuntu, 5-point touch, driver free
█ Connection Examples
Working with Raspberry Pi 5
Working With Raspberry Pi 4
Working With Raspberry Pi 3B+
█ Camera
5MP Front Camera
SENSOR |
OV5647 |
CMOS SIZE |
1/4 inch |
PIXELS |
5MP |
APERTURE |
F2.4 |
FOCAL LENGTH |
3.89mm |
DIAGONAL FOV |
72.9° |
DISTORTION |
< 1.5% |
DEPTH OF FIELD |
20cm ~ ∞ |
IMAGE |
2592 × 1944 still image resolution |
VIDEO |
1920 × 1080p @30, 1280 × 720p @60, 640 × 480p @60, 640 × 480p @90 |
█ Display
Touch Control
1) up to 5-points touch, depending on the operating system.
Adjustable Brightness Via Software

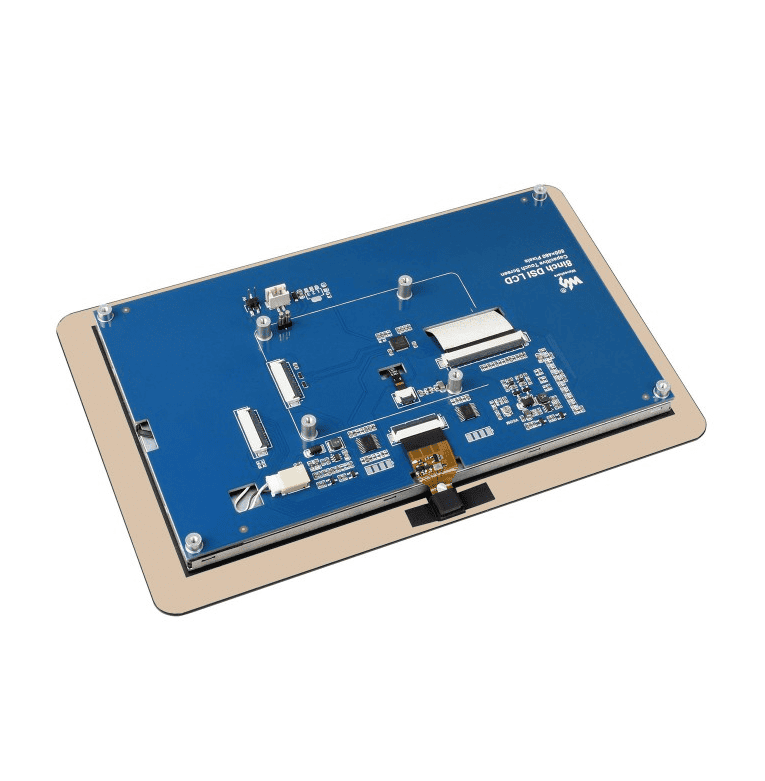

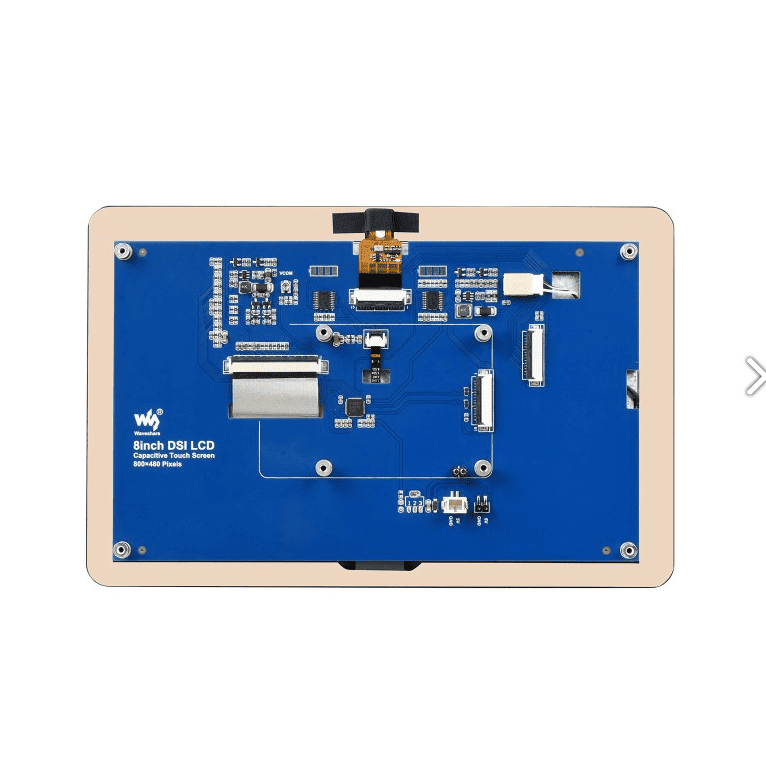

Design Features
- LCD FFC cable anti-interference design, more stable for industrial application
- VCOM voltage adjustment for optimizing display effect
- Power supply via pogo pins, eliminating messy wiring
- Two types of 5V output headers, for connecting cooling fan or other low power devices
- With OV5647 5MP camera, 72.9° diagonal FOV, 2592×1944 resolution
- Large front panel design, make it easy to match user-defined cases, or to be integrated into sorts of devices
- Adopts SMD nuts for holding and fixing the board, more compact structure
█ Appearance And Dimensions
-
█ Package Content
Weight: 0.414 kg
- 8inch DSI LCD (with cam) x1
- FPC 15PIN 1.0 pitch 50mm (opposite sides) x1
- DSI-Cable-12cm x1
- FPC 15PIN 1.0 pitch 160mm (opposite sides) x1
- FPC 15PIN 1.0 pitch 120mm (opposite sides) x1
- 2PIN wire 10cm x1
- Screws pack x1
