SKU: 22293
Part Number: 7.9inch DSI LCD
Brand: Waveshare
Wiki: http://www.waveshare.com/wiki/7.9inch_DSI_LCD 7.9″ Touch Display

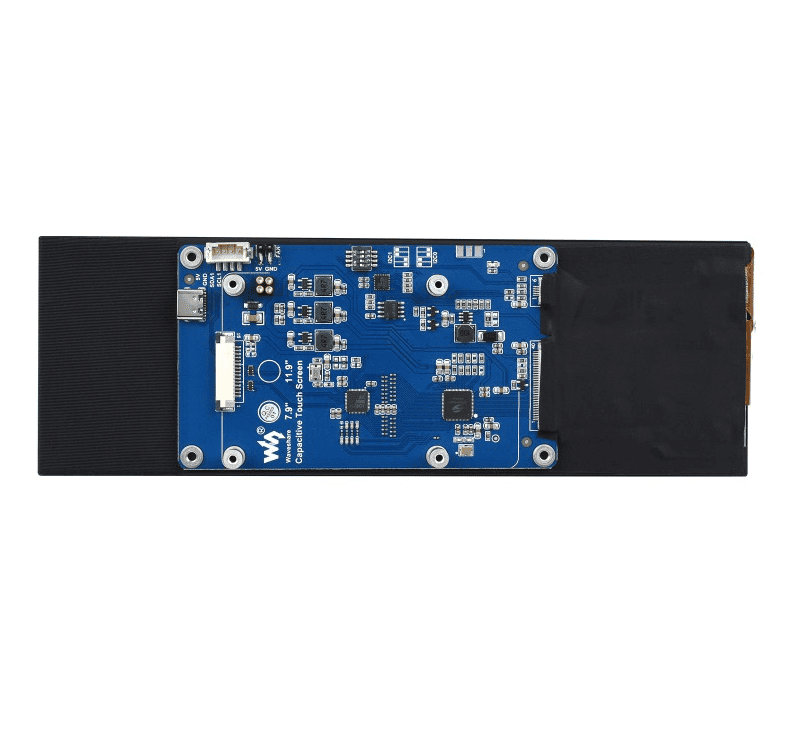

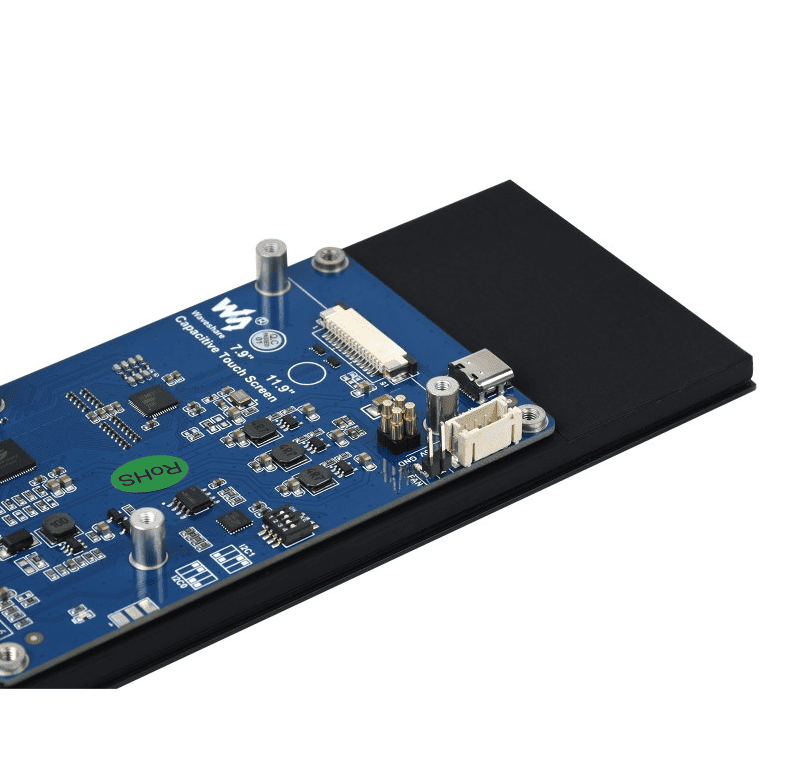

7.9inch Capacitive Touch Display For Raspberry Pi, 400×1280, IPS, DSI Interface
The display orientation is portrait by default, 480×1280 resolution (H×V). Change the software config for landscape display.
Posetite
Wiki zbog pomoći oko načina povezivanja, instalacije, primera i drugih korisnih informacija pre kupovine. Možete nas i konsultovati na email
office@malina314.com
Size |
Resolution |
Display Port |
Display Panel |
Viewing Angle |
 |
 |
 |
 |
 |
7.9" |
480×1280 |
DSI |
IPS |
170° |
Touch Type |
Touch Points |
Touch Port |
Touch Panel |
|
 |
 |
 |
 |
|
Capacitive |
5-Points |
I2C |
Toughened Glass |
|
█ Device & System Support
Raspberry Pi
Supports Raspberry Pi OS, 5-points touch, driver required
Supports Pi 5/4B/3B+/3A+, CM3/3+/4*
* CM3/3+/4 requires extra adapter board
█ Connection Examples
Working With Raspberry Pi 5
Working With Raspberry Pi 4
Working With Raspberry Pi 3B+
█ Display
IPS Panel
Touch Control
1) up to 5-points touch, depending on the operating system.
2) up to 6H hardness toughened glass panel.
Adjustable Brightness Via Software
█ Design Features
█ Appearance And Dimensions
-
█ Package Content
Weight: 0.296 kg
- 7.9inch DSI LCD x1
- FPC 15PIN 1.0 pitch 50mm (opposite sides) x1
- DSI-Cable-12cm x1
- FPC 15PIN 1.0 pitch 160mm (opposite sides) x1
- PH2.0 4PIN cable 200mm x1
- Screws pack x1
