Stable Transmission | Multi Devices | Multi Systems
| PRODUCT TYPE | Industrial Grade USB to RS485 converter | |
|---|---|---|
| HOST PORT | USB | |
| DEVICE PORT | RS485 | |
| BAUDRATE | 1200bps ~ 460800bps | |
| USB | Operating voltage | 5V |

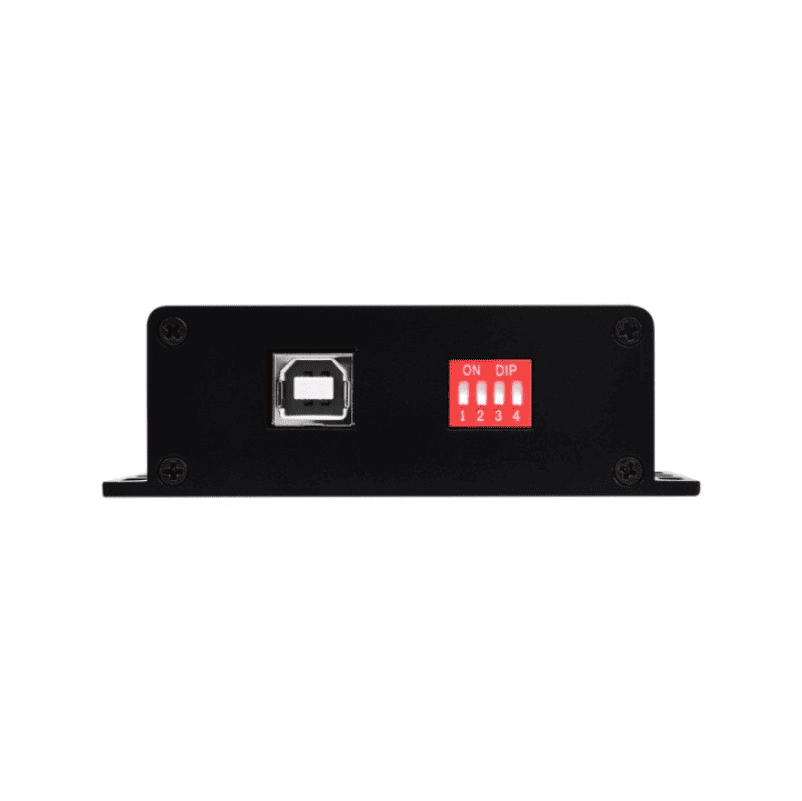

| Connector | USB-B | |
| Protection | 500mA resettable fuse, ESD protection | |
| Transmission distance | About 5m | |

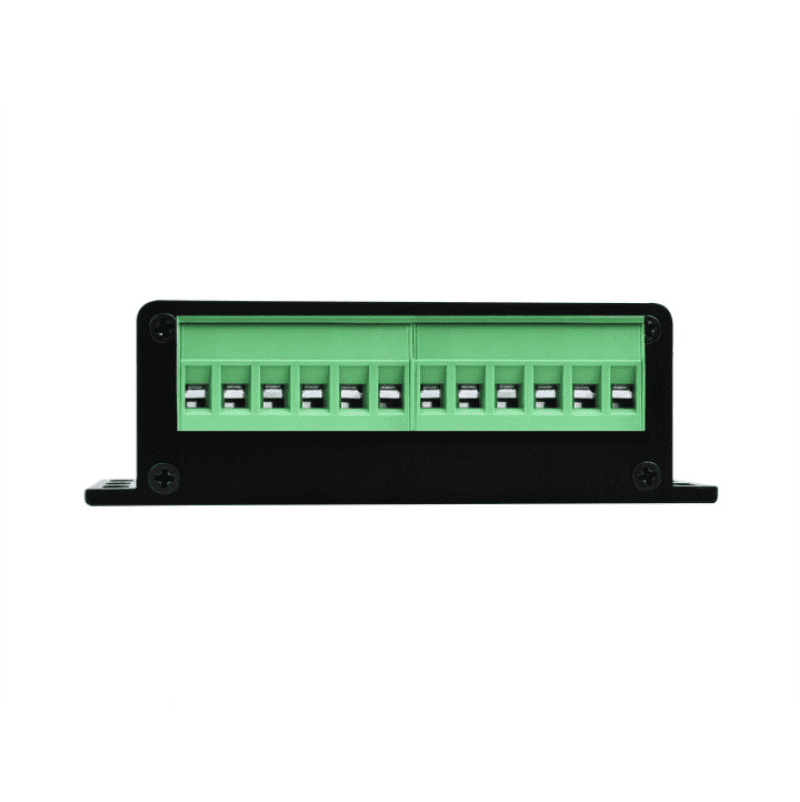

| RS485 | Connector | Screw terminal |
| Protection | 600W lightningproof and surge-suppress, 15KV ESD protection | |
| Transmission distance | Maximum communication distance is about 1200m (at a low rate, with 120R resistor turned on) | |
| Transmission mode | Point-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more) | |
| OPERATING ENVIRONMENT | Temperature | -40 ~ 85℃ |
| Humidity | 5%RH ~ 95%RH | |
| OPERATING SYSTEM | Win7/8/8.1/10/11, Mac, Linux, Android | |
Onboard Resettable Fuse And Protection Diode, Provides Over-Current/Over-Voltage Proof, Improves Shock Proof Performance; Onboard Voltage Translator Circuit, With Surge Suppress And ESD Protection, Safe And Stable Communication
Supports Win7/8/8.1/10/11, Mac, Linux, Android, Etc.
The USB Signal Can Be Converted Into 4 Balanced Differential RS485 Signals And The Transmission Rate Is Stable. The Reliable Speed Is 1200~460800bps, The Transmission Distance Is About 1.2km For RS485, And About 5 Meters For USB.

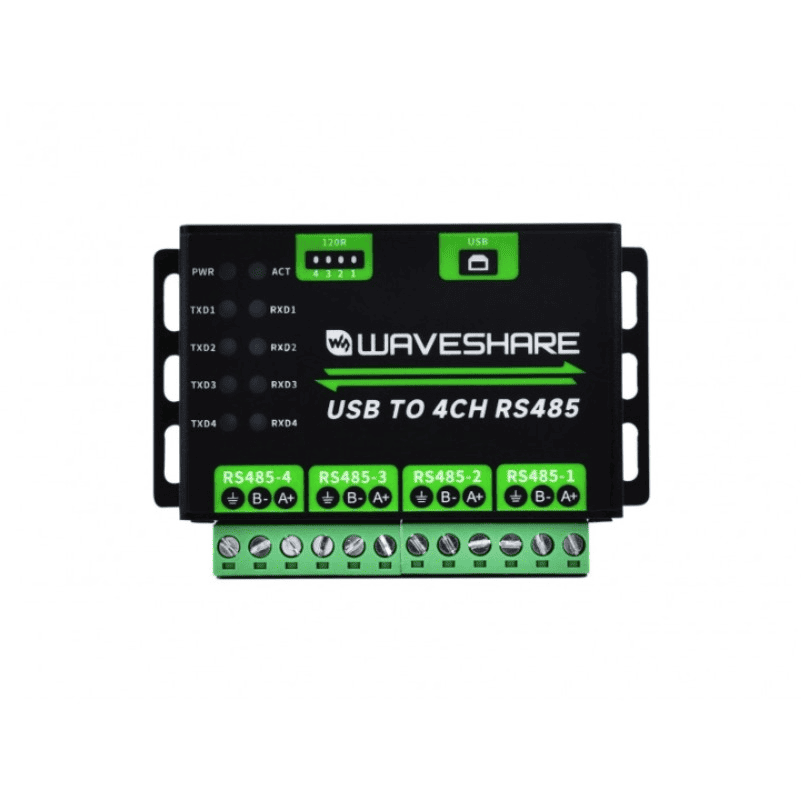

| INDICATOR INTRODUCTION | |
|---|---|
| PWR | power indicator, lights up while the USB is connected and voltage is detected |
| ACT | Status indicator, lights up green while the driver is detected. |
| RXD(1~4) | Blue RXD indicators, light up when the device ports send data back (corresponding to 4 channels respectively) |
| TXD(1~4) | Blue TXD indicators, light up when the USB port is sending data (corresponding to 4 channels respectively) |
| PE | Signal ground |
|---|---|
| A(1~4) | A(1~4) differential signal A+ |
| B(1~4) | B(1~4) differential signal B- |
