SKU: 23079
Part Number: USB-HUB-3U-ETH-EU
Brand: Waveshare
Korisne informacije:
www.waveshare.com/wiki/USB-HUB-3U-ETH Industrial Grade Multifunctional USB HUB, Extending 3x USB Ports + 100M Ethernet Port
USB-HUB-3U-ETH 3x USB + 100M Ethernet Connector
Suitable For Industrial/Office Environments Requiring Higher Level Device And Network Connection
Features At A Glance
- 3x extended USB ports, compatible with USB 2.0 / 1.1
- Onboard RTL8152B Ethernet chip, adapting RJ45 network port, 10/100M adaptive
- Industrial grade HUB chip, adopting STT technology, allows stable and smooth concurrent USB connections
- ESD protection for each USB port, preventing electric surge damage and data loss
- Onboard large-capacity electrolytic capacitor, effectively making the power supply output of the USB port more stable
- Over-voltage protection, effectively preventing other high voltage power input from damaging the connected devices
- Multiple protection circuits: over-voltage, over-current, short circuit, over-temperature, reverse current, under voltage lock-out, 8KV ESD protection, filtering protection, etc.
- LED indicators for monitoring operating statuses of power supply, network port and USB ports

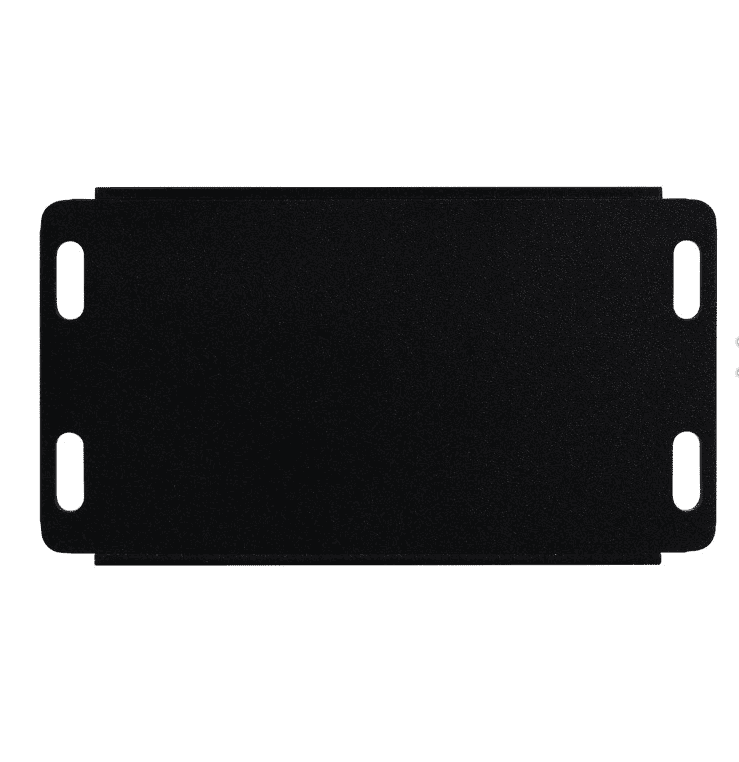

- Industrial grade metal case, rugged & durable, with mounting holes for easy installation
Specifications
USB PORT |
USB 2.0 Port x 3, theoretically up to 480Mbps |
NETWORKING |
10/100 adaptive |
USB HUB INPUT |
operating voltage: 5V
connector: USB-B |
USB OUTPUT |
operating voltage: 5V@Imax:1.2A①
connector: USB-A |
EXTERNAL POWER |
power supply voltage: DC 5V②
connector: DC jack |
OPERATING ENVIRONMENT |
-40℃ ~ 85℃ |
OS SUPPORT |
Mac OS (8.6 or above), Linux(2.4.20 or above), Windows 11 / 10 / 8.1 / 8 / 7 / XP |
① up to 1.2A Max output current for each USB ports, when there's enough power input
② comes with 5V 2A power supply, it is recommended to use another 5V 4A or above power supply for higher USB loads
Industrial Grade HUB Chip STT Technology, 3x Concurrent USB Connections, Stable And Smooth
Large-Capacity Electrolytic Capacitors More Stable Power Output Via USB Port
Multiple Protections, More Safe Over-Voltage, Over-Current, Short Circuit, Over-Temperature, Reverse Current, Under Voltage Lock-Out, 8KV ESD Protection, Filtering Protection...
Multiple OS Support, Plug & Play

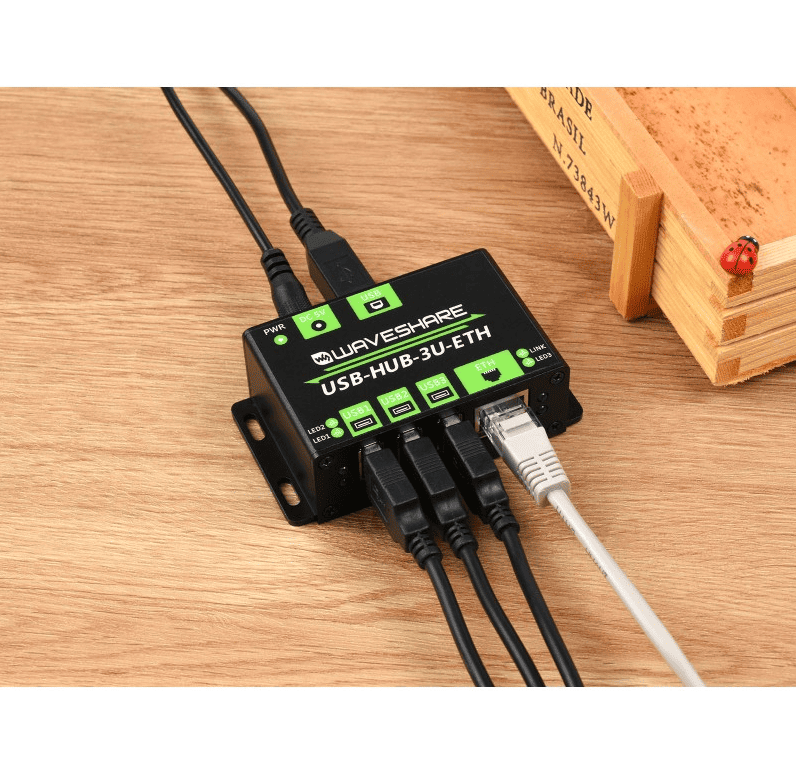

Application Environments Suitable For Industrial/Office Environments Requiring Higher Level Device And Network Connection

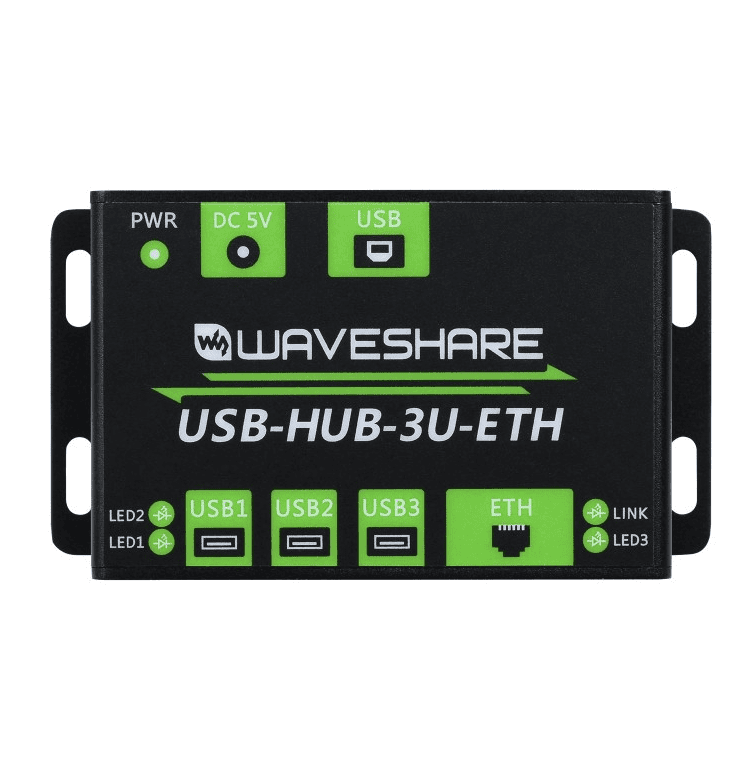

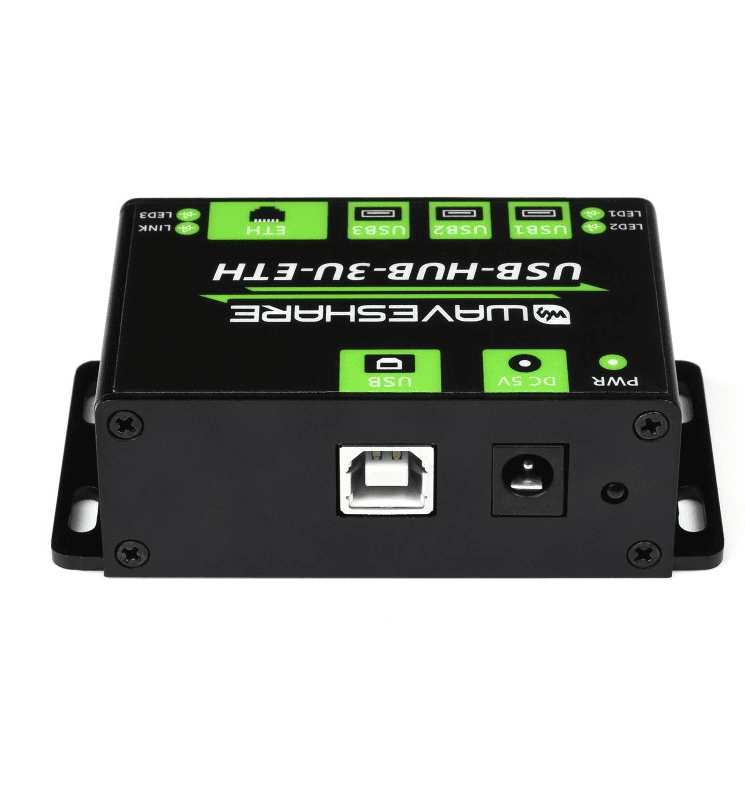

Interface Introduction
Outline Dimensions
- PACKAGE CONTENT
Weight: 0.24 kg
- USB-HUB-3U-ETH x1
- USB cable ~1.2m x1
- 5V 2A power adapter x1
