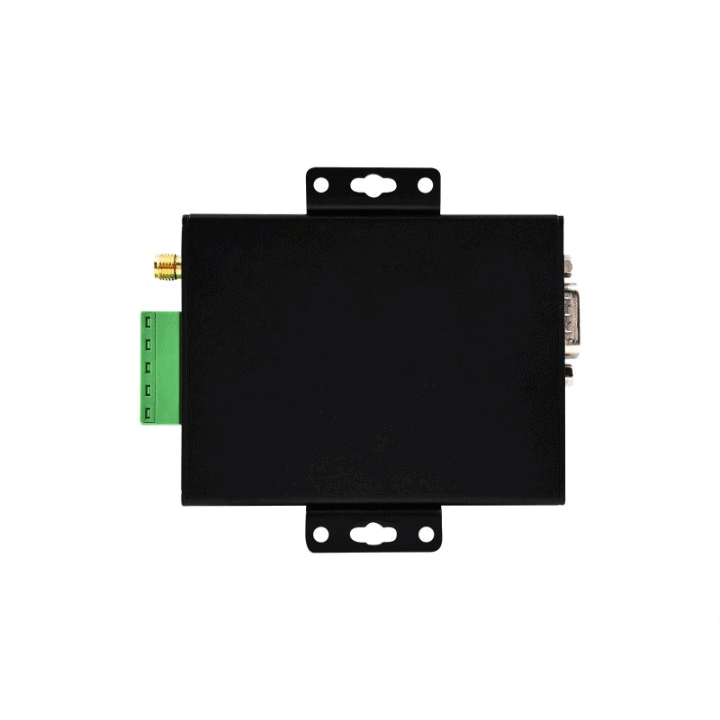

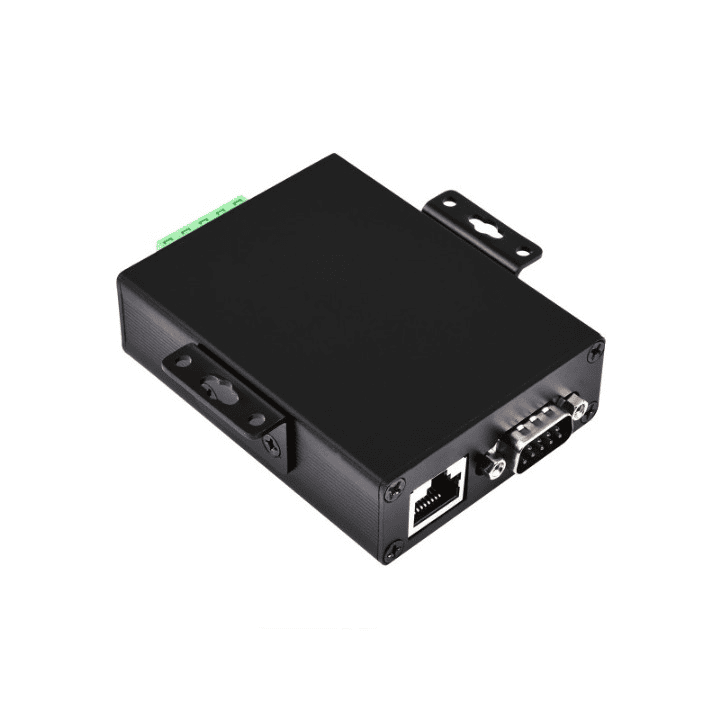

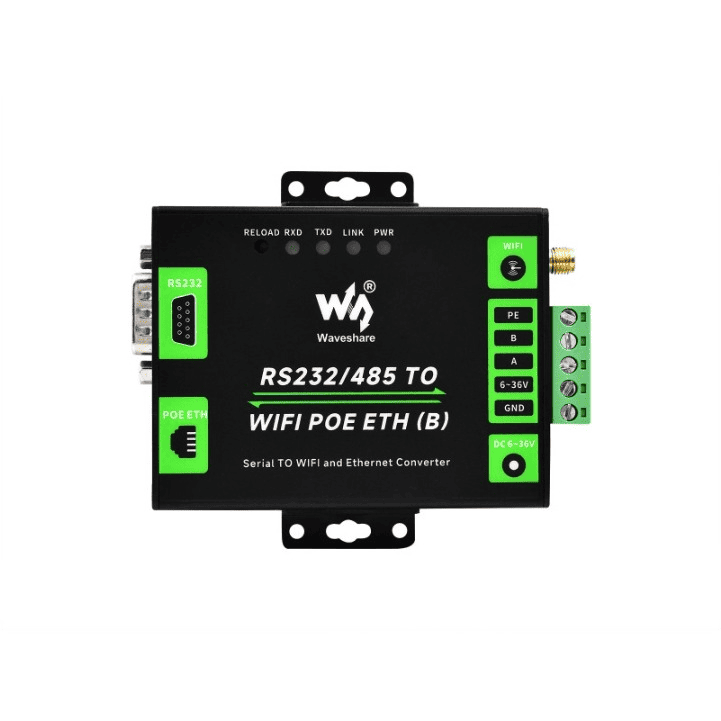

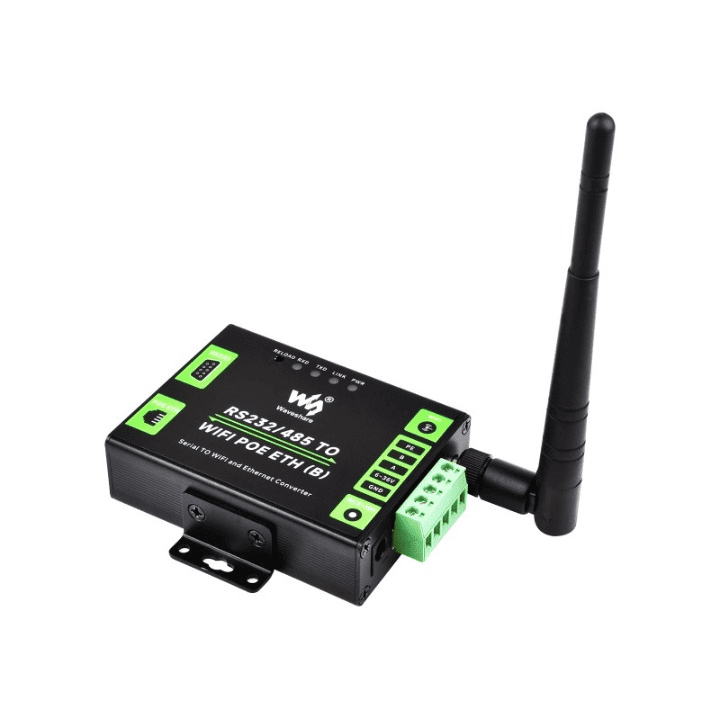

RS232/485 TO WIFI POE ETH (B)

Šifra: w25223

4.390,00 RSD

Cena sa PDV

Lista želja ?

Unesi količinu Samo 1 na stanju

Dodaj u korpu

Kategorija: industrijski konverteri
Težina po komadu: 0.218 Kg

Product Description
Embedded module
Industrial rail-mount module with plastic case
Industrial rail-mount/wall-mount module with metal case, PoE function optional

Power supply
DC 3.3V (±5%)
DC 5~36V
DC 6~36V
DC 6~36V / PoE port

Power supply method
Pin header
Screw terminal
DC 5.5 power port, screw terminal
DC 5.5 power port, screw terminal, or PoE port

Dimensions
(L × W × H)
25.00×40.00×8.00mm
109.66×28.00×64.71mm
84.00×64.00×24.00mm

COMMUNICATION

Ethernet
10 / 100M auto-negotiation (Connection via pin header)
10 / 100M auto-negotiation RJ45 connector

WIFI
802.11b/g
compliant

Serial port
UART
RS485 (ESD/EFT/surge protection)
RS232 (ESD/EFT)
RS485 (ESD/EFT/surge protection)

WIRELESS SPECIFICATION

Frequency Band
2.412 ~ 2.484 GHz

Wireless network
Station / AP / AP+Station Mode

Security mechanism
WPA-PSK / WPA2-PSK

Encryption type
TKIP / AES

Transmitting power
802.11b: +19dBm (Max.@11Mbps)
802.11g: +18dBm (Max.@54Mbps)
802.11n: +17dBm (Max.@HT20, MCS7); +17dBm (Max.@HT40, MCS7)

Receiving sensitivity
802.11b: -89dBm (@11Mbps)
802.11g: -81dBm (@54Mbps)
802.11n: -73dBm (@HT20, MCS7); -71dBm (@HT40, MCS7)

SERIAL SPECIFICATION

Baudrate
300 ~ 460800 bps

Parity bit
none, odd, even, mark, space

Data bit
5 ~ 9 bits

Flow control
RTS/CTS
N/A

SOFTWARE

Protocol
TCP / UDP / ARP / ICMP / DHCP / DNS / HTTP / MQTT

Configuration
host, web browser, serial AT command

Communication method
TCP/IP direct communication, VCOM

Operating mode
Transparent transmission, serial command, HTTPD Client, Modbus TCP to Modbus RTU

ENVIRONMENT REQUIREMENT

Operating temperature
-40℃ ~ 85℃

Humidity range
5% ~ 95% relative humidity

Primary Function

Support RS232/485 To WIFI And Ethernet, Ethernet To WIFI, Etc.

Two Different Interfaces

Onboard RS232 / 485 Interfaces, Suitable For More Application Scenarios

Ethernet Port And WiFi To RS232 / 485

The Ethernet Port And WiFi Can Send Data To The Two Serial Ports At The Same Time

RS232 / 485 To Ethernet Port And WiFi

Only One Of The RS232 And RS485 Can Send Data To The Ethernet Port And WiFi At The Same Time

Multi Power Supply Methods

Support PoE Ethernet Port Power Supply*, Suitable For IEEE 802.3af PoE Standard
Support Screw Terminal And DC 5.5 Power Port For Power Supply, DC 6~36V
Wide Voltage Range Input

* This function is only available on the PoE version

Industrial Grade Serial Server

Industrial Aluminum Alloy Case, Wall-Mount And Rail-Mount Support
Small In Size, Easy To Install, And Cost-Effective

Function Block Diagram

Support Transparent Transmission Mode

Support TCP Server, TCP Client, UDP Server, UDP Client

Devices can subscribe to other MQTT client messages, and can publish topic information to the server. Supports subscription of 6 messages and publication of 6 topics, wider range of use and more applicable scenarios. Users can view device-related information through terminal devices or cloud platforms.

After the user has set the HTTP header through AT commands or web page, the module can send data to the HTTP server, or obtain data from the HTTP server

Users send data to servers according to the protocol and can send data to different servers without restarting

Support Modbus TCP And Modbus RTU Interconversion Mode

Support Multi Wireless Networking Methods

Support AP mode, STA mode, and AP+STA mode

Support Multi Wired Networking Methods

Support APLAN, APWAN, Router, and Bridge mode

Features

Multi Configuration Methods

Supports Muliti Configuration Methods Such As Hosts, Web Browser And Serial Port Configuration

AT Command Mode

The User Can Query The Current Status Of The Module Or Set Related Parameters By Sending AT Commands

Socket Distribution Protocol

In The Transparent Transmission Mode, The Serial Device Can Send Data To The Specified Socket Link; The Network Data Of Each Socket Is Sent To The Serial Device Through The Serial Port
