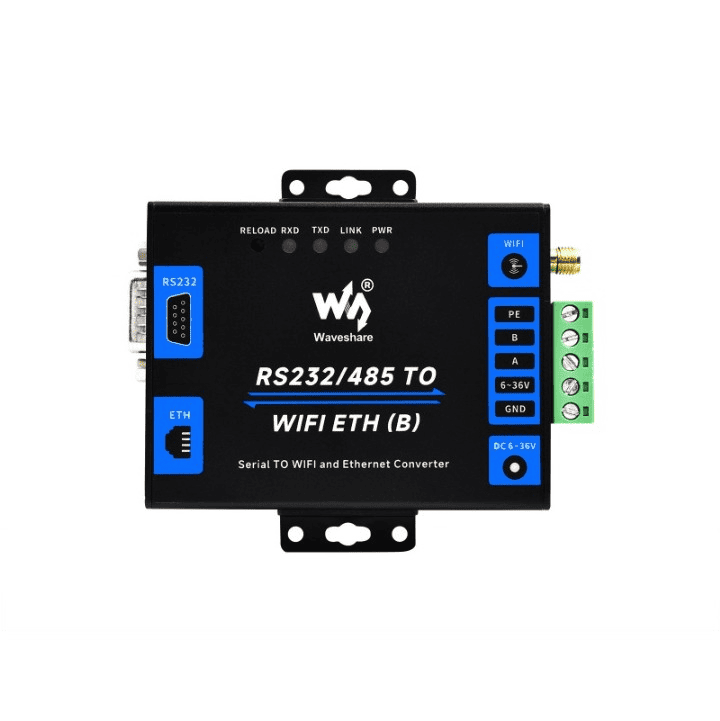

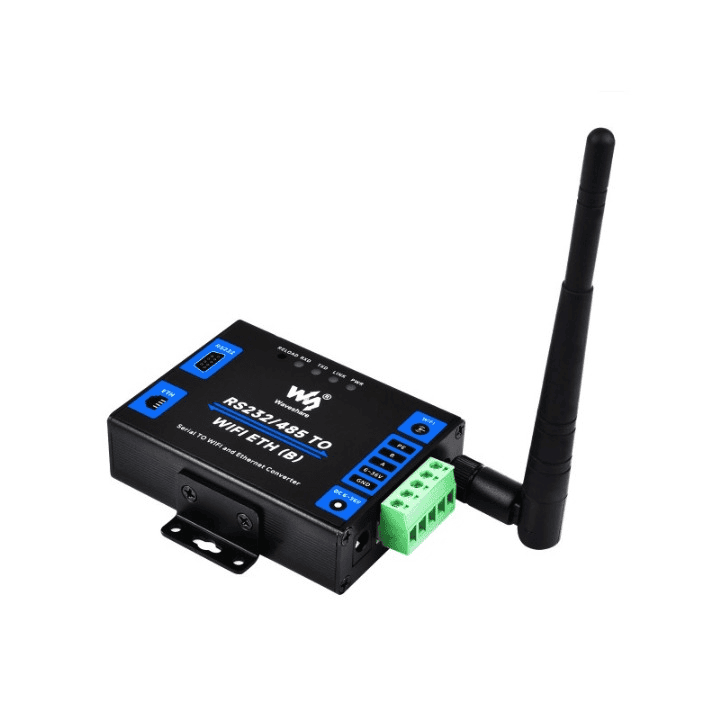

Support RS232/485 To WIFI And Ethernet, Ethernet To WIFI, Etc.
Onboard RS232 / 485 Interfaces, Suitable For More Application Scenarios
Ethernet Port And WiFi To RS232 / 485
The Ethernet Port And WiFi Can Send Data To The Two Serial Ports At The Same Time
RS232 / 485 To Ethernet Port And WiFi Only One Of The RS232 And RS485 Can Send Data To The Ethernet Port And WiFi At The Same Time
Support PoE Ethernet Port Power Supply*, Suitable For IEEE 802.3af PoE Standard
Support Screw Terminal And DC 5.5 Power Port For Power Supply, DC 6~36V
Wide Voltage Range Input
* This function is only available on the PoE version

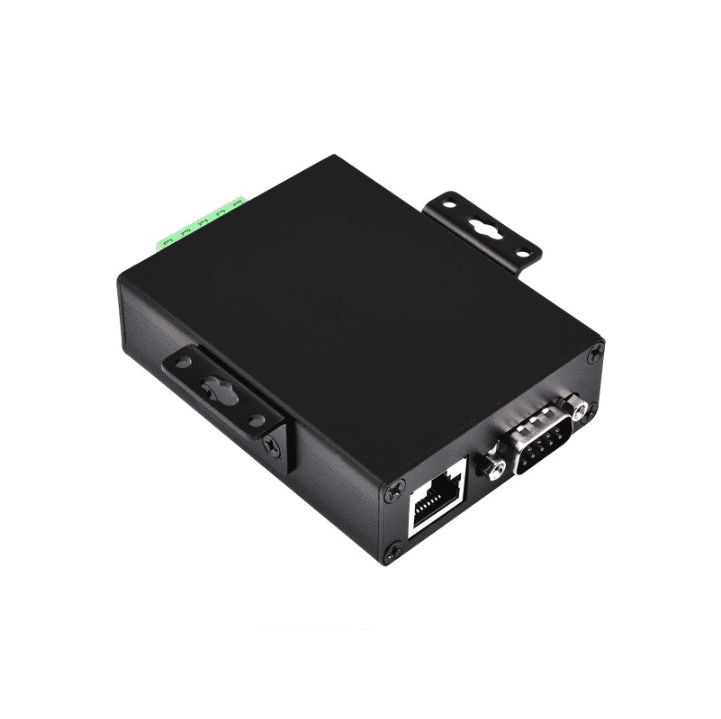

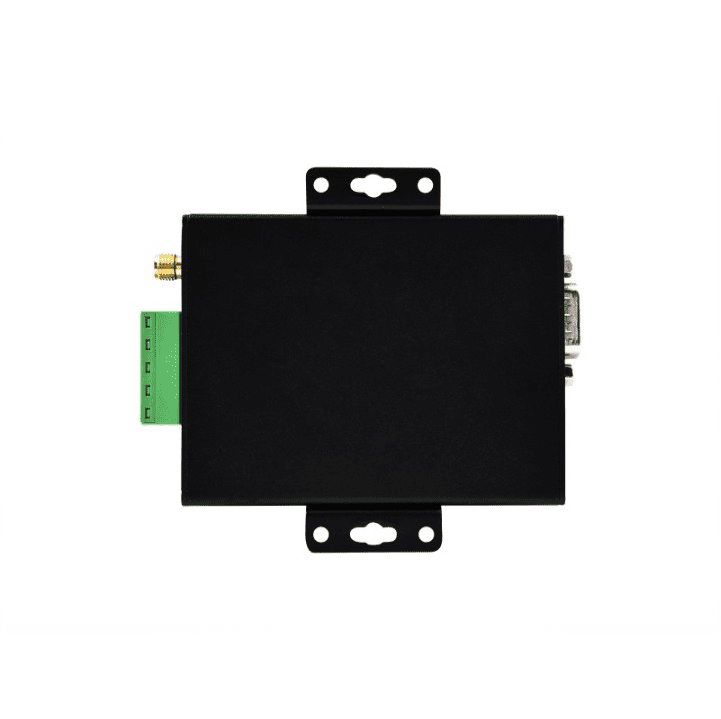

Industrial Aluminum Alloy Case, Wall-Mount And Rail-Mount Support
Small In Size, Easy To Install, And Cost-Effective
Support TCP Server, TCP Client, UDP Server, UDP Client
Devices can subscribe to other MQTT client messages, and can publish topic information to the server. Supports subscription of 6 messages and publication of 6 topics, wider range of use and more applicable scenarios. Users can view device-related information through terminal devices or cloud platforms.
After the user has set the HTTP header through AT commands or web page, the module can send data to the HTTP server, or obtain data from the HTTP server
Users send data to servers according to the protocol and can send data to different servers without restarting
Support Modbus TCP And Modbus RTU Interconversion Mode
Support AP mode, STA mode, and AP+STA mode
Support APLAN, APWAN, Router, and Bridge mode
Multi Configuration Methods
Supports Muliti Configuration Methods Such As Hosts, Web Browser And Serial Port Configuration
AT Command Mode
The User Can Query The Current Status Of The Module Or Set Related Parameters By Sending AT Commands
Socket Distribution Protocol
In The Transparent Transmission Mode, The Serial Device Can Send Data To The Specified Socket Link; The Network Data Of Each Socket Is Sent To The Serial Device Through The Serial Port
Hardware Protection
Power Supply Anti-Reverse, Communication Interface ESD And Surge Protection, EFT Electrical Fast Transient/Burst Protection
Customized Registration Packets, Heartbeat Packets
The Registration Package Is Used To Identify The Device Information To The Server, So That The Server Can Identify The Device
* for reference only, please refer to the Package Content for the detailed part list
