www.waveshare.com/wiki/Modbus_RTU_Relay Industrial Modbus RTU 8-ch Relay Module with RS485 Interface, Multi Isolation Protection Circuits
RS485 8-ch Relay Module Modbus RTU Protocol, Multi Isolation Protection Circuits, Safe & Stable & Reliable
Features At A Glance This is an industrial 8-ch relay module controlled via RS485 bus, utilizing Modbus RTU protocol. It features embedded protection circuits such as power isolation, magnetical isolation, and TVS diode, etc. It also comes with an ABS enclosure. The Modbus RTU Relay is very easy to use. Due to its fast communication, stability, reliability, and safety, it is an ideal choice for industrial control equipments and/or applications with high communication requirement.
- Configurable device address (1~255), multi devices can be cascaded on RS485 bus
- Features flash-on, flash-off function, by passing argument to the command, it is possible to turn on the relay for a while and then close it automatically
- Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
- Onboard unibody magnetical isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
- Onboard resettable fuse and TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, provides over-current/over-voltage proof, lightningproof & anti-electrostatic
- Onboard Optocoupler isolation, prevent the relay from being interfered by high-voltage circuit
- Reverse-proof circuit, prevent the circuit from being damaged accidentally by incorrect connection
- High quality relay, contact rating: ≤10A 250VAC/30VDC
- Rail-mounted ABS plastic enclosure, easy to install, safe to use
- 3 LEDs for indicating the MCU status and signal transceiving status
------------------
Specifications ------------------
PRODUCT |
Modbus RTU Relay |
Modbus RTU Relay (B) |
Power supply |
5V (ovaj oglas)
|
7~36V |
Communication interface |
RS485 |
Baudrate |
4800, 9600, 19200, 38400, 57600, 115200, 128000, 256000 |
Default communication format |
9600, N, 8, 1 |
Relay channels |
8 |
Contact form |
1NO 1NC |
contact rating |
≤10A 250VAC/30VDC |
Communication protocol |
Standard Modbus RTU protocol |
RS485 address |
1~255 |
LED indicators |
STA: MCU indicator, keeps flashing when the MCU normally working
TXD: TX indicator, lights up when sending data
RXD: RX indicator, lights up when receiving data |
Hardware Analysis Multiple protections for safer and more reliable use

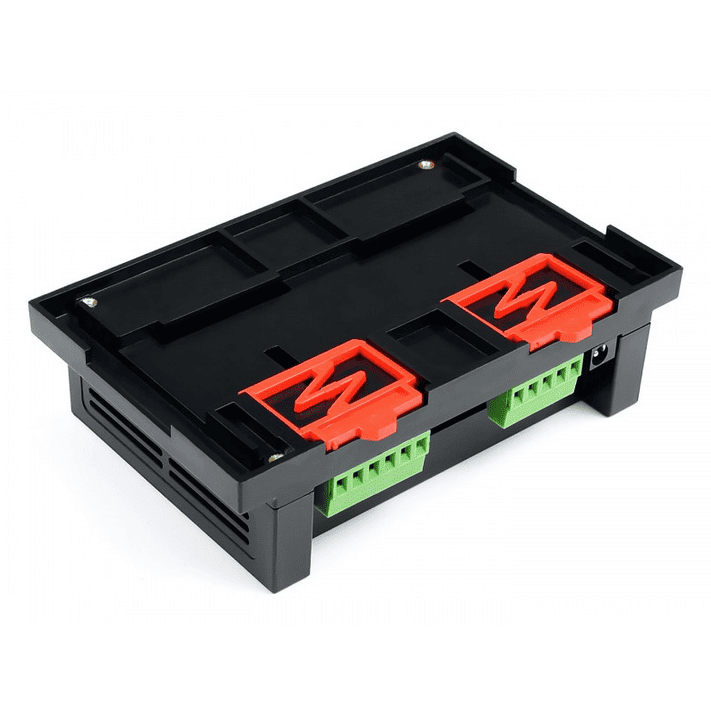

Enclosure Design Rail-mounted ABS plastic enclosure, easy to install, safe to use
RS485 Communication Configurable device address (1~255), multi devices can be cascaded on RS485 bus
In case of many devices are cascaded, or communication distance is quite long, it is necessary to use RS485 repeaters
for reference only, the USB TO RS232/485/TTL converter is Not included
Relay connection Contact rating of the onboard relay up to 10A 250VAC/30VDC
Directly controlling 220VAC home appliances, or devices below 30VDC
Applications

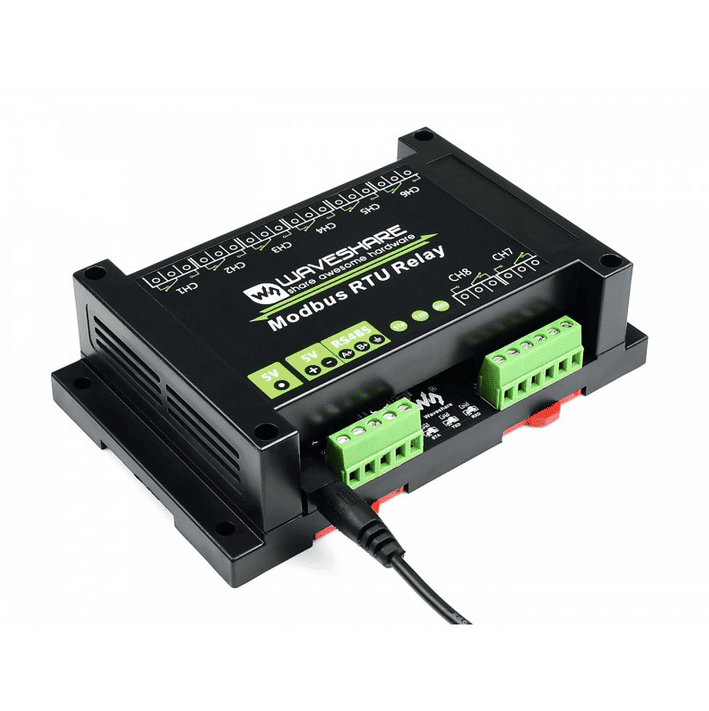

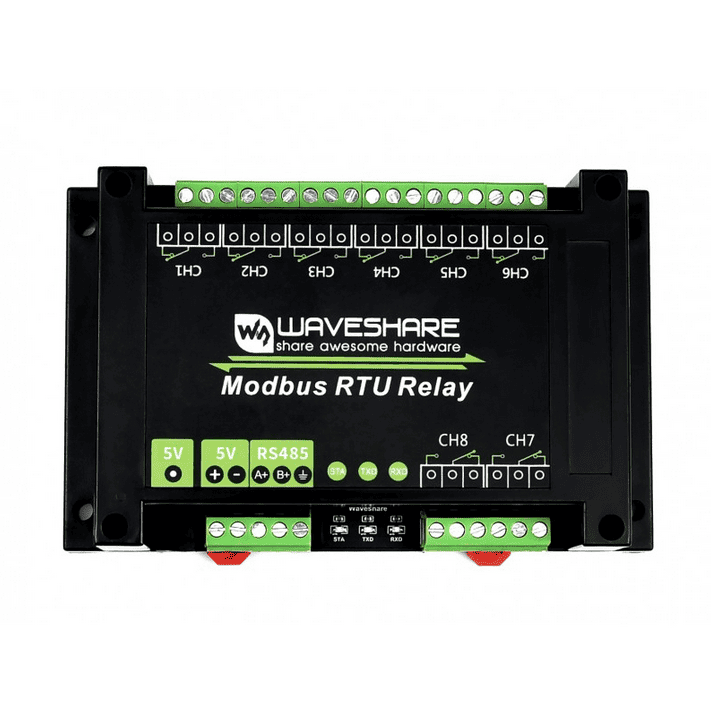

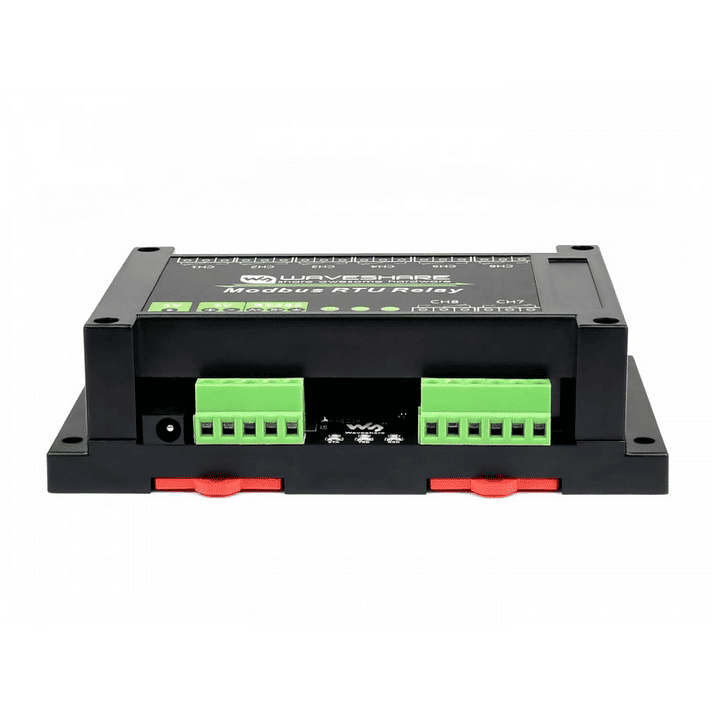

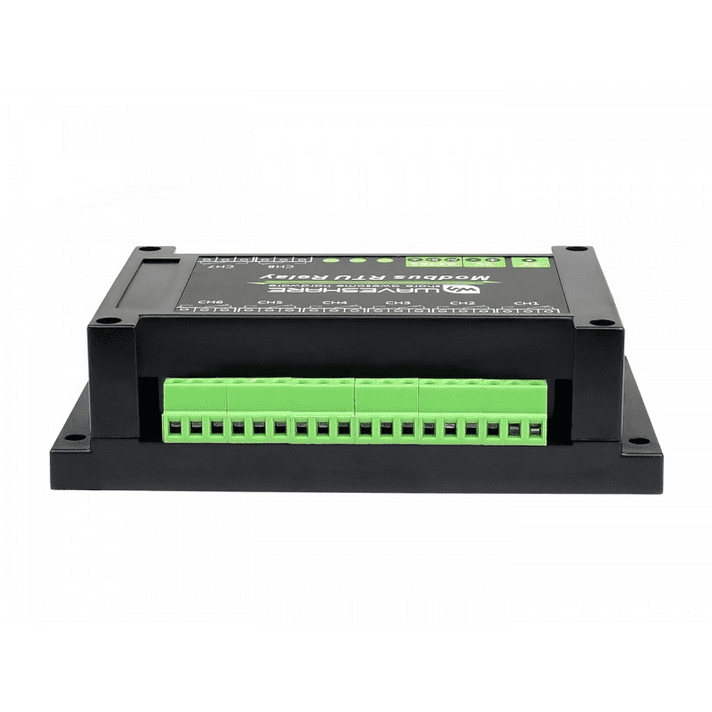

Product show
Outline dimensions
Package Content Weight: 0.344 kg
It is recommended to purchase USB TO RS232/485/TTL or USB TO RS485 at the same time for easy testing.
- Modbus RTU Relay x1
- Power adapter US plug 5V/2A 5.5/2.1 x1
- Power adapter EU head x1
