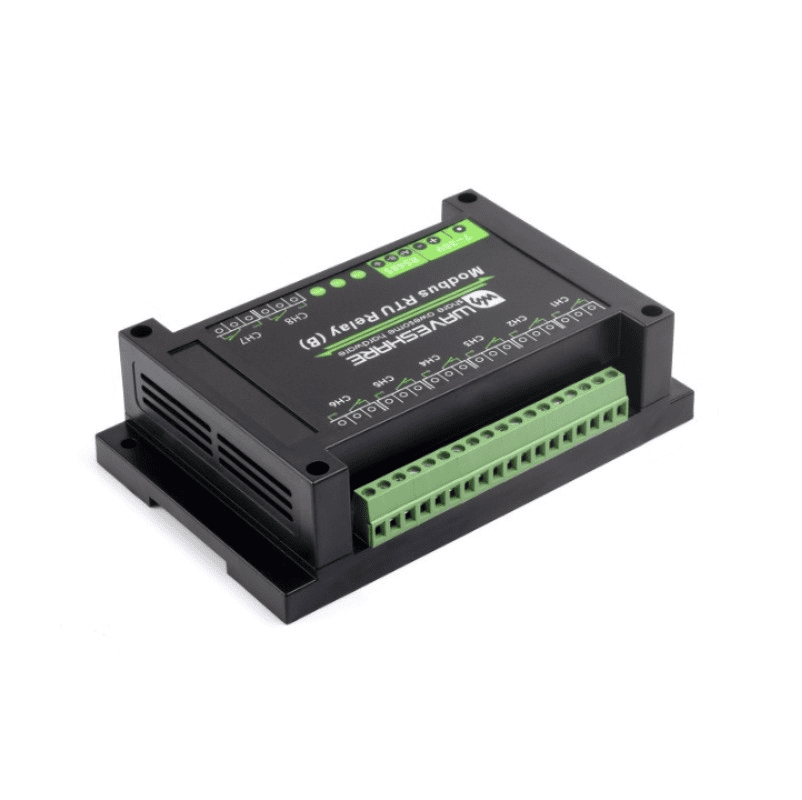

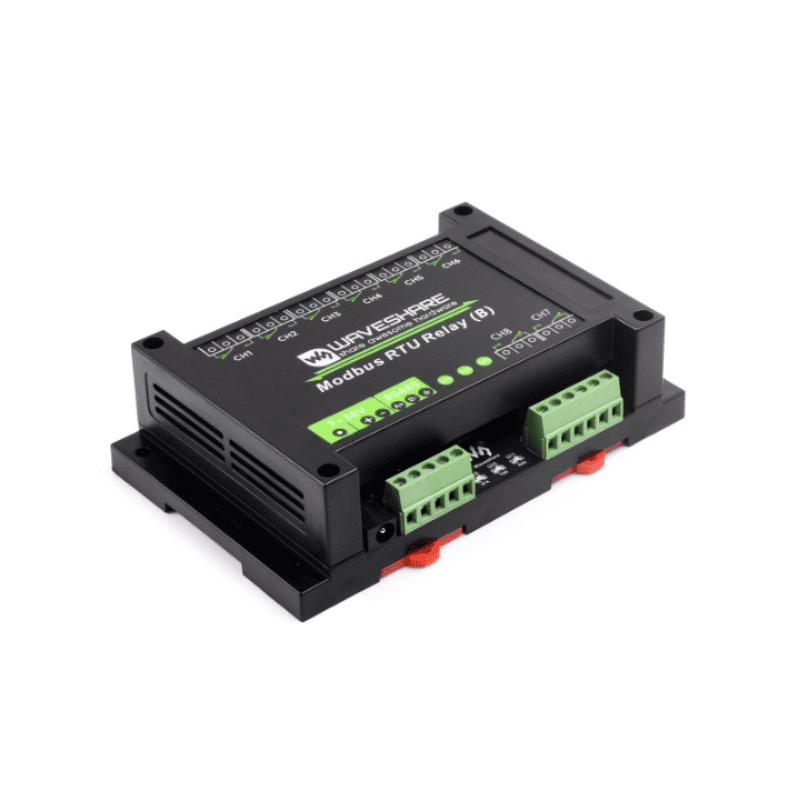

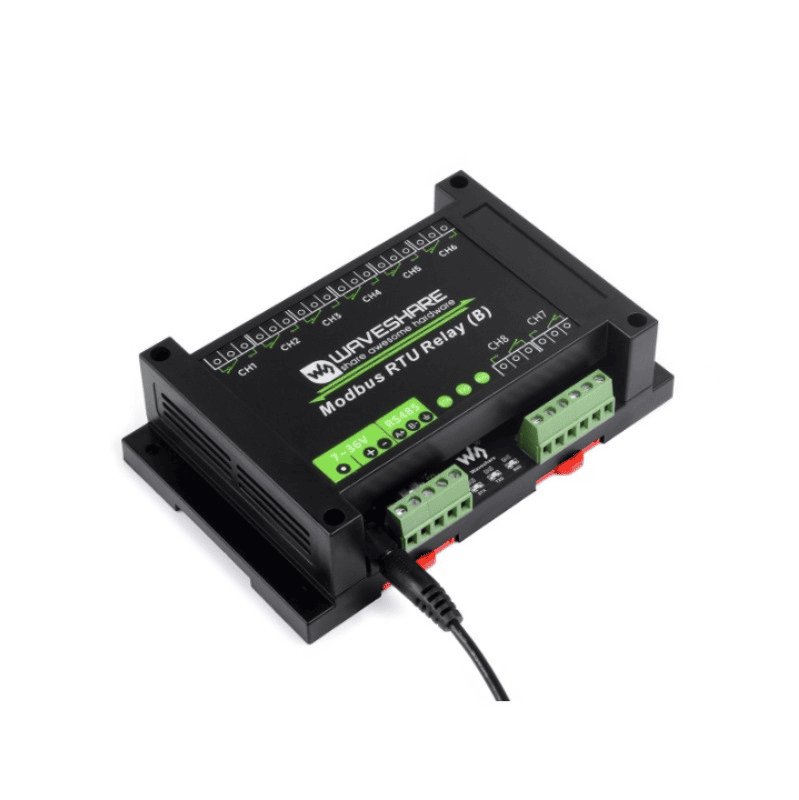

| PRODUCT | Modbus RTU Relay (B) | |
|---|---|---|
| Power supply | 7~36V | |
| Communication interface | RS485 | |
| Baudrate | 4800, 9600, 19200, 38400, 57600, 115200, 128000, 256000 | |
| Default communication format | 9600, N, 8, 1 | |
| Relay channels | 8 | |
| Contact form | 1NO 1NC | |
| contact rating | ≤10A 250VAC/30VDC | |
| Communication protocol | Standard Modbus RTU protocol | |
| RS485 address | 1~255 | |
| LED indicators | STA: MCU indicator, keeps flashing when the MCU normally working TXD: TX indicator, lights up when sending data RXD: RX indicator, lights up when receiving data | |
Multiple Protections For Safer And More Reliable Use

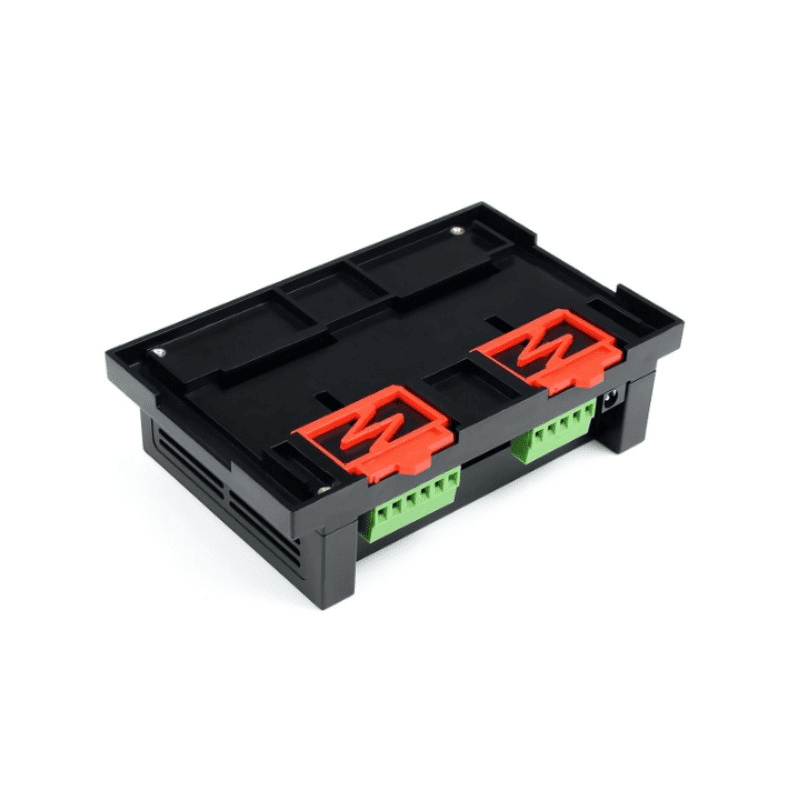

Rail-Mounted ABS Plastic Enclosure, Easy To Install, Safe To Use
Configurable Device Address (1~255), Multi Devices Can Be Cascaded On RS485 Bus
In Case Of Many Devices Are Cascaded, Or Communication Distance Is Quite Long, It Is Necessary To Use RS485 Repeaters
for reference only, the USB TO RS232/485/TTL converter is Not included
Contact Rating Of The Onboard Relay Up To 10A 250VAC/30VDC
Directly Controlling 220VAC Home Appliances, Or Devices Below 30VDC
