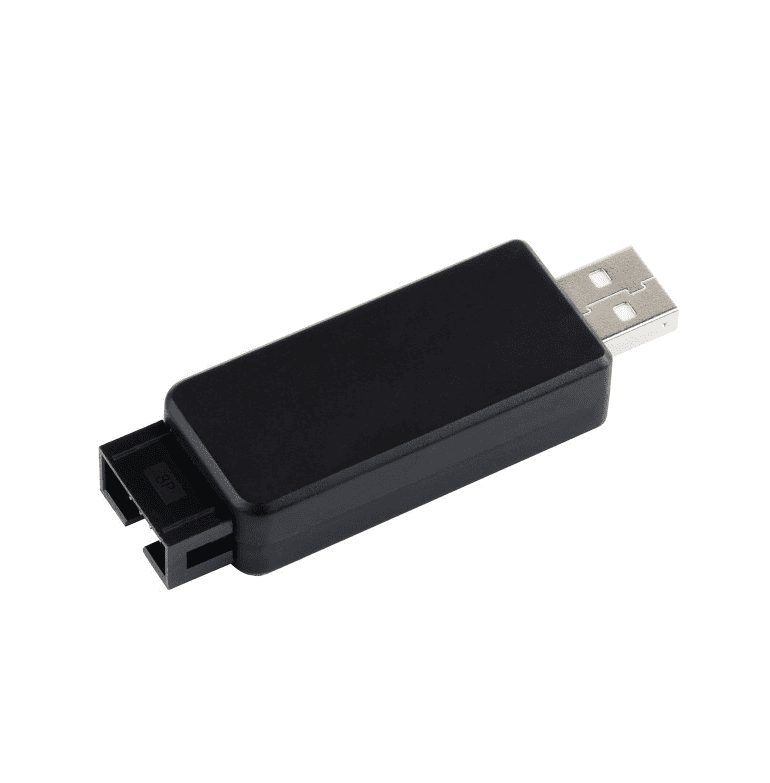

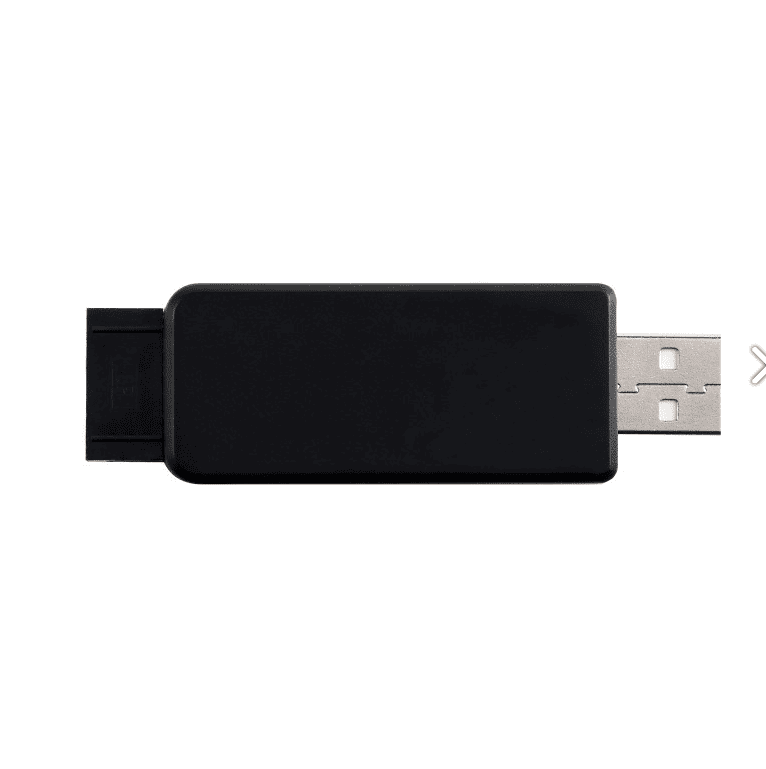

USB TO TTL (B)**

Šifra: w21550

590,00 RSD

Cena sa PDV

Trenutno nedostupno za online naručivanje

Obavesti me kada proizvod bude dostupan!

Kategorija: industrijski konverteri
Težina po komadu: 0.031 Kg

SKU: 21550
Part Number: USB TO TTL (B)
Brand: Waveshare

Korisne informacije: USB_TO_TTL_(B)
Industrial USB TO TTL Converter, Original CH343G Onboard, Multi Protection Circuits, Multi Systems Support

USB TO TTL (B) CONVERTER

Original CH343G | Stable Transmission | Multi Devices | Multi Systems

Industrial Grade Quality

Features At A Glance

Onboard resettable fuse and TVS diode, providing protections including over-current, over-voltage, backward-proof, and ESD protection, improving shock resistance, safe and stable communications

Onboard IO protection circuit for surge suppress

Onboard TTL serial port 3.3V and 5V voltage level switch, allows selecting TTL level

3x LED indicators for easily checking power connection and signal TX/RX statuses

Quality plastic case with dull-polish surface, well-crafted

IDC connector with fool-proof design

Specifications

PRODUCT CATEGORY	Industrial USB TO TTL converter	HOST PORT	USB
DATA RATE	50bps ~ 6Mbps	DEVICE PORT	UART
USB PORT	Connector: USB-A Protection: resettable fuse, ESD protection
UART PORT	Connector: 8PIN fool-proof header Protection: IO protection diode
INDICATOR	PWR: power indicator, turns red when USB voltage is detected TXD: TX indicator, turns red while the USB port is sending data RXD: RX indicator, turns red while the device port is receiving data

Multiple Protection, Safe And Stable

Onboard Resettable Fuse And TVS Diode, Providing Protections Including Over-Current, Over-Voltage, Backward-Proof, And ESD Protection, Improving Shock Resistance, Safe And Stable Communications

Multiple Systems Support

Compatible With Popular Systems Like Win7/8/8.1/10/11, Mac, Linux, Android...

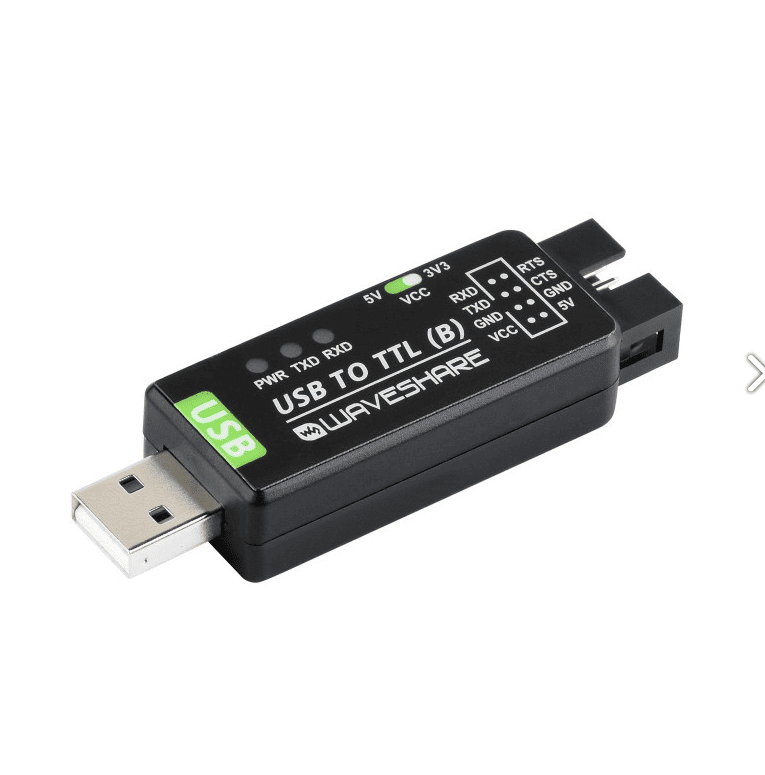

Three LED Indicators

Easily Checking The Operating Status, Convenient For Programming / Debugging

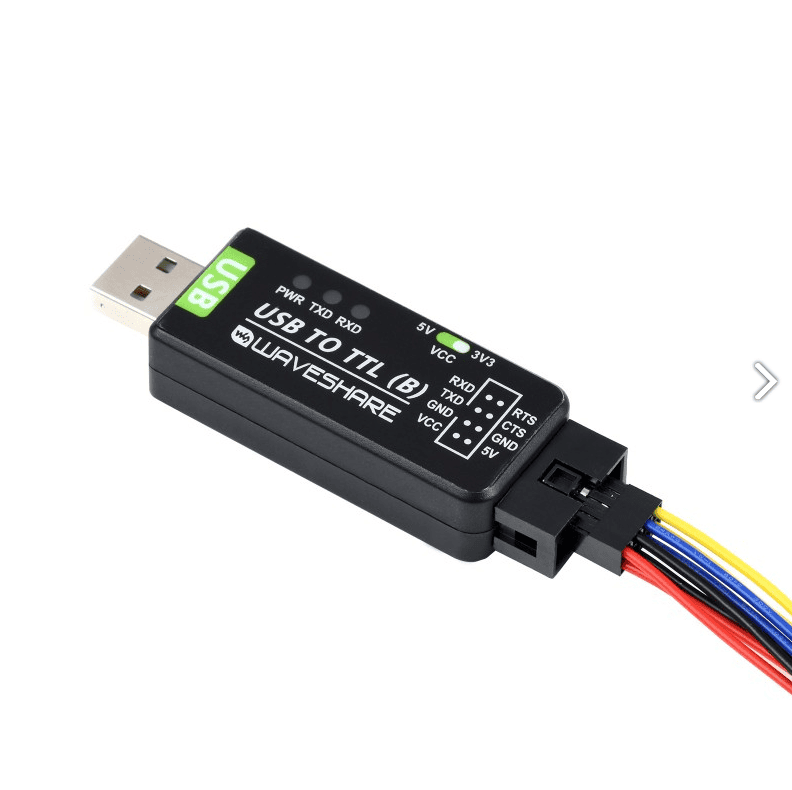

USB Signal & Pinouts Definition

5V	5V output
VCC	3.3V or 5V output, configured by switch
GND	Ground
TXD	Connecting to MCU.RX
RXD	Connecting to MCU.TX
RTS	Connecting to MCU.CTS
CTS	Connecting to MCU.RTS
