Extends 8-ch RS485 slave ports via 1-ch RS485 master port, with isolation and relay

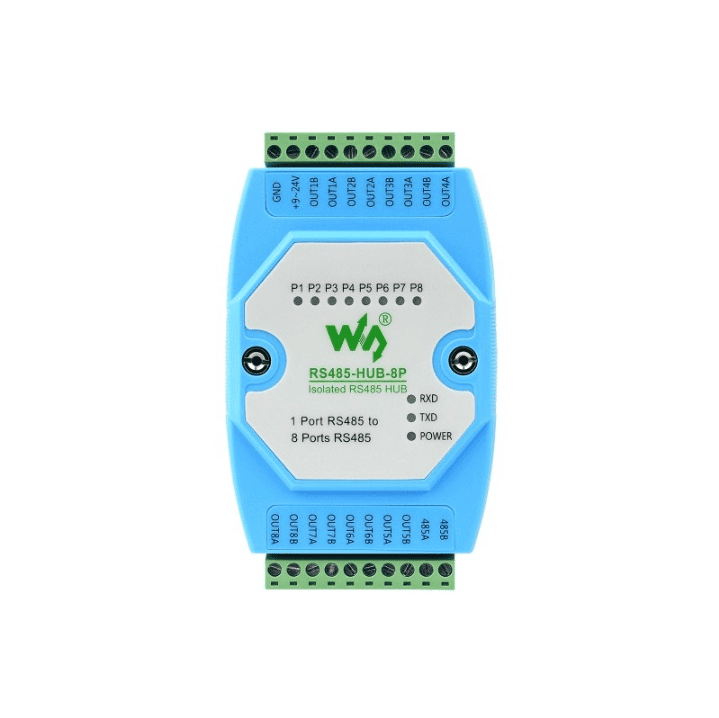

RS485-HUB-8P is an industrial grade isolated RS485 hub that can expand 8-ch RS485 slave ports through 1-ch RS485 master port, can realize relay, extension and isolation functions of RS485 network, with screw terminal for power input. Rail-mount case design, easy to install, and cost-effective. It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring...
| INTERFACE STANDARD | Compliant with RS485 standard |
|---|---|
| PHYSICAL INTERFACE | RS485 screw terminals |
| BAUD RATE | 300~460800bps (self-adaptive) |
| SUPPORTED NODES | Each RS485 port supports up to 32 nodes |
| COMMUNICATION DISTANCE | 1200m (9600bps), the higher rate the shorter distance |
| OPERATING MODE | RS485 two-wire (A, B), half-duplex transparent transmission |
| POWER SUPPLY | DC 9~24V |
| OPERATING TEMPERATURE | -45 ~ +85℃ |
| ENVIRONMENT HUMIDITY | <95%RH |
| TRANSMISSION MEDIUM | Normal parallel cables/twisted-pair cables |
Supports RS485 Network Relay, Extension And Isolation Functions
The Isolated RS485 Master Port Can Be Connected To The RS485 Host Device, And The Extended 8-Ch Isolated RS485 Port Can Be Connected To Various RS485 Slave Devices, Such As RS485 Sensors, Etc.
Generally the RS485 requires a hand-in-hand connection, if a star connection (master station as the center) is required, this RS485 hub can effectively isolate the connection interference between multiple RS485.
Built-in photoelectric isolation protection circuit, can effectively isolate RS485 master and slave devices to avoid the damage of ground potential difference between devices, anti-electrostatic, lightningproof & anti-surge, which is suitable for the industrial environment with high reliability and safety requirements.
Supports 300～460800bps Wide Baud Rate Communication Range (Self-Adaptive)

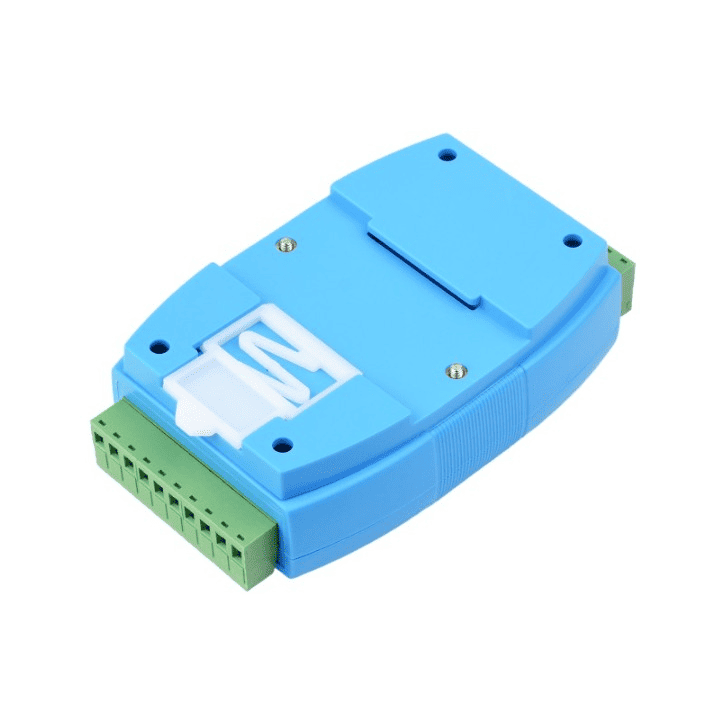

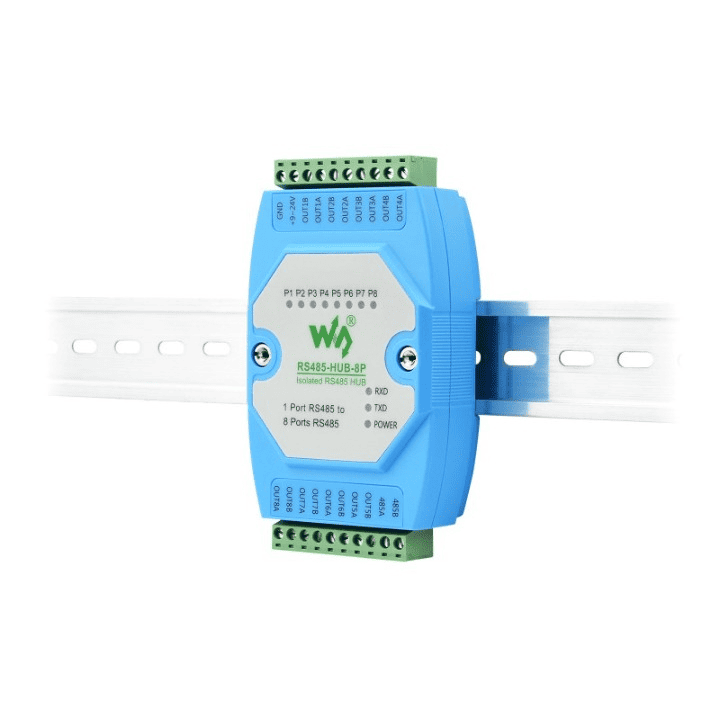

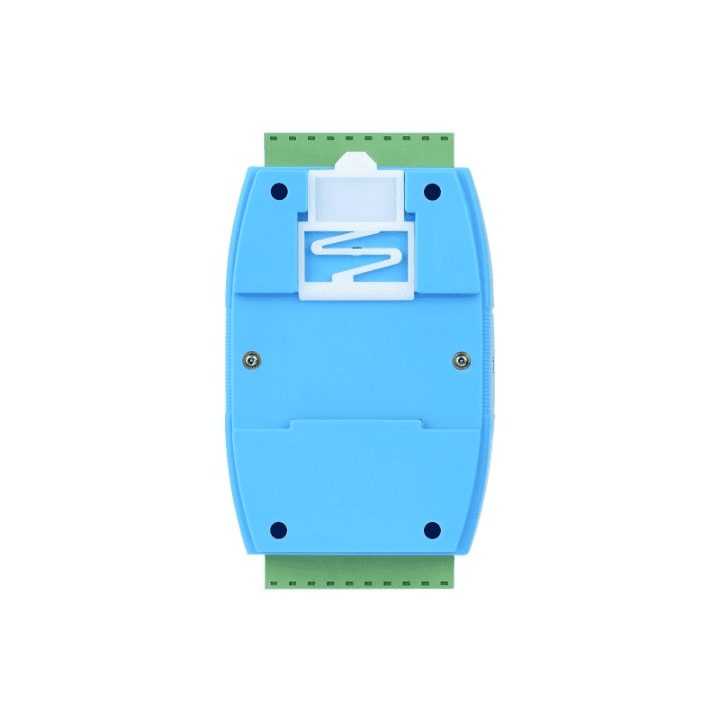

Supports 35mm Standard Guide Rail, With Rail-Mount Buckle, Easy To Install.
The power supply of this product is not included, please purchase the power supply separately according to your need.
