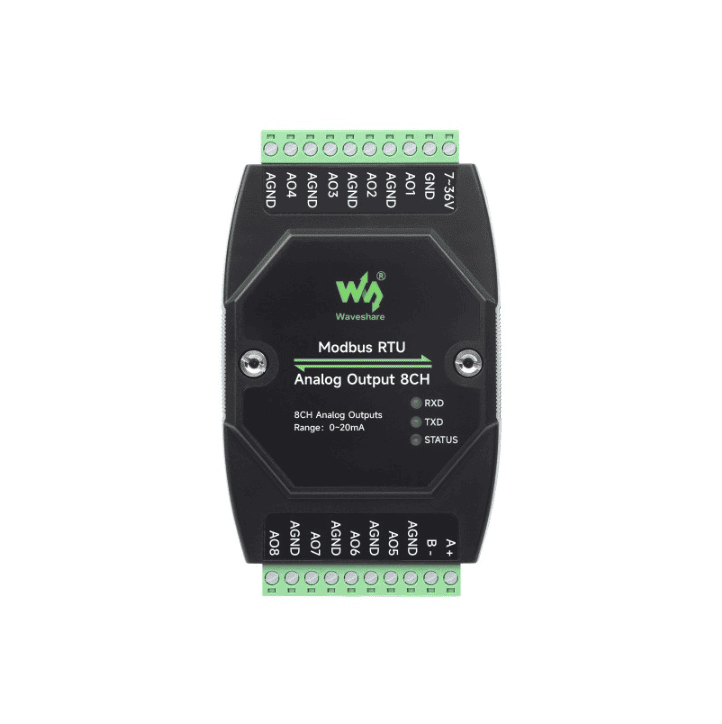

| MODEL | Modbus RTU Analog Output 8CH | |
|---|---|---|
| COMMUNICATION INTERFACE | RS485 | |
| BAUD RATE | 4800, 9600, 19200, 38400, 57600, 115200, 128000, 256000 | |
| DEFAULT COMMUNICATION FORMAT | 9600, N, 8, 1 | |
| MODBUS PROTOCOL | Standard Modbus RTU protocol | |
| POWER SUPPLY | DC 7~36V | |
| OUTPUT | 8-ch current output | |
| RESOLUTION | 12-bit, 1μA | |
| RANGE | 0~20mA | |
| OUTPUT ACCURACY | ±0.03mA | |
Supports Sending Modbus RTU Protocol Commands Via RS485
And Outputing Data To 0~20mA Sensor
Onboard power and signal dual isolation for RS485 communication, provides stable isolation voltage, features high reliability and strong anti-interference performance. Built-in TVS (transient voltage suppression tube) can effectively suppress the surge voltage and transient peak voltage in the circuit, lightningproof & ESD protection. Built-in resettable fuse and protection diode to ensure stable current and voltage output, provides over-current and over-voltage proof, improves shock-proof performance, suitable for industrial environments with high requirement.
Note: The internal component layout is slightly different between the two versions, please refer to the actual product 8-Ch Analog Output, 12-Bit DA Conversion, High-Precision
Supports Setting Device Address (1~255) For Multi-Device Cascading,
Supports Voltage Or Current Analog Output
Built-In Fuse And Anti-Reverse Protection, With Power And Signal Dual Isolation

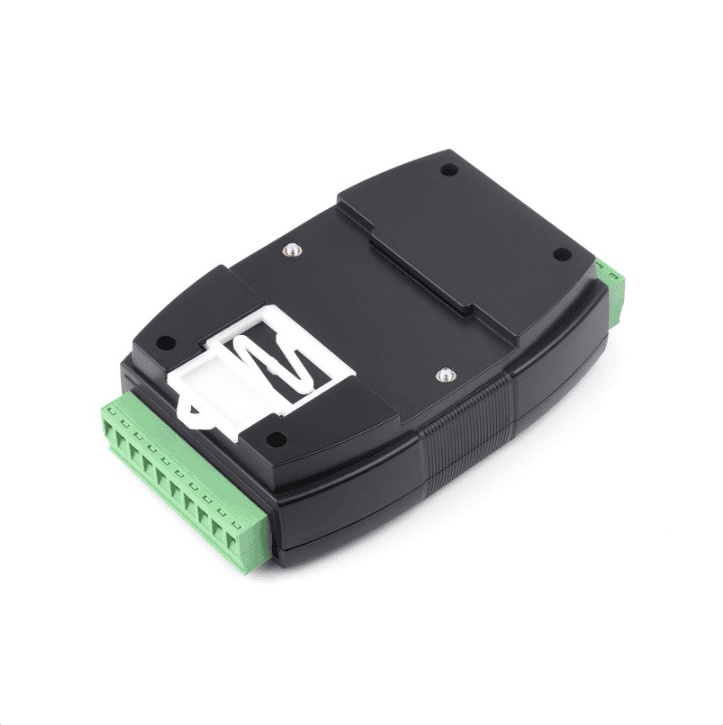

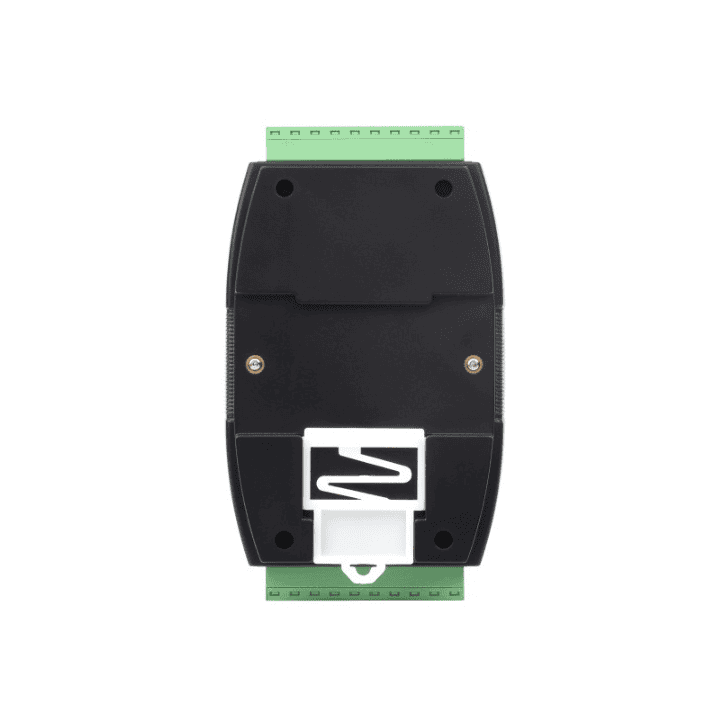

Supports 35mm Standard Guide Rail, With Rail-Mount Buckle, Easy To Install.
| Masa po jedinici mere: | 0.181 Kg / Kom |
| Kategorija: | industrijski konverteri |
| Brend: | Waveshare |
| Naziv: | Modbus RTU Analog Output 8CH |
| Šifra: | w26419 |
| Uvoznik: | MALINA 314 doo, Beograd |
| Telefon: | 061-640-2013 |
