SKU: 25821
Part Number: Modbus RTU Analog Input 8CH
Brand: Waveshare
Korisne informacije:
www.waveshare.com/wiki/Modbus_RTU_Analog_Input_8CH Industrial 8-Ch Analog Acquisition Module, 12-bit High-precision, Supports Current Acquisition, DC 7~36V Wide Voltage Power Supply, Modbus RTU Protocol
Industrial 8-Ch Analog Acquisition Module
12-bit High-precision
Supports Voltage and Current Acquisition
DC 7~36V Wide Voltage
Modbus RTU Protocol
Multiple Isolation Protection
Features At A Glance
Modbus RTU Analog Input 8CH is an industrial standard analog acquisition module, supports multiple ranges and 8-ch simultaneous acquisition. Adopts Modbus RTU protocol with built-in protection circuits such as power isolation, magnetical isolation, resettable fuse, and TVS.
- Configurable device address (1~255), multi devices can be cascaded on RS485 bus
- Onboard voltage regulator, supports 7~36V wide range power supply
- Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
- Onboard unibody magnetical isolation, allows signal isolation, high reliability, strong anti-interference
- Onboard resettable fuse and TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, provides over-current/over-voltage proof, lightningproof & anti-electrostatic
- Supports 12-bit high-precision acquisition with multiple range input modes, supports single-ended/differential input, supports voltage and current simultaneous acquisition
- Adopts high-precision resistors and zero-drift high-precision operational amplifier for more accurate data acquisition
- Built-in oversampling digital filtering algorithm, onboard watchdog, for stable output without crashing
- Rail-mount case design, support stacking combination, easy to install and safer to use
- 3x LEDs for indicating the MCU status and signal transceiving status
Version Options
Modbus RTU Analog Input 8CH Supports four ranges (configurable):
0~5V/1~5V
0~20mA (default) /4~20mA
Primary Function
Supports Sending Modbus RTU Protocol Commands Via RS485
To Acquire Data From 0~20mA/0~10V Sensor
Industrial Grade Isolated Protection
Onboard power and signal dual isolation for RS485 communication, provides stable isolation voltage, features high reliability and strong anti-interference performance. Built-in TVS (transient voltage suppression tube) can effectively suppress the surge voltage and transient peak voltage in the circuit, lightningproof & ESD protection. Built-in resettable fuse and protection diode to ensure stable current and voltage output, provides over-current and over-voltage proof, improves shock-proof performance, suitable for the industrial environments with high requirement.
Supports Current Acquisition Wider Measurement Range
8-Ch Analog Acquisition Interfaces, Voltage And Current Acquisition Is Switchable Via Jumper. Multiple Ranges Configurable Via Software

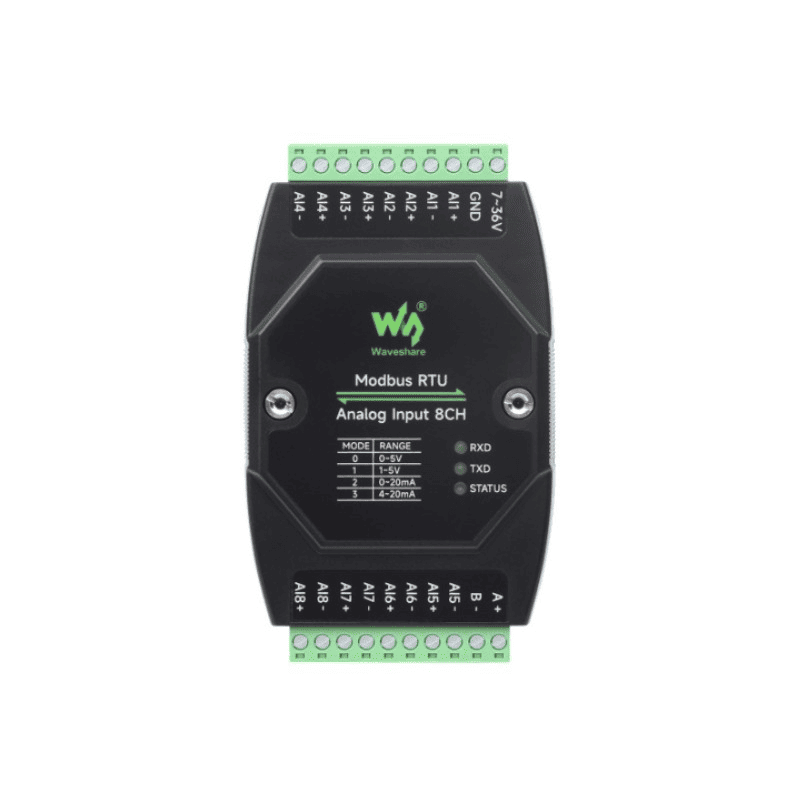

Interface Introduction
Connection Diagram
Supports Setting Device Address (1~255) For Multi-Device Cascading, Supports Single-Ended/Differential Input, Supports Voltage And Current Simultaneous Acquisition
Wide Voltage Power Supply, Isolated RS485 Interface
Built-In Fuse And Anti-Reverse Protection, With ESD Protection For Analog Input

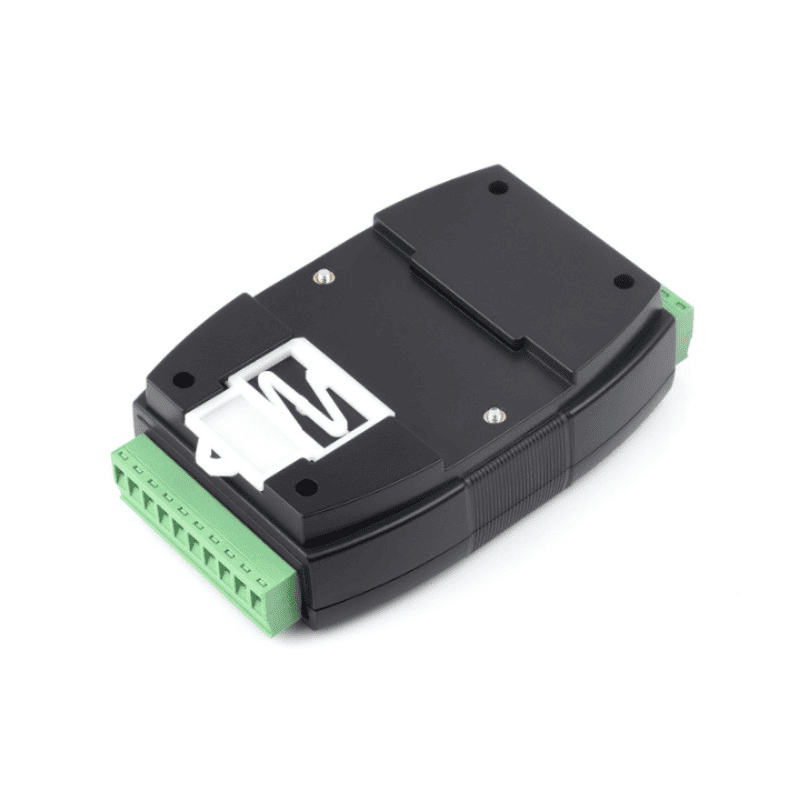

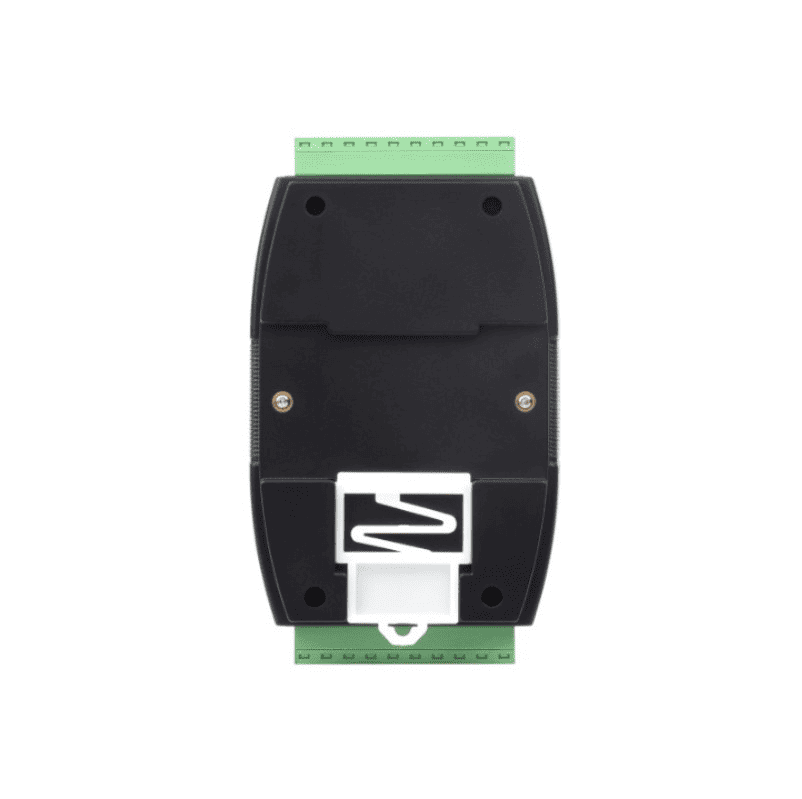

Rail-Mount Support
Supports 35mm Standard Guide Rail, With Rail-Mount Buckle, Easy To Install.
Supports Stacking Installation

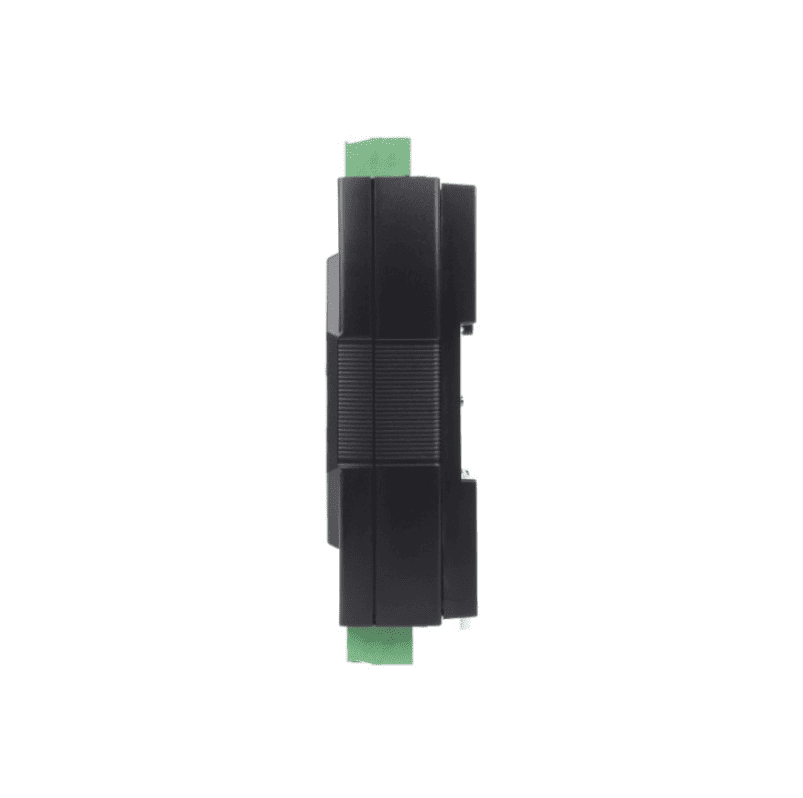

Product Show
Dimensions
- PACKAGE CONTENT
Weight: 0.141 kg
The power supply of this product is not included, it is recommended to purchase
12V power supply if you need it.
Modbus RTU Analog Input 8CH
- Modbus RTU Analog Input 8CH x1
- Power supply terminal adapter x1
