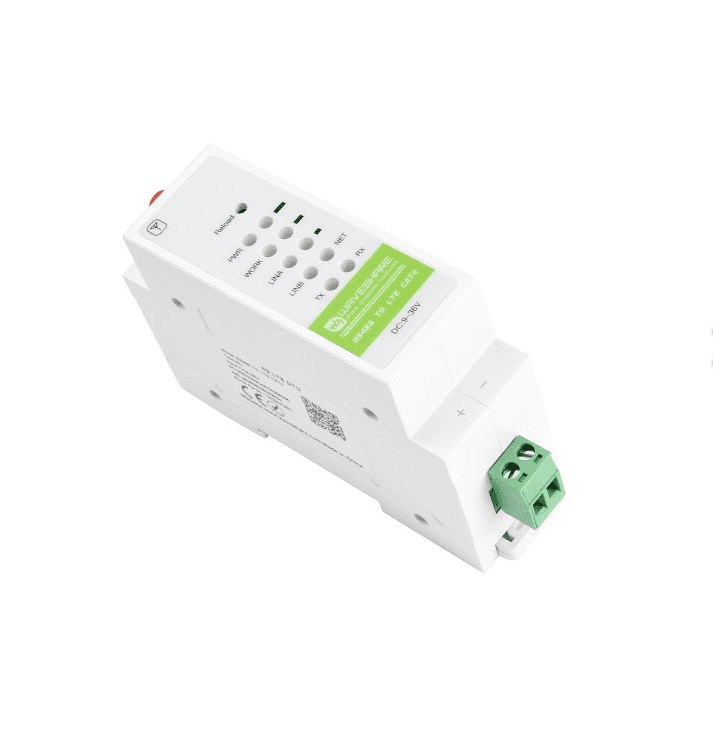

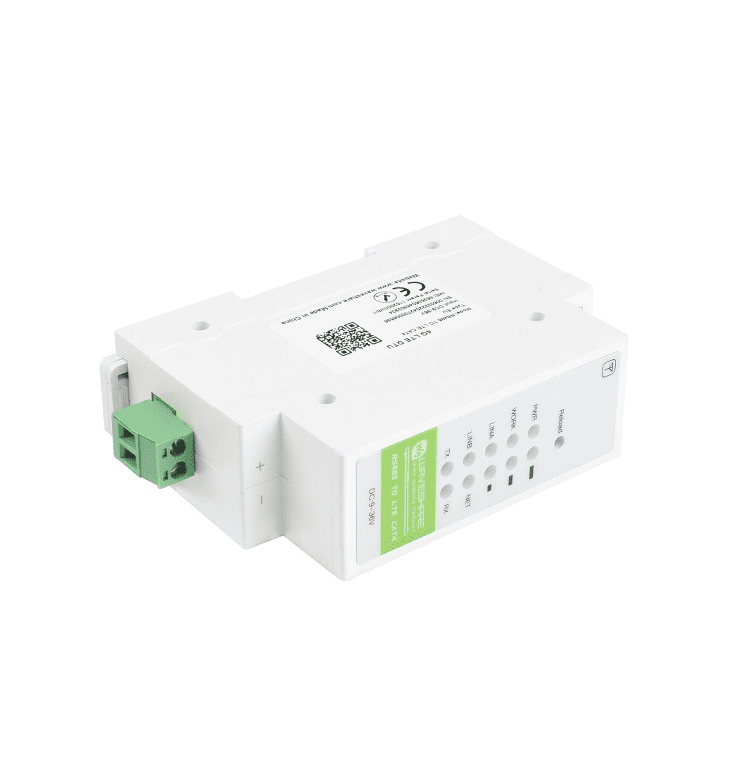

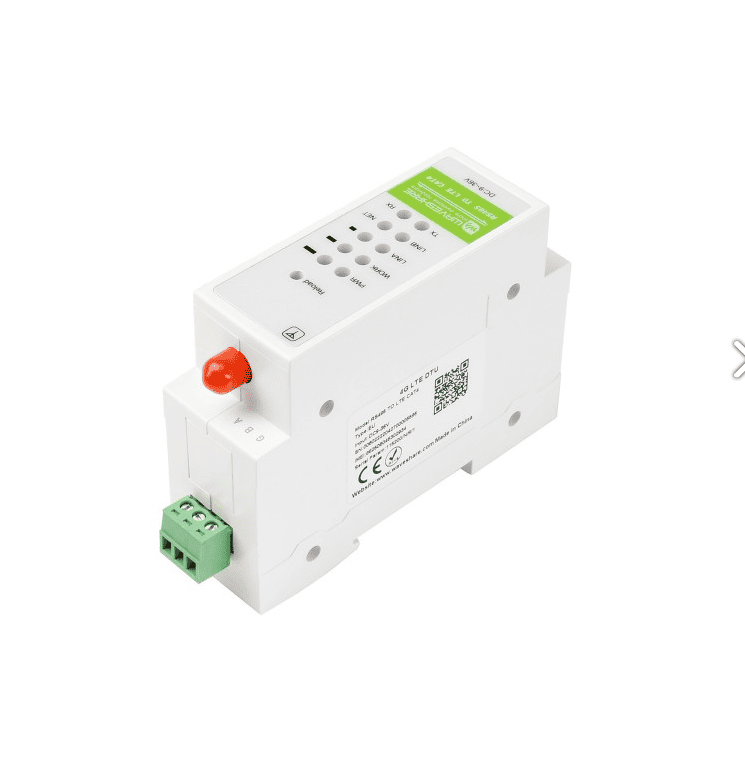

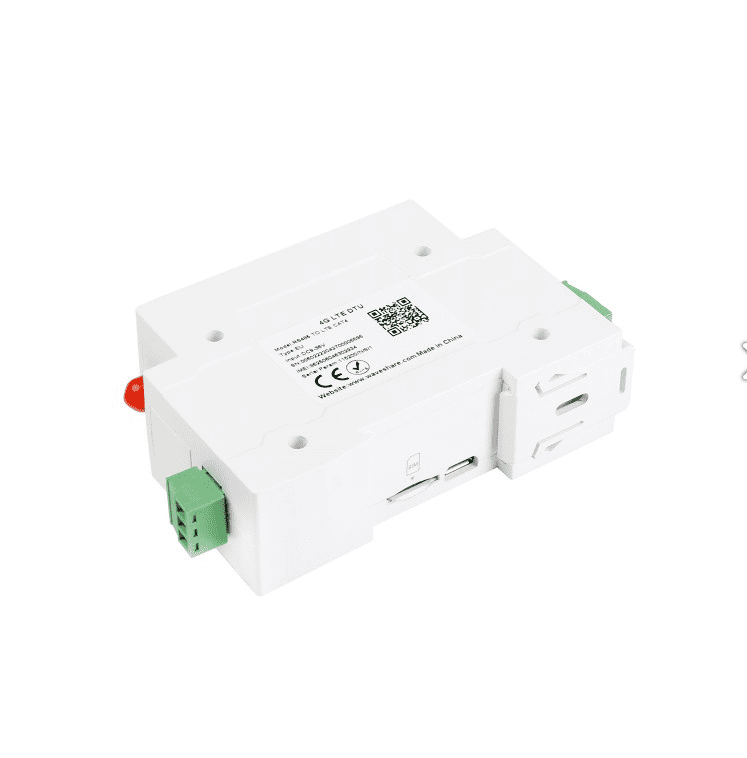

Industrial Rail-Mount 4G DTU
| Models | RS485 TO LTE CAT4 (EU) | |
| Applicable regions | EMEA, Korea, Thailand, India, Southeast Asia | |
| LTE Category | LTE Cat.4 | |
| Frequency Bands | LTE FDD | B1/B3/B7/B8/B20/B28A |
| LTE TDD | B38/B40/B41 | |
| WCDMA | B1/B8 | |
| GSM | B3/B8 | |
| Transmission Speed | LTE-FDD | 150Mbps(DL)/50Mbps(UL) |
| LTE-TDD | 130Mbps(DL)/30Mbps(UL) | |
| DC-HSDPA | 42Mbps (DL) | |
| HSUPA | 5.76Mbps (UL) | |
| WCDMA | 384Kbps(DL)/384Kbps(UL) | |
| GSM(EDGE) | 296Kbps (DL)/236.8Kbps (UL) | |
| GSM (GPRS) | 107Kbps (DL)/85.6Kbps (UL) | |
| Serial Parameters | Interface form | RS485(Terminal)*1 |
| Data Bits | 8 | |
| Stop Bits | 1,2 | |
| Parity Bits | NONE,ODD,EVEN | |
| Baud Rate | 2400~230400 | |
| Physical Interfaces | SIM/USIM card | 1.8V/3V |

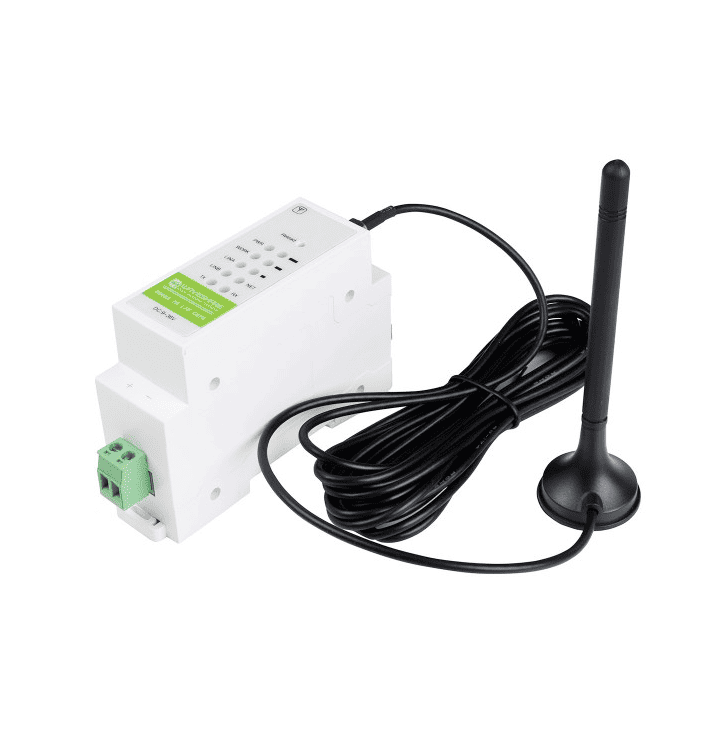

| Antenna | SMA Female | |
| USB | USB 2.0 | |
| Indicators | POWER,WORK,NET,LINK,RSSI | |
| Reload | Button | |
| Hardware Characteristics | Input Voltage | 9V~36V |
| Connector | Terminal | |
| Housing material | ABS Plastic | |
| Dimensions(mm) | L × W × H: 109.66 × 28 × 64.71 mm | |
| Operating temperature | -30℃~+75℃ | |
| Storage Temperature | -40℃~+85℃ | |
| Operating humidity | 5%~95% | |
| Storage humidity | 5%~95% | |
RS485 Port, Realizing Data Transmission Between RS485 And 4G Network

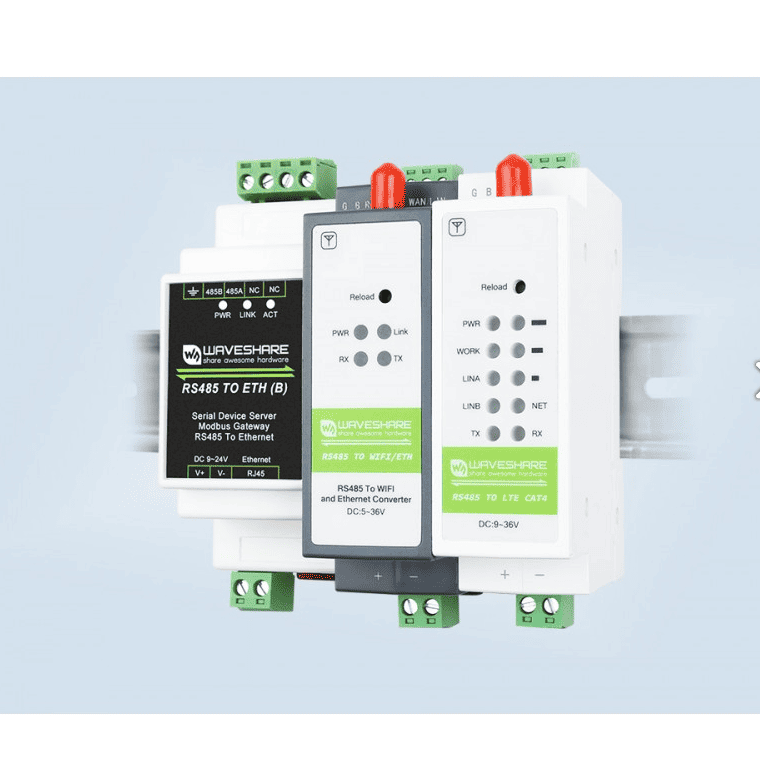

DIN Rail-Mount Support, Tiny Size, Easy Installation, Cost Effective
Multi Configuration Ways
Support configuration via host computer, webpage, and serial port
Socket Distribution
On transparent transmission mode, the serial device can send data to specified Socket connection, and network data of each Socket connection can be sent to serial device via serial port
Hardware Protection
Level 4 ESD protection, Level 3 surge protection, Level3 EFT protection
User-defined Hartbeat/Registration Packet
Registration packet can be used to register the device on server, make it easy for the server to identify the device
