SKU: 21605 Part Number: USB-HUB-2IN-4OUT-EU
Brand: Waveshare
Korisne informacije:

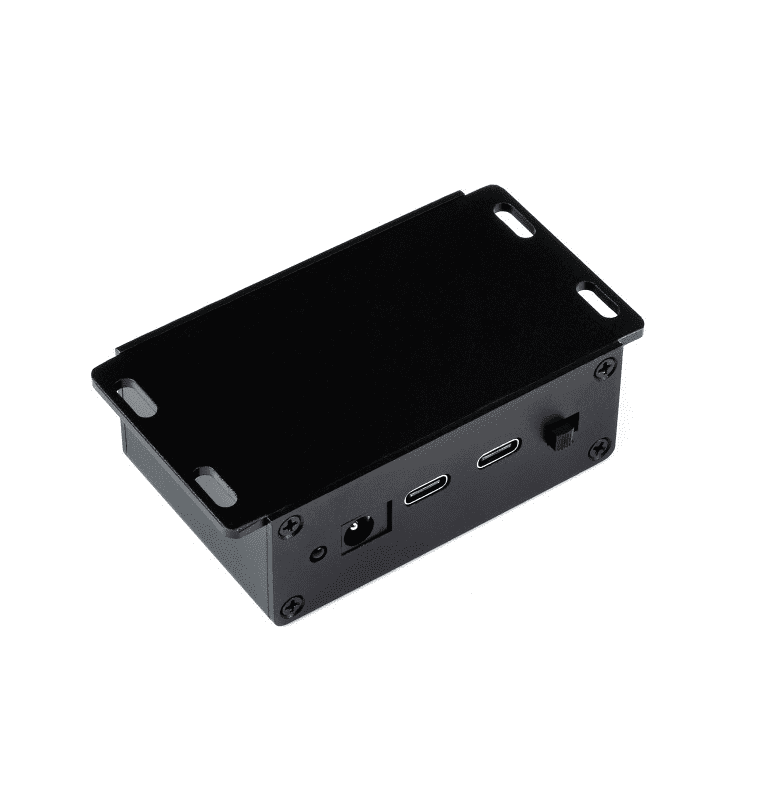

USB-HUB-2IN-4OUT Industrial Grade USB HUB, Extending 4x USB 2.0 Ports, Switchable Dual Hosts
Industrial USB HUB, Switchable Dual Hosts Sharing USB devices for two hosts, free up the crowded desktop
Features At A Glance
- 4x extended USB ports, switchable two inputs, sharing USB devices for two hosts
- Industrial grade HUB chip, adopting MTT technology, allows stable and smooth 4x concurrent USB connections
- ESD protection for each USB port, preventing electric surge damage and data loss
- Over-voltage protection, effectively preventing other high voltage power input from damaging the connected devices
- Multiple protection circuits: over-voltage, over-current, short circuit, over-temperature, reverse current, under voltage lock-out, 8KV ESD protection, filtering protection, etc.
- Industrial grade metal case, rugged & durable, with mounting holes for easy installation
Specifications
STANDARD |
high speed USB 2.0 |
DATA RATE |
up to 480Mbps |
USB OUTPUT |
5V@Imax:1.2A, USB-A connector |
USB HUB INPUT |
5V, switchable dual USB-C connector (standalone power supply, no crossed power) |
EXTERNAL POWER |
DC 5V, DC jack/USB-C power input |
OPERATING ENVIRONMENT |
-40℃ ~ 85℃ |
OS SUPPORT |
Mac OS (8.6 or above), Linux(2.4.20 or above), Windows 11 / 10 / 8.1 / 8 / 7 / XP |

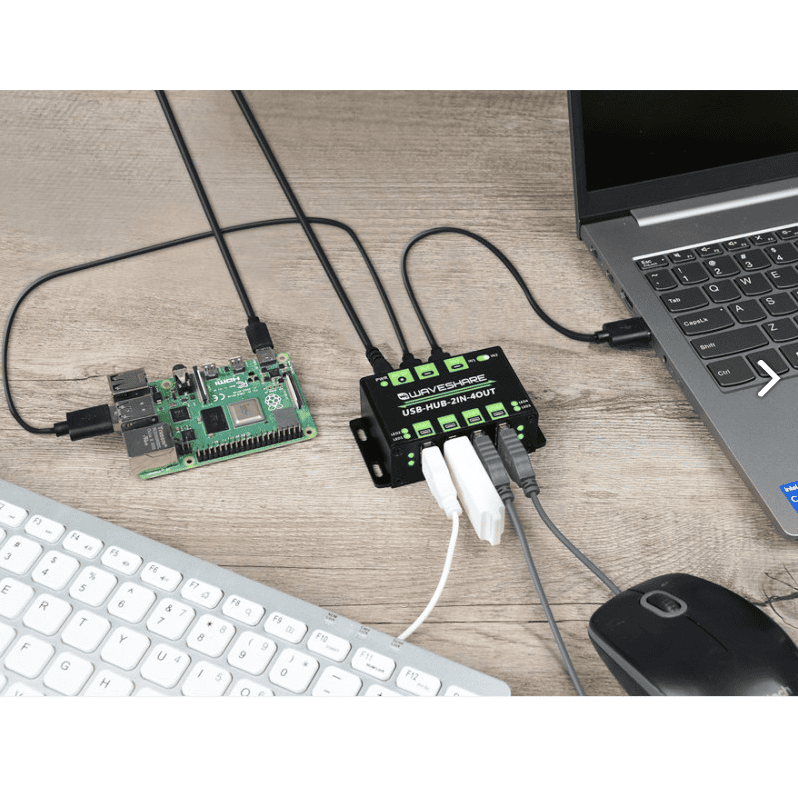

Sharing USB Devices For Two Hosts Switch the active host by the handy switch at any time, easily control two hosts (say, the computer and Raspberry pi) by the same keyboard and mouse,
no more two sets of keyboard and mouse on the table, keeping your working environment neat and tidy.
Industrial Grade HUB Chip MTT Technology, 4x Concurrent USB Connections, Stable And Smooth
Multiple Protections, More Safe Over-Voltage, Over-Current, Short Circuit, Over-Temperature, Reverse Current, Under Voltage Lock-Out, 8KV ESD Protection, Filtering Protection...
Multiple OS Support, Plug & Play Compatible With OS Including: Mac OS, Linux, Windows 11 / 10 / 8.1 / 8 / 7 / XP...
Application Environments Suitable For Industrial/Office Environments With Higher Level Device Requirements
2 in 4 out
small size, easy installation
mounting support

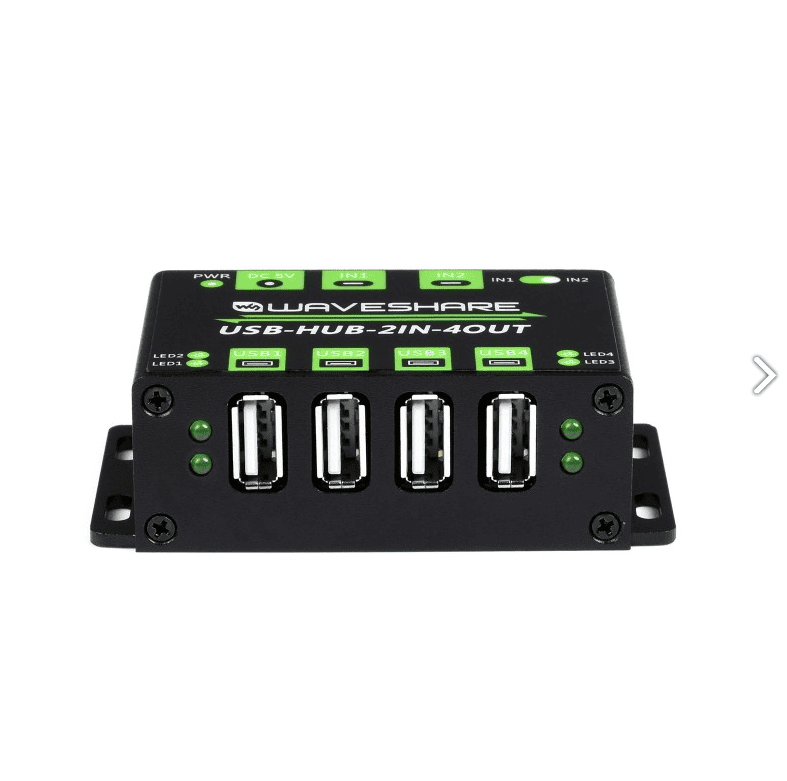

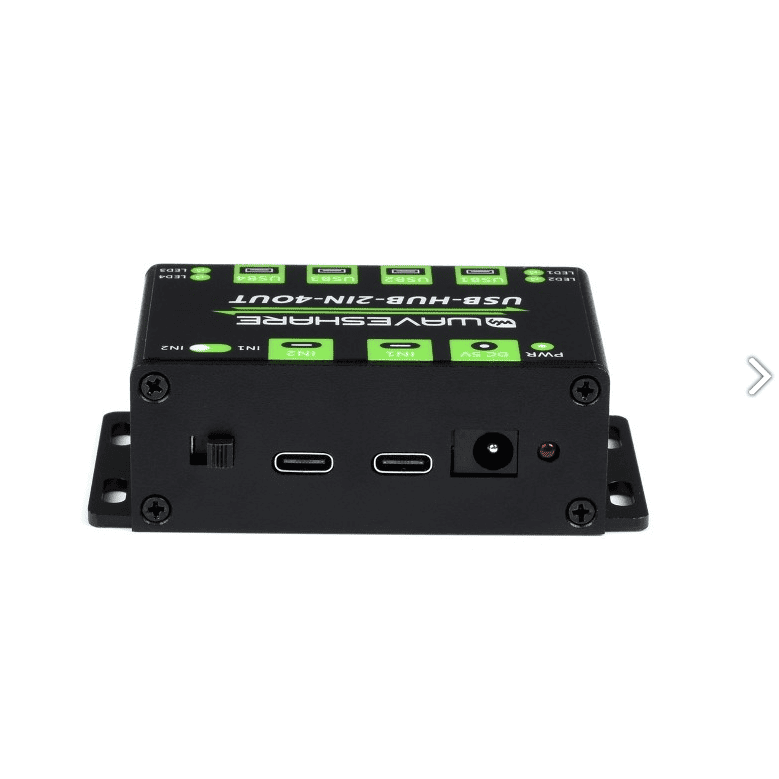

Interface Introduction
Outline Dimensions
- PACKAGE CONTENT
Weight: 0.227 kg
- USB-HUB-2IN-4OUT x1
- USB-A to USB-C cable ~1m x2
- 5V 2A power adapter x1
1
2
3
