sible to turn on the relay for a while and then close it automatically
Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal Onboard unibody magnetical isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption Onboard resettable fuse and TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, provides over-current/over-voltage proof, lightningproof & anti-electrostatic Onboard Optocoupler isolation, prevent the relay from being interfered by high-voltage circuit Adopts dedicated relay driver chip, with built-in flyback diode protection, for stronger and more stable driving ability Supports passive and active digital input, with bi-directional optocoupler isolation, built in debouncing algorithm. The relay supports digital input linkage control or toggle control Reverse-proof circuit, prevent the circuit from being damaged accidentally by incorrect connection High quality relay, contact rating: ≤10A 250VAC/30VDC Rail-mounted ABS plastic enclosure, easy to install, safe to use Multiple LEDs for indicating the MCU status and signal transceiving status Specifications
POWER SUPPLY |
7~36V |
COMMUNICATION INTERFACE |
RS485 |
BAUDRATE |
4800, 9600, 19200, 38400, 57600, 115200, 128000, 256000 |
DEFAULT COMMUNICATION FORMAT |
9600, N, 8, 1 |
RELAY CHANNELS |
8 |
CONTACT FORM |
1NO 1NC |
CONTACT RATING |
≤10A 250VAC/30VDC |
DIGITAL INPUT |
8DI, 5~36V, passive / active input (NPN or PNP), built-in bi-directional optocoupler isolation |
COMMUNICATION PROTOCOL |
Standard Modbus RTU protocol |
RS485 ADDRESS |
1~255 |
LED INDICATORS |
STA: MCU indicator, keeps flashing when the MCU normally working
TXD: TX indicator, lights up when sending data
RXD: RX indicator, lights up when receiving data |
Primary Function
Supports Reading Digital Input By Sending Modbus RTU Protocol Commands Via RS485 For Relay Output Control
Hardware Analysis
Multiple Protections For Safer And More Reliable Use
Digital Input
Supports Passive (Dry Contact) And Active (Wet Contact) Digital Input, With Bi-Directional Optocoupler Isolation

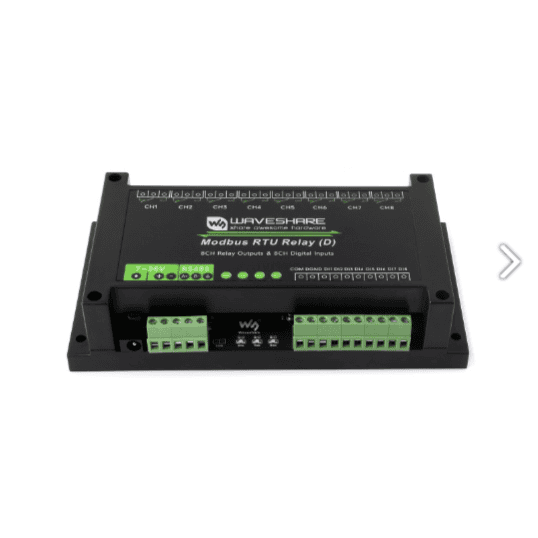

Interfaces & Indicators
With Multiple LED Indicators, Easy To Monitor The Operating Status
Multiple Modes For Various Automation Scenarios
Supports Multiple Relay Control Modes, Each Channel Supports Independent
Control Mode Setting
RS485 Communication
Configurable Device Address (1~255), Multi Devices Can Be Cascaded On RS485 Bus
In Case Of Many Devices Are Cascaded, Or Communication Distance Is Quite Long, It Is Necessary To Use RS485 Repeaters
for reference only, the USB TO RS232/485/TTL converter is Not included
Relay Connection
Contact Rating Of The Onboard Relay Up To 10A 250VAC/30VDC
Directly Controlling 220VAC Home Appliances, Or Devices Below 30VDC

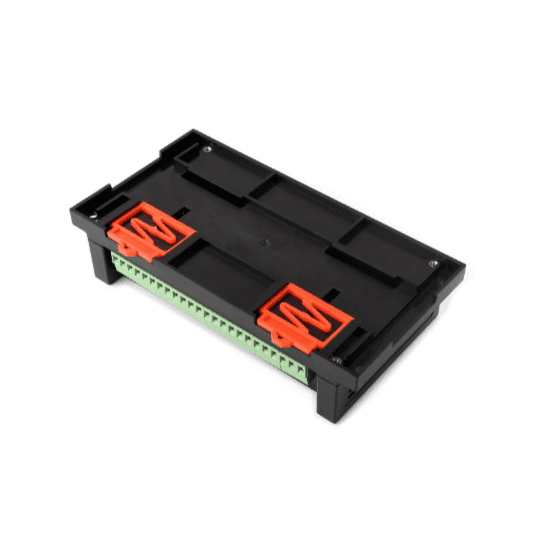

Enclosure Design
Rail-Mounted ABS Plastic Enclosure, Easy To Install, Safe To Use
Applications

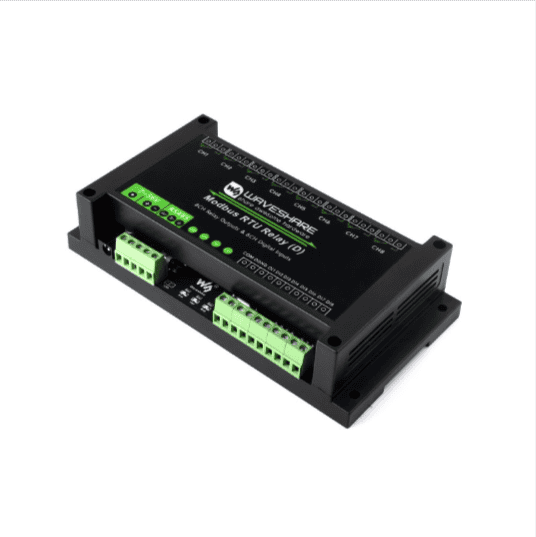

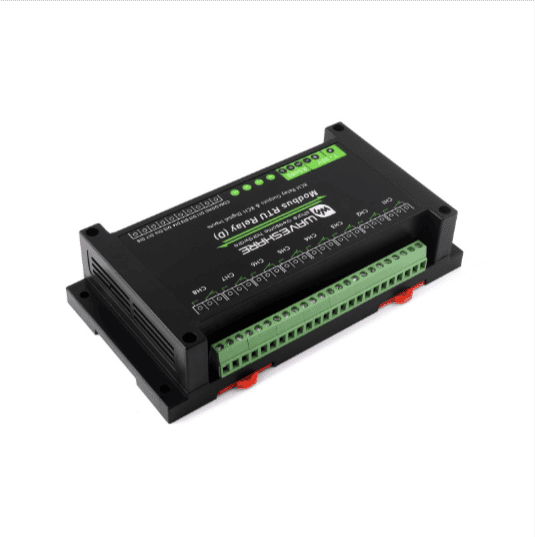

Product Show
Outline Dimensions
- PACKAGE CONTENT
Weight: 0.296 kg
- The power supply of this product is not included, it is recommended to purchase 12V power supply if you need it.
- Modbus RTU Relay (D) x1
- Screwdriver x1
