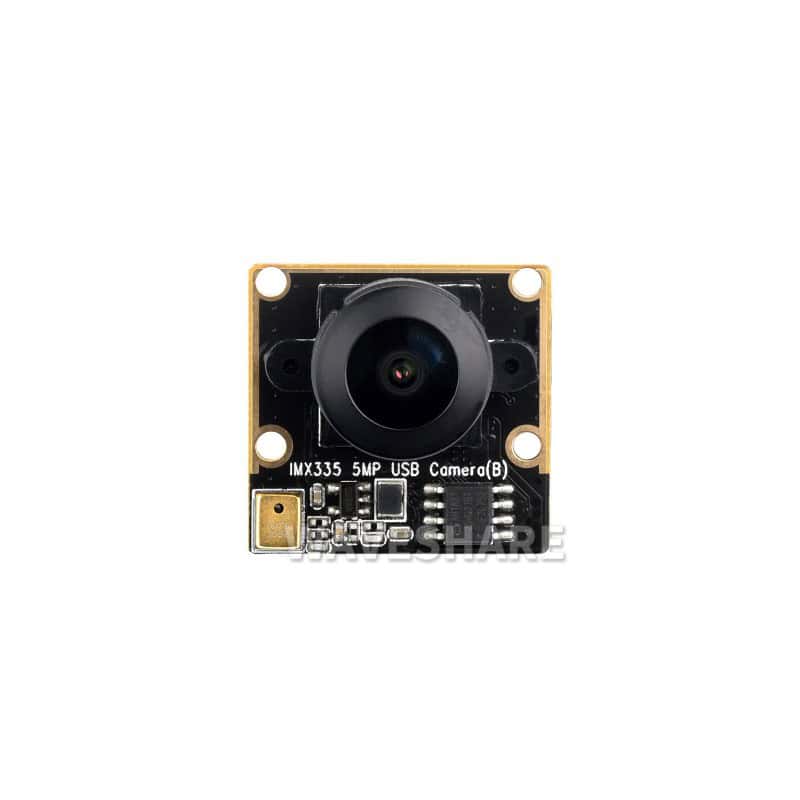

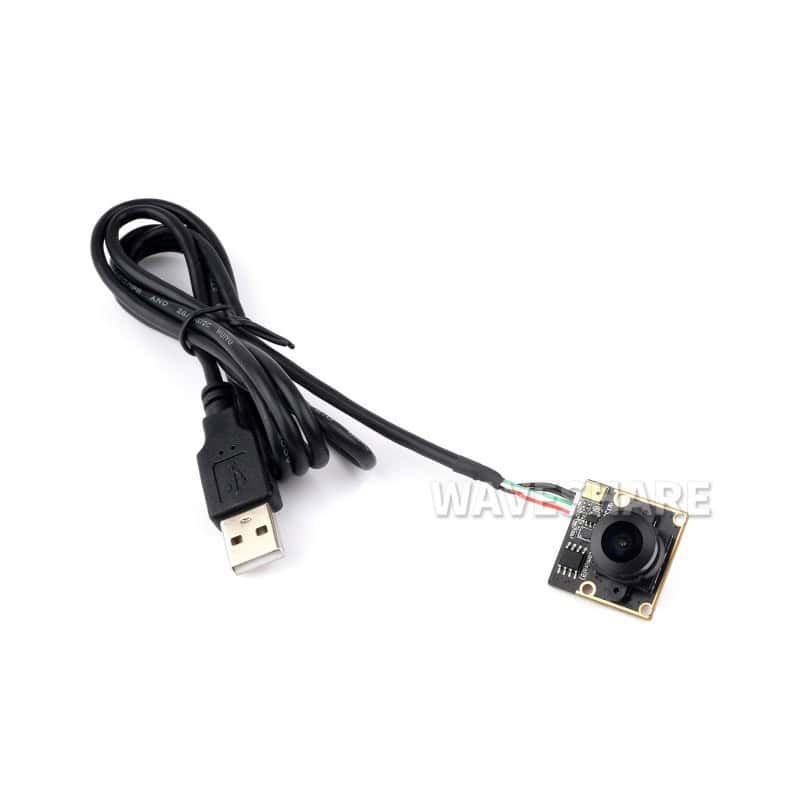

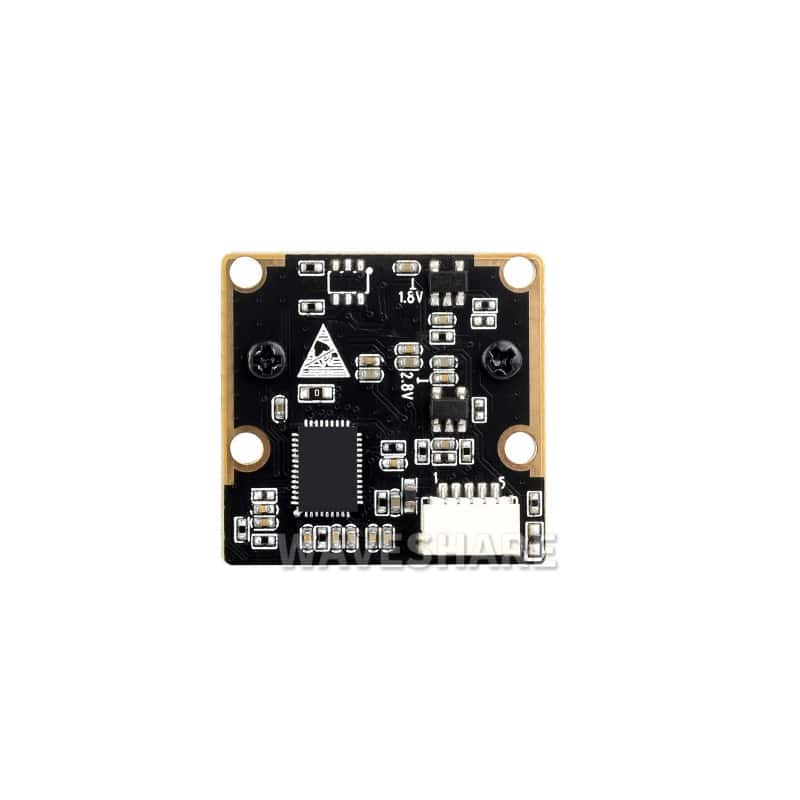

IMX335 Sensor, USB2.0 Port, 175° Wide Angle
| PIXELS | 5MP | |
|---|---|---|
| SENSOR | IMX335 | |
| INTERFACE | USB 2.0 | |
| CAMERA | Sensor size | 1/2.8 inch |
| Aperture (F) | 2.0 | |
| Focal length (EFL) | 3.65mm | |
| Field of view (FOV) | 175° | |
| Distortion | <-36% | |
| Focusing | Fixed-focus | |
| LENS MOUNT | M12 | |
| CONSTRUCTION | 5G3P + IR Filter | |
| IMAGE | Format support | MJPG, YVY2 |
| Static image resolution | 2592 × 1944 | |
| Video recording | 30 FPS 2592 × 1944 30 FPS 1920 × 1080 30 FPS 1280 × 720 | |
| Dynamic range | 71.6dB@8xgain | |
| SNR | 36dB | |
| OPERATING VOLTAGE | 5V ± 5% | |
| OPERATING TEMPERATURE | -10°C~60°C | |
| MODULE SIZE | 25 × 24mm | |

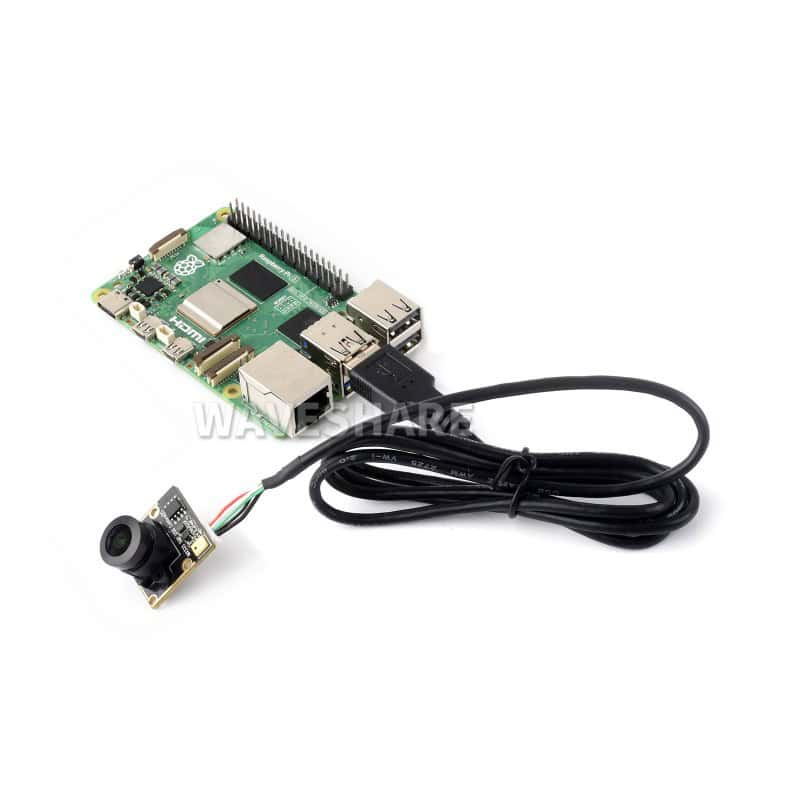

Connecting with Raspberry Pi 5
Connecting with Jetson Orin kit * for reference only, the Raspberry Pi 5 and Jetson Orin kit are not included
Supports 30 FPS Output, Suitable For Capturing Details
Provides A Better Imaging Effect In Low Light Condition
Supports Wide Dynamic Range (WDR) Technology For Maintaining Image Details And Quality In High Contrast Scenes
