SKU: 22025
Part Number: IMX290-83 IR-CUT Camera
Brand: Waveshare
Korisne informacije:
www.waveshare.com/wiki/IMX290-83_IR-CUT_Camera IMX290-83 IR-CUT Camera, Starlight Camera Sensor, Fixed-Focus, 2MP

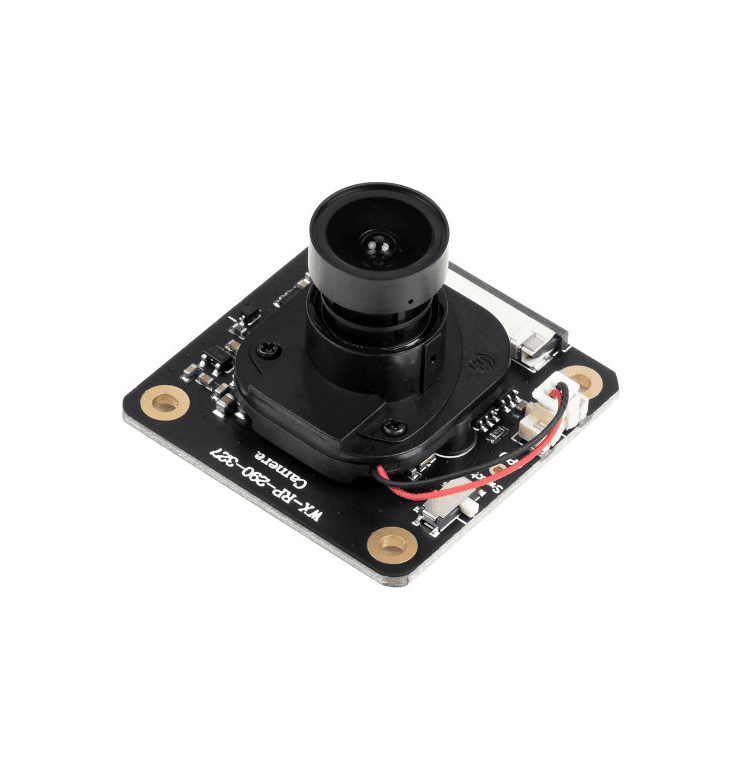

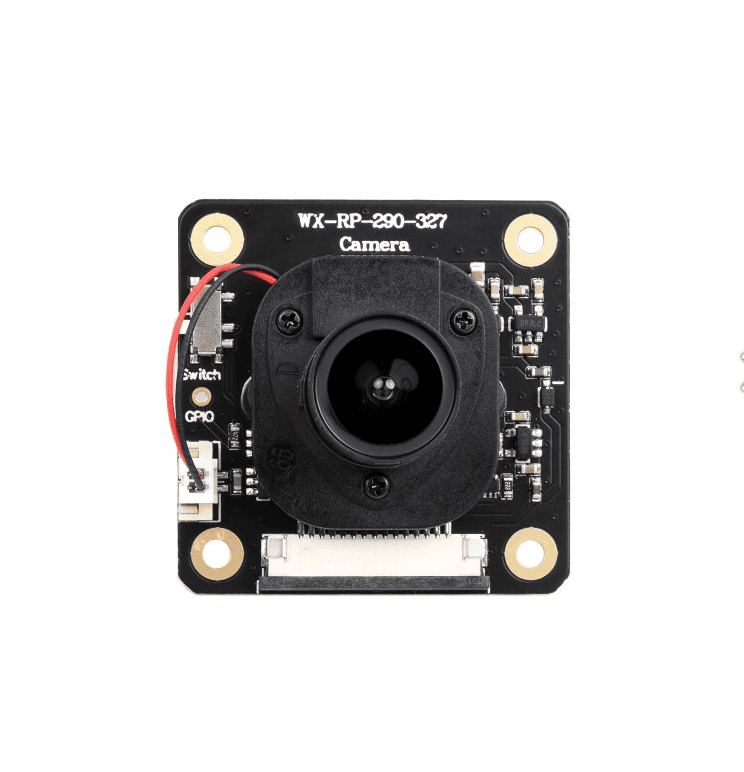

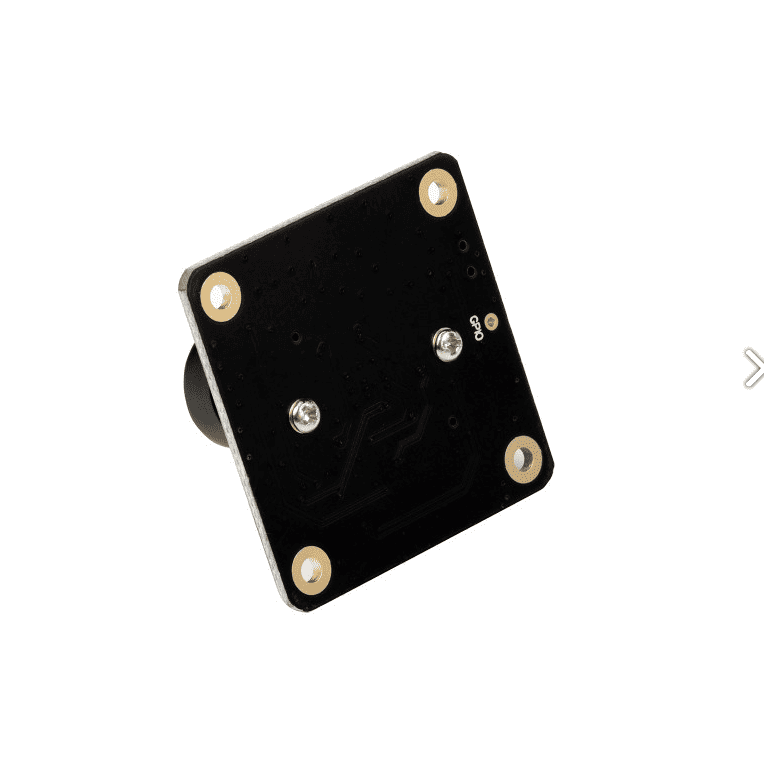

IMX290-83 IR-CUT Camera 2MP | Starlight Camera | IR-CUT | 98° FOV
Compatible with Raspberry Pi series boards
Device Support
Raspberry Pi series
Supports 4B / 3B+ / 3A+ / Zero / Zero 2 W,
and CM3/3+/4 (extra adapter board required)
Specifications
SENSOR |
IMX290 |
CMOS SIZE |
1/2.8 inch |
PIXELS |
2MP (1920 × 1080) |
APERTURE |
F2 |
FOCAL LENGTH |
3.95mm |
FIELD OF VIEW |
98° |
CAMERA TYPE |
Color |
FOCUSING |
Fixed focus |
DISTORTION |
< 33% |
SHUTTER |
Rolling Shutter |
Starlight Camera Clear Imaging Even In Low Light Conditions
Built-In IR-CUT Correct Color Deviation Of Infrared Camera During The Daytime, Better Imaging Effect

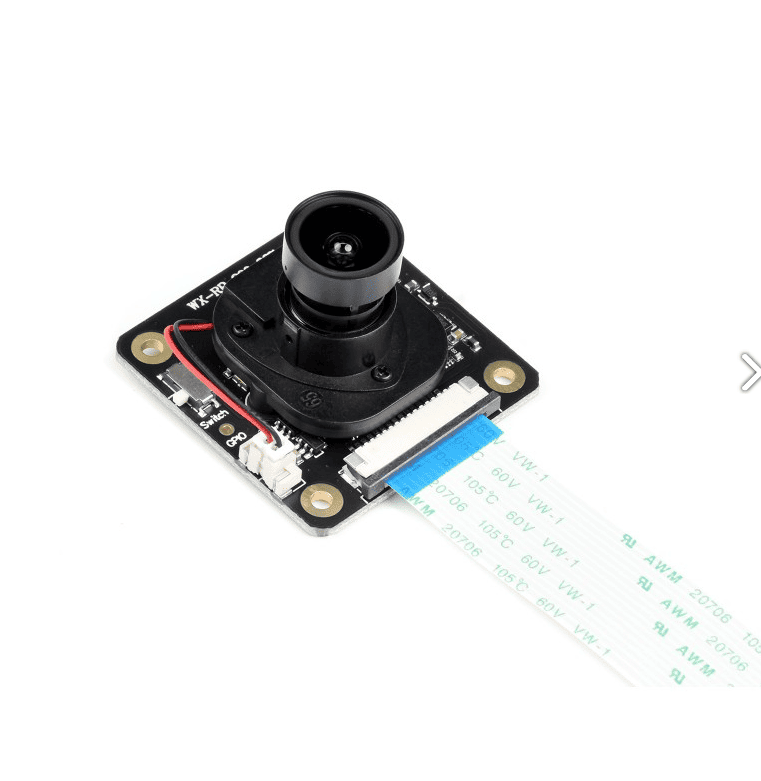

Working With Raspberry Pi Direct Connect To Raspberry Pi Different Variants Including 4B/3B+/3A+/3B/2B/B+/A+,
Extra FPC Cable Is Required For Zero / Zero 2 W Series
* for reference only, Raspberry Pi and yellow FPC are NOT included. Outline dimensions
- PACKAGE CONTENT
Weight: 0.019 kg
- IMX290-83 IR-CUT Camera x1
- 15-pin FFC (opposite sides contact) x1
