SKU: 16974
Part Number: IMX219-170 Camera
Brand: Waveshare
Korisne informacije:

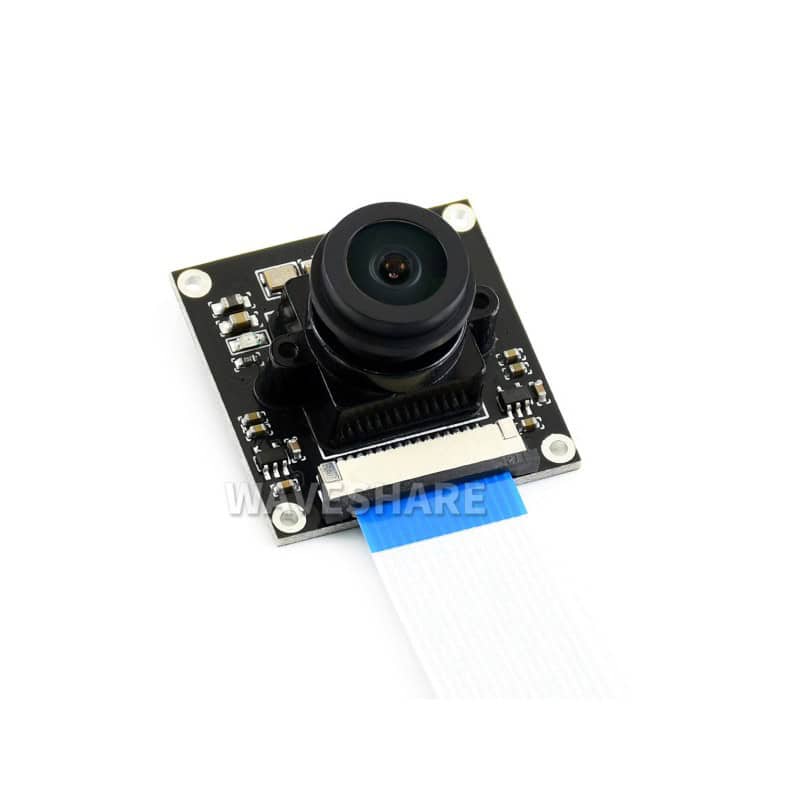

www.waveshare.com/wiki/IMX219-170_Camera IMX219-170 Camera, 170° FOV
Multiple motherboards Support Compatible with all Raspberry Pi boards, Jetson Series, RDK X3 and VisionFive2, etc.
extra FPC cable is required for Raspberry Pi 5, CM3/3+/4, Zero Series, and Jetson Orin Nano/NX
IMX219-77 Camera

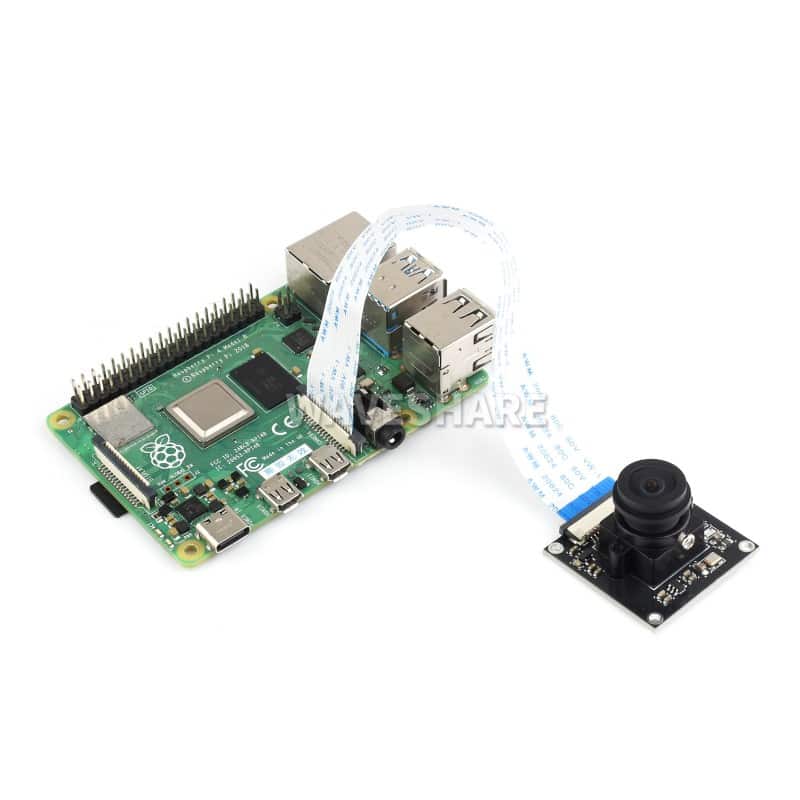

connecting with Raspberry Pi 4B
IMX219-120 Camera
connecting with Raspberry Pi 5
IMX219-170 Camera
connecting with CM4 IO Board
IMX219-200 Camera
connecting with Zero 2 W
IMX219-160 Camera

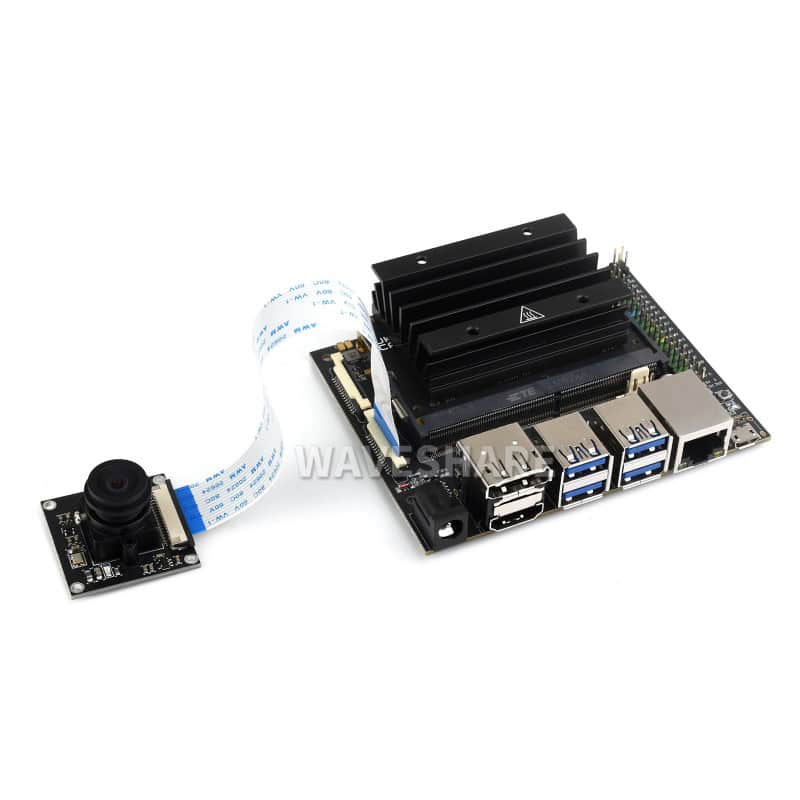

connecting with Jetson Nano Kit
IMX219-160IR Camera
connecting with Jetson Orin Kit Parameter
- 8,000,000 pixels
- Photosensitive chip: IMX219
- Resolution: 3280 x 2464
- Camera parameters:
- CMOS size: 1/4 inch
- Aperture (F): 2.4
- Focal Length: 2.2mm
- Diagonal Field of View (FOV): 170 degrees
- Distortion: < 22%
- 4 screw holes:
- Available in fixed position
- Support 3.3V external power supply
- Dimensions: 25mm × 24mm
PACKAGE CONTENT Weight: 0.019 kg
The included FFC is 15cm
- IMX219-170 Camera x1
- 15-pin FFC (opposite sides contact) x1
