SKU: 18946
Part Number: IMX219-160 IR-CUT Camera
Brand: Waveshare
Korisne informacije:
Wiki: www.waveshare.com/wiki/IMX219-160_IR-CUT_Camera IMX219-160 8MP IR-CUT Camera, 162° FOV, IR-CUT Infrared, Applicable For Jetson Nano / Compute Module

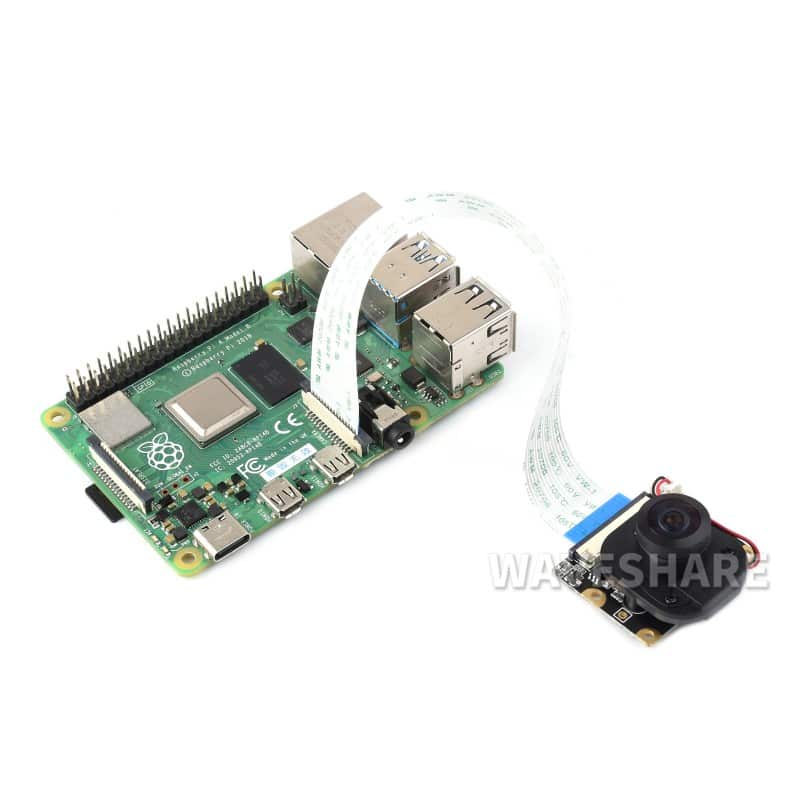

Multiple motherboards Support Compatible with all Raspberry Pi boards, Jetson Series, RDK X3 and VisionFive2, etc.
extra FPC cable is required for Raspberry Pi 5, CM3/3+/4, Zero Series, and Jetson Orin Nano/NX
IMX219-77 Camera
connecting with Raspberry Pi 4B
IMX219-120 Camera
connecting with Raspberry Pi 5
IMX219-170 Camera
connecting with CM4 IO Board
IMX219-200 Camera
connecting with Zero 2 W
IMX219-160 Camera

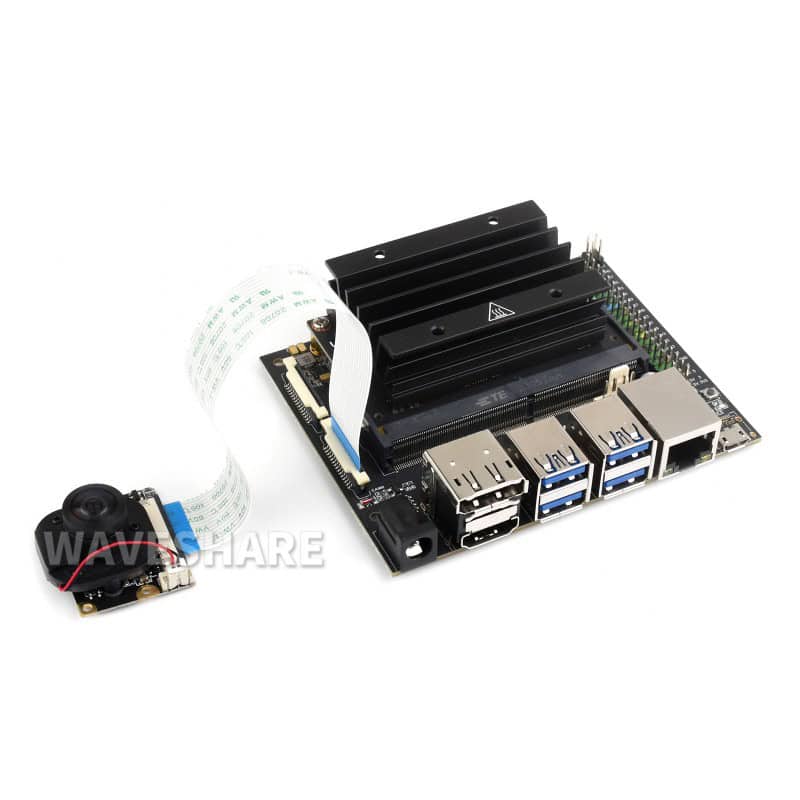

connecting with Jetson Nano Kit
IMX219-160IR Camera
connecting with Jetson Orin Kit Introduction

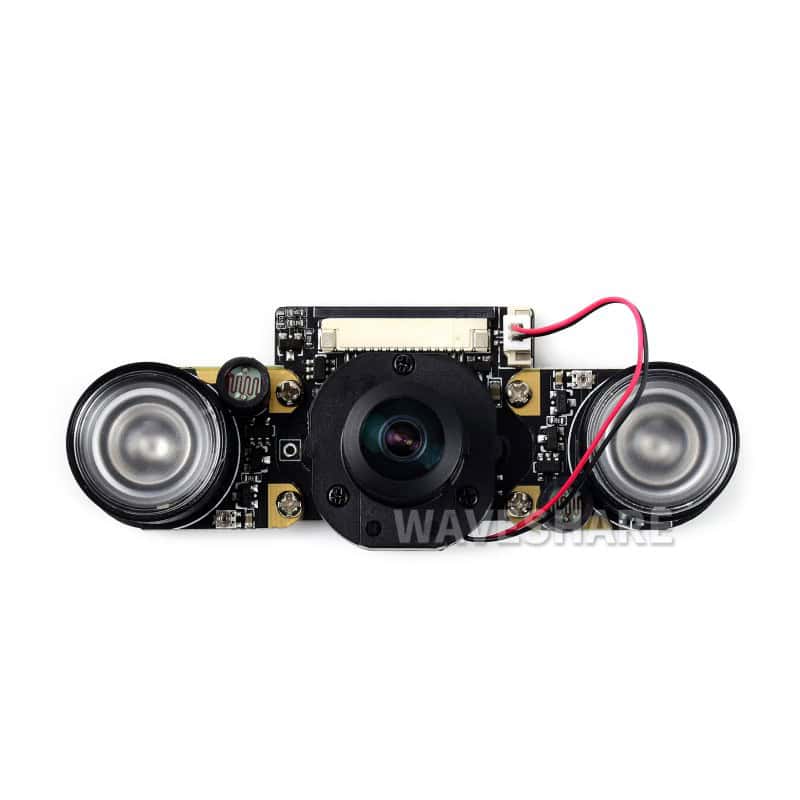

IMX219 Camera, with 800 megapixels and 160 FOV, IR-CUT infrared, compatible with Jetson nano. You can also use it with CM3/CM3+ expansion boards like the Raspberry Pi Compute Module IO board, Compute Module IO Board Plus, Compute Module POE Board of Waveshare, and the StereoPi board.
IR CUT
This camera integrates IR-CUT. Connect the IO port on the board to GPIO, input a high level (3.3V) to turn off the infrared filter and set it to night vision mode, and input a low level (GND) to turn on the infrared filter and set it to daytime mode.
In the night vision mode, the reddish effect appears when taking pictures during the day, which is a normal phenomenon.
PACKAGE CONTENT Weight: 0.026 kg
The included FFC is 15cm
- IMX219-160 IR-CUT Camera x1
- Infrared LED Board (B) 2PCS x1
- 15-pin FFC (opposite sides contact) x1
