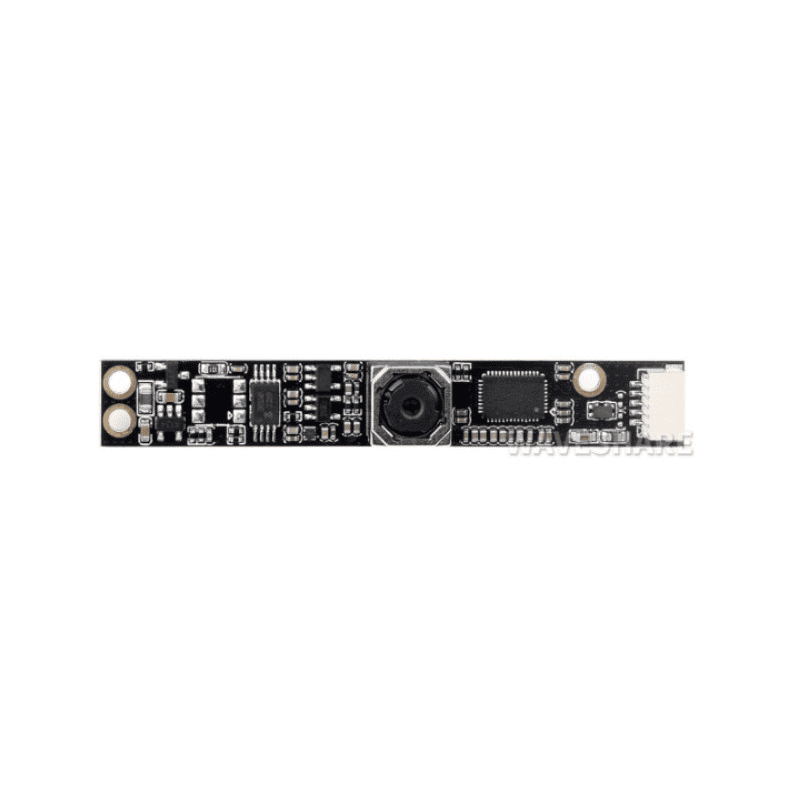

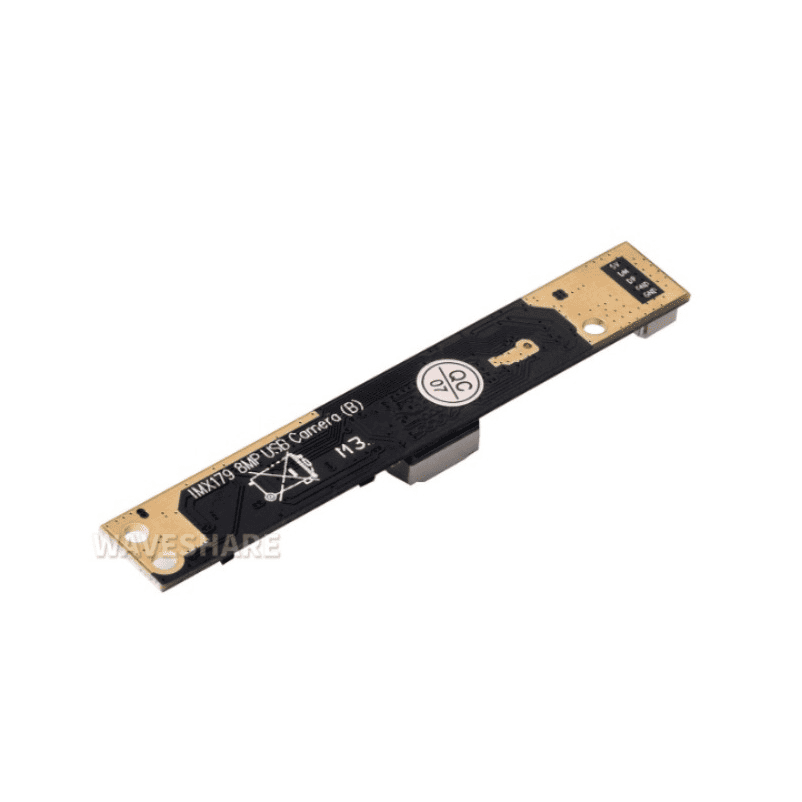

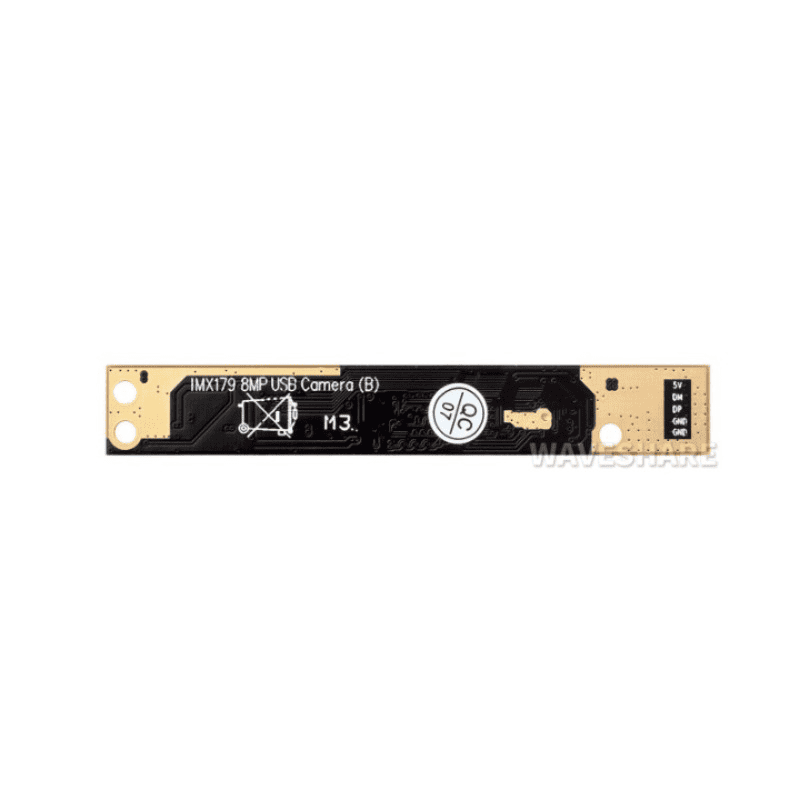

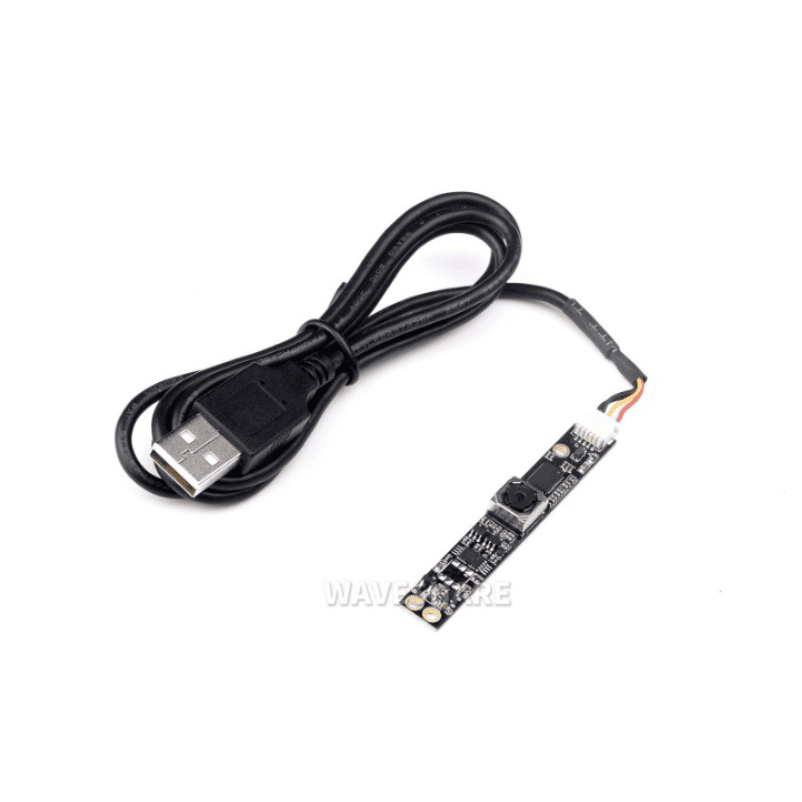

IMX179 Sensor, USB2.0 Port, Auto Focusing
| PIXELS | 8MP | |
|---|---|---|
| SENSOR | IMX179 | |
| INTERFACE | USB 2.0 | |
| CAMERA | Sensor size | 1/3.2 inch |
| Aperture (F) | 2.0 | |
| Focal length (EFL) | 3.8mm | |
| Field of view (FOV) | 75° | |
| Distortion | < 1.5% | |
| Focusing | Auto focusing | |
| IMAGE | Format support | MJPG, YVY2 |
| Static image resolution | 3264 × 2448 | |
| Video recording | MJPG: 640 × 480 / 30FPS; 800 × 600 / 30FPS; 1280 × 720 / 30FPS; 1600 × 200 / 30FPS; 1920 × 1080 / 25FPS; 2048 × 1536 / 15FPS; 2592 × 1944 / 15FPS; 3264 × 2448 / 15FPS | |
| YUY2: 640 × 480 / 20FPS; 800 × 600 / 20FPS; 1280 × 720 / 5FPS; 1600 × 1200 / 5FPS; 1920 × 1080 / 2FPS; 2048 × 1536 / 1FPS; 2592 × 1944 / 2FPS; 3264 × 2448 / 1FPS | ||
| OPERATING VOLTAGE | 5V ± 5% | |
| CAMERA SIZE | 8.5 × 8.5mm | |
| MODULE SIZE | 9 × 62mm | |
| Masa po jedinici mere: | 0.047 Kg / Kom |
| Kategorija: | mini PC |
| Brend: | Waveshare |
| Naziv: | IMX179 8MP USB Camera (B) |
| Šifra: | w25817 |
| Uvoznik: | MALINA 314 doo, Beograd |
| Telefon: | 061-640-2013 |
