SKU: 24017
Part Number: HDMI-EXTENDER-KIT
Brand: Waveshare
Korisne informacije:
www.waveshare.com/wiki/HDMI-EXTENDER-KIT HDMI Signal Extender
Transmission Distance Up To 50m Via Network Cable, High-Definition & Lossless
Specifications
TRANSMISSION STANDARD |
HDMI1.4B |
VIDEO INPUT |
1080p/1080i/720p/576p/576i/480p/480i |
SIGNAL TRANSMISSION |
Supports using CAT-5E/6 network cable (CAT-6 recommended) instead of HDMI cable, the distance between transmitter and receiver up to 50m |
POWER INPUT |
Type-C port (DC 5V 1A) |
APPLICABLE SCENARIOS |
Security monitoring, Video conference, Multimedia teaching, Home theater, etc. |

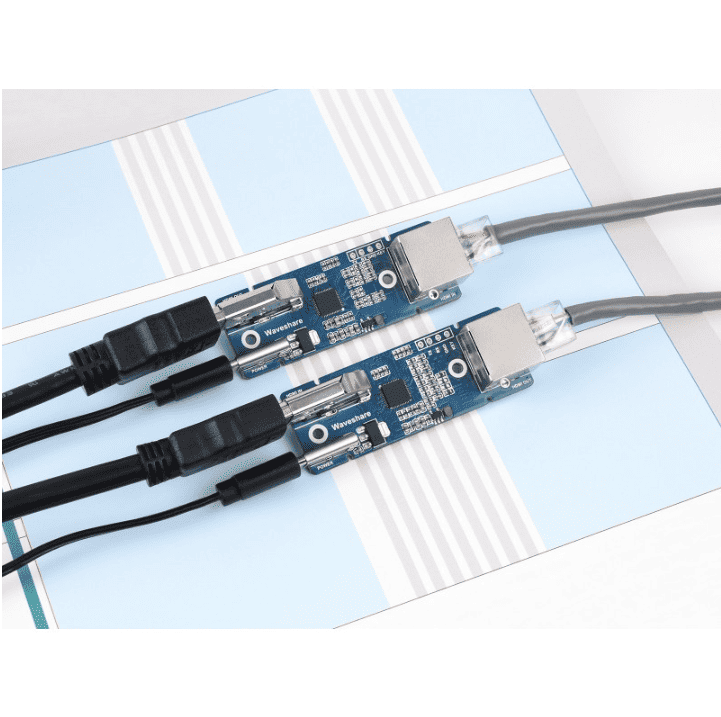

Connection Example
- for reference only, the HDMI cables, network cable, and power supply are not included.
- The RJ45 port on both boards uses a private protocol, and cannot be connected to a switch or router in between.
Supports 1080P HD Quality Transmission
Clearer & Smoother Image, With No Delay In Sound
Note: The quality of the network cable will affect the signal transmission quality, it is recommended to use CAT-6 network cable for better transmission.

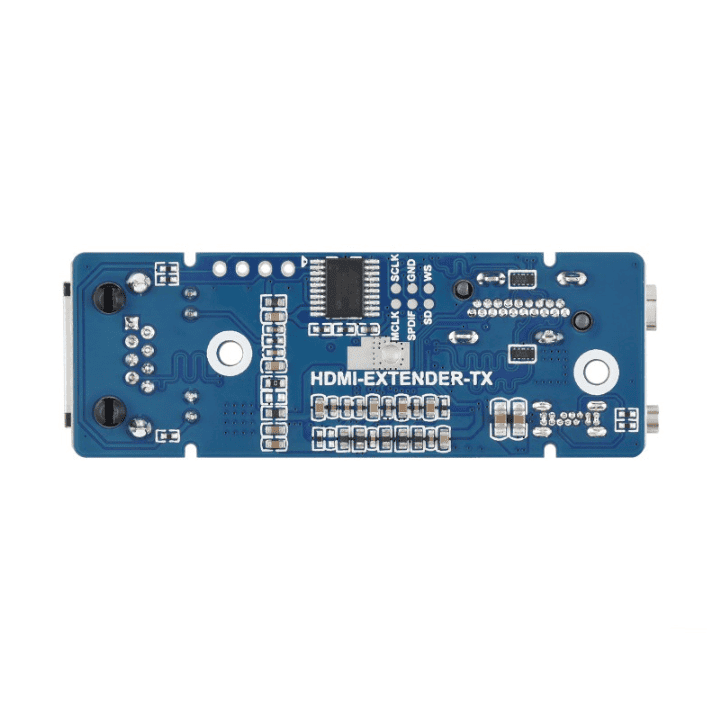

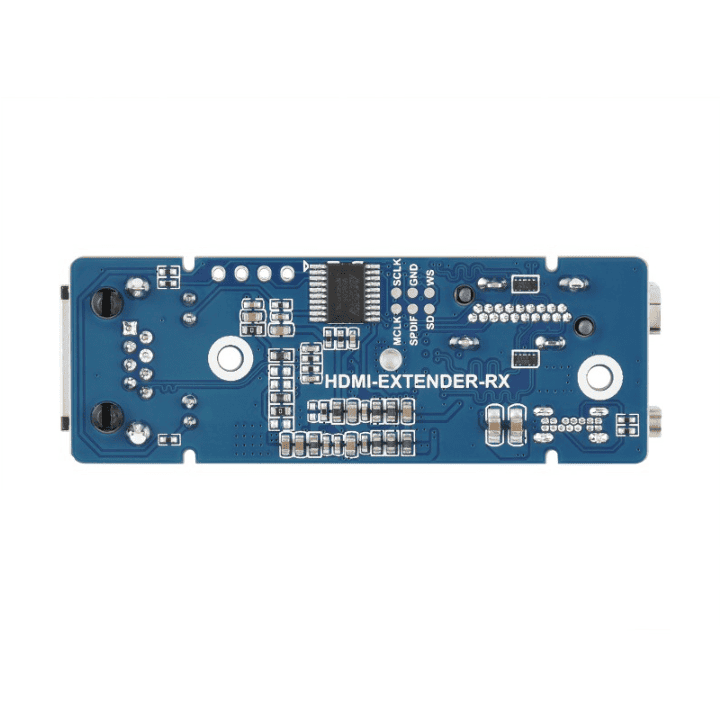

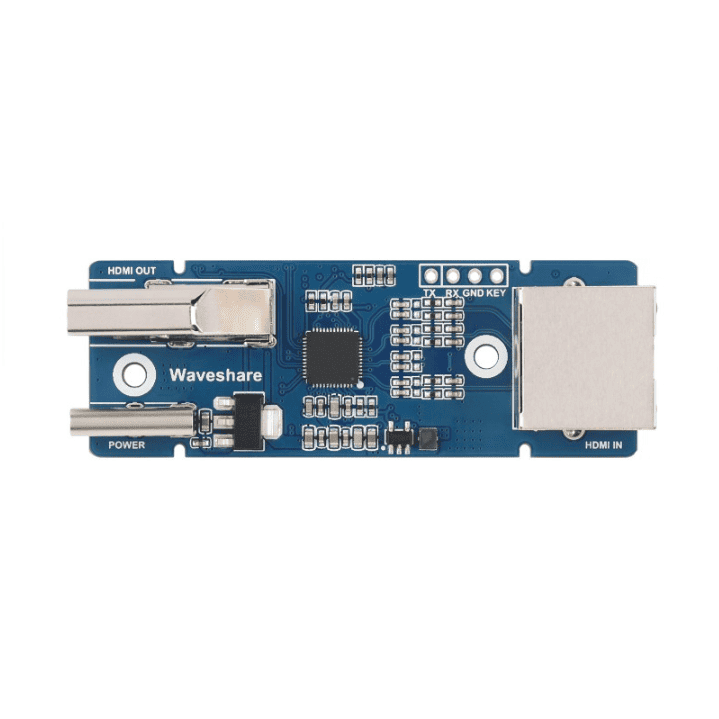

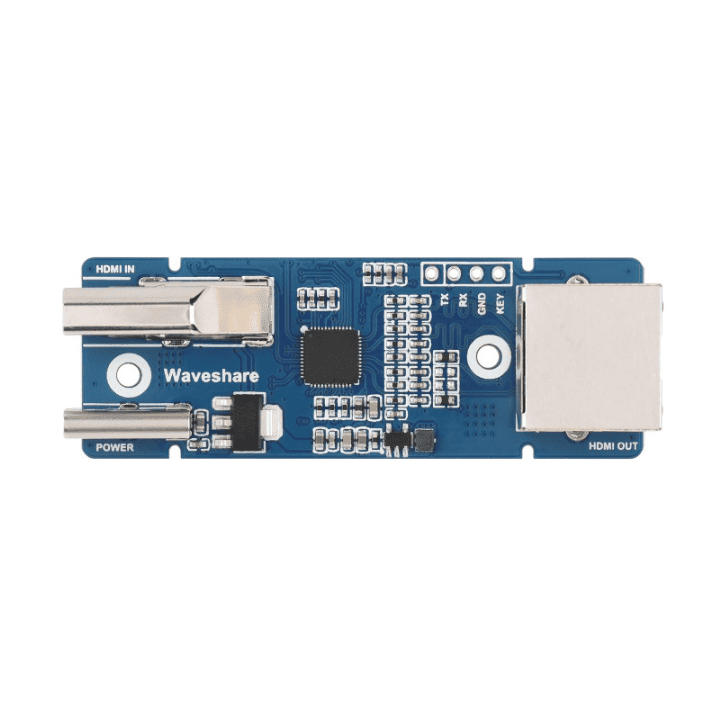

Onboard Interface
Applicable Scenarios

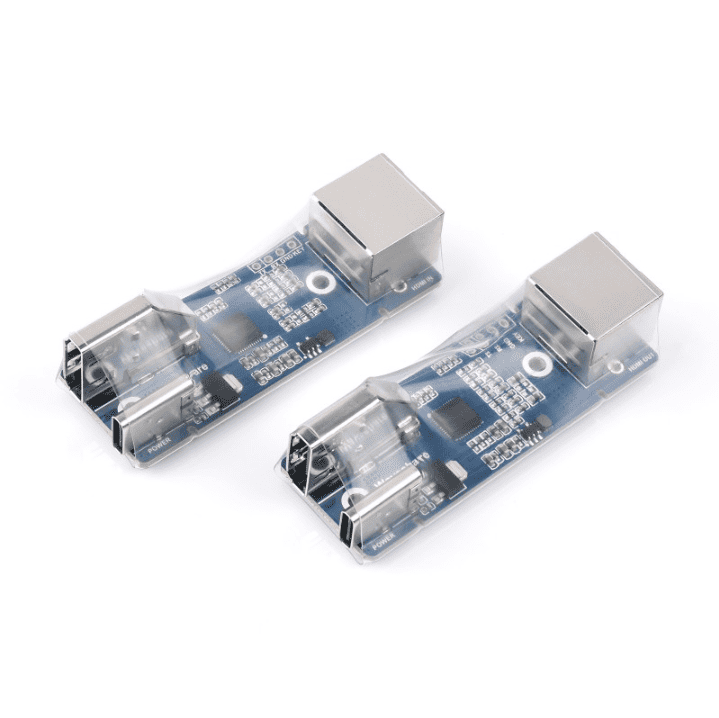

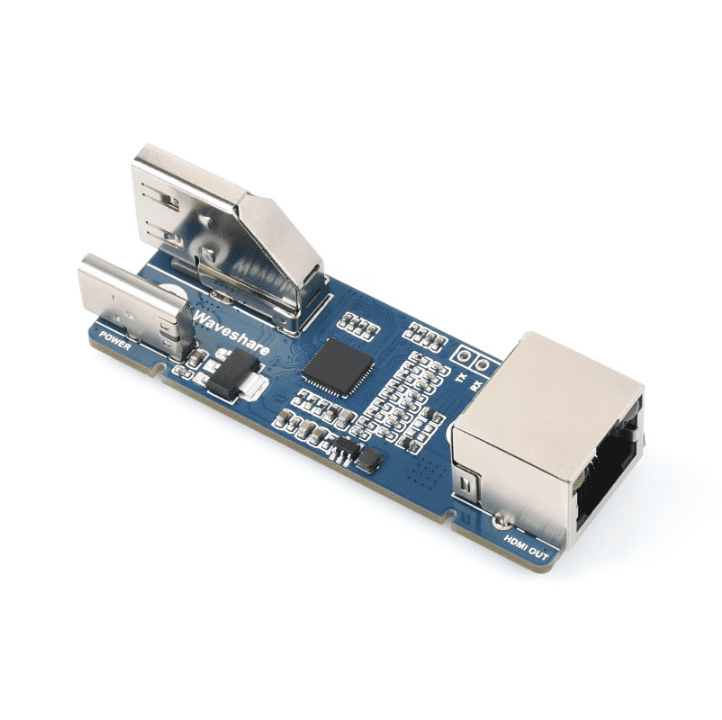

Product Show
Outline Dimensions
- PACKAGE CONTENT
Weight: 0.035 kg
HDMI-EXTENDER-KIT x1
