SKU: 19137
Part Number: HDMI to CSI Adapter
Korisne informacije:
HDMI_to_CSI_Adapter HDMI To CSI Adapter For Raspberry Pi Series, 1080p@30fps Support

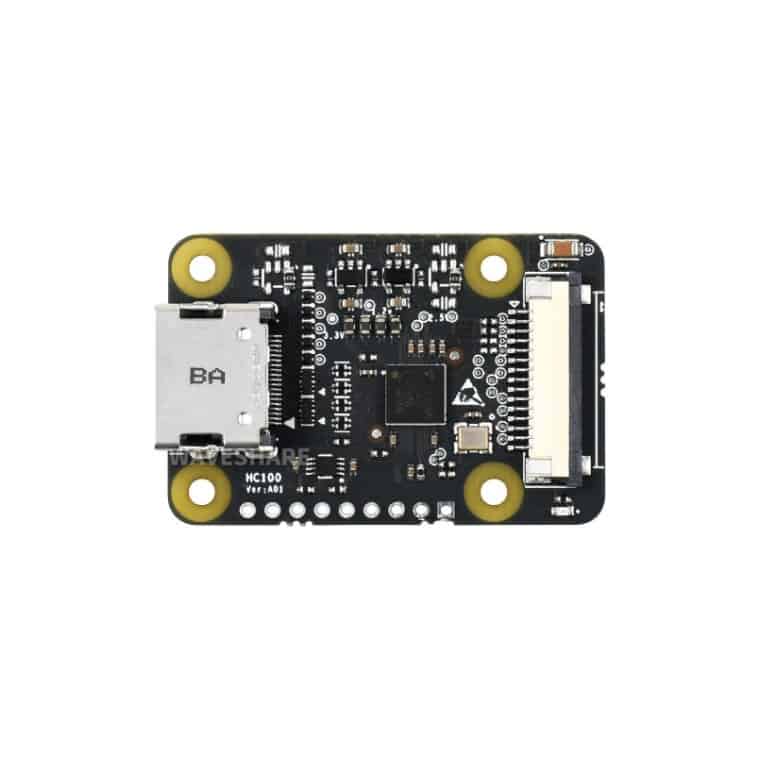

HDMI To CSI Camera Adapter Compatible with Raspberry Pi Series Boards
This is an HDMI to CSI camera port adapter designed for Raspberry Pi with up to 1080p@30fps support from HDMI input, backward compatible. It allows you to use HDMI cameras just as the standard Raspberry Pi CSI cameras, all versions of Raspberry Pi series boards are supported.
Specifications
Chip |
TC358743XBG |
Input signal |
Video |
HDMI1.4, RGB888, up to 1080p@30fps support |
Audio |
HDMI |
Output signal |
Video |
2-lanes MIPI CSI-2 |
Audio |
I2S audio output, LPCM audio stream format |
operating system |
Raspberry Pi OS 32bit |
Operating voltage |
3.3V |
Operating temperature |
-30 ~ 70°C |
How To Use

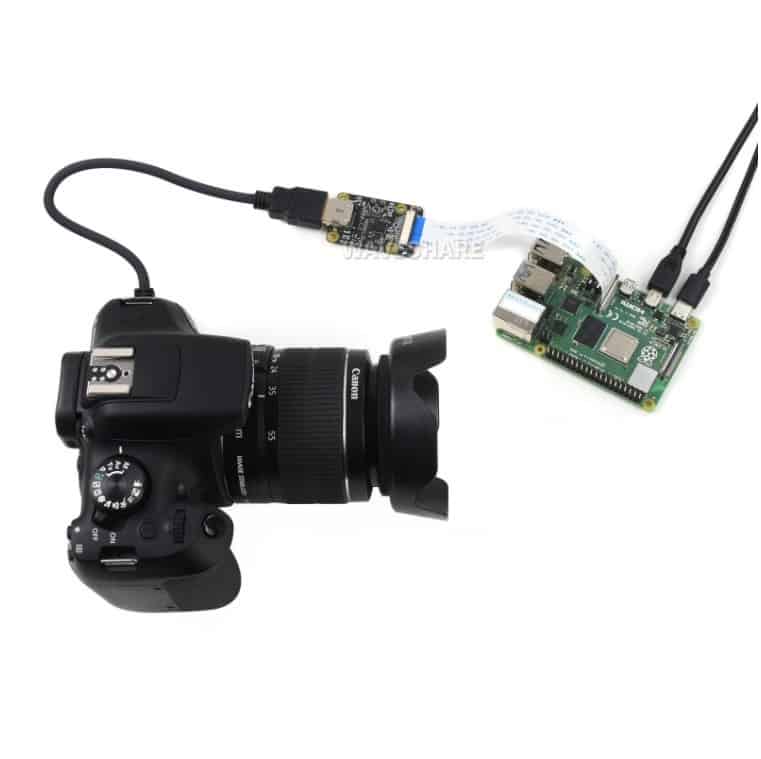

Application Example

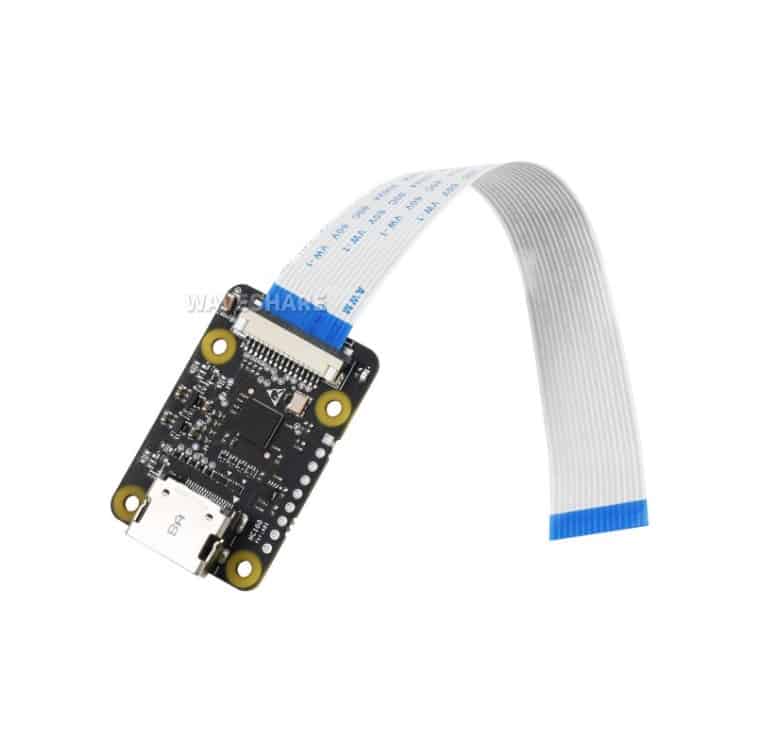

Connecting With Raspberry Pi
* Specific FFC is required for the Raspberry Pi Zero.
Outline Dimensions
- PACKAGE CONTENT
Weight: 0.011 kg
- HDMI to CSI Adapter x1
