SKU: 16157
Part Number: SIM800C GSM/GPRS HAT
Brand: Waveshare
Korisne informacije:
SIM800C_GSM/GPRS_HAT SIM800C GSM/GPRS/Bluetooth HAT For Raspberry Pi, 2G Communication
GSM / GPRS / BLUETOOTH HAT FOR RASPBERRY PI
SMS Support, 2G Communication & Bluetooth Data Transmission
Based on SIM800C
Features At A Glance The
SIM800C GSM/GPRS HAT is a handy, low power Raspberry Pi HAT which features multi communication functionalities: GSM, GPRS, and Bluetooth, with up to 85.6kbps GPRS data rate.
It allows your Pi to easily send messages, connect to wireless Internet, transfer data via Bluetooth, and so on.
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
- Supports SMS, GPRS, DTMF, HTTP, FTP, MMS, email, etc.
- Bluetooth 3.0, supports data transferring through Bluetooth
- UART interface, for connecting host control boards like Arduino/STM32
- Onboard voltage level translator, 3.3V by default, switch to 5V via jumper
- 2x LEDs for indicating the module operating status

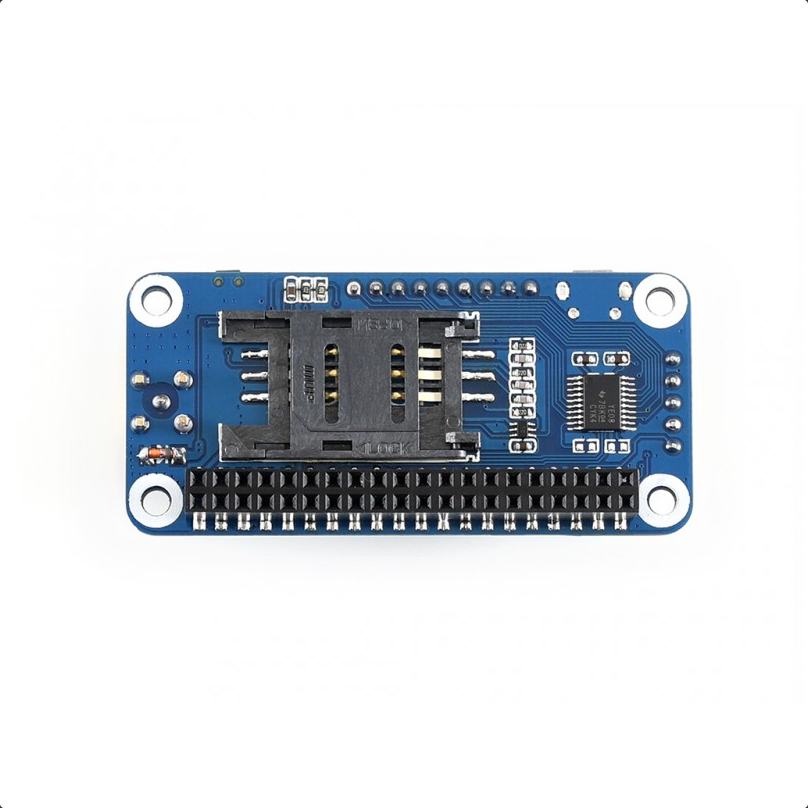

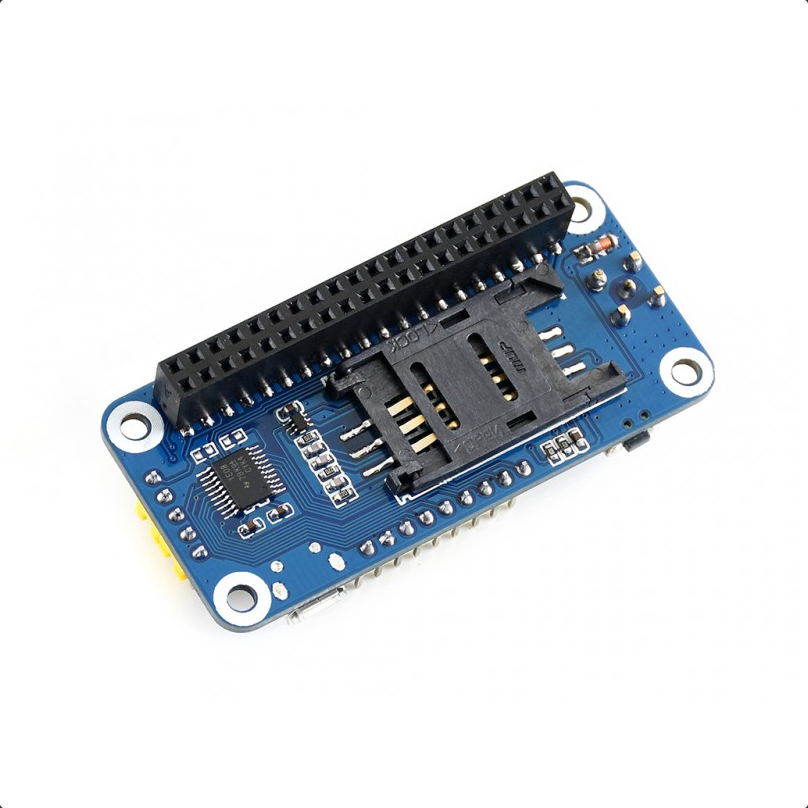

- SIM card slot for 1.8V/3V SIM card
- Autobauding baudrate: 1200bps ~115200bps
- Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands)
- Supports SIM application toolkit: GSM 11.14 Release 99
- Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
Specifications
GSM / GPRS / BLUETOOTH |
Frequency band |
GSM: 850/900/1800/1900 MHz
Quad-band auto search
Compliant to GSM phase 2/2+ |
Emitting power |
Class 4 (2W @ 850/900 MHz)
Class 1 (1W @ 1800/1900 MHz) |
GPRS connectivity |
GPRS multi-slot class 12/10 (default)
GPRS multi-slot class 1~12 (configurable) |
GPRS data feature |
UL/DL data rate: ≤85.6kbps
Supports Packet Broadcast Control Channel (PBCCH)
Coding schemes: CS-1, CS-2, CS-3, CS-4
Supports PAP (Password Authentication Protocol) for PPP connection
Supports Unstructured Supplementary Service Data (USSD) |
SMS |
Supports: MT, MO, CB, Text, PDU
SMS storage: SIM card |
Bluetooth |
Integrates AT commands
Compliant to Bluetooth specification3.0 + EDR
Supports SPP, OPP, HFP/HSP, etc. |
OTHERS |
Power supply |
5V (USB port OR pinheader) |
Logic level |
5V / 3.3V (default) |
Operating temperature |
-40°C ~ 85°C |
Storage temperature |
-45°C ~ 90°C |
Dimensions |
30.2 x 65mm |

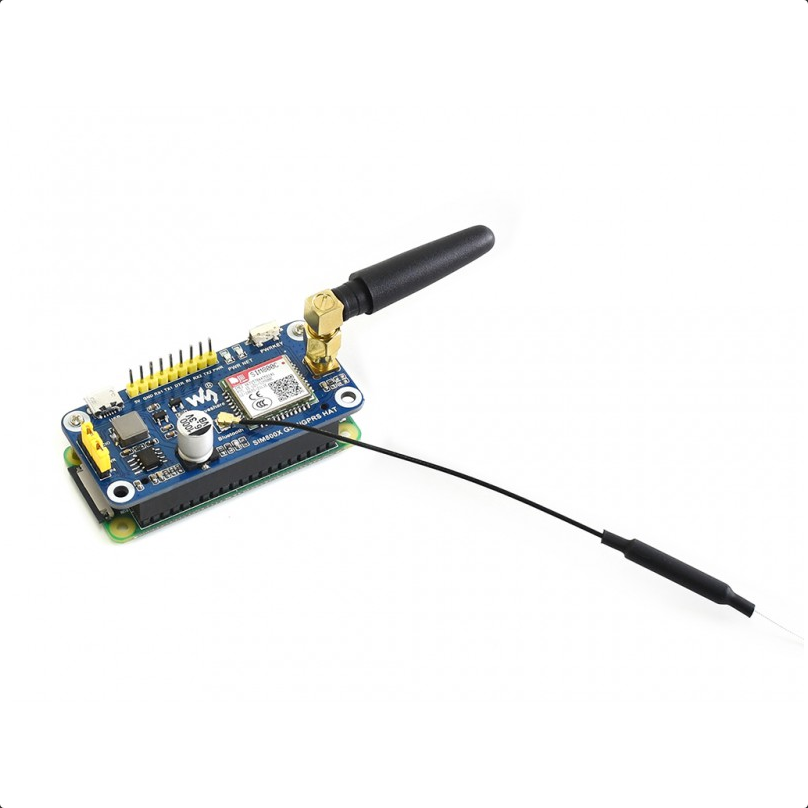

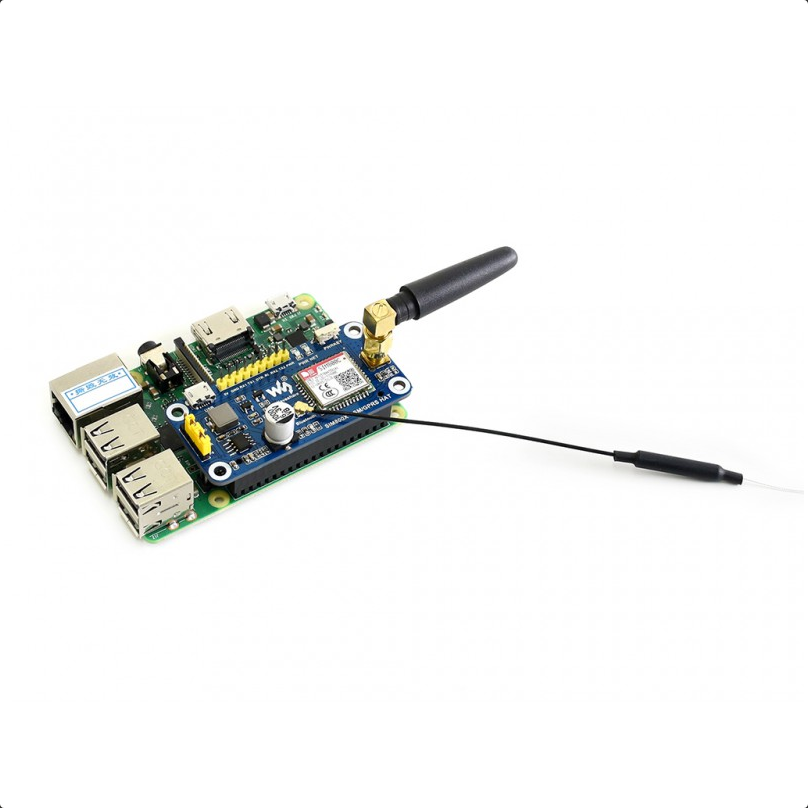

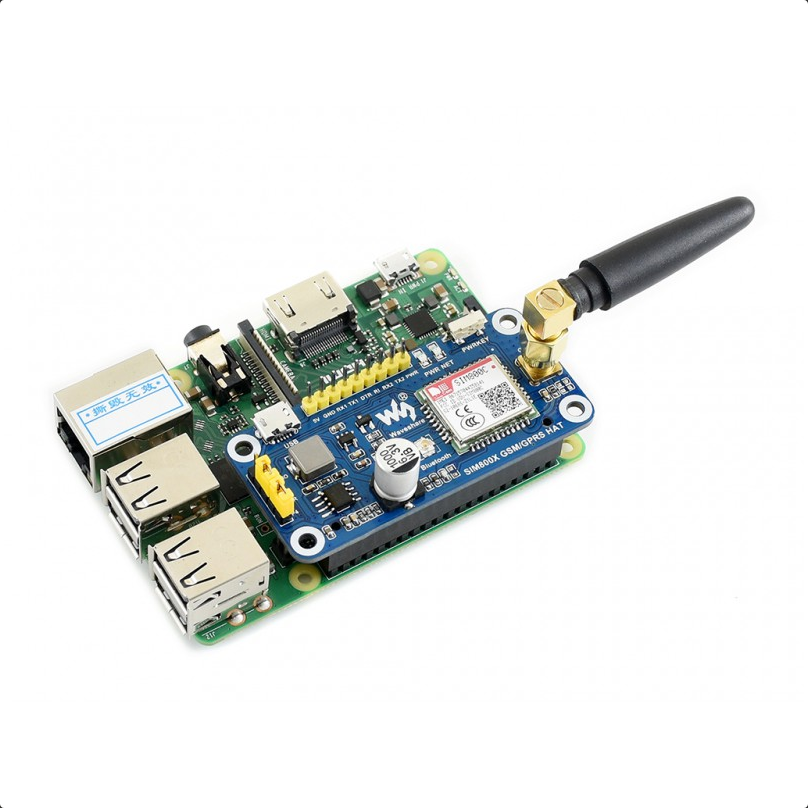

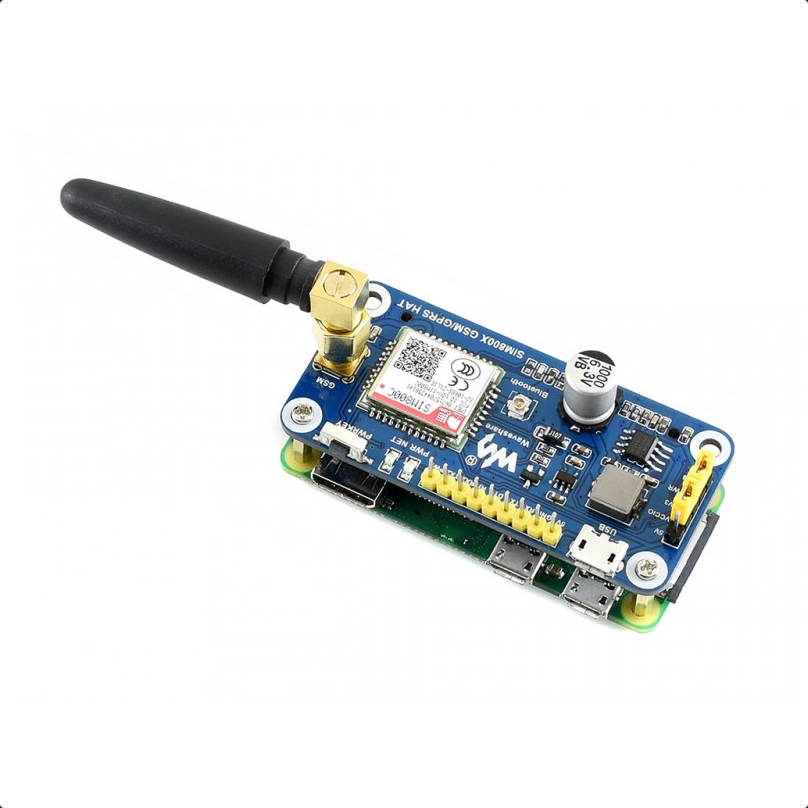

Standard Raspberry Pi 40PIN GPIO Compatible With Raspberry Pi Series Boards, Jetson Nano
SMS & Email Support Supports Sending SMS, Email, Or MMS By AT Commands

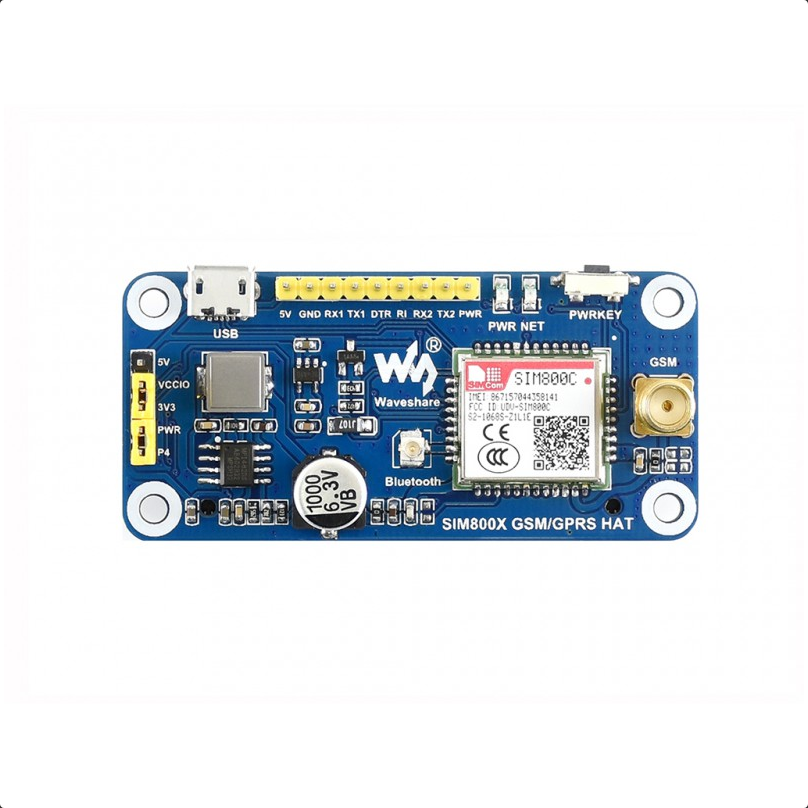

Pinout Definition

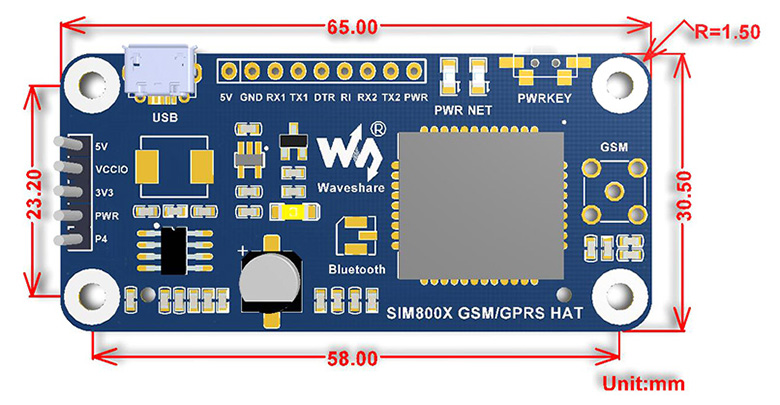

Outline Dimensions
Package Content Weight: 0.076 kg
Note: the Raspberry Pi is NOT included.
- SIM800C GSM/GPRS HAT x1
- GSM Antenna x1
- Bluetooth Antenna x1
- USB type A plug to micro plug cable x1
- RPi screws pack (2pcs) x1
