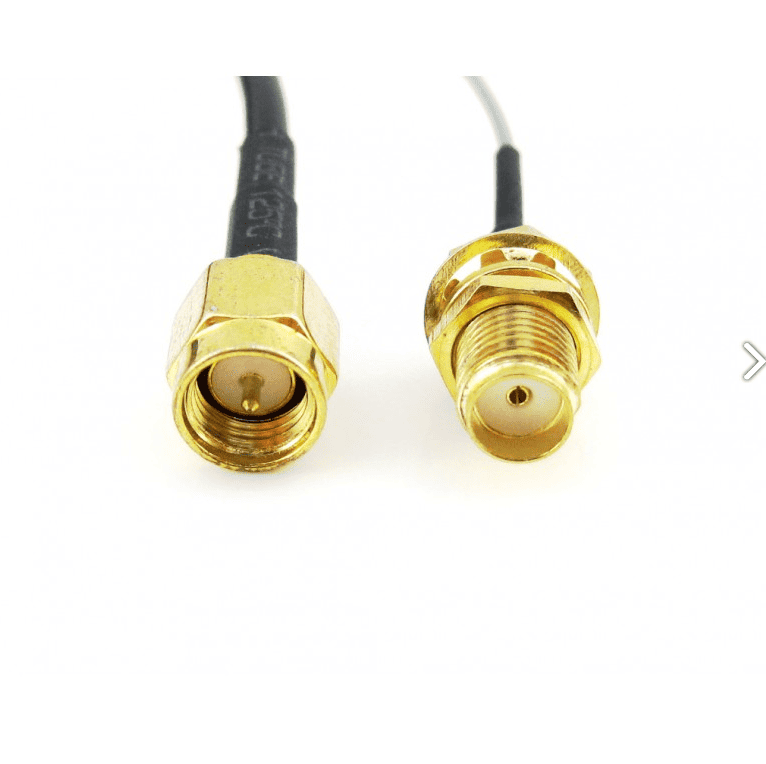

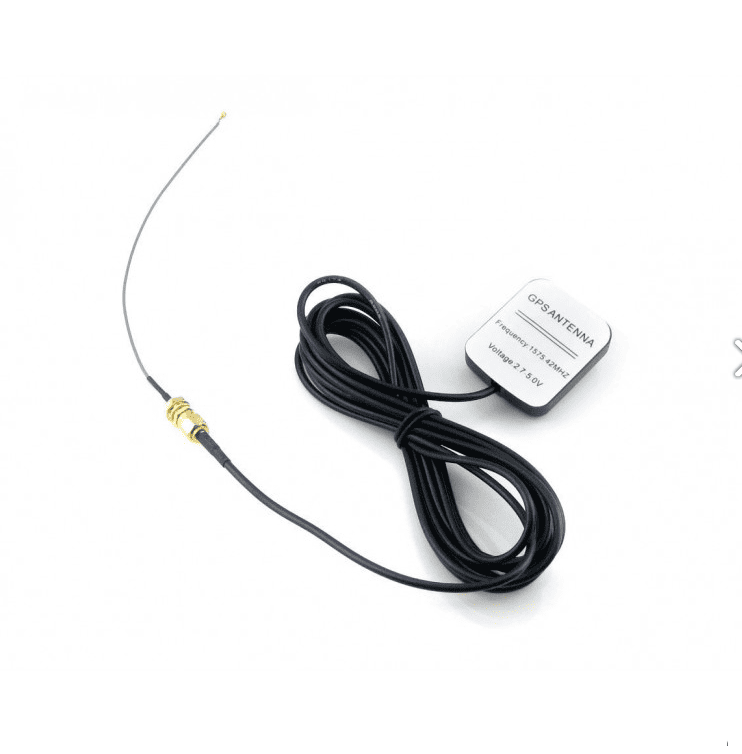

Konektor pigtail (sa slika 3 i 4) ne dolazi sa antenom.
Imamo ih posebno u ponudi tip2
SKU: 8782

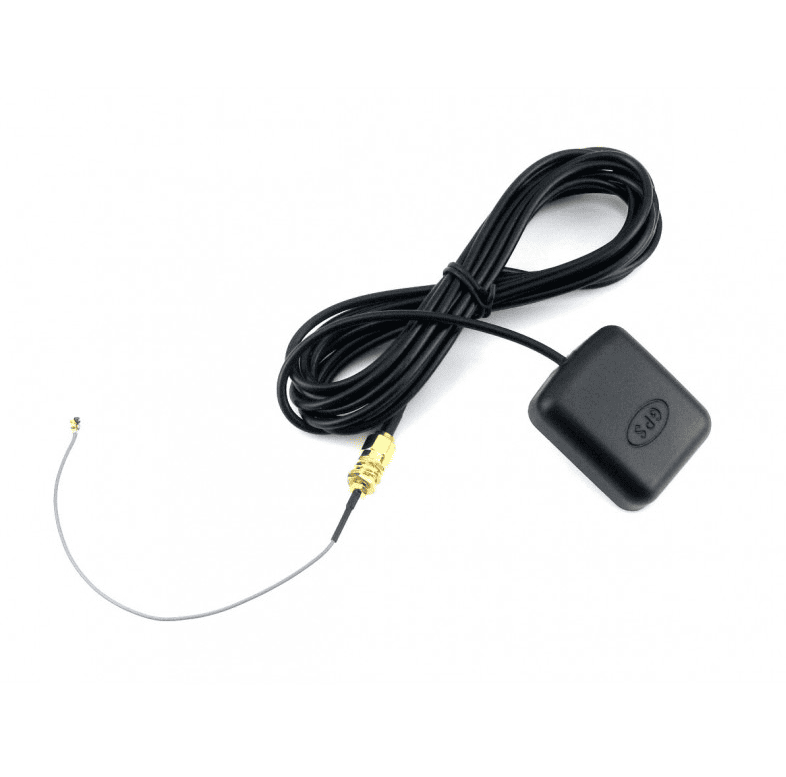

Part Number: GPS External Antenna (A)
Konektor na kablu antene je muški.
GPS External Antenna, Ceramics With Amplifier
Specifications
CERAMICS |
CENTER FREQUENCY |
1575±1MHz |
BAND WIDTH |
CF±8MHz |
POLARIZATION |
RHCP |
GAIN |
5dBic (Zenith) |
V.S.W.R |
＜1.5 |
RESISTANCE |
50Ω |
AXIAL RATIO |
3dB (max) |
DIMENSION |
25*25*4mm |
AMPLIFIER |
GAIN |
28±2dB |
NOISE FACTOR |
＜1.0 |
FILTER INSERTION LOSS |
＜3dB |
EX-BAND ATTENUATION |
35dB@CF±50MHz/50dB@CF±100MHz |
POWER SUPPLY VOLTAGE |
2.7-5V DC |
CURRENT CONSUMPTION |
16mA |
V.S.W.R |
＜2.0 |
MECHANICAL |
TYPE |
GPS active antenna |
CABLE LENGTH |
about 3m |
CABLE MATERIAL |
RG174 96-weave copper with tin coating |
CONNECTOR |
SMA, IPX (via adapter wire) |
RADOME MATERIAL |
PC |
MOUNTING METHOD |
Magnet/Adhesive |
ENVIRONMENTAL |
OPERATING TEMPERATURE |
-40℃~+85℃ |
RELATIVE HUMIDITY |
Up to 95% |
WATERPROOF RATING |
IP65~IP67 |
VIBRATION |
10 to 55Hz with 1.5mm amplitude 2hours |
ENVIRONMENTALLY FRIENDLY |
ROHS compliant |
Applications
- GPS antenna
- Navigator antenna
- Car DVD antenna
- PACKAGE CONTENT
Weight: 0.061 kg
- GPS External Antenna x1
