SKU: 20477
Part Number: Pico-To-HAT
Brand: Waveshare
GPIO expander for Raspberry Pi Pico, 1x Raspberry Pi standard 40PIN, 1x Pico 2×20PIN
HAT-compatible GPIO expander for Pico 1x Raspberry Pi standard 40PIN header for HATs, 1x Pico 2×20PIN header
Features at a glance
- Standard Raspberry Pi Pico female header for direct attaching Raspberry Pi Pico (if male header soldered), or just through jumper wires
- 1x Raspberry Pi standard 40PIN header and 1x Pico 2×20PIN header, allows connecting both Raspberry Pi HATs and Pico expansion boards
- USB power input connector, ensures sufficient power supply for multiple expansion modules
- Breakout RESET button, convenient for debugging
- Clear pinout labels on the front side, easy to use
- Immersion gold process, beautiful & practical, stunning aesthetic looking
Raspberry Pi Pico header compatibility center female pin header for direct attaching the Raspberry Pi Pico
Expansion examples allows connecting sorts of Raspberry Pi expansion modules, more possibilities
Please make sure there are no pin conflicts between the modules you want to use together before connecting. Raspberry Pi Pico and expansion modules are NOT included. Immersion gold process black base panel, white pinout labels, golden rounded outline, stunning aesthetic

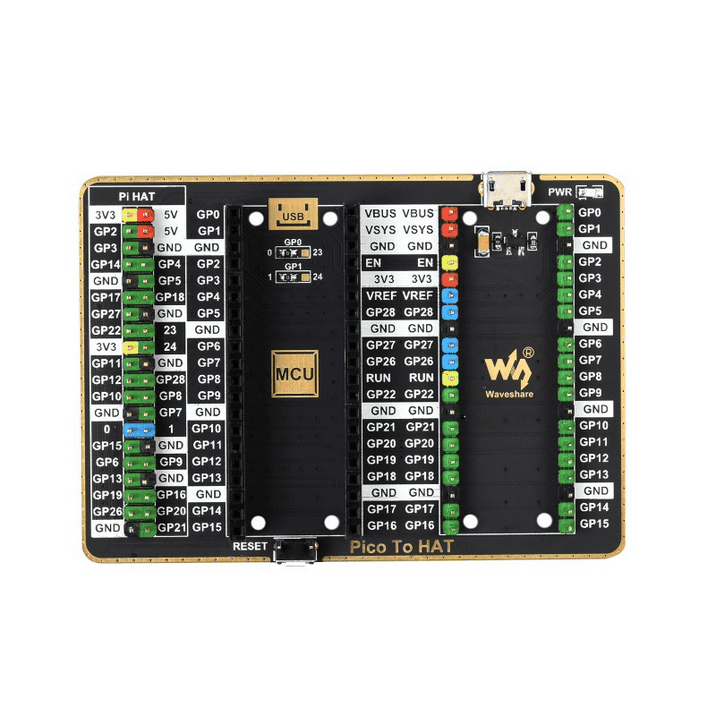

What's On Board
- Raspberry Pi 40PIN GPIO header
for connecting with Raspberry Pi HATs
- Raspberry Pi Pico header
for connecting with Raspberry Pi Pico
- Pin selection
Switch the GP0 and GP1 connect to GPIO0 and GPIO1 or GPIO23 and GPIO24 of the Raspberry Pi 40PIN header via resistors
- Pico reset button
- Raspberry Pi Pico header
for connecting with Pico HATs
- External power input circuit
Power supply via VBUS by default, supports 1.5A
Remove the 0R resistor, supply power to VSYS via the MOS tube, cut off when VBUS has voltage, can support 2.5A
- Micro USB port
for external power supply
- Power indicator
Outline dimensions
Package content: Weight: 0.029 kg
- Pico-To-HAT x1
