Supports Multiple GNSS Such As BD, GPS, Galileo, QZSS, IRNSS, Etc.
| FREQUENCY RANGE | BDS B1I/B1C/B2a GPS L1/L1C/L5C GALILEO E1/E5a QZSS L5 IRNSS S-L5 | PHASE CENTER ERROR | ±2mm |
|---|---|---|---|
| LNA GAIN | 28±2dB | POLARISATION | Right-Hand Circular Polarization |
| GAIN | 2dBi | CONNECTOR | SMA-J |
| VSWR | ≤2.0 | ANTENNA SIZE | 50.0×50.0×19.1mm |
| OUTPUT IMPEDANCE | 50Ω | CABLE | RG174 |
| WORKING CURRENT | ≤20mA | CABLE LENGTH | 3m |
| WORKING VOLTAGE | DC 3.0~18.0V | WORKING TEMPERATURE | -40~85˚C |
| AXIAL RATIO | ≤3.0dB | STORAGE TEMPERATURE | -55~85˚C |
| NOISE FIGURE | ≤2dB | MOUNTING | Magnetic base/Double-sided tape |

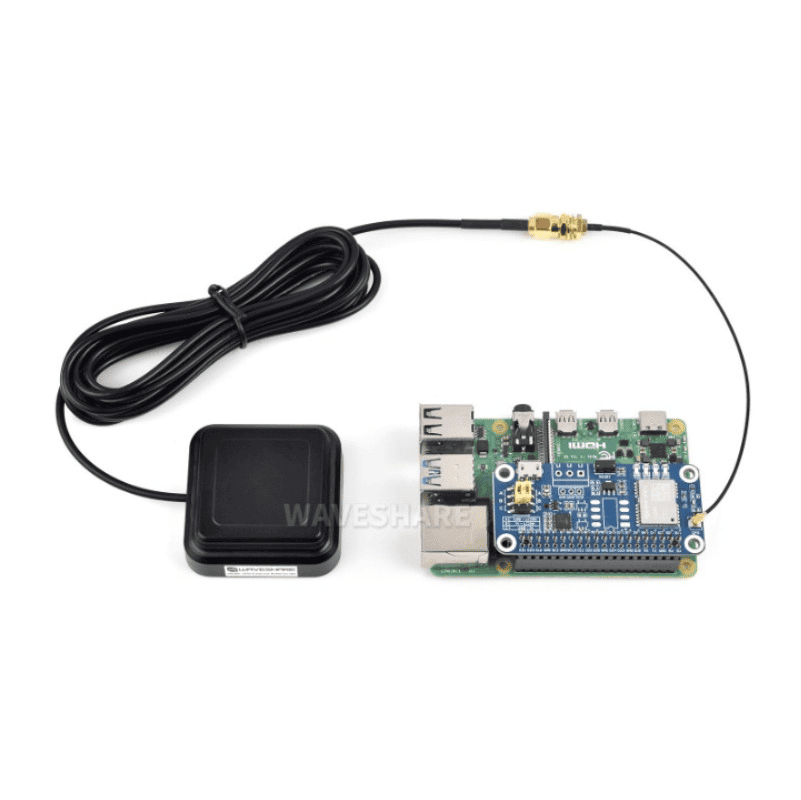

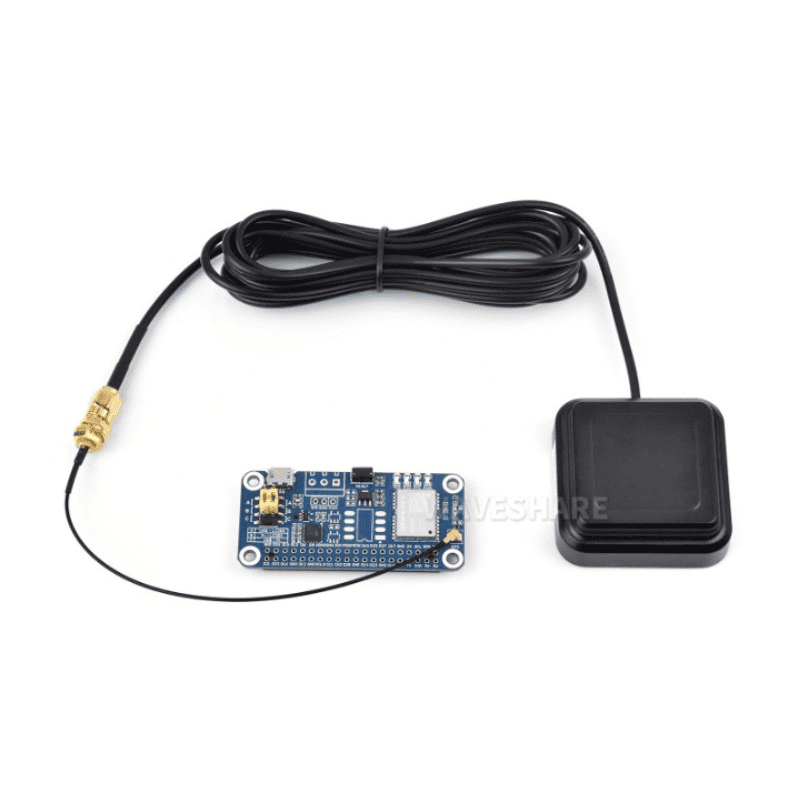

* for reference only, the Raspberry Pi board and GPS HAT are NOT included
Note: supports mass customization for cable length and antenna connector
| Masa po jedinici mere: | 0.139 Kg / Kom |
| Kategorija: | mrežna oprema |
| Brend: | Waveshare |
| Naziv: | GPS External Antenna (D) |
| Šifra: | w25346 |
| Uvoznik: | MALINA 314 doo, Beograd |
| Telefon: | 061-640-2013 |
