SKU: 24095
Part Number: GNSS Ceramic Antenna
Korisne informacije:
IPEX1 konektor GNSS Active Ceramic Positioning Antenna
Supports Multiple Satellite Positioning Systems Such As BD, GPS, GLONASS
Specifications
CENTER FREQUENCY |
1575.42±2MHz /
1561±2MHz /
1602.56±2MHz |
OUTPUT IMPEDANCE |
50Ω |
GAIN |
21dBi±2 |
CONNECTOR |
IPEX 1 |
CABLE LENGTH |
~ 35mm |
CERAMIC DIMENSION |
25 × 25mm |
CURRENT CONSUMPTION |
<10mA |
POLARIZATION |
R.H.C.P |
POWER SUPPLY |
DC 3.3 ~ 5.0V |
NOISE FIGURE |
≤1.5dB |
AXIAL RATIO |
3dB |
INPUT POWER (MAX) |
50W |
RADIATION DIRECTION |
Omni-directional |
OPERATING TEMP. |
-20 ~ +65˚C |
GNSS Antenna Connection Examples
Connect to L76K GPS Module

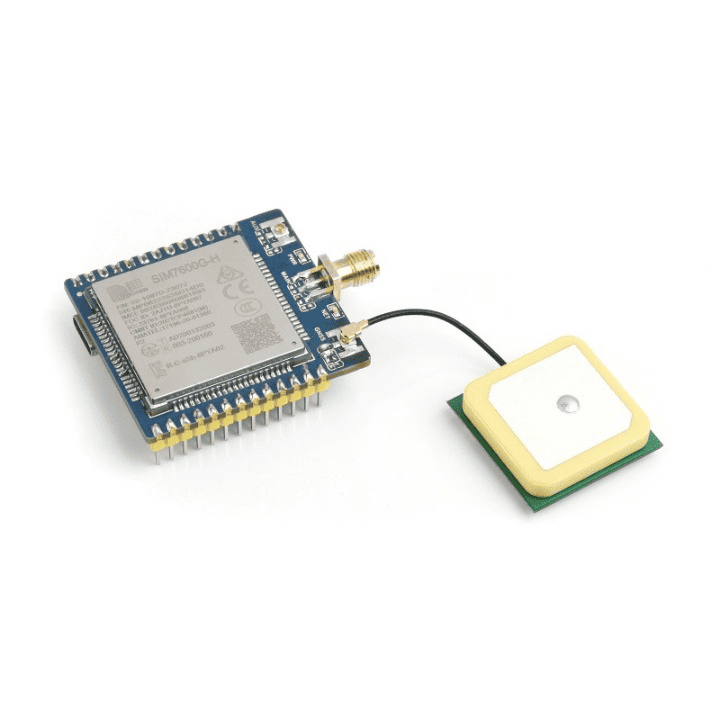

Connect to SIM7600G-H 4G Module for reference only, please refer to the part list for detailed package content

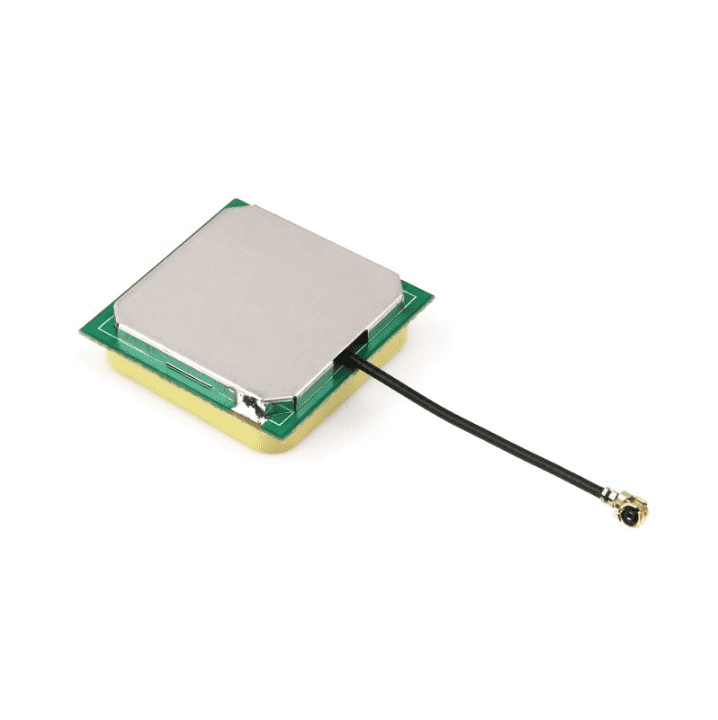

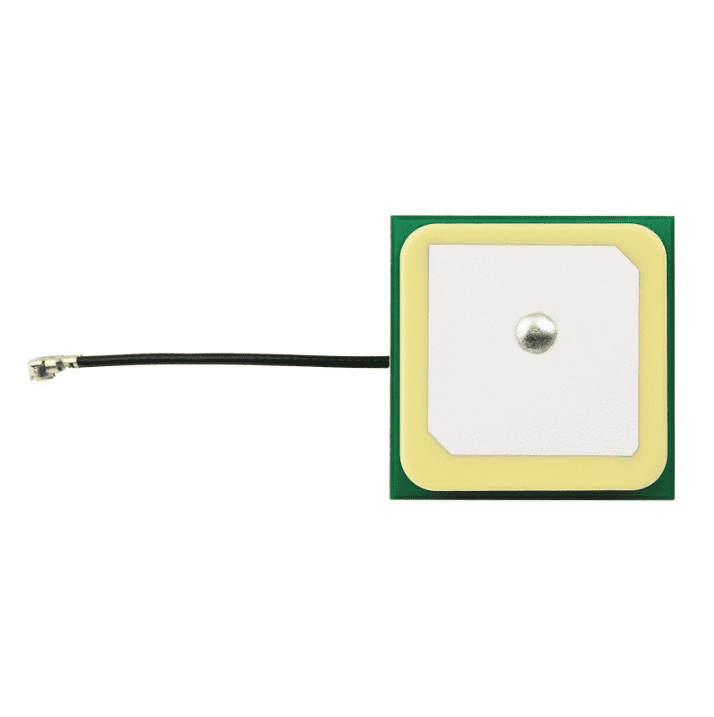

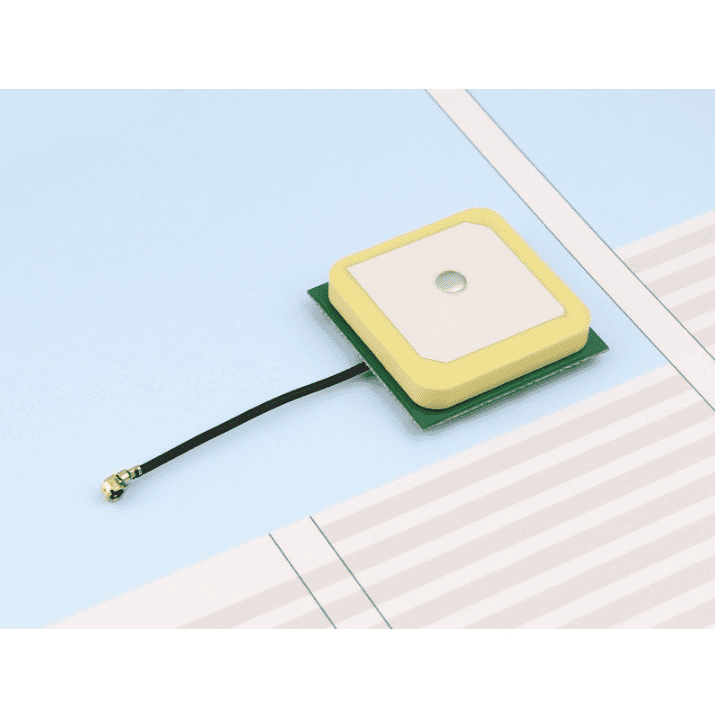

Product Show
Outline Dimensions
Note: supports mass customization for cable length and antenna connector
-
PACKAGE CONTENT
Weight: 0.013 kg
- GNSS Ceramic Antenna x1
