Konektori, žice, protobord SKU: 27070
Part Number: ESP32-S3-Tiny-Kit
Brand: Waveshare
Korisne informacije:
www.waveshare.com/wiki/ESP32-S3-Tiny Features
- Adopts ESP32-S3FH4R2 chip with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency.
- Built-in 512KB of SRAM, 384KB ROM, 16 KB RTC SRAM, 2MB PSRAM and 4MB Flash memory.
- Integrated 2.4GHz Wi-Fi and low energy Bluetooth(Bluetooth LE) dual-mode wireless communication, with superior RF performance.
- Uses USB Type-C interface, no need to tangle the front and rear connectors.
- 34 × multi-function GPIO pins.
- Rich peripheral interfaces, achieving various functions flexibly.
- Supports multiple low-power operating states, adjustable balance between communication rate and power consumption to meet the power requirements of various application scenarios.
ESP32-S3 Mini Development Board, Based On ESP32-S3FH4R2 Dual-Core Processor, 240MHz Running Frequency, USB Port Adapter
ESP32-S3-Tiny Development Board
Based on ESP32-S3FH4R2, USB Port Adapter
Board Specifications
- Adopts ESP32-S3FH4R2 chip with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
- Built in 512KB of SRAM and 384KB ROM, onboard 2MB PSRAM and 4MB Flash memory
- Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance
- Onboard FPC 8PIN connector, supports adapting USB Type-C port via adapter board
- 34 × multi-function GPIO pins
- Rich peripheral interfaces, including SPI, I2C, UART, ADC, and PWM, etc. to achieve various functions flexibly
- Supports multiple low-power operating states, adjustable balance between communication distance, data rate and power consumption to meet the power requirements of various application scenarios

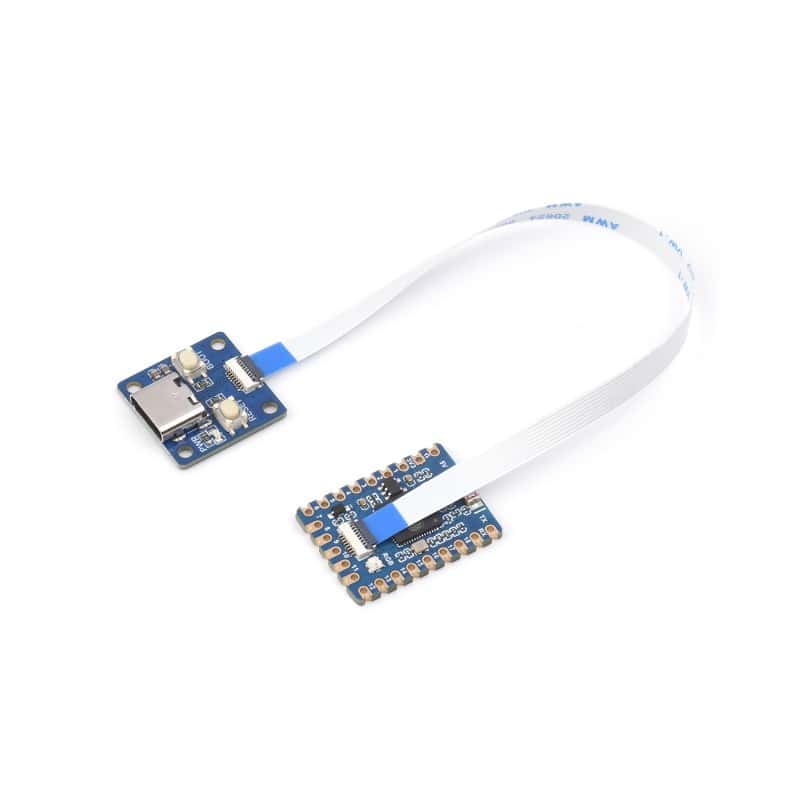

ESP32-S3-Tiny-Kit Development board + Adapter board + FPC cable
Designed For AIoT Applications
Powered By Xtensa 32-Bit LX7 Dual-Core Processor With Frequency Up To 240 MHz. Powerful AI Computing Capability & Reliable Security Features
WIFI And BLE 5 Support
ESP32-S3 Integrates 2.4 GHz Wi-Fi (802.11 B/G/N) With 40 MHz Of Bandwidth Support. Its Bluetooth Low Energy Subsystem Supports Bluetooth 5 (LE) And Bluetooth Mesh
Multi-Platform Support
Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started
Compact Size, Separate Adapter Board Design

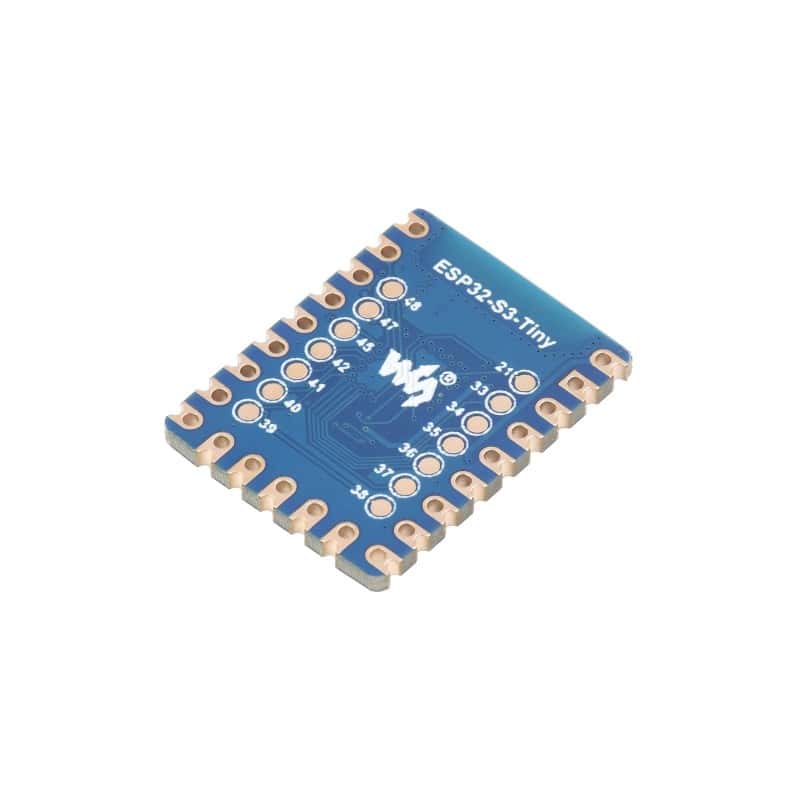

Castellated Holes With Immersion Gold Design, Highly Integrated Packaging, Easy To Embed Into Various Product Applications

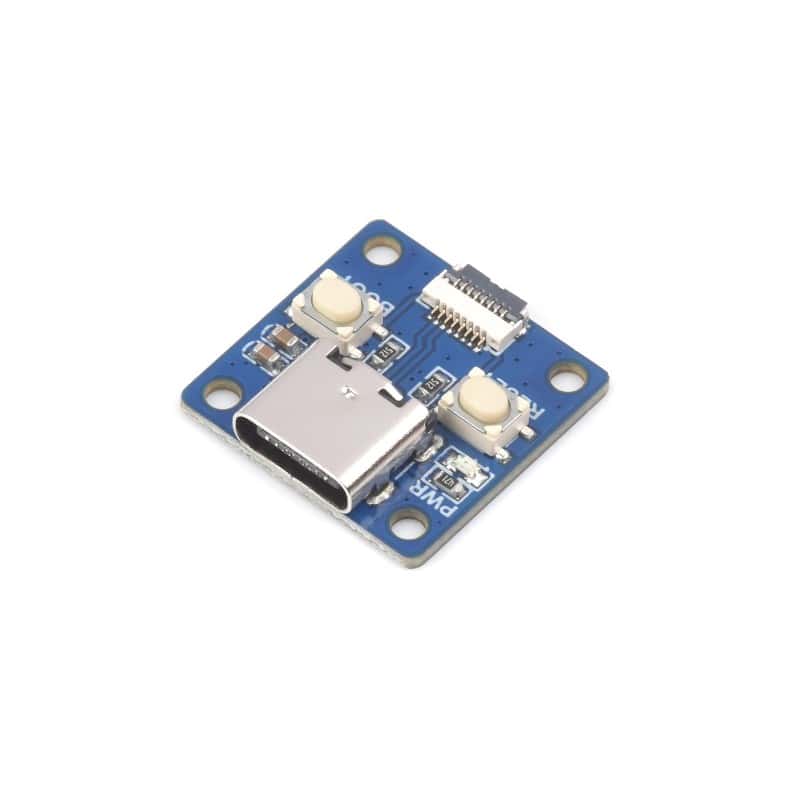

Adapting USB Type-C Port Via Adapter Board (Available In ESP32-S3-Tiny-Kit Version)
34 X Multi-Function GPIO Pins
Configurable Pin Function, Allows Flexible Development And Integration

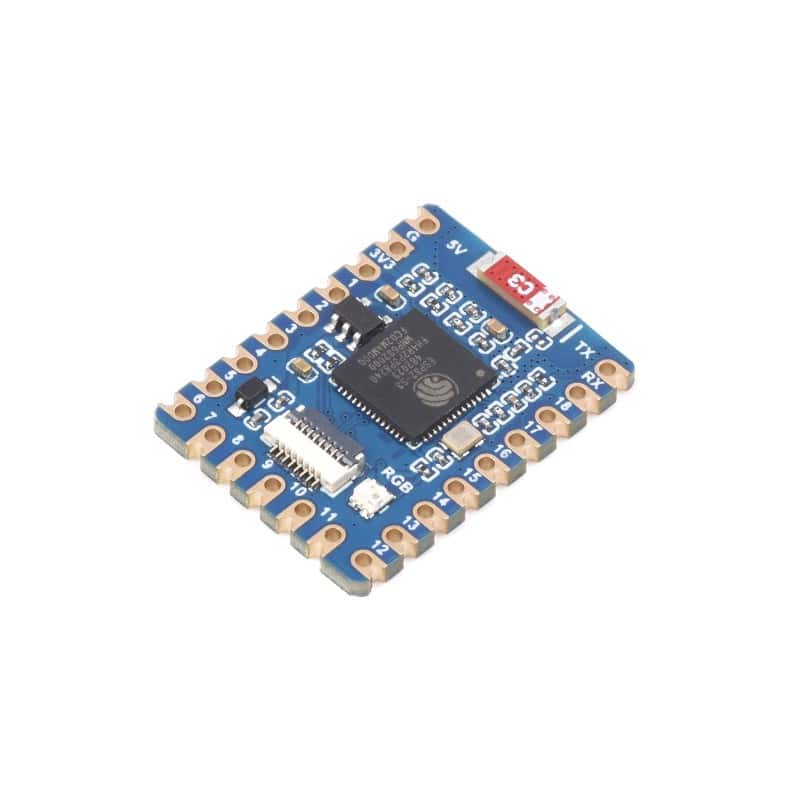

What's On Board
- ESP32-S3
dual-core processor, up to 240MHz operating frequency
- ME6217C33M5G
low dropout LDO, 800mA (Max)
- FPC connector
0.5mm pitch 8PIN
- WS2812 RGB LED
- GPIO pins
- USB Type-C Port
- Power indicator
- RESET button
- BOOT button
Outline Dimensions
Sadržaj pakovanja:
Weight: 0.003 kg
ESP32-S3-Tiny-Kit
ESP32-S3-Tiny with adapter board + FPC cable x1
