SKU: 27119
Part Number: ESP32-S3-Matrix
Brand: Waveshare
Korisne informacije:
www.waveshare.com/wiki/ESP32-S3-Matrix ESP32-S3-Matrix Development Board, Onboard 8×8 RGB LED Matrix And QMI8658C Attitude Sensor, Supports Wi-Fi And Bluetooth LE, ESP32 Development Board
ESP32-S3 RGB LED Matrix Board
Based on ESP32-S3, 17 × multi-function GPIO pins
240 MHz Xtensa 32-Bit LX7 Dual-Core Processor
Board Specifications
- Adopts ESP32-S3FH4R2 chip with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz
- Integrated 512KB SRAM, 384KB ROM, 2MB PSRAM, 4MB Flash memory
- Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance.
- Type-C connector, easier to use
- Onboard QMI8658C attitude sensor
- Onboard 8 × 8 RGB LED matrix for colorful lighting display
- Adapting Dout pin for extending RGB matrix
- 17 × multi-function GPIO pins
- Rich peripheral interfaces for achieving various functions flexibly
- Supports multiple low-power operating states, adjustable balance between communication distance, data rate and power consumption to meet the power requirements of various application scenarios
QMI8658C Gyroscope Sensor
Onboard QST Attitude Sensor To Realize Accurate Attitude Tracking And Motion Control

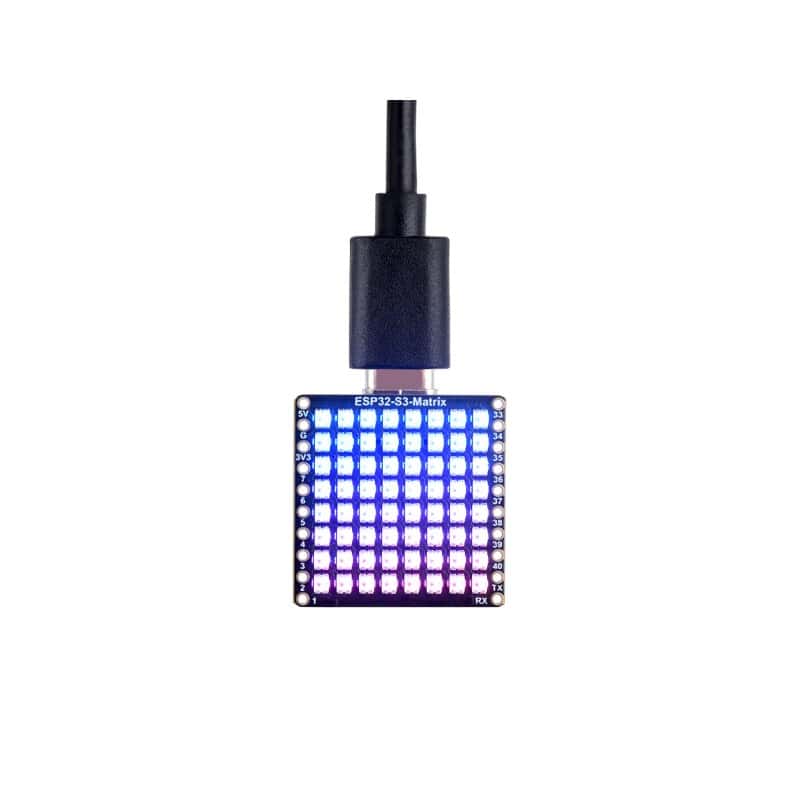

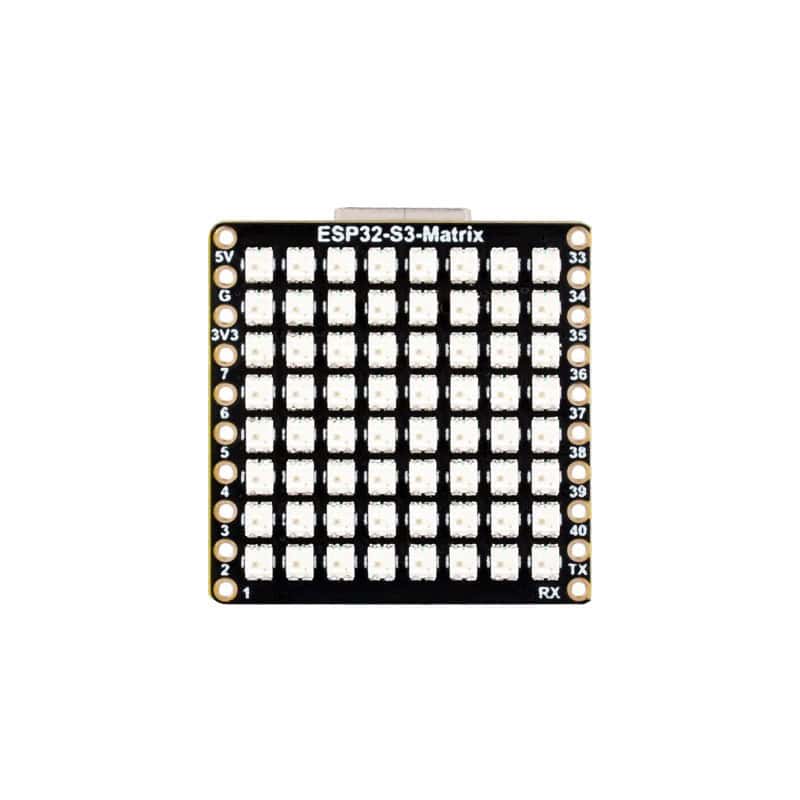

Onboard 8×8 RGB LED Matrix
For Colorful Lighting Display
Designed For AIoT Applications
Powered By Xtensa 32-Bit LX7 Dual-Core Processor With Frequency Up To 240 MHz
Powerful AI Computing Capability & Reliable Security Features
WIFI And BLE 5 Support
ESP32-S3 Integrates 2.4 GHz Wi-Fi (802.11 B/G/N) With 40 MHz Of Bandwidth Support
Its Bluetooth Low Energy Subsystem Supports Bluetooth 5 (LE) And Bluetooth Mesh
Supports ESP-IDF, Arduino, MicroPython
Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started
17 × Multi-Function GPIO Pins
Configurable Pin Function, Allows Flexible Development And Integration

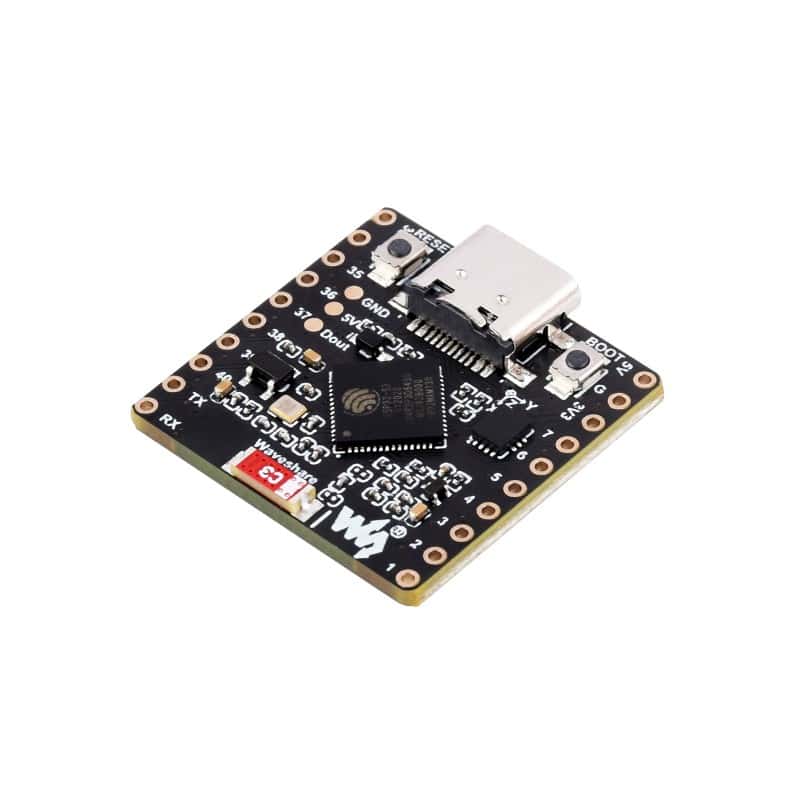

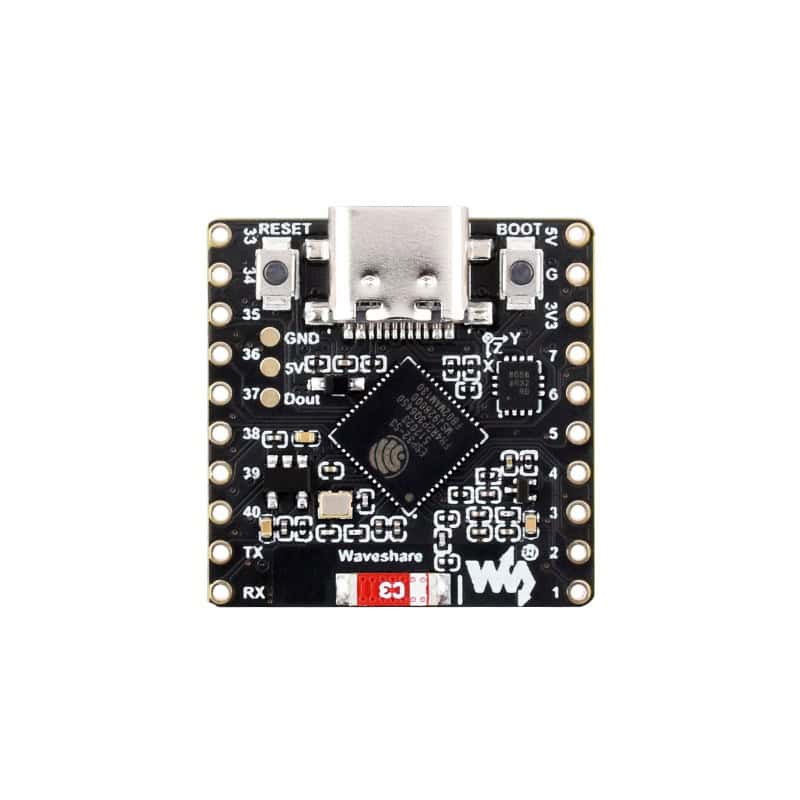

What's On Board
- USB Type-C connector
- 8×8 RGB LED Matrix
- BOOT button
press it when resetting to enter download mode
- RESET button
- ME6217C33M5G
Low dropout LDO, 800mA (Max)
- QMI8658C
QST attitude sensor (3-axis accelerometer, 3-axis gyroscope)
- ESP32-S3
dual-core processor, up to 240MHz operating frequency
- Dout pin
for extending RGB matrix
Outline Dimensions
Package content:
Weight: 0.003 kg
ESP32-S3-Matrix x1
