Part Number: ESP32-S3-LCD-1.28
Brand: Waveshare
Korisne informacije: http://www.waveshare.com/wiki/ESP32-S3-LCD-1.28 ESP32-S3-LCD-1.28
ESP32-S3 Development Board, 32-Bit LX7 Dual-Core Processor, Integrates GC9A01 Display Driver Chip, With 1.28inch IPS Round LCD, 240×240 Resolution, Supports WiFi/Bluetooth
Embedded GC9A01 Display Driver Chip
Posetite
Wiki zbog pomoći oko načina povezivanja, instalacije, primera i drugih korisnih informacija pre kupovine
* for reference only, please refer to the actual effect
█ Overview
ESP32-S3-LCD-1.28 is a low-cost, high-performance MCU board designed by Waveshare, tiny size, with onboard 1.28inch LCD display, Li-ion battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), and so on, which makes it easy for you to develop and integrate it into products quickly.
Key features include:
- Equipped with Xtensa® 32-bit LX7 dual-core processor, up to 240MHz main frequency
- Supports 2.4GHz Wi-Fi (802.11 b/g
) and Bluetooth® 5 (BLE), with onboard antenna
- Built in 512KB of SRAM and 384KB ROM, with onboard 2MB PSRAM and an external 16MB Flash memory
- Type-C connector, keeps it up to date, easier to use

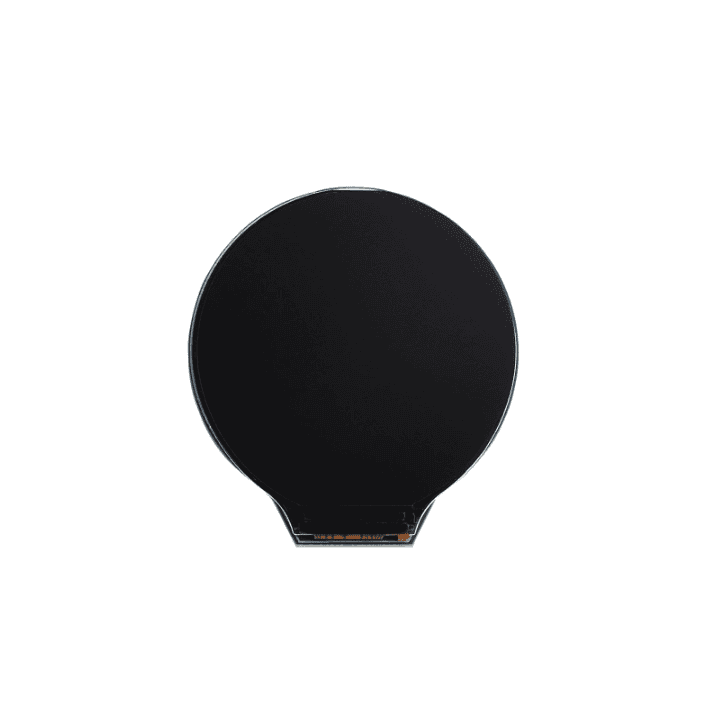

- Onboard 1.28inch LCD display, round IPS panel, 240×240 resolution, 65K color
- Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture
- Onboard 3.7V lithium battery recharge/discharge header and GPIO headers
- Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
- Integrated with USB serial port full-speed controller, GPIO pins allow flexibly configuring pin functions
█ Features At A Glance

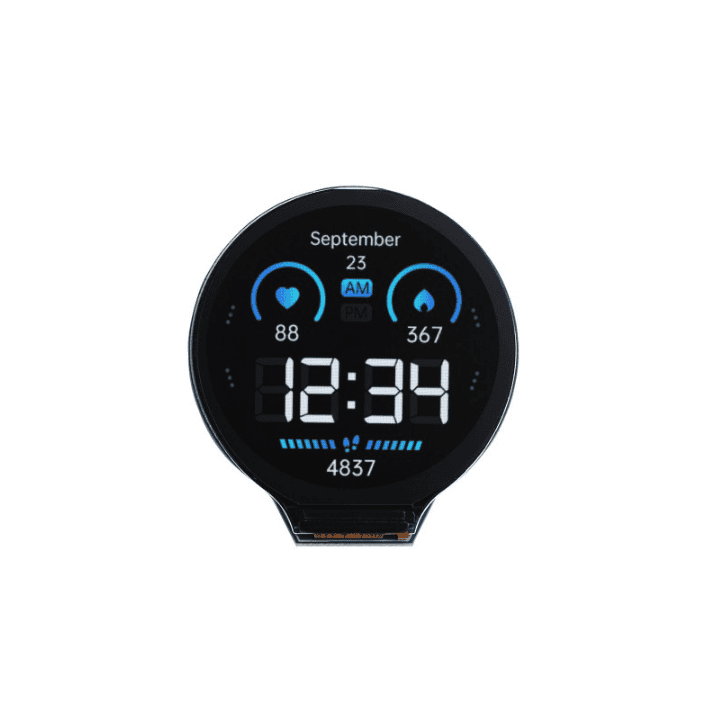

Onboard 1.28inch LCD Screen
Round IPS Panel, 240×240 Resolution, 65K Color
30 × Multi-Function GPIO Pins
Configurable Pin Function, Allows Flexible Development And Integration

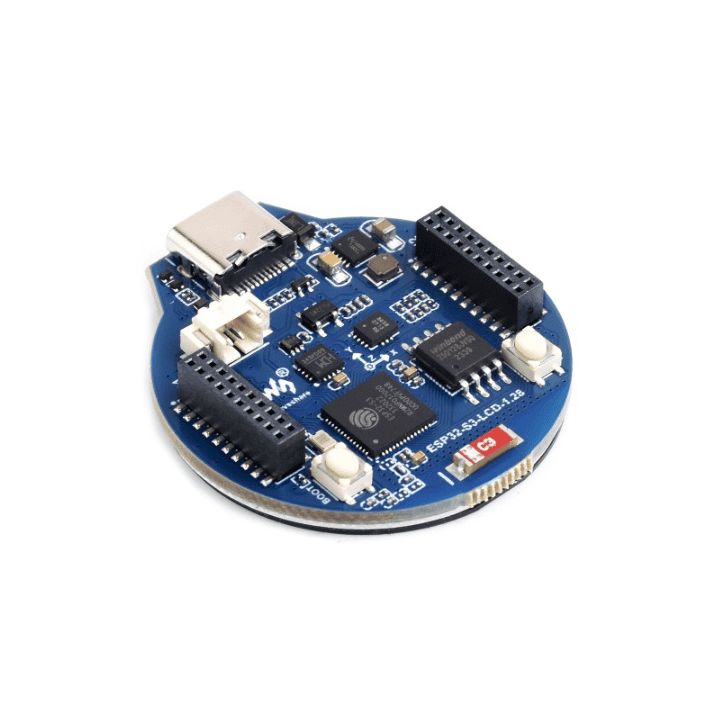

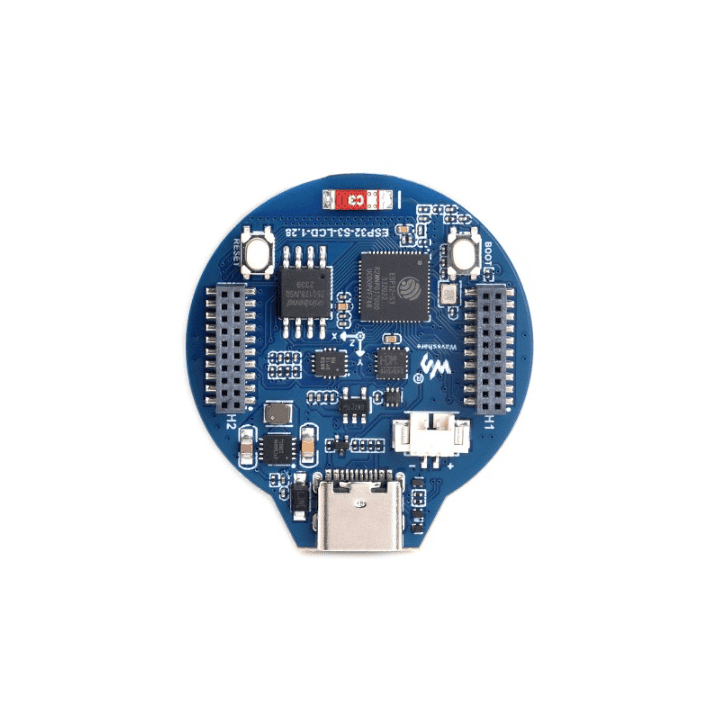

█ What's On Board
- ESP32-S3R2
The SoC with WiFi and Bluetooth, up to 240MHz operating frequency, with onboard 2MB PSRAM
- W25Q128JVSIQ
16MB NOR-Flash
- QMI8658
6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer.
- ME6217C33M5G
800mA output, low dropout, high rejection rate
- CH343P
USB to UART chip
- ETA6096
high-efficiency Lithium battery recharge manager
- 1.27mm pitch headers
Adapting multiple GPIO pins
- BOOT button
Press it before resetting to enter download mode
- RESET button
- MX1.25 battery header
MX1.25 2P connector, for 3.7V Lithium battery, supports charging and discharging
- USB Type-C connector
USB to UART, for programming and log printing
- 2.4GHz ceramic antenna
█ Outline Dimensions
-
█ Package Content
- 1. ESP32-S3-LCD-1.28 x1
Weight: 0.009 kg
