Konektori, žice, protobord SKU: 26745
Part Number: ESP32-S3-Nano
Brand: Waveshare
Korisne informacije:
www.waveshare.com/wiki/ESP32-S3-Nano ESP32-S3-Nano Development Board, Based On ESP32-S3R8, Compatible With Arduino Nano ESP32

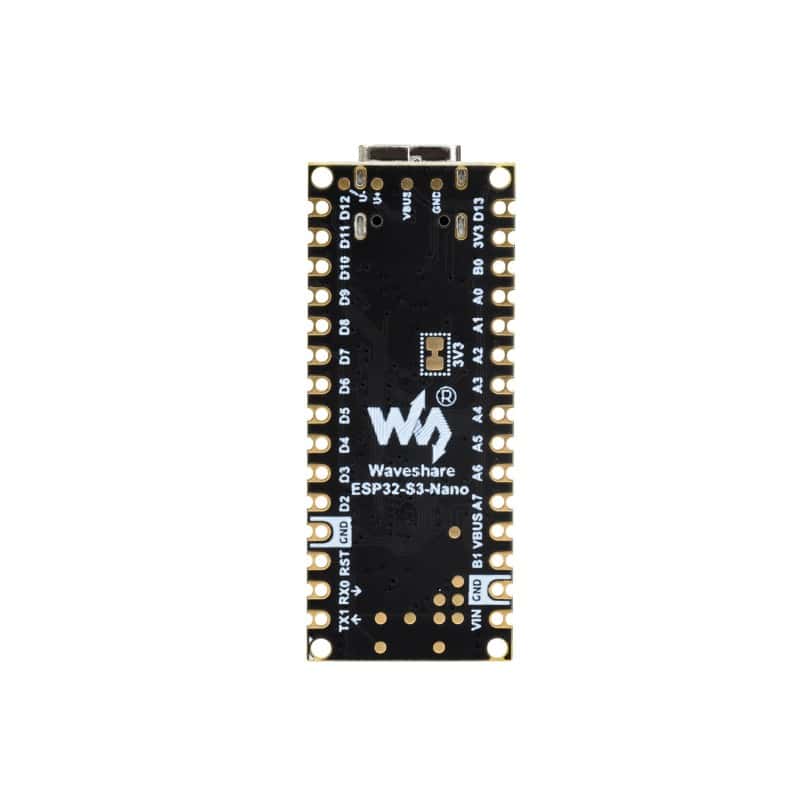

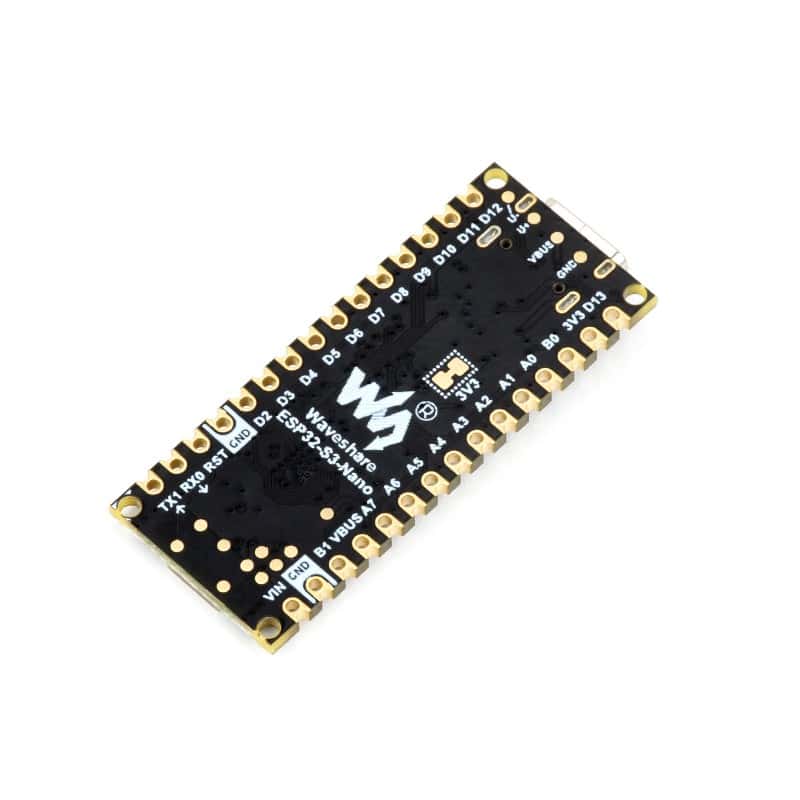

ESP32-S3-Nano Development Board
Enhanced Version Of Arduino Nano ESP32
Based On ESP32-S3R8, Compatible With Arduino Nano ESP32
Version Options
ESP32-S3-Nano Board Specifications
The
ESP32-S3-Nano adopts
ESP32-S3R8 chip and is compatible with Arduino Nano ESP32. It is compact in size and powerful, suitable for applications such as IoT and MicroPython, and easy to integrate into your projects.
- Adopts ESP32-S3R8 chip with Xtensa® 32-bit LX7 dual-core processor, capable of running at 240 MHz
- Integrated 512KB SRAM, 384KB ROM, 8MB PSRAM, 16MB Flash memory
- Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance
- Supports seamlessly switching between Arduino and MicroPython programming, more flexible usage
- Compatible with Arduino IoT Cloud, allows monitoring and controlling your project from anywhere by using the Arduino IoT Cloud app
- Supports HID, emulating Human Interface Devices such as keyboards or mice via USB port for easier interaction with PC

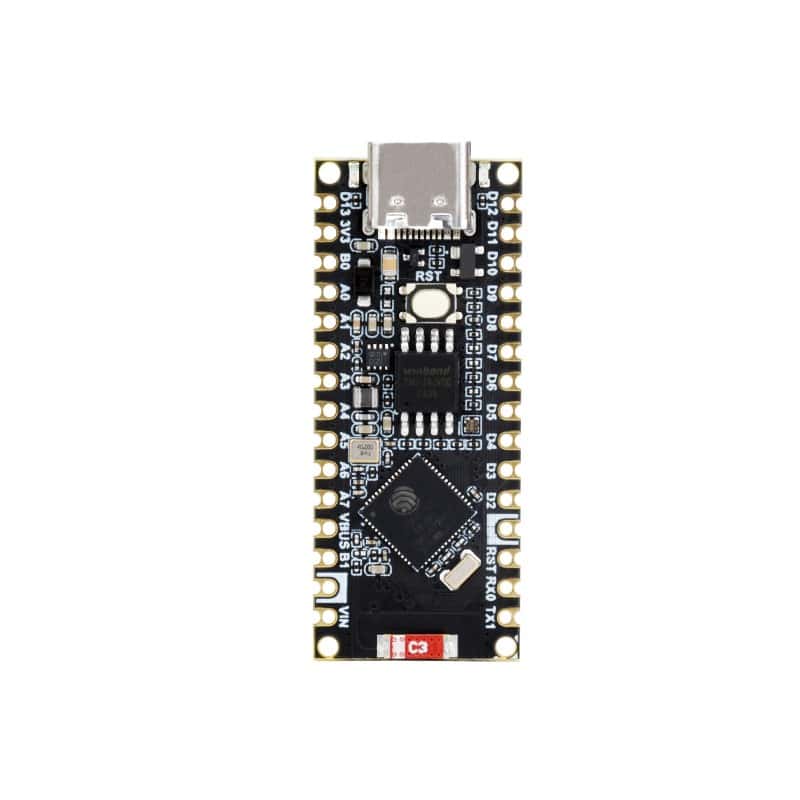

What's On Board
- ESP32-S3R8 dual-core processor
up to 240 MHz running frequency
- W25Q128JVSIQ
16MB Flash, for program and data storage
- MP2322GQH
3.3V voltage regulator
- 2.4G ceramic antenna
- USB Type-C connector
for downloading program and serial port debugging
- RST button
for resetting ESP32-S3R8
- Arduino Nano interface
compatible with Arduino interface, adapting 2.54 pitch solder pad, can be directly connected to experimental board
- RGB indicator
blinks and then turns off during power on or reset, supports programmable control after the board has booted up normally
- Power indicator
- User LED
Pinout Definition
Outline Dimensions
PACKAGE CONTENT
- ESP32-S3-Nano x1
- 40PIN male pinheader(black) x2
