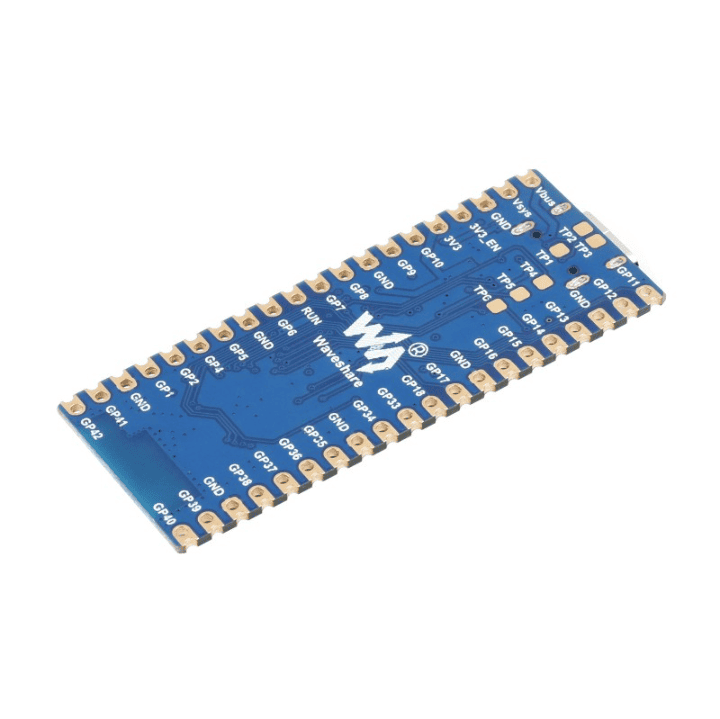

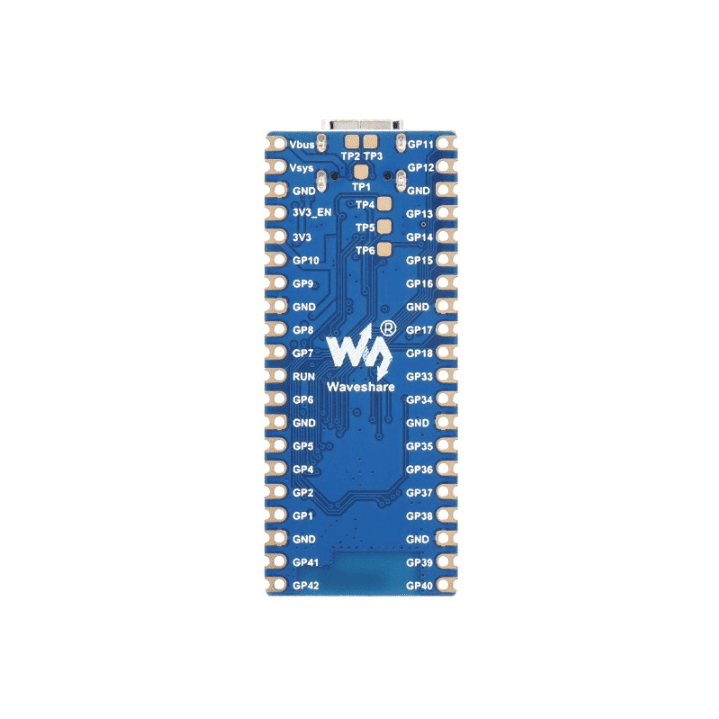

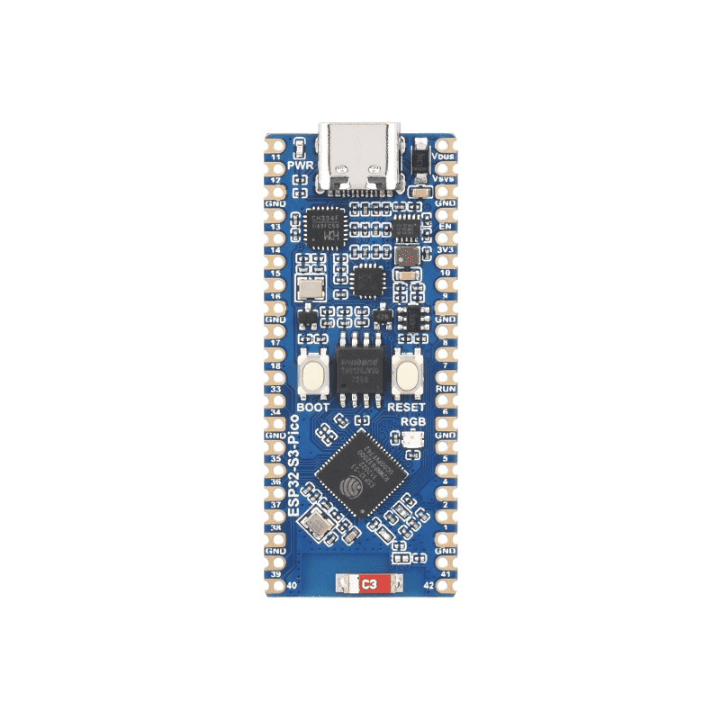

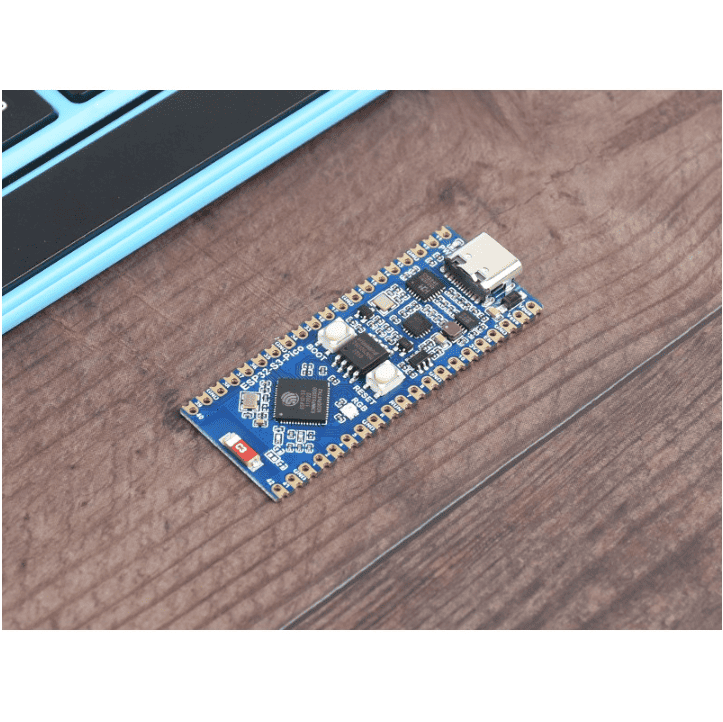

ESP32-S3-Pico

Šifra: w23803

1.290,00 RSD

Cena sa PDV

Lista želja ?

Unesi količinu Odmah dostupno više od 5

Dodaj u korpu

Kategorija: mikro kontroler
Težina po komadu: 0.005 Kg

Konektori, žice, protobord

U ponudi je model bez zalemljenih pinova

Korisne informacije: http://www.waveshare.com/wiki/ESP32-S3-Pico

SKU: 23803
Part Number: ESP32-S3-Pico
Brand: Waveshare

ESP32-S3 Microcontroller Wi-Fi Development Board

Supports Development Environments Such As ESP-IDF, Arduino, MicroPython,Etc

240 MHz Xtensa 32-bit LX7 Dual-core Processor

Board Specifications

The ESP32-S3-Pico is a compact-size microcontroller development board with multiple digital interfaces.

Adopts ESP32-S3R2 as the main chip, which is equipped with a dual-core Xtensa 32-bit LX7 processor with 240MHz running frequency, with built-in 512 KB SRAM (TCM) and 2MB PSRAM; Onboard CH343 and CH334 chips for USB and UART development via USB-C port; Onboard MP28164 high efficiency DC-DC buck-boost chip with load current up to 2A, ensuring the safety of the product.

You can choose ESP-IDF, Arduino, MicroPython, or other development environments in software so that you can easily and quickly get started and apply it to the product.

Key features include:

Adopts ESP32-S3R2 chip with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz

Integrated 512KB SRAM, 384KB ROM, 2MB PSRAM, 16MB Flash memory

Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance.

Type-C connector, easier to use

Onboard CH343 and CH334 chips can meet the needs of USB and UART development via a Type-C interface

Onboard DC-DC chip MP28164, high efficiency DC-DC buck-boost chip with load current up to 2A

27 × multi-function GPIO pins

Rich peripheral interfaces, including full-speed USB OTG, SPI, I2C, UART, ADC, PWM and DVP (8-bit ~ 16-bit camera interface), LCD interfaces (8-bit ~ 16-bit parallel RGB, I8080, MOTO6800), etc. to achieve various functions flexibly

Castellated module allows soldering directly to carrier boards

Supports multiple low-power operating states, adjustable balance between communication distance, data rate and power consumption to meet the power requirements of various application scenarios

Supports Raspberry Pi Pico expansion board ecology, suitable for artificial intelligence IoT application development

Supports ESP-IDF, Arduino, MicroPython

Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

ESP32-S3 Designed For AIoT Applications

Powered By Xtensa 32-Bit LX7 Dual-Core Processor With Frequency Up To 240 MHz
Powerful AI Computing Capability & Reliable Security Features

WIFI And BLE 5 Support

ESP32-S3 Integrates 2.4 GHz Wi-Fi (802.11 B/G/N) With 40 MHz Of Bandwidth Support
Its Bluetooth Low Energy Subsystem Supports Bluetooth 5 (LE) And Bluetooth Mesh
