Konektori, žice, protobord SKU: 24363
Part Number: ESP32-S3-DEV-KIT-N8R8
Brand: Waveshare
Korisne informacije:
www.waveshare.com/wiki/ESP32-S3-DEV-KIT-N8R8 ESP32-S3 Microcontroller, 2.4GHz Wi-Fi Development Board, 240MHz Dual Core Processor, ESP32-S3-WROOM-1-N8R8 Module
ESP32-S3 Microcontroller Wi-Fi Development Board
Supports Development Environments Such As ESP-IDF, Arduino, MicroPython,Etc

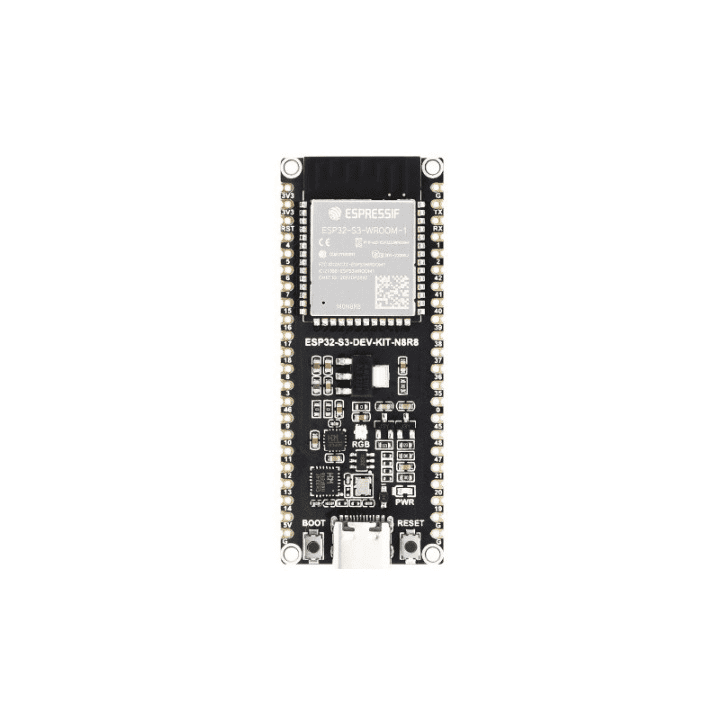

Onboard ESP32-S3-WROOM-1-N8R8 module
Board Specifications
The
ESP32-S3-DEV-KIT-N8R8 is a compact-size microcontroller development board with multiple digital interfaces.
Adopts
ESP32-S3-WROOM-1-N8R8 module, which is equipped with a dual-core Xtensa 32-bit LX7 processor with 240MHz running frequency, built-in 512 KB SRAM (TCM) and 8MB PSRAM; Onboard CH343 and CH334 chips for USB and UART development via USB-C port. Compatible with the pinout of ESP32-S3-DevKitC-1 development board, more convenient to use and expand a variety of peripheral modules.
You can choose ESP-IDF, Arduino, MicroPython, or other development environments in software so that you can easily and quickly get started and apply it to the product.
Key features include:
- Adopts ESP32-S3-WROOM-1-N8R8 module with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz
- Integrated 512KB SRAM, 384KB ROM, 8MB PSRAM, 8MB Flash memory
- Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance.
- Type-C connector, easier to use
- Onboard CH343 and CH334 chips can meet the needs of USB and UART development via a Type-C interface
- Rich peripheral interfaces, compatible with the pinout of ESP32-S3-DevKitC-1 development board, offers strong compatibility and expandability
- Castellated module allows soldering directly to carrier boards
- Supports multiple low-power operating states, adjustable balance between communication distance, data rate and power consumption to meet the power requirements of various application scenarios
Supports ESP-IDF, Arduino, MicroPython
Comprehensive SDK, Dev Resources, And Tutorials To Help You Easily Get Started
ESP32-S3 Designed For AIoT Applications
Powered By Xtensa 32-Bit LX7 Dual-Core Processor With Frequency Up To 240 MHz
Powerful AI Computing Capability & Reliable Security Features
WIFI And BLE 5 Support
ESP32-S3 Integrates 2.4 GHz Wi-Fi (802.11 B/G/N) With 40 MHz Of Bandwidth Support
Its Bluetooth Low Energy Subsystem Supports Bluetooth 5 (LE) And Bluetooth Mesh
Function Block Diagram

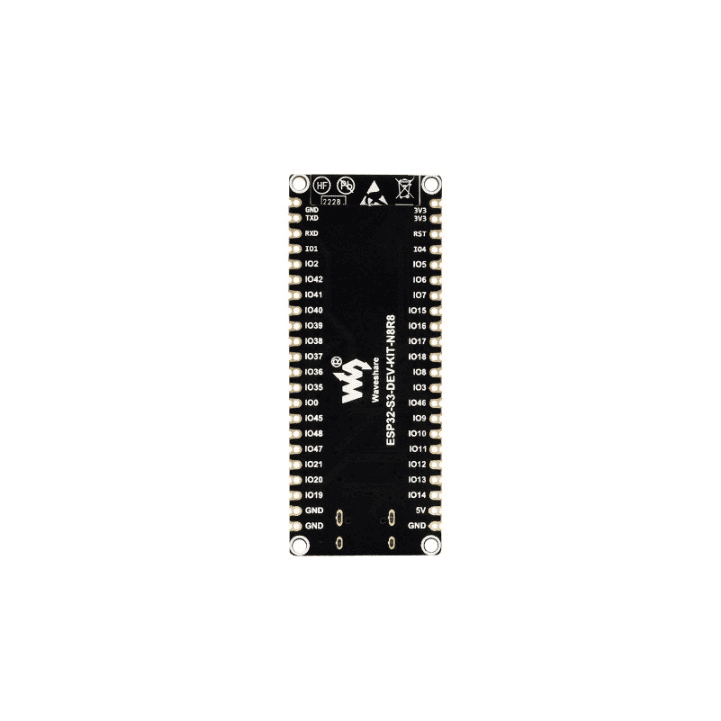

Pinout Definition
Compatible With The Pinout Of ESP32-S3-DevKitC-1 Development Board
Onboard Resources
Outline Dimensions

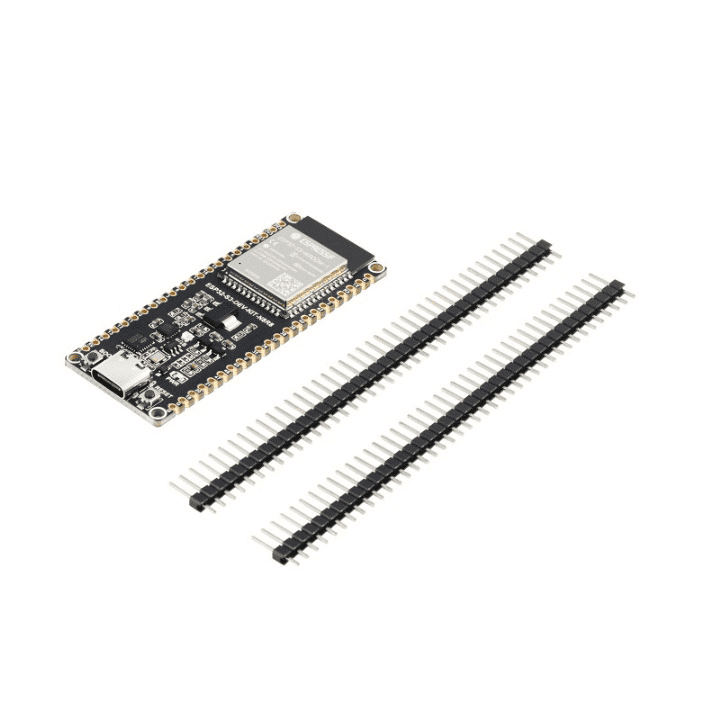

- PACKAGE CONTENT
Weight: 0.014 kg

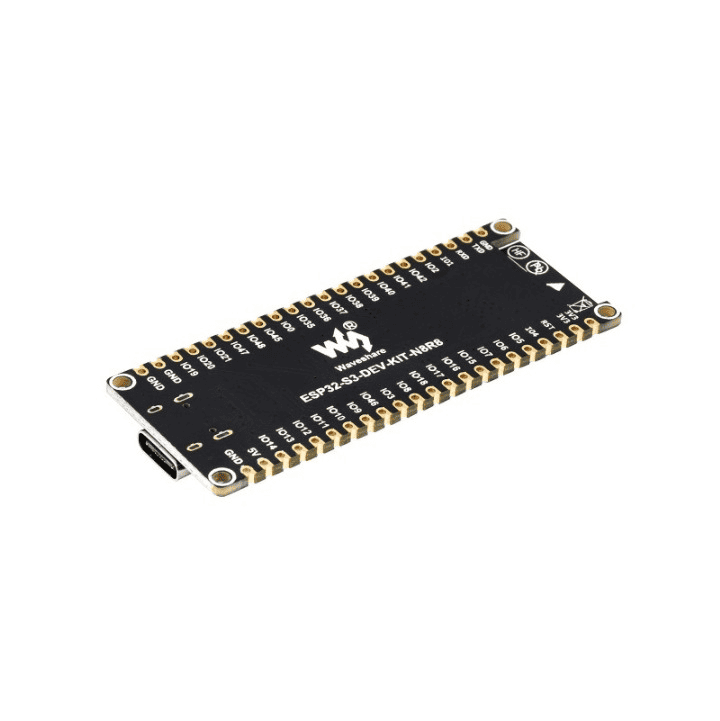

ESP32-S3-DEV-KIT-N8R8
- ESP32-S3-DEV-KIT-N8R8 x 1
- 40PIN male pinheader(black) x 2
1
