SKU: 26405
Part Number: ESP32-S3-GEEK
Brand: Waveshare
Korisne informacije:
www.waveshare.com/wiki/ESP32-S3-GEEK Waveshare ESP32-GEEK Development Board, Based On ESP32-S3R2 Controller Chip, With 1.14inch 65K Color LCD, Supports WiFi & Bluetooth LE, USB-A Male Port, With White Plastic Case

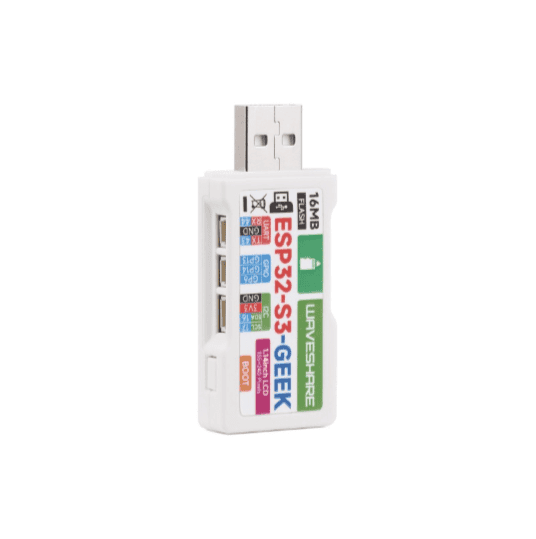

ESP32-S3 GEEK Development Board
Integrated LCD Screen, TF Card Slot, Boot Button and Other Peripheral interfaces
Suitable for applications such as Wireless USB Flash Drive, USB WiFi/Bluetooth,
USB Dongle Based on ESP32-S3
Board Specifications
ESP32-S3-GEEK is a geek development board designed by Waveshare, onboard USB-A port, 1.14inch LCD screen, TF card slot, and other peripherals. Supports 2.4GHz WiFi and BLE 5, with integrated 16MB Flash & 2MB PSRAM, provides I2C port, UART port, and GPIO header, bringing more possibilities for your project.
Key features include:
- Adopts ESP32-S3R2 chip with Xtensa® 32-bit LX7 dual-core processor, capable of running at 240 MHz
- Built in 512KB SRAM, 384KB ROM, 2MB of on-chip PSRAM, and onboard 16MB Flash memory
- Onboard 1.14inch 240×135 pixels 65K color IPS LCD display
- Integrated 2.4GHz WiFi and Bluetooth LE wireless communication
- WiFi supports Infrastructure BSS in Station, SoftAP, and Station + SoftAP modes
- WiFi supports 1T1R mode with data rate up to 150 Mbps
- Bluetooth supports high power mode (20dBm)
- Internal co-existence mechanism between Wi-Fi and Bluetooth to share the same antenna
- Onboard 3PIN UART port, 3PIN GPIO header and 4PIN I2C port
- Equipped with plastic case and cables
- Provides online open-source demo and resources, more convenient for learning and development
Combines Multi Functions In One
Onboard Multi Interfaces And 1.14inch LCD Display, Combines With
WiFi & Bluetooth For More Possibilities
Application Example
Suitable For Creative Applications Such As Wireless USB Flash Drives, USB WiFi/Bluetooth, USB Dongle Based On ESP32-S3, As Well As For Introductory Programming Learning, Etc.
Onboard Resources
- USB-A interface
- UART port
- GPIO header
- I2C port
- TF card slot
- W25Q128JVSIQ
16MB NOR-Flash
- ESP32-S3
- BOOT button
- Onboard antenna
Outline Dimensions
- PACKAGE CONTENT
Weight: 0.003 kg
ESP32-S3-GEEK and cables x1
